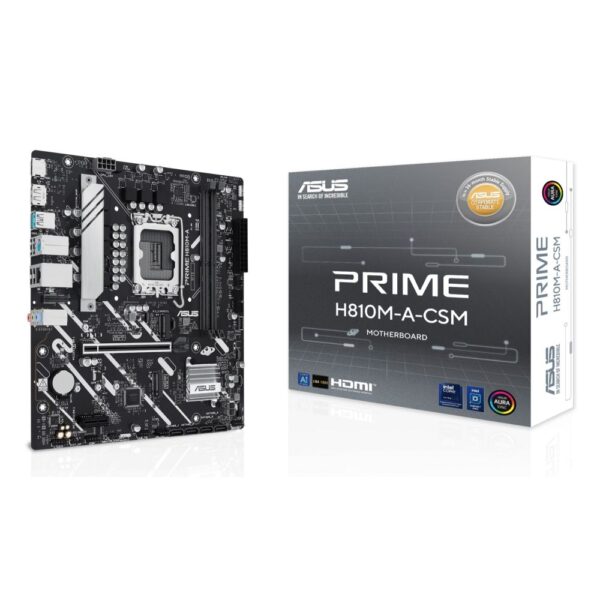

ASUS PRIME H810M-A-CSM Intel Motherboard
£95.79 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Micro ATX motherboard with Intel H810 chipset for Intel Core Ultra (Series 2) processors
- Supports dual-channel DDR5 memory up to 128GB at 6400MHz
- Features two M.2 slots with PCIe 4.0 support for high-speed storage
- Equipped with HDMI 2.1, DisplayPort 1.4, and Intel I219V Gigabit Ethernet
- Offers comprehensive connectivity including USB 3.2 Gen 2, USB 2.0, and front USB Type-C
Payment Methods:
You may also like
ASUS PRIME H810M-A-CSM | Micro ATX Intel H810 Motherboard

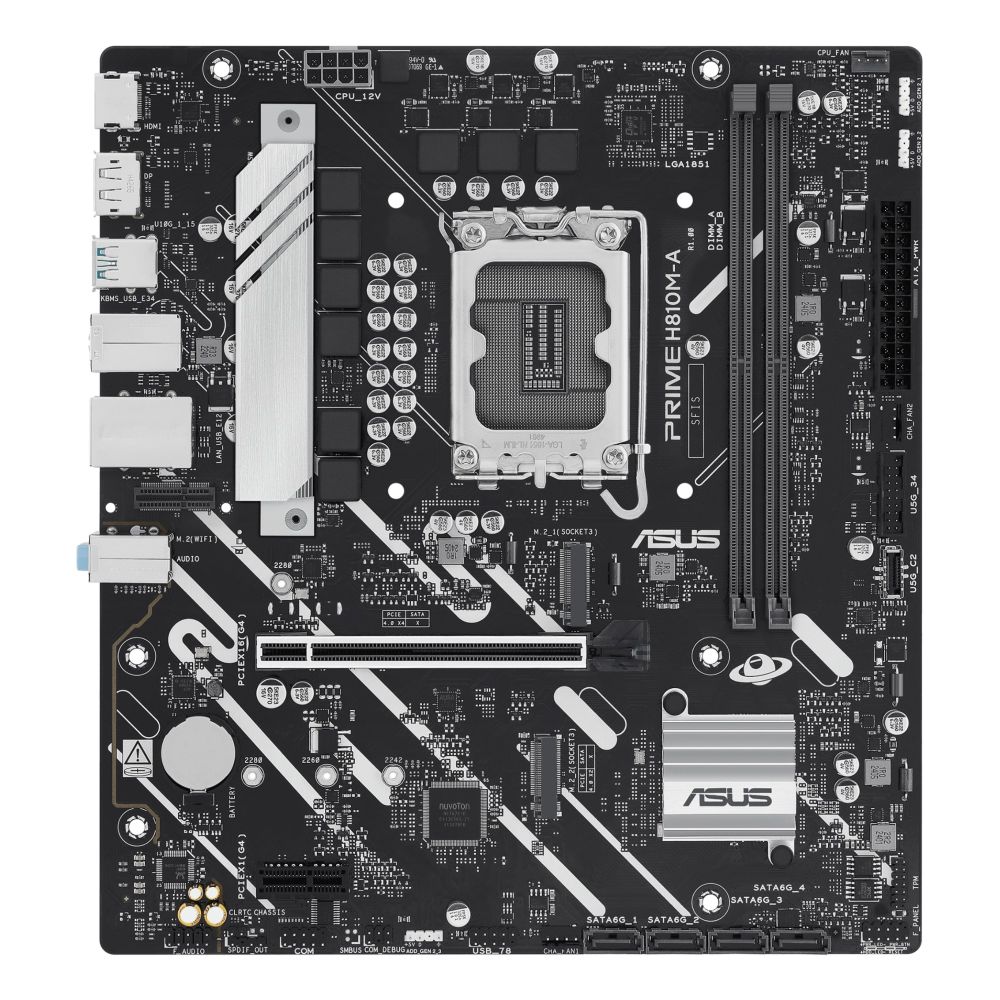

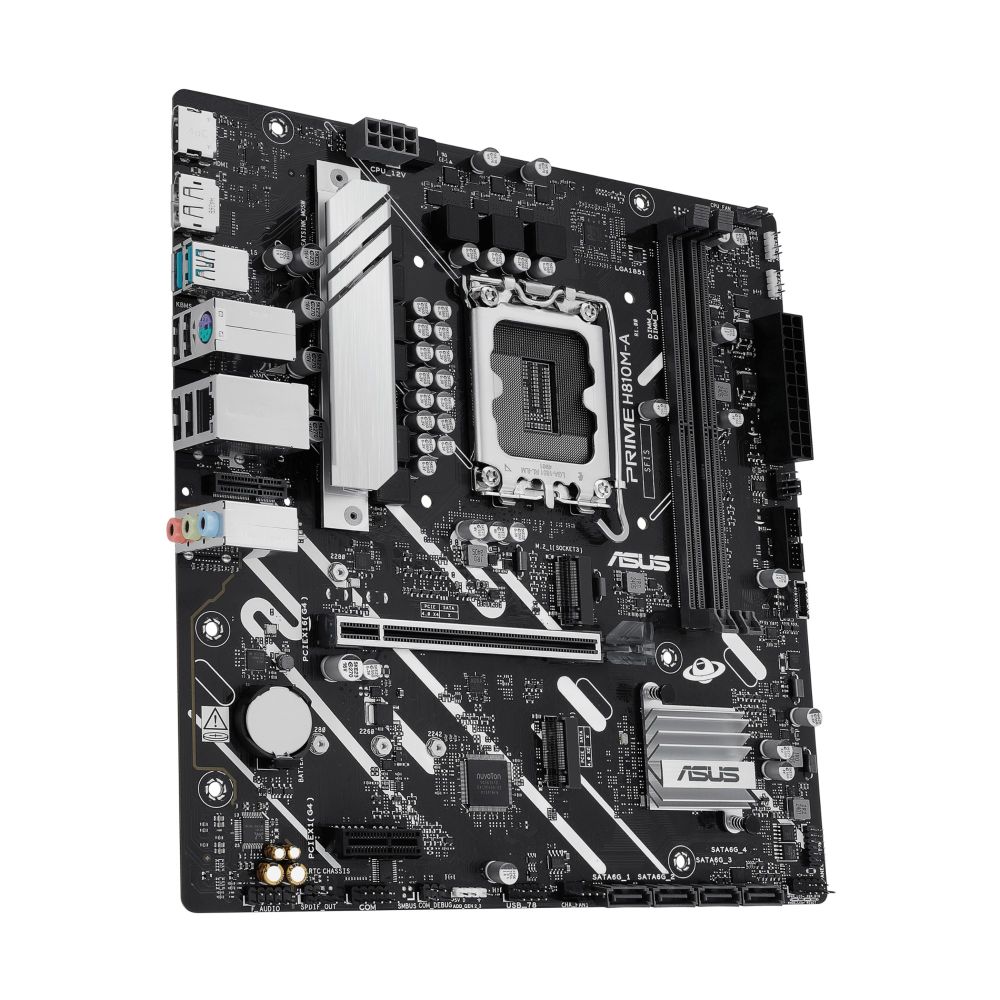

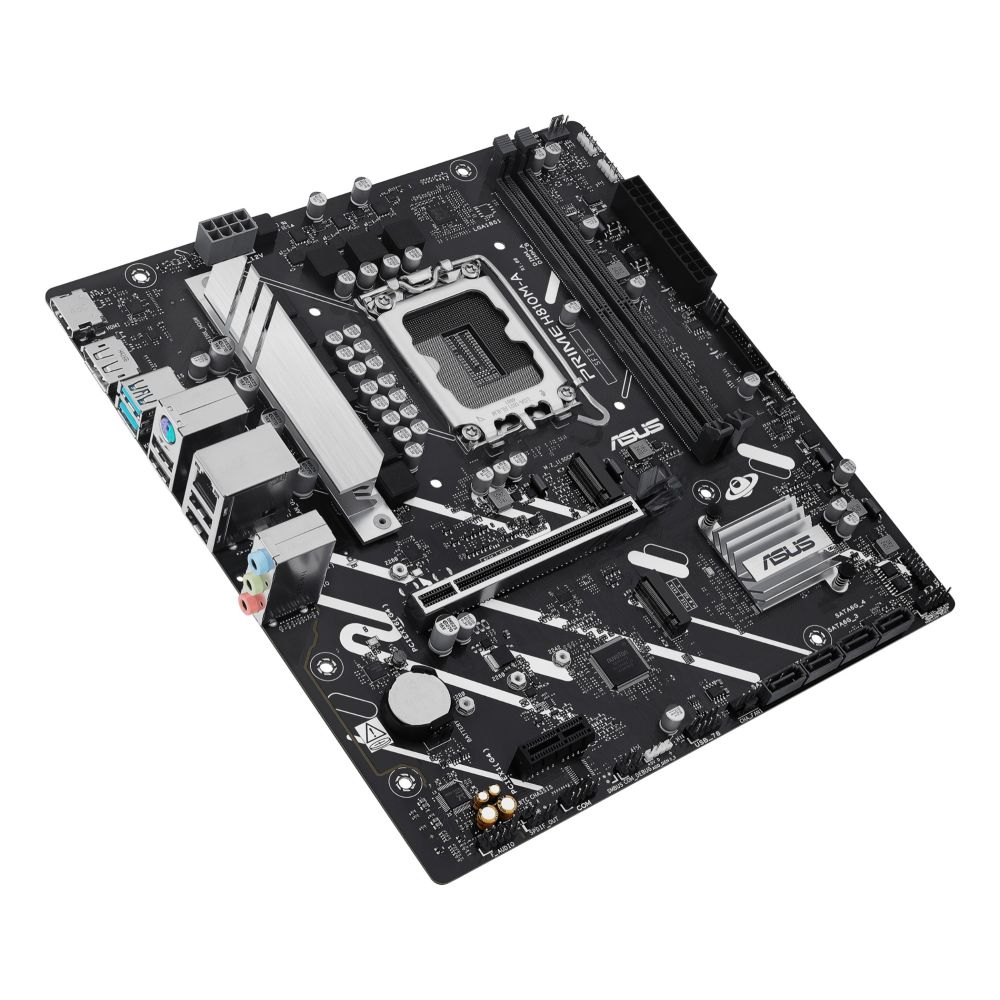

The ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX motherboard is engineered for Intel Core Ultra Processors (Series 2), offering robust power delivery, comprehensive cooling, and intelligent tuning options for both DIY builders and IT professionals.
ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
Built on the Intel H810 chipset, this micro ATX motherboard delivers a balanced platform for performance computing, featuring DDR5 memory support up to 6400 MHz, dual M.2 slots for high-speed storage, and extensive connectivity options including USB 3.2 Gen 2 and Intel Gigabit Ethernet.
Product Specifications
| Metric | Spec |
|---|---|
| Socket | LGA 1851 (Socket V1) |
| Memory | 2x DDR5 slots, up to 128 GB, 6400 MHz |
| M.2 Slots | 2x (PCIe 4.0 x4) |
| Form Factor | micro ATX |
| LAN | Intel I219V Gigabit Ethernet |
Performance for Intel Core Ultra Processors
The PRIME H810M-A-CSM features a 6+1+1+1 phase digital power design with discrete MOSFETs, delivering stable and efficient power to Intel Core Ultra Processors (Series 2). This robust power delivery ensures consistent performance whether you’re tackling everyday tasks or pushing your system with demanding applications.
Enhanced Memory and Storage Capabilities
With dual DIMM slots supporting up to 128 GB of DDR5-6400 memory in dual-channel configuration, this motherboard offers substantial bandwidth for multitasking and content creation. The two M.2 slots provide flexible storage options, with one supporting PCIe 4.0 x4 for speeds up to 64 Gbps, enabling rapid boot times and application loading.
Advanced Cooling Solutions
Engineered with multiple onboard heatsinks and hybrid fan headers, the PRIME H810M-A-CSM maintains optimal temperatures under load. ASUS Fan Xpert 2+ software provides intelligent fan control with Auto-Tuning and Extreme Quiet modes, while the UEFI BIOS offers additional cooling configuration options.
Comprehensive Connectivity Options

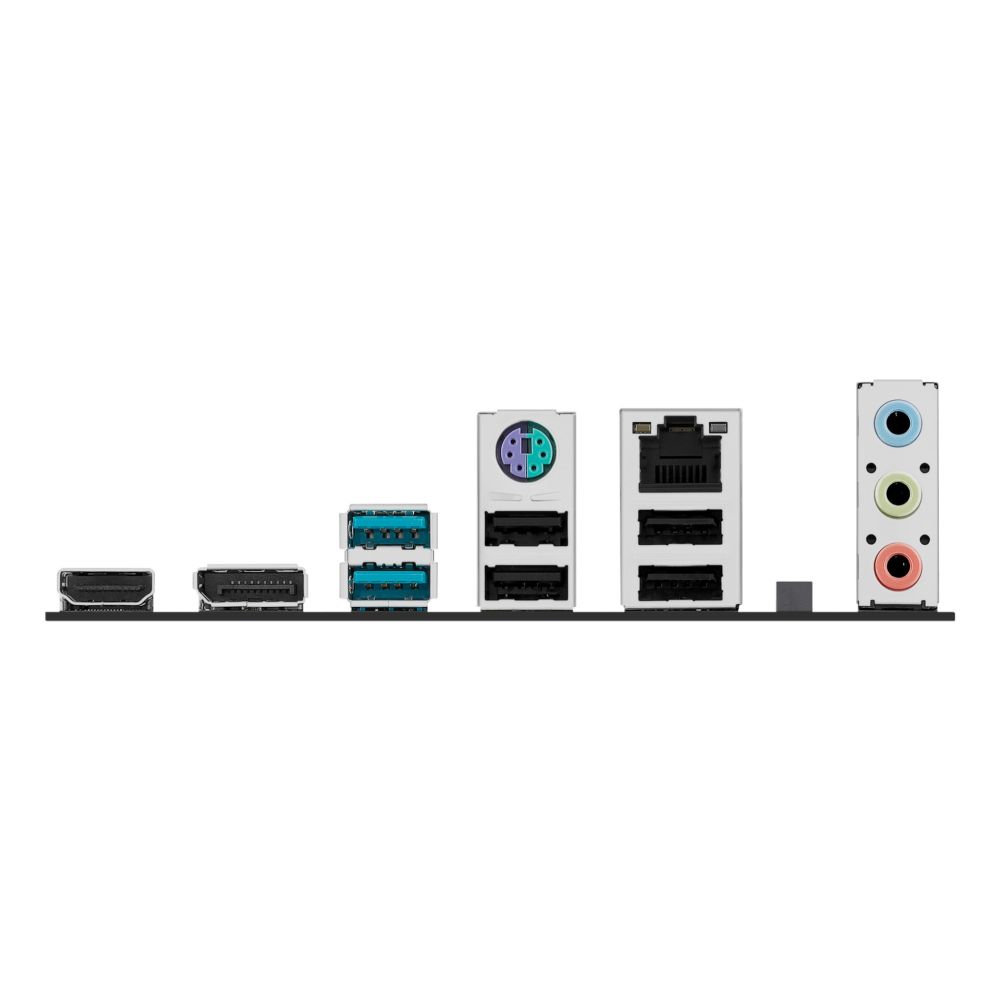

This motherboard offers extensive connectivity including two rear USB 3.2 Gen 2 ports at 10 Gbps, a front USB Type-C port at 5 Gbps, and Intel Gigabit Ethernet for reliable network performance. The inclusion of HDMI 2.1 and DisplayPort 1.4 supports modern display configurations, while seven 7.1-channel audio delivers immersive sound.
Box contents
- ASUS PRIME H810M-A-CSM motherboard

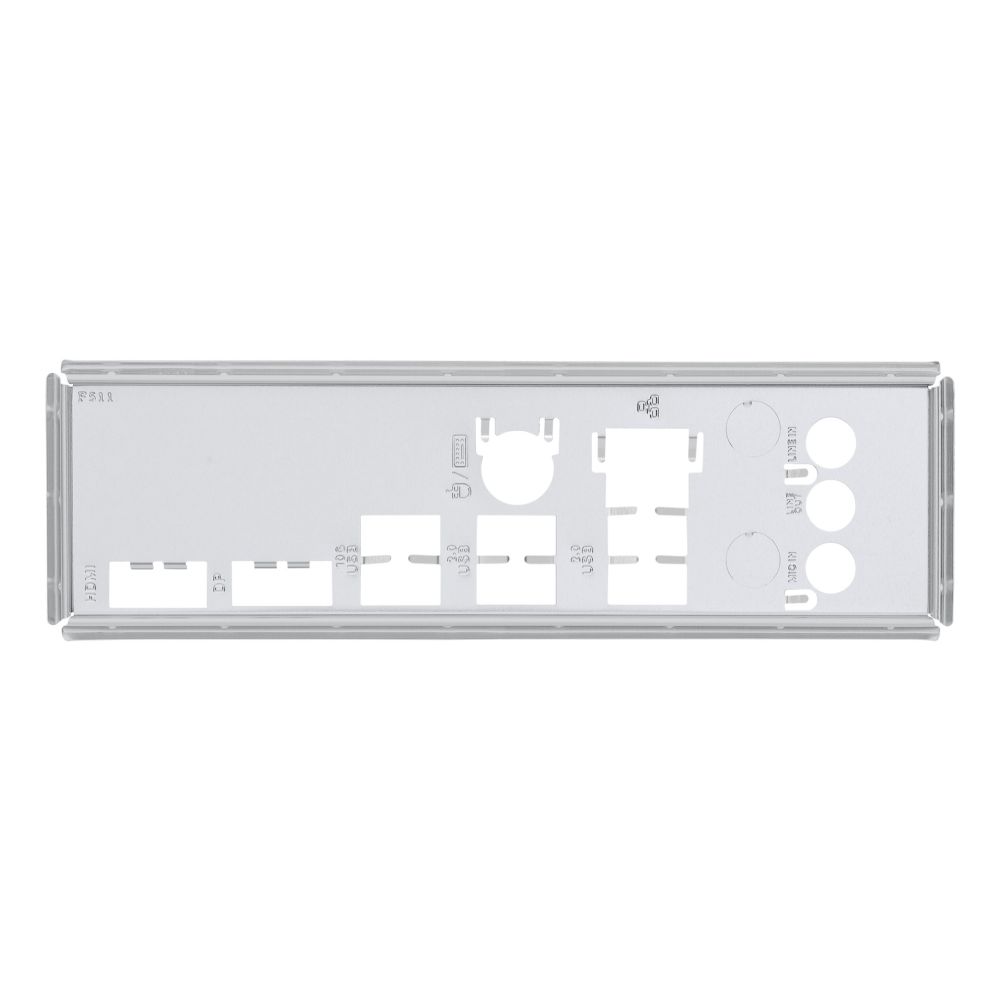

- I/O shield
- User manual
- Warranty card
- SATA cables (quantity varies by region)
- M.2 screws
Key points to check
- Confirm your Intel Core Ultra Processor (Series 2) is compatible with LGA 1851 socket
- Verify your chassis supports micro ATX form factor (244 x 222 mm)
- Check that your PSU has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your CPU cooler fits within the motherboard’s height constraints
Common questions
What processors are compatible with this motherboard?
Does this motherboard support Wi-Fi connectivity?
How many storage drives can I install?
What is the maximum memory capacity?
Is this motherboard suitable for gaming?
Buying advice
The ASUS PRIME H810M-A-CSM offers an excellent foundation for building a capable Intel Core Ultra system, combining reliable power delivery, modern connectivity, and ASUS’s trusted build quality. It’s particularly well-suited for users seeking a balanced micro ATX platform for productivity, content creation, or mainstream gaming. Covered by the applicable manufacturer warranty.
| Front panel connector | Yes |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Number of RGB LED pin headers | 3 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 6400 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I219V |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Black |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Width | 244 mm |
| Depth | 222 mm |
| Number of M.2 E slots | 1 |
| Height | 37 mm |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 782 g |
| Weight | 534 g |
| PCI Express x1 Gen 4.x slots | 1 |
| Distributor SKUs | MBD-90MB1KK0-M0EAYC, 11508267, PRIME H810M-A-CSM, 543714, STD10223439, 2110366, CL90MB1KK0-M0EAYC |
