ASUS PRIME Z790-P LGA 1700 ATX DDR5 Motherboard

ASUS PRIME Z790-P | Intel Z790 ATX Motherboard

The ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX motherboard is engineered for UK PC builders seeking a stable foundation for 13th Gen Intel Core processors. This board targets users who need robust power delivery and flexible cooling options for productivity and gaming. It offers a balanced feature set for a reliable daily driver.

Technical Foundation and Core Compatibility

This motherboard supports Intel LGA 1700 socket processors, including Core i9, i7, i5, i3, Pentium Gold, and Celeron. It features four DDR5 DIMM slots, supporting dual-channel memory up to 192 GB and speeds reaching 7200 MHz via XMP. The Intel Z790 chipset provides the backbone for these modern components. For storage, you get three M.2 slots and four SATA III connectors, allowing for fast NVMe and HDD/SSD configurations.

Connectivity and Expansion Options

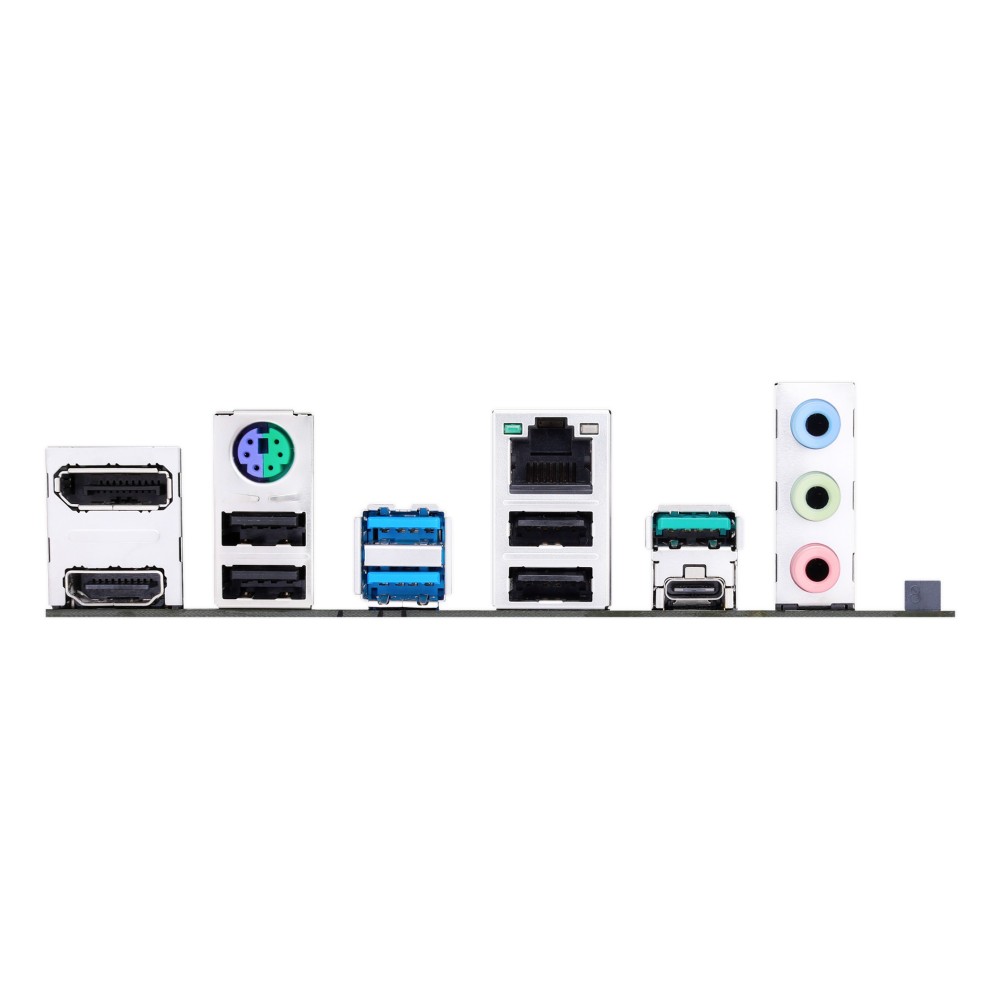

The board includes a comprehensive I/O panel and internal headers. You get one USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and four USB 2.0 ports. Video outputs include one HDMI 2.1 and one DisplayPort 1.4. For networking, it uses a 2.5 Gigabit Ethernet port; note that Wi-Fi is not integrated. Internal connectors include a Thunderbolt header, multiple fan headers, and RGB LED support.

Slim Specs Table

Efficient Cooling and Thermal Management

The PRIME Z790-P includes passive cooling solutions to maintain stability. It features VRM heatsinks and a dedicated M.2 heatsink to reduce throttling during sustained transfers. The board has three chassis fan connectors and a CPU fan header. You can configure fan curves using Fan Xpert 4 software or the UEFI BIOS. A dedicated AIO pump header is also available for all-in-one liquid coolers.

Robust Power Delivery for Stable Performance

Stable power is critical for high-core-count CPUs. This board uses a ProCool power connector design with 4+8 pin EPS connectors. These solid-pin connectors deliver power directly to the processor. The design helps ensure reliable operation under load, which is essential for both work and play.

Flexible Storage and RAID Support

The motherboard supports multiple storage drives. It has three M.2 slots and four SATA III ports for HDDs and SSDs. RAID 0, 1, 5, and 10 are supported for data redundancy or performance. This flexibility allows you to build a system with ample fast storage.

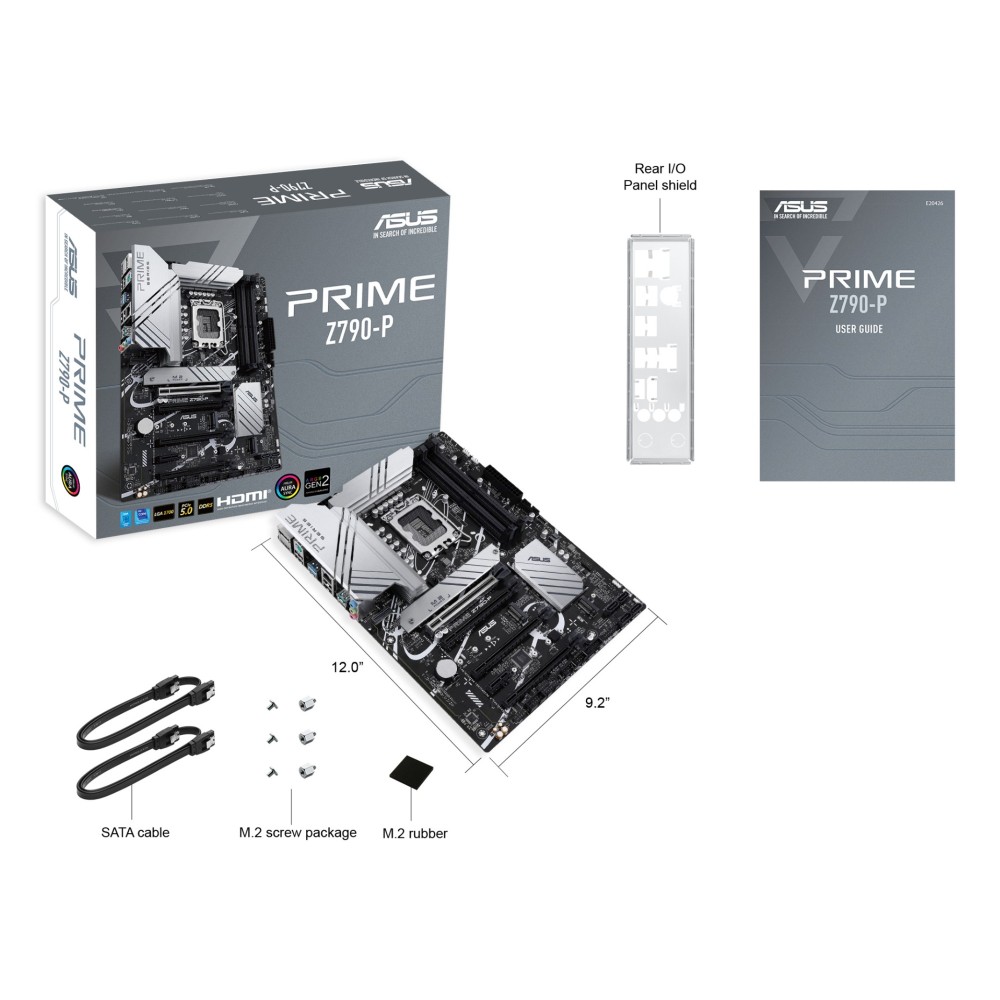

Box contents

• ASUS PRIME Z790-P motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O shield
• 1 x M.2 heatsink
• 1 x M.2 screw package
• 1 x User guide

Check before you buy

• Confirm your case supports ATX form factor (305 mm x 234 mm).
• Verify you have an LGA 1700 compatible CPU and DDR5 memory.
• Confirm you have a suitable PSU with 24-pin ATX and 4+8 pin EPS connectors.
• Check if you need Wi-Fi, as this board does not include it.

Frequently Asked Questions

Q: Does the ASUS PRIME Z790-P support Wi-Fi?

A: No, this motherboard does not have built-in Wi-Fi. You will need a separate Wi-Fi adapter or use the Ethernet port.

Q: What is the maximum memory speed supported?

A: It supports DDR5 memory speeds up to 7200 MHz via overclocking (XMP). Base speeds start at 4800 MHz.

Q: How many M.2 SSDs can I install?

A: You can install up to three M.2 NVMe SSDs. The board includes three M.2 slots for this purpose.

Q: Is this motherboard compatible with Windows 11?

A: Yes, it supports Windows 10 64-bit and Windows 11 operating systems.

Q: Does it have a Thunderbolt port?

A: It includes a Thunderbolt header for connecting a Thunderbolt expansion card (sold separately). The rear I/O does not have a native Thunderbolt port.

The Consultant’s Verdict & Warranty

The ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX is a solid choice for UK builders assembling a reliable 13th Gen Intel system without Wi-Fi. It suits users who value stable power delivery, effective cooling, and flexible storage options. It is ideal for productivity, content creation, and mainstream gaming builds. Covered by the standard Manufacturer Warranty.
