ASUS PRIME Z890-P LGA1851 ATX Z890

ASUS PRIME Z890-P | Intel Z890 ATX Motherboard

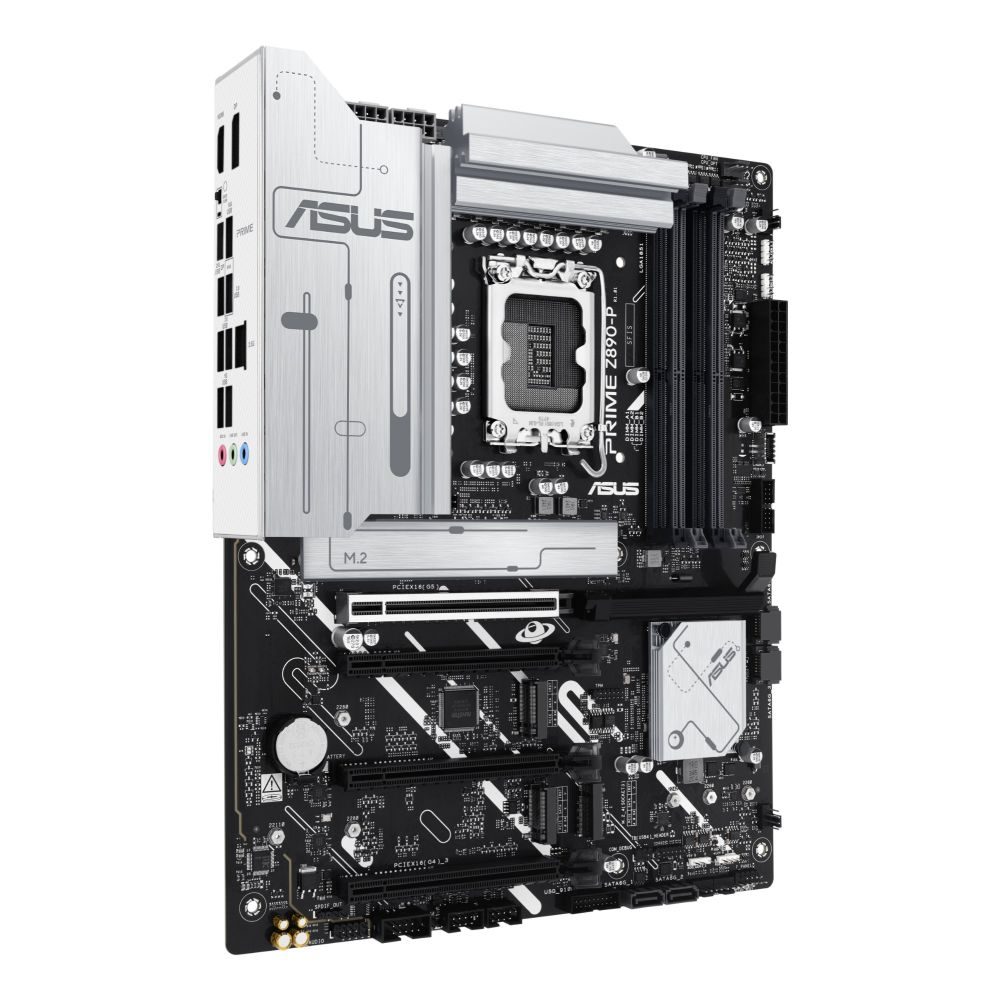

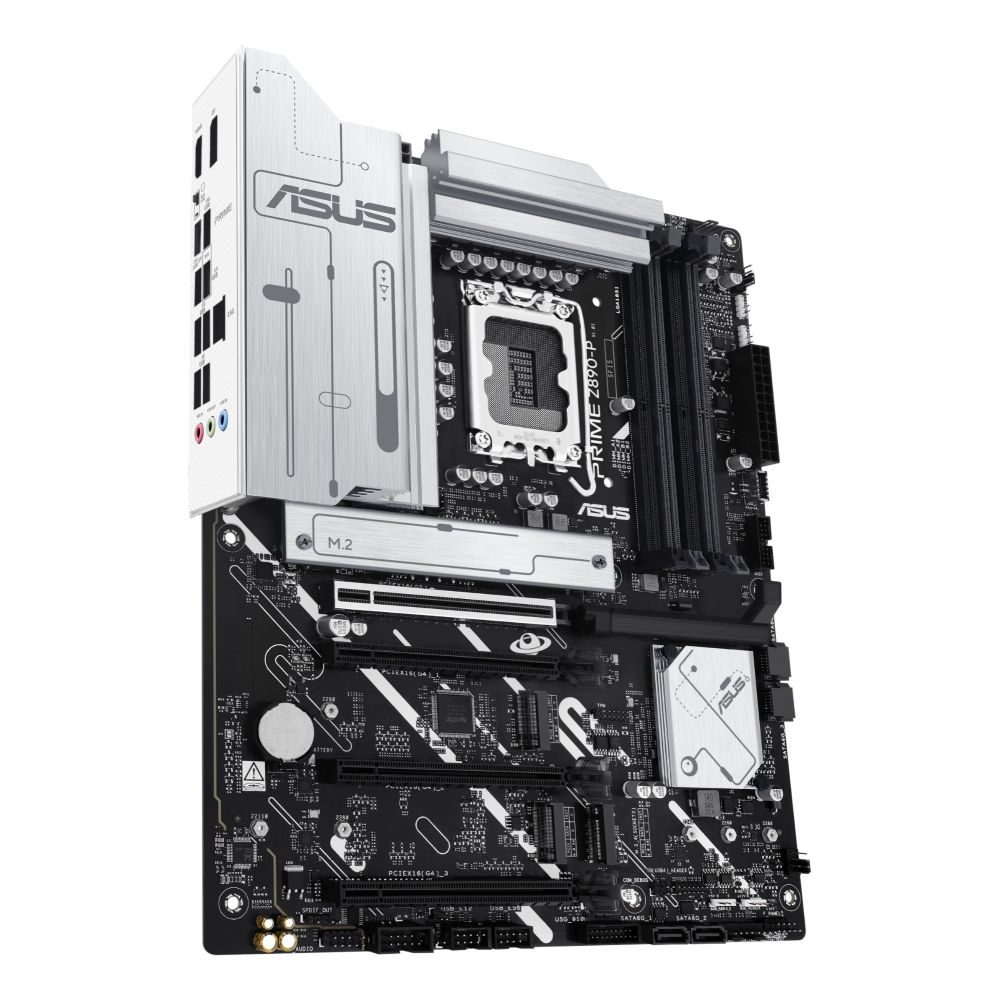

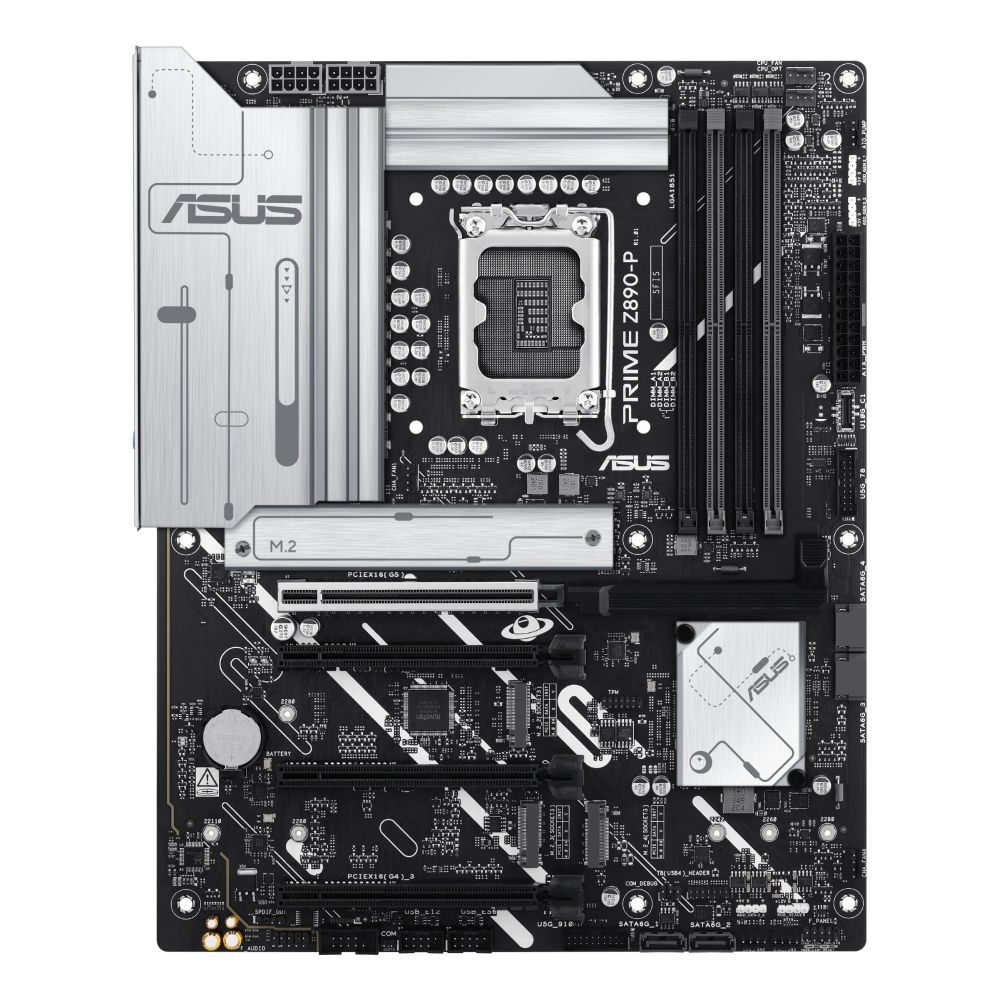

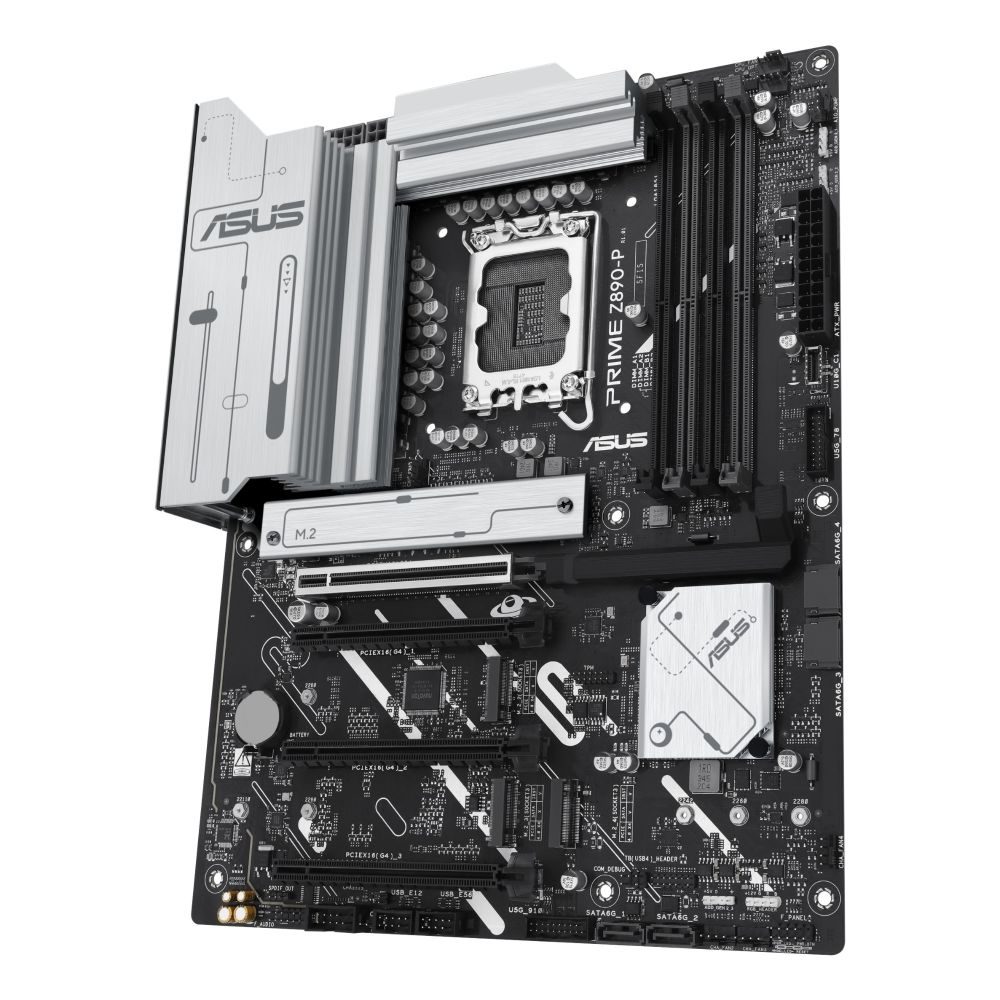

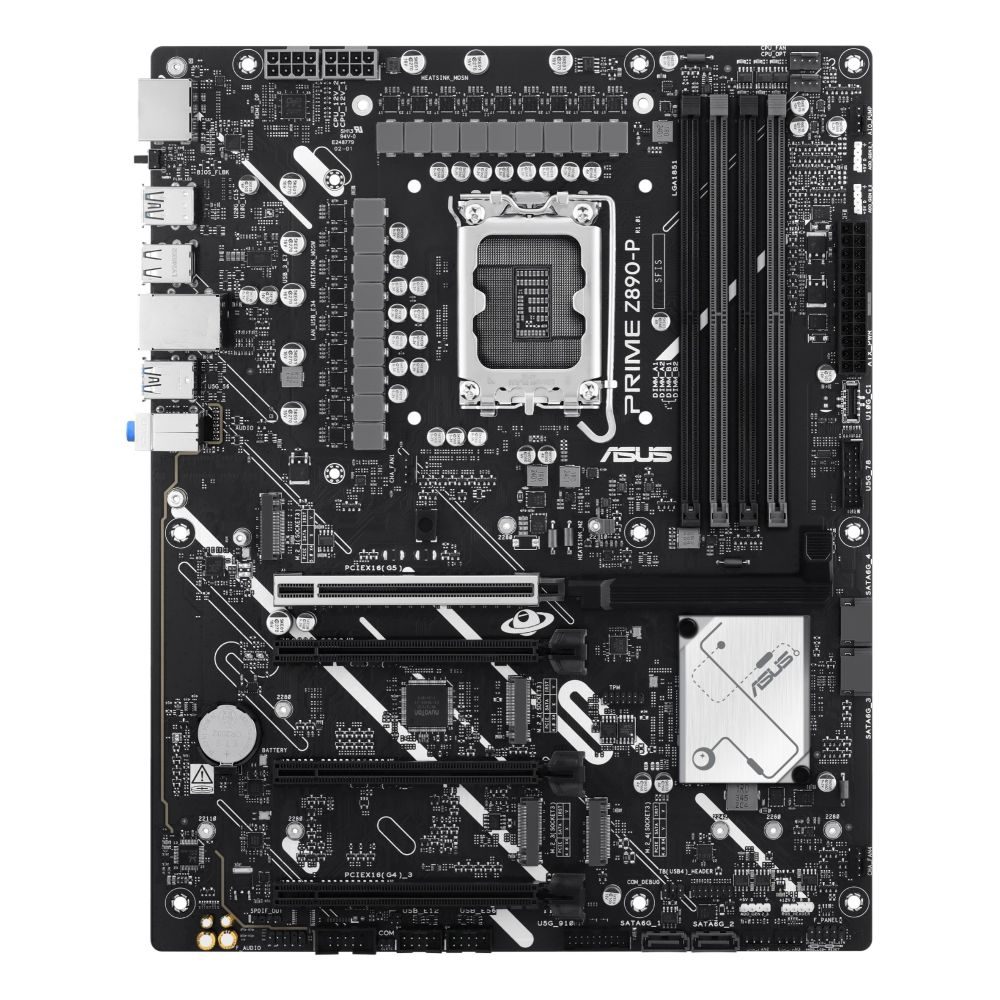

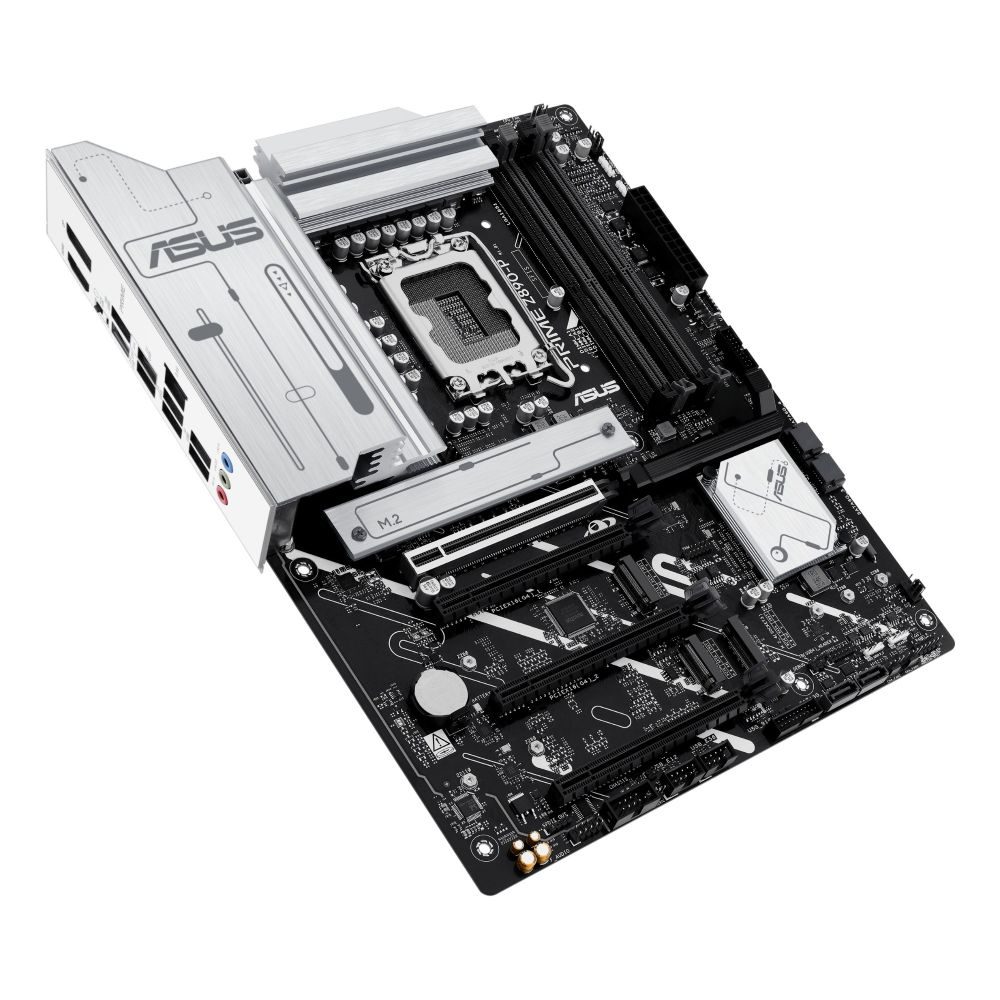

The ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX motherboard is engineered for UK builders using the latest Intel Core Ultra (Series 2) processors. It delivers a stable foundation for productivity and AI-accelerated workflows. This board focuses on essential performance, robust power delivery, and future-ready connectivity for modern PC systems.

Key Specifications

Robust Power and Memory Performance

The PRIME Z890-P features a 14+1+2+1 power stage design rated at 80A. This ensures stable power for high-core-count Intel Core Ultra processors. For memory, ASUS AEMP III firmware optimises DDR5 performance and stability, supporting speeds up to 7600 MHz. DIMM Fit analysis further fine-tunes each module for peak efficiency.

Four M.2 Slots for Fast Storage

This motherboard includes four M.2 slots for rapid storage configuration. One slot supports PCIe 5.0 at up to 128Gbps, while three support PCIe 4.0 at 64Gbps. This setup enables quicker boot times and faster application loading. It supports both HDDs and SSDs via M.2 and SATA III interfaces.

Comprehensive Cooling and AI Features

ASUS AI Cooling II automatically adjusts fan speeds for optimal thermals and reduced noise. The board includes multiple hybrid fan headers and passive heatsinks for stable operation under load. AI Advisor provides technical guidance, while NPU Boost offers a one-click overclock for the integrated NPU in compatible processors.

Next-Gen Connectivity and DIY Convenience

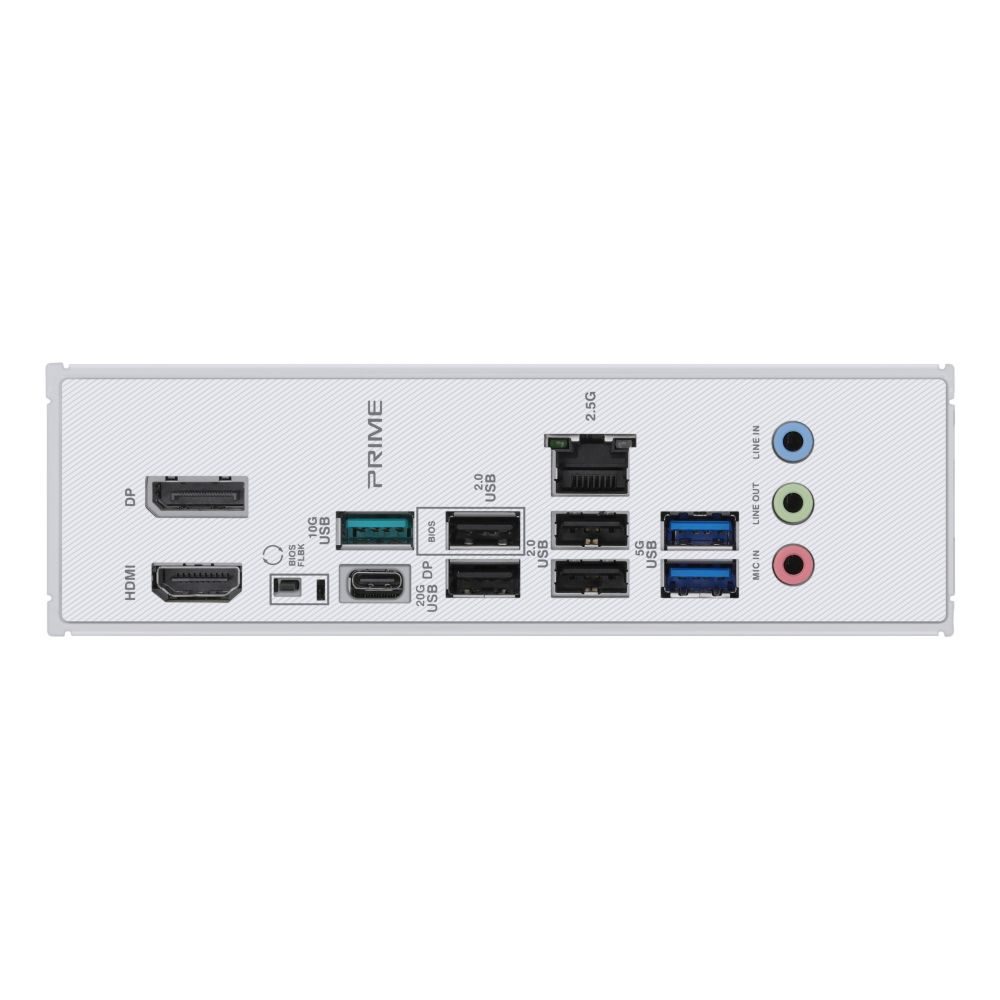

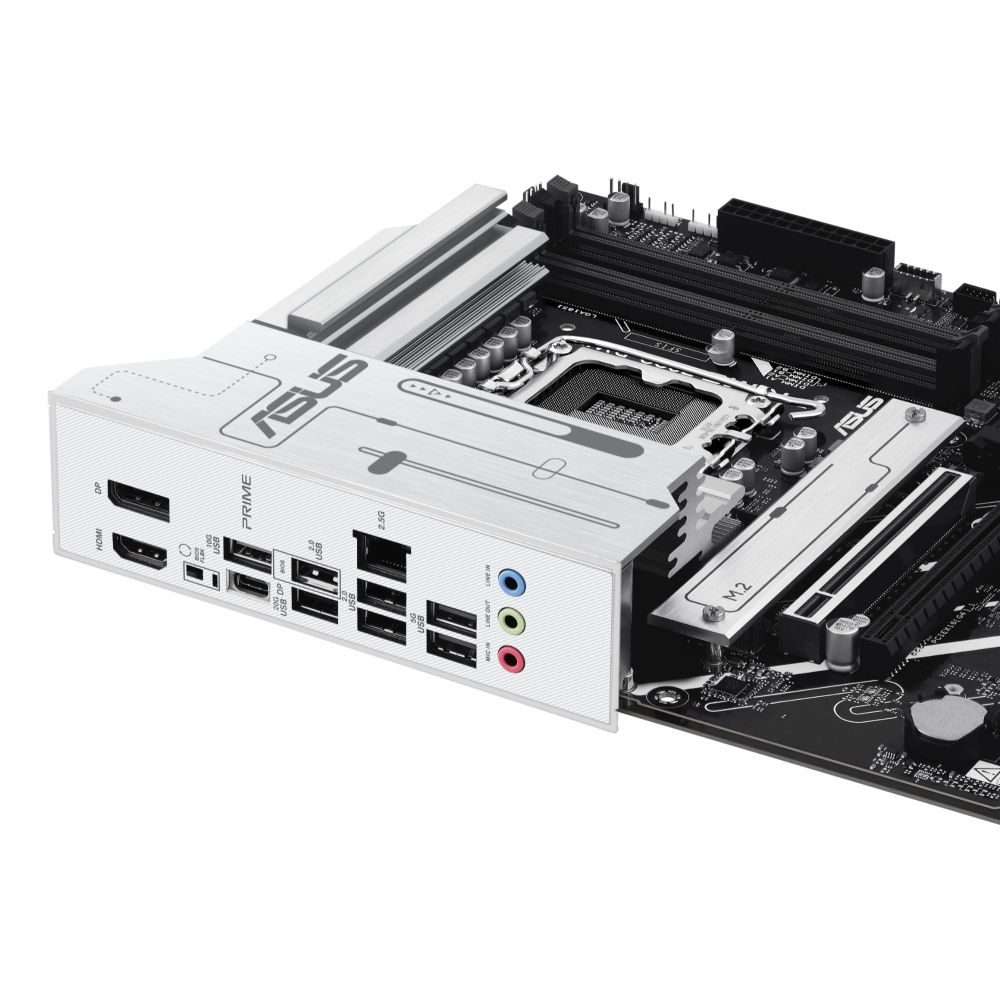

The rear I/O includes a USB 3.2 Gen 2 Type-C port with 20Gbps speeds and DP Alt Mode for 4K video output. PCIe 5.0 SafeSlot ensures secure installation for next-gen graphics cards. DIY-friendly tools like PCIe Slot Q-Release, M.2 Q-Latch, and a pre-mounted I/O shield simplify building and upgrading.

Advanced Customisation and Control

UEFI BIOS offers intuitive settings for beginners and advanced options for experts. TurboV Core allows in-Windows overclocking without reboots. Armoury Crate and Aura Sync provide full RGB lighting control. Three Addressable Gen2 RGB headers support custom lighting effects.

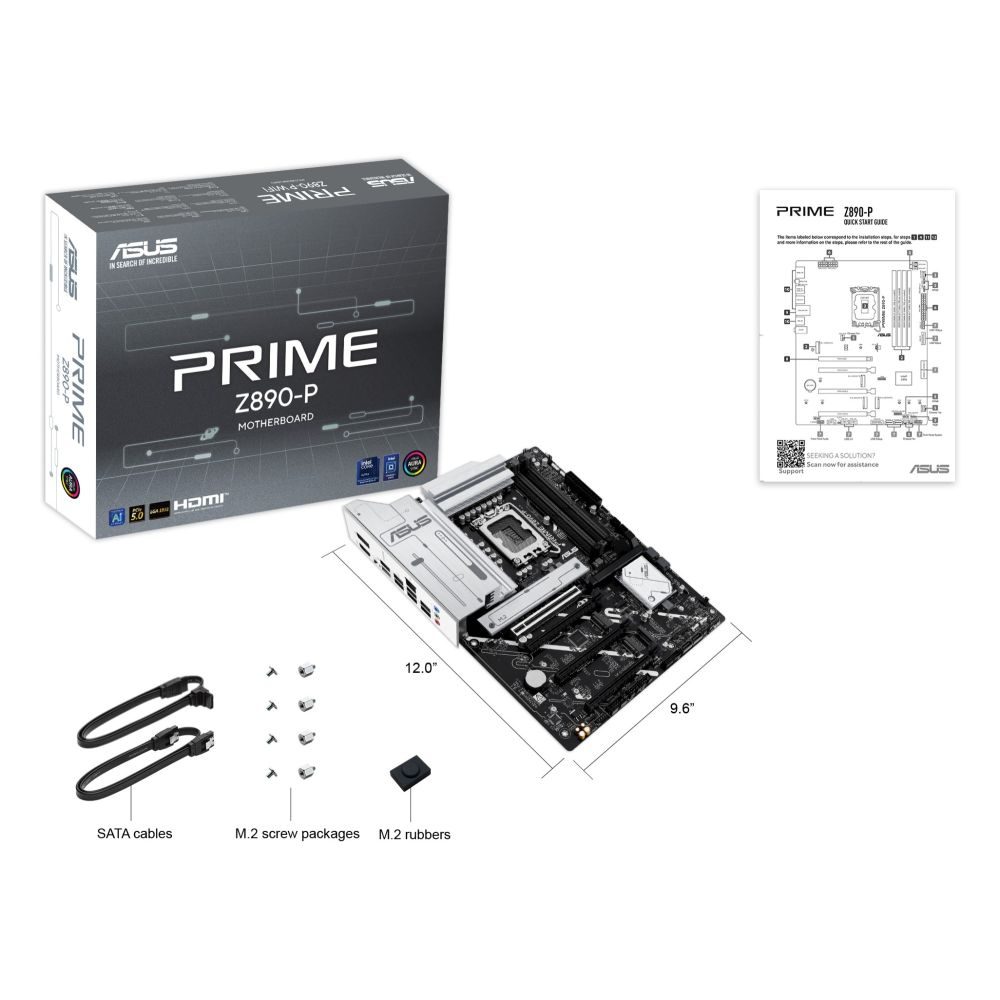

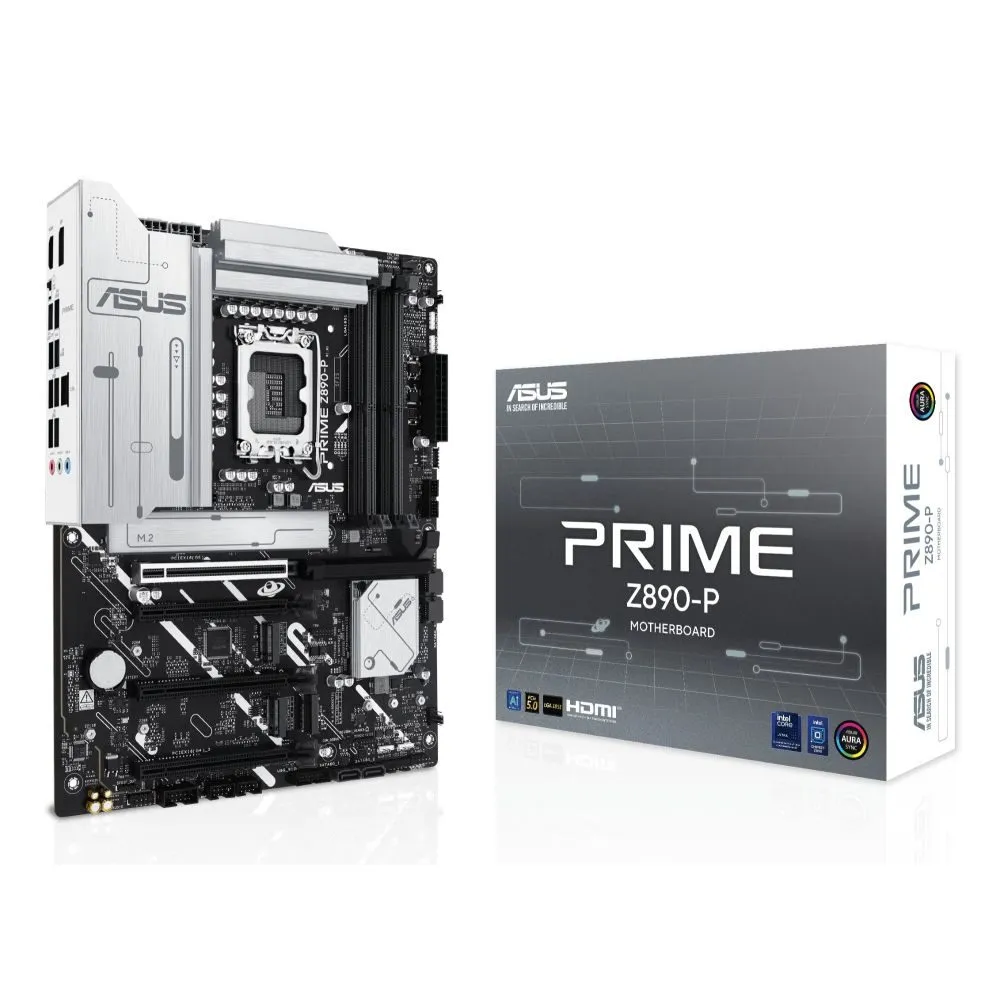

Box contents

• ASUS PRIME Z890-P motherboard
• SATA cables
• Quick installation guide
• Additional accessories may include M.2 screws and I/O shield (verify contents upon receipt)

Check before you buy

• Confirm your case supports ATX form factor (305 mm x 244 mm).
• Verify you have an Intel Core Ultra (Series 2) processor for LGA 1851.
• Ensure your power supply has a 24-pin ATX and 8-pin EPS connector.
• Confirm Wi-Fi requirements; this board has no built-in Wi-Fi.

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi?

A: No, the ASUS PRIME Z890-P does not include built-in Wi-Fi. You will need a separate Wi-Fi adapter or use the 2.5Gb Ethernet port.

Q: What is the maximum memory speed supported?

A: It supports DDR5 memory up to 7600 MHz via overclocking, using the AEMP III firmware profile.

Q: How many M.2 SSDs can I install?

A: You can install up to four M.2 SSDs. One slot supports PCIe 5.0 speeds, and three support PCIe 4.0.

Q: Is this motherboard compatible with Windows 11?

A: Yes, it supports Windows 10 and Windows 11 operating systems.

Q: Does it have a BIOS FlashBack feature?

A: Yes, BIOS FlashBack allows updates without a CPU or memory installed.

The Consultant’s verdict & warranty

This motherboard suits UK PC builders seeking a stable, future-proof base for Intel Core Ultra (Series 2) systems. It is ideal for productivity, content creation, and AI-assisted tasks. The robust power design and four M.2 slots offer excellent expandability. Covered by the standard Manufacturer Warranty.
