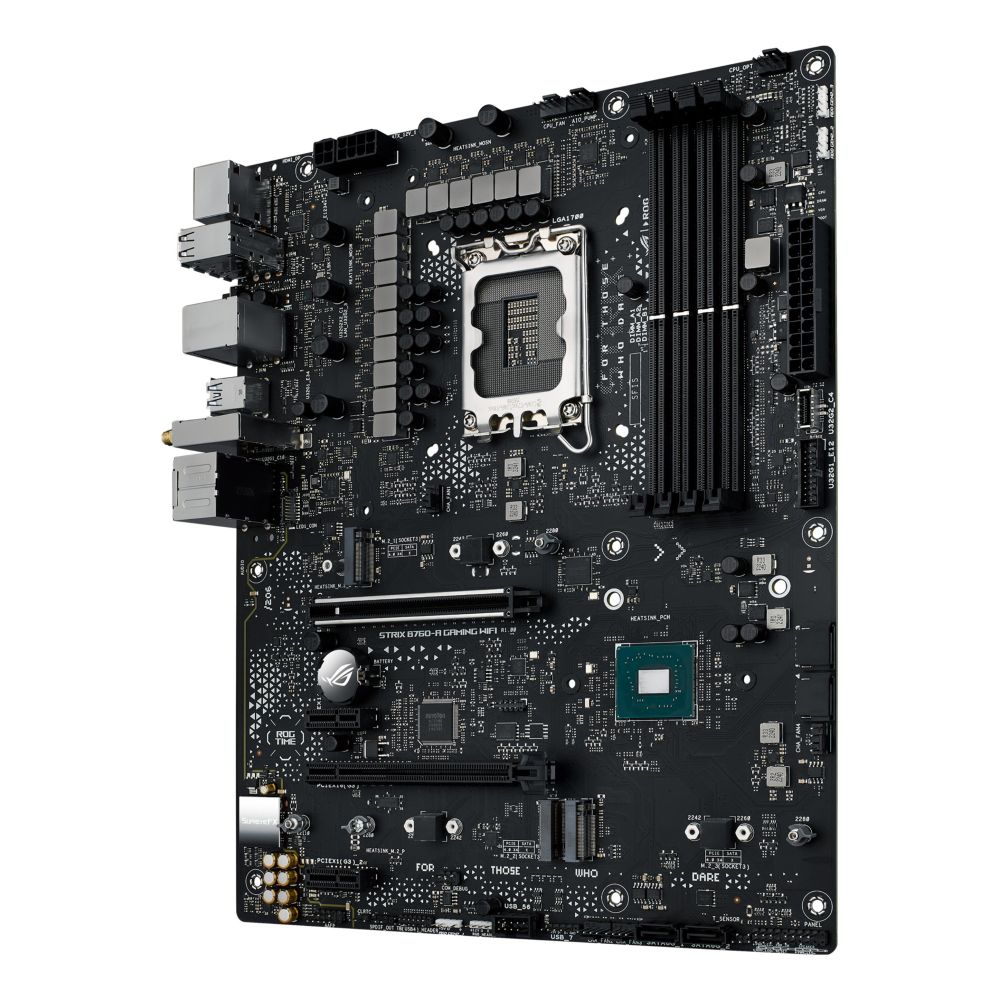

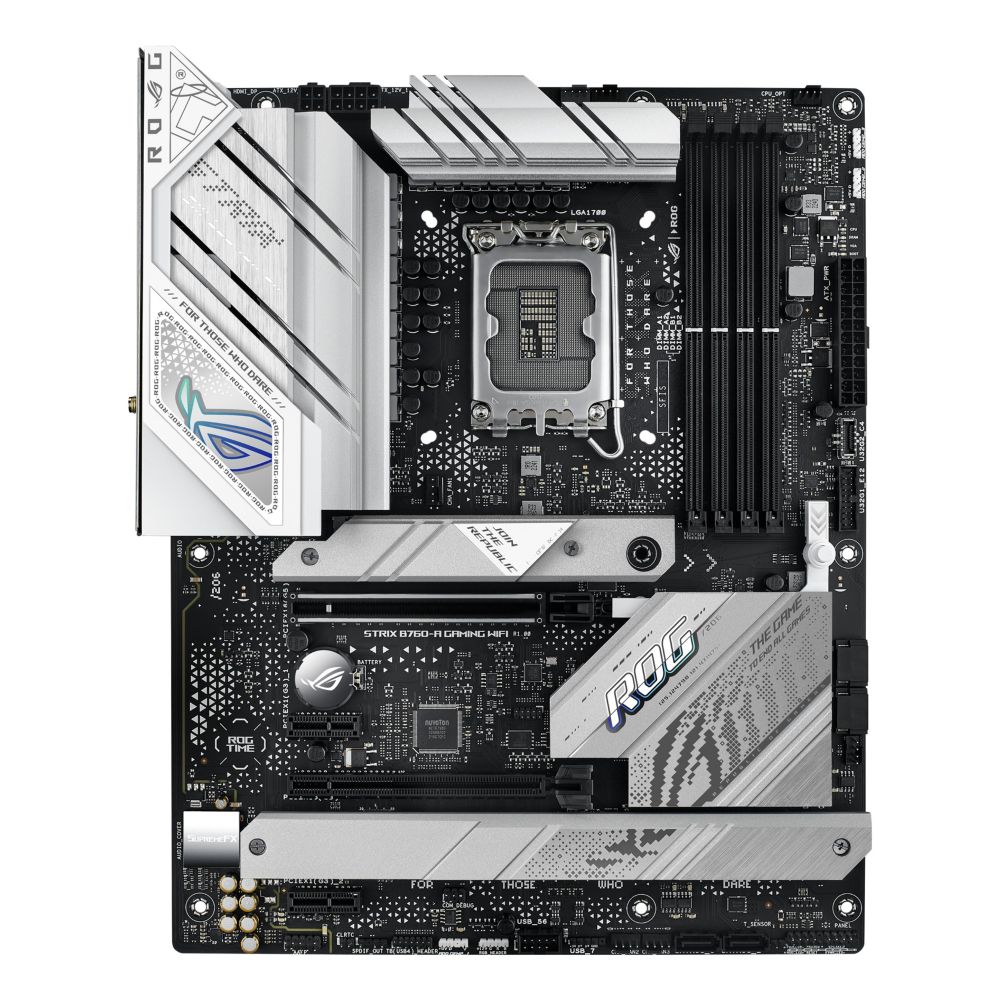

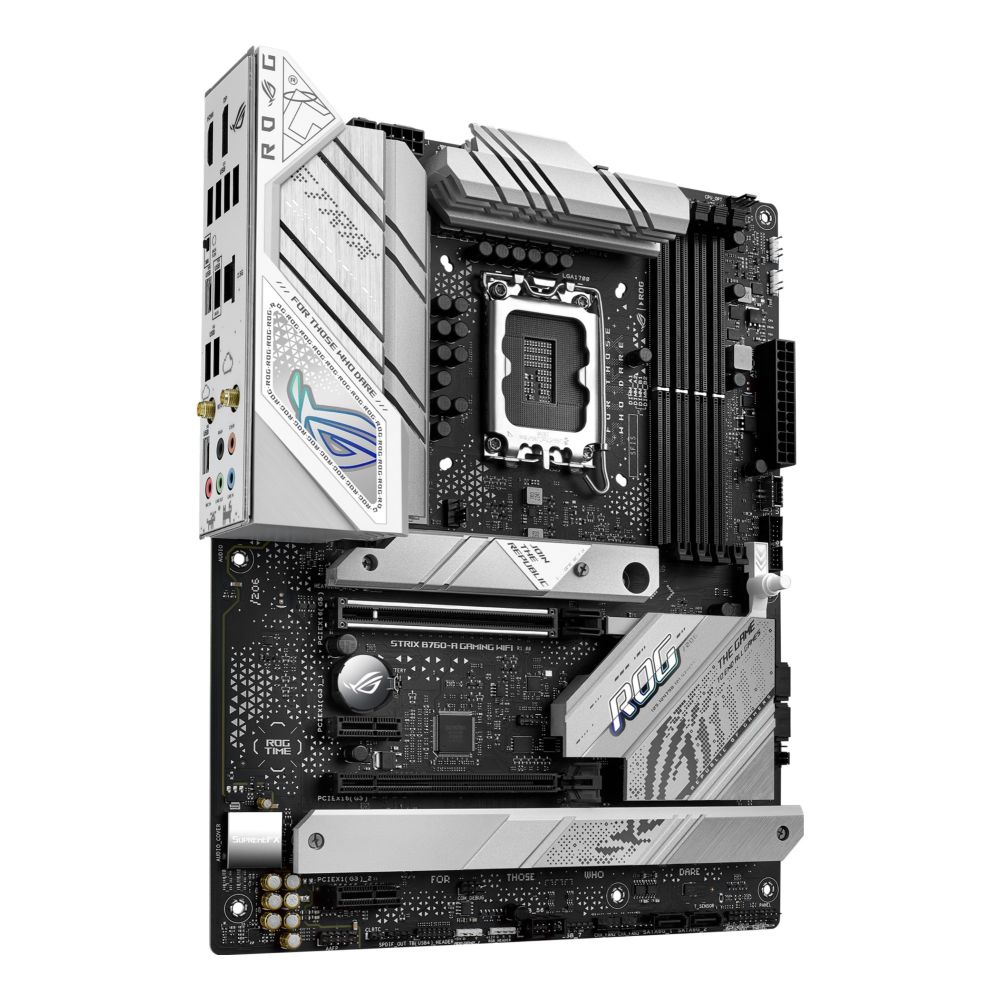

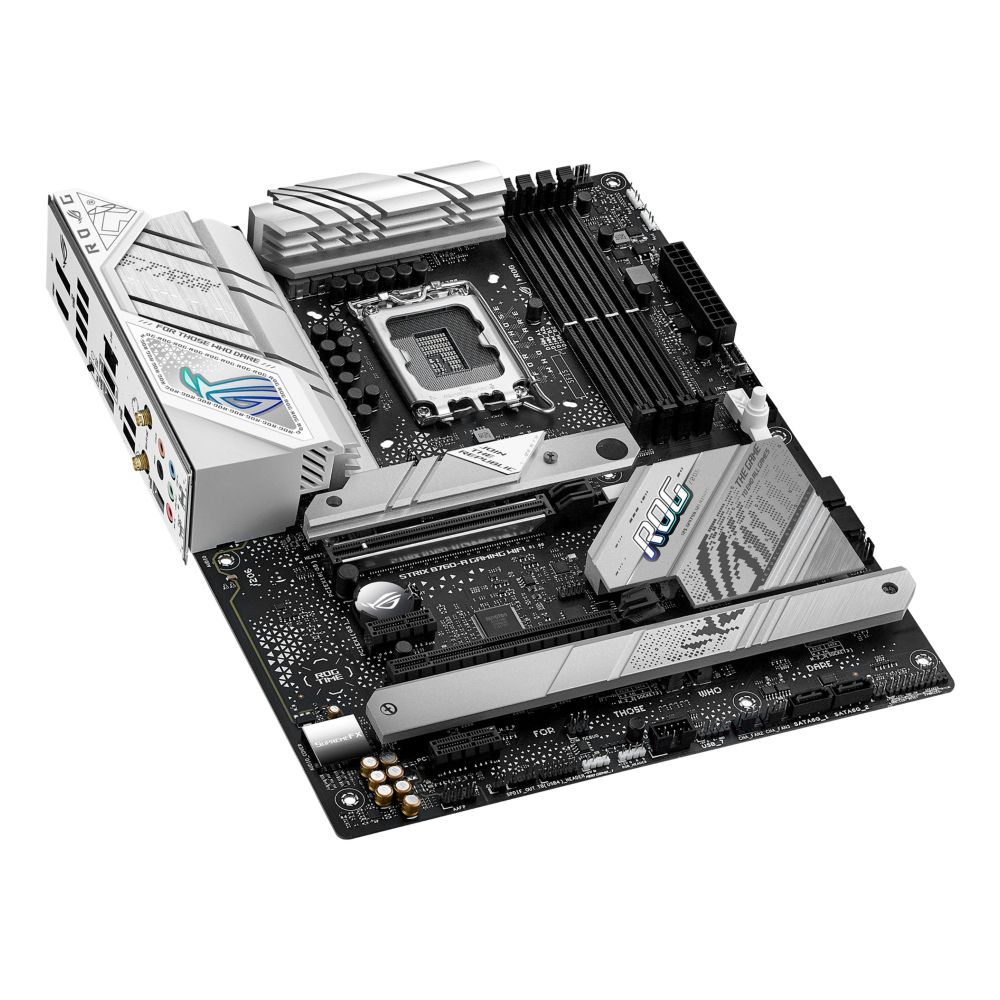

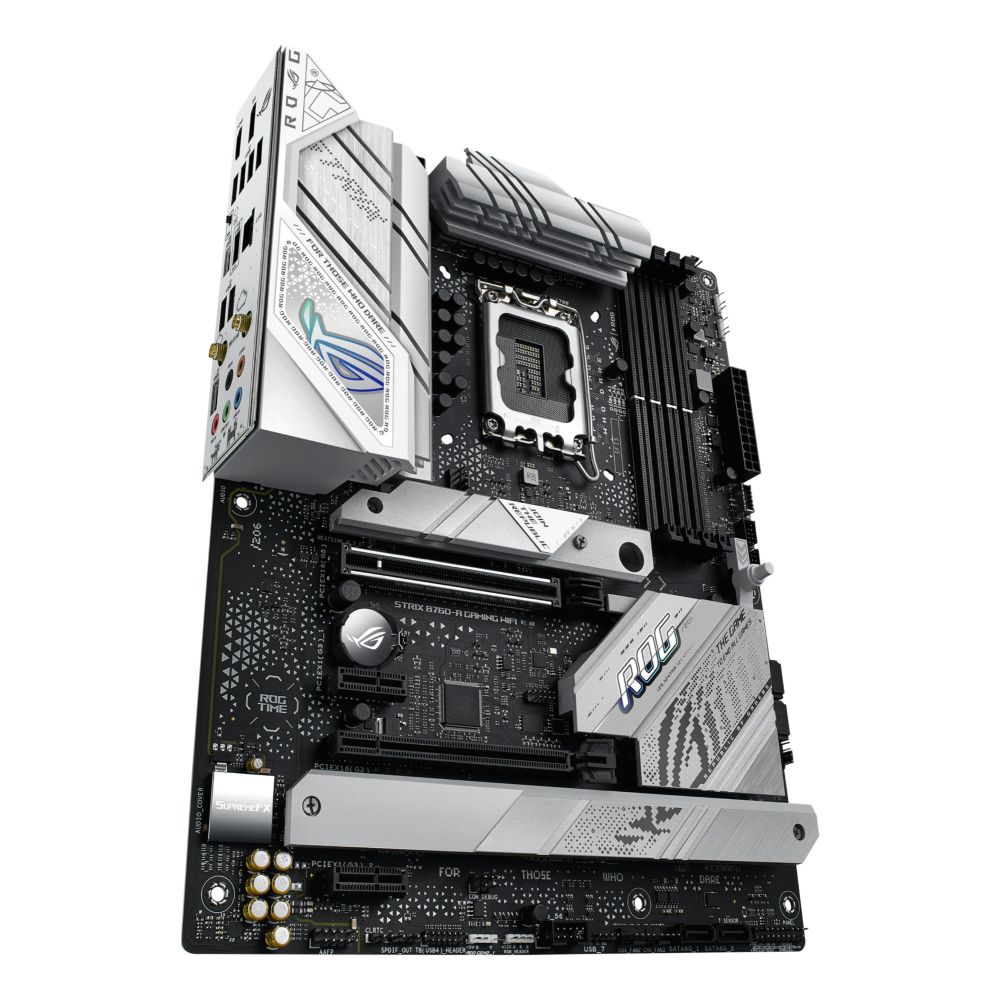

ASUS ROG STRIX B760-A GAMING WIFI ATX Motherboard
£216.07 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B760 chipset for 13th Gen Intel Core processors
- Triple M.2 slots for high-speed storage expansion
- Wi-Fi 6E and 2.5Gb Ethernet for fast connectivity
- 4 DIMM slots supporting up to 192GB DDR5 memory
- ATX form factor with PCIe 5.0 support
Payment Methods:
You may also like
ASUS ROG STRIX B760-A Gaming | Intel B760 DDR5 ATX Motherboard
The ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX delivers robust gaming performance with DDR5 memory support, PCIe 5.0 compatibility, and comprehensive connectivity for Intel’s latest processors.
| Metric | Spec. |
|---|---|
| Socket | LGA 1700 |
| Memory Support | DDR5 (up to 7800 MHz) |
| PCIe Slots | 1 x PCIe 5.0 x16 |
| Wi-Fi | Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC4080 7.1 CH |
Power and Cooling for Intel 13th Gen
Engineered to handle high-performance Intel processors, this motherboard features an enhanced VRM heatsink array with strategic airflow channels. The robust power delivery system ensures stable performance even during extended gaming sessions or heavy workloads, while the thermal design prevents throttling when pushing your system to its limits.
Superior Connectivity and Expansion
With three M.2 slots supporting the latest PCIe 5.0 SSDs, ultra-fast 2.5Gb Ethernet, and Wi-Fi 6E, you’ll experience minimal bottlenecks. The M.2 Q-Latch system makes SSD installation tool-free, while multiple USB 3.2 Gen 2×2 ports provide rapid data transfer for external devices and peripherals.
Immersive Audio Experience
ROG SupremeFX technology delivers premium sound quality through the Realtek ALC4080 codec, supporting 32-bit/384 kHz playback across all channels. The integrated Savitech amplifier drives high-fidelity audio to both speakers and headphones, creating an immersive gaming environment with crystal-clear positional audio.
Aura Sync RGB Lighting
Customise your build with ASUS Aura Sync RGB lighting, offering millions of colours and multiple lighting effects. The motherboard’s distinctive ROG aesthetic features diagonal slats and brushed aluminum accents that complement both dark and light-themed components, letting you create a visually striking gaming rig.
Box Contents
- ASUS ROG STRIX B760-A GAMING WIFI motherboard
- SATA cables

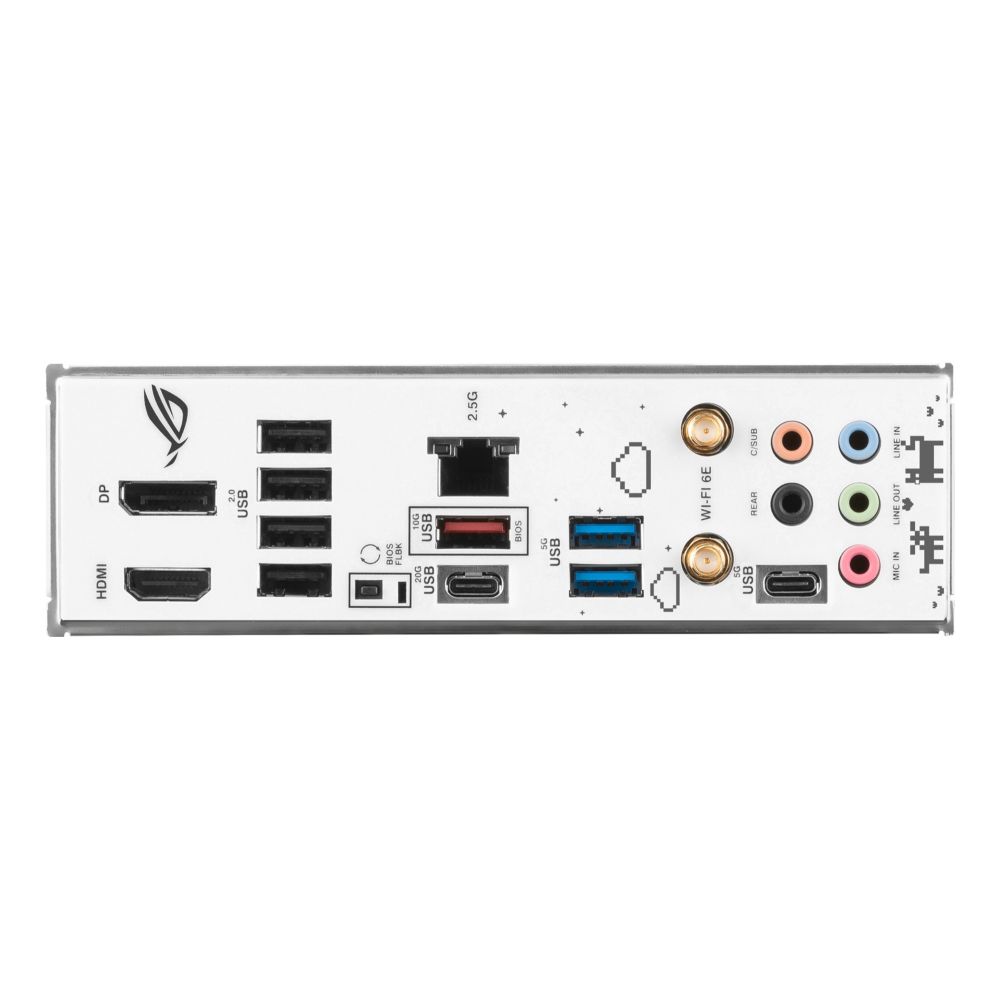

- I/O shield
- User manual and driver DVD
- Support DVD
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports ATX form factor (305 x 244 mm)
- Check if your GPU requires PCIe 5.0 compatibility
- Ensure you have DDR5 memory modules available
Questions and answers
Does this motherboard support DDR4 memory?
What processors are compatible with this board?
How many M.2 SSDs can I install?
Does it have built-in Wi-Fi?
Summary & warranty
The ASUS ROG STRIX B760-A GAMING WIFI offers exceptional value for gamers and content creators seeking DDR5 performance without breaking the bank. Its combination of robust power delivery, comprehensive connectivity, and premium audio makes it ideal for building a capable gaming system. Covered by the applicable manufacturer warranty.
| Thunderbolt headers | 1 |
|---|---|
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| S/PDIF out connector | Yes |
| Peripheral Molex power connectors 4-pin | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 7800 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Number of M.2 M slots | 3 |
| PCI Express x1 Gen 3.x slots | 2 |
| PCI Express x16 Gen 3.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Distributor SKUs | MBD-90MB1EP0-M1EAY0, 9824520, 123347, W128599221, 493748, STD10215073, CL90MB1EP0-M1EAY0 |
