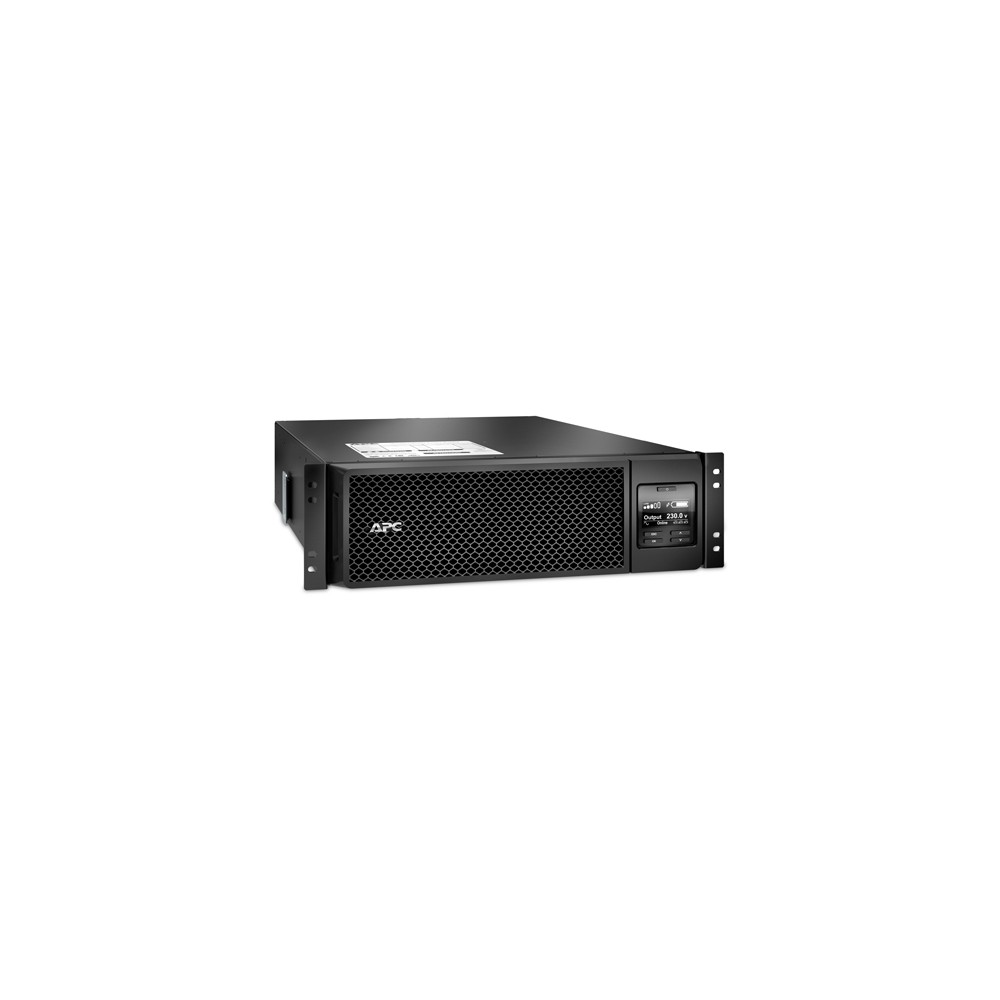

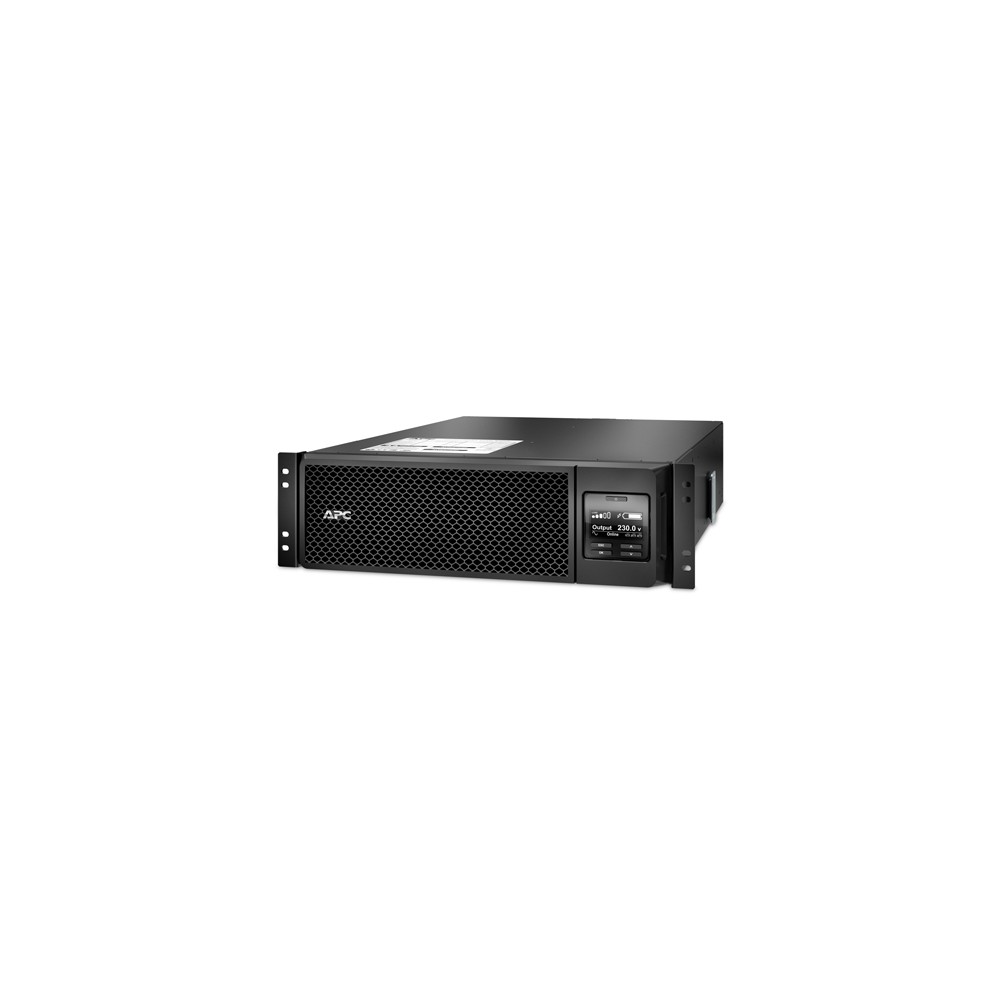

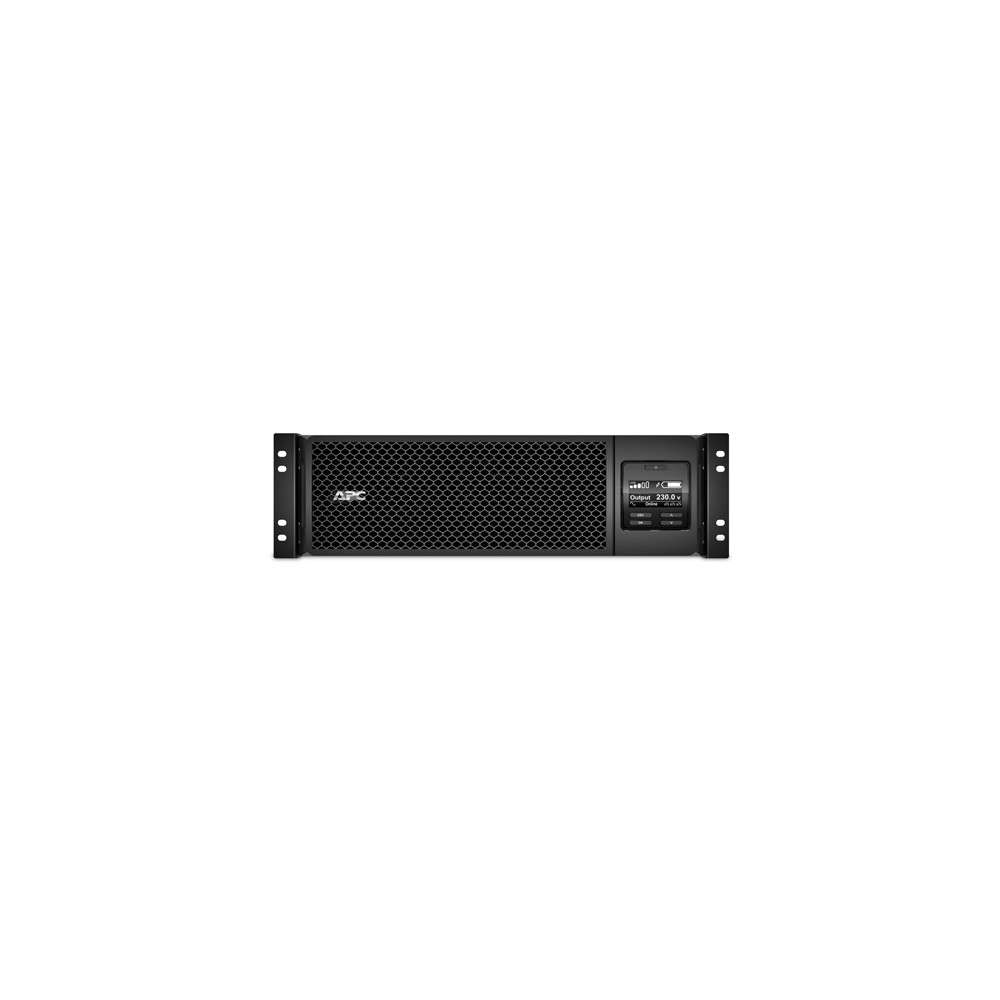

APC Smart-UPS On-Line 5kVA 4500W Rackmount UPS 3U 230V with Network Card and 6 Year Warranty
£5,464.55
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 5 kVA output power capacity delivering 4500 W continuous power
- Double-conversion online topology with pure sine wave waveform
- 3U rackmount form factor designed for standard server cabinets
- Embedded Web/SNMP management card enabling remote monitoring and control

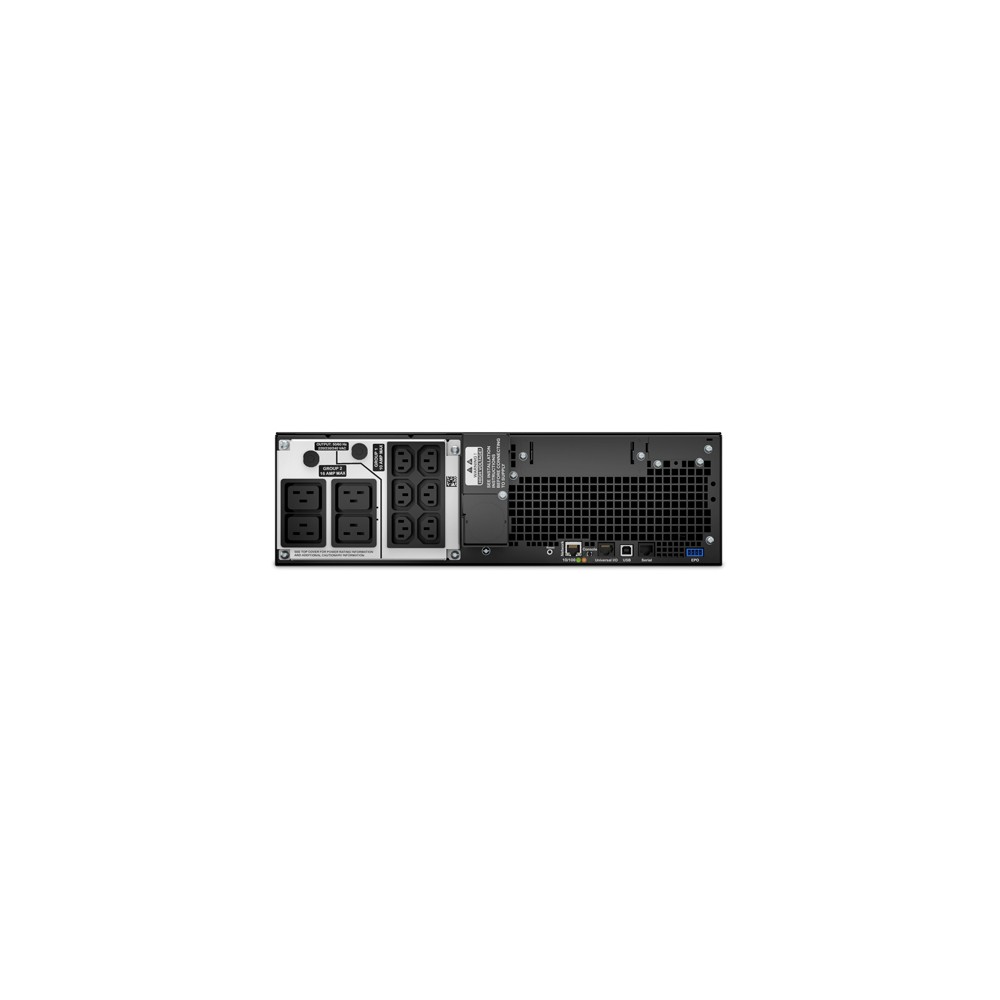

- 10 AC outlets comprising 6x C13 and 4x C19 couplers
- 94.1% efficiency with automatic input voltage regulation
- 6-year warranty covering the unit and built-in lead-acid battery
You may also like
APC Smart-UPS On-Line – Reliable Online UPS for Critical IT
We supply the APC Smart-UPS On-Line 5kVA 4500W Rackmount UPS 3U 230V with Network Card and 6 Year Warranty. This unit suits IT professionals needing continuous power. It maintains business uptime during disruptions. Pure sine wave output protects sensitive electronics.
APC Smart-UPS On-Line 5kVA 4500W Rackmount UPS 3U 230V with Network Card and 6 Year Warranty
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Output Power | 4500 W |
| Capacity | 5 kVA |
| Efficiency | 94.1% |
| Backup Time (Half Load) | 11.8 min |
| Warranty | 6 Years |
Pure Sine Wave Protection
The double-conversion topology ensures stable voltage. You get a clean sine waveform. This prevents damage to servers and storage. Harmonic distortion stays low at 3%.
Integrated Network Management

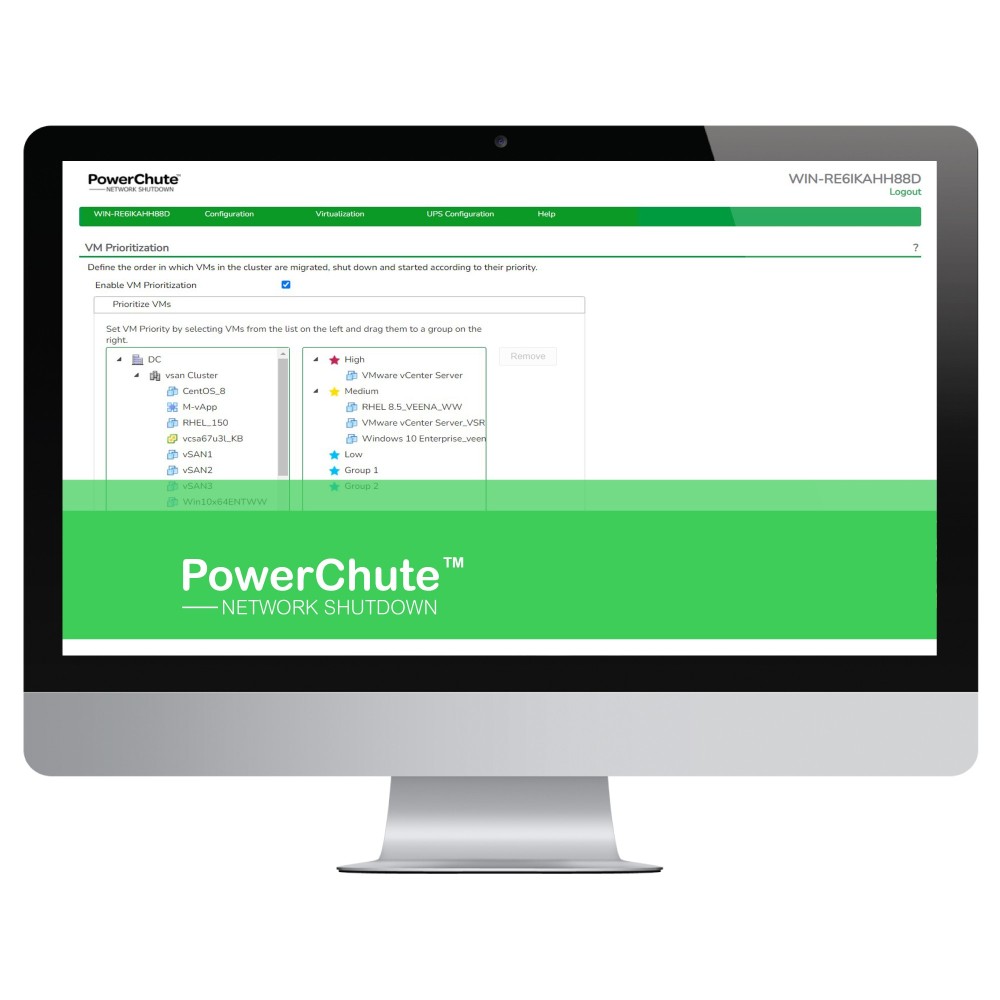

A web management card comes included. You can monitor power remotely over Ethernet. PowerChute Network Shutdown enables graceful server closures. This reduces risk of data loss.
Hot-Swap Battery Design
Maintenance becomes simpler with hot-swap capability. You replace the battery without powering down. The lead-acid cartridge lasts up to five years. Recharge time is roughly 1.5 hours.
Before You Order
- Confirm your rack space allows 3U height.
- Verify input voltage matches 230V standards.
- Check outlet needs for C13 and C19 types.
Frequently Asked Questions
Q: Does this UPS support online topology?
A: Yes, it uses double-conversion online technology for stable output.
Q: How many AC outlets are provided?
A: There are 10 outlets total, including C13 and C19 types.
Q: Is the battery user replaceable?
A: Yes, the battery cartridge is hot-swap compatible for easy maintenance.
Q: What is the typical backup time at half load?
A: It provides approximately 11.8 minutes of runtime at half load.
Our Verdict
We recommend the APC Smart-UPS On-Line 5kVA 4500W Rackmount UPS 3U 230V with Network Card and 6 Year Warranty for server rooms. It offers robust protection and management tools. The six-year warranty adds long-term peace of mind.
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 4500 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 4500 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 5 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| Number of output IEC jumpers | 2 |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 845 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |

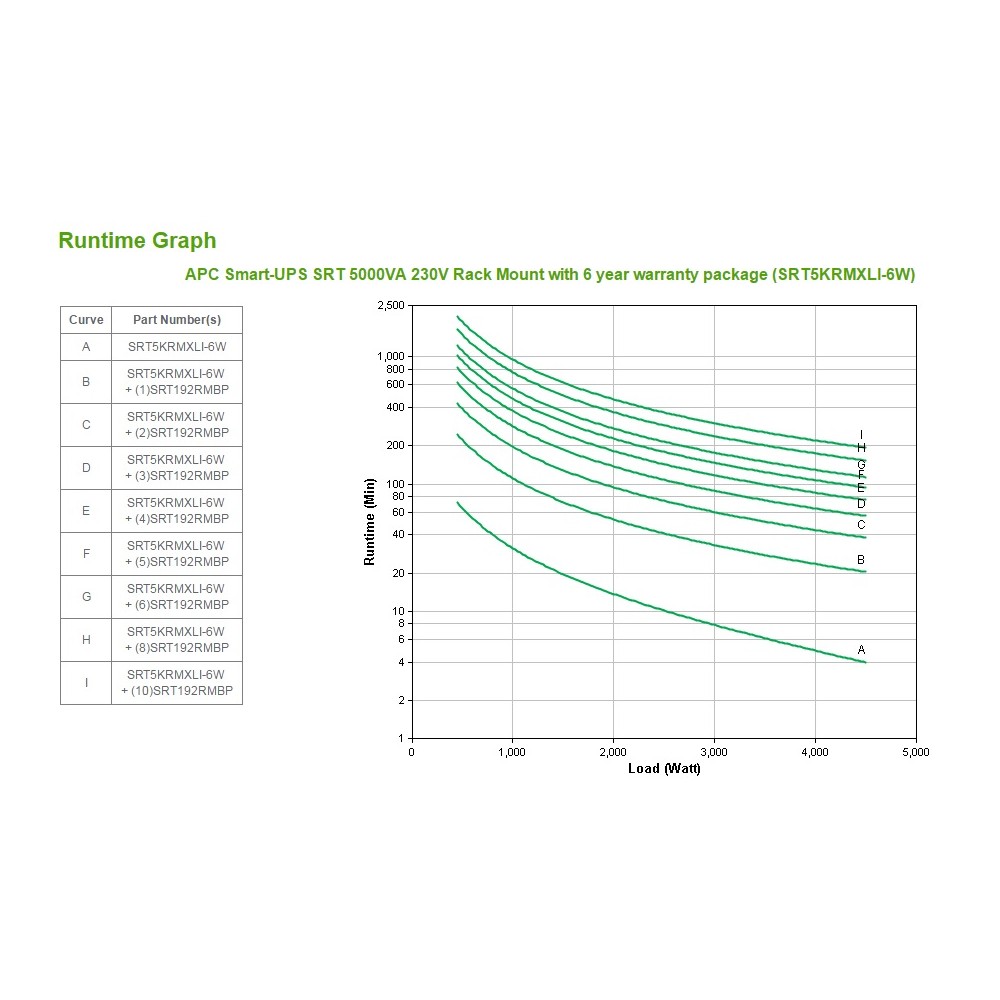

| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 3U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE |

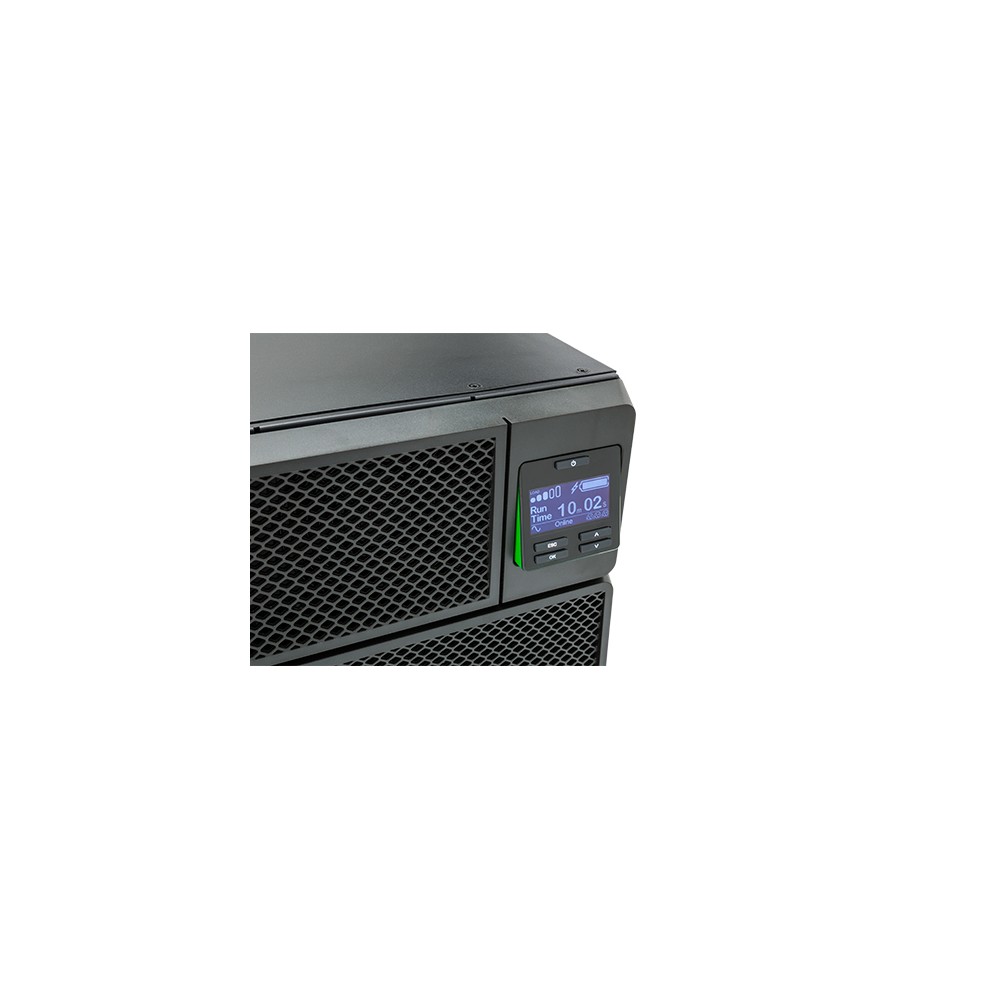

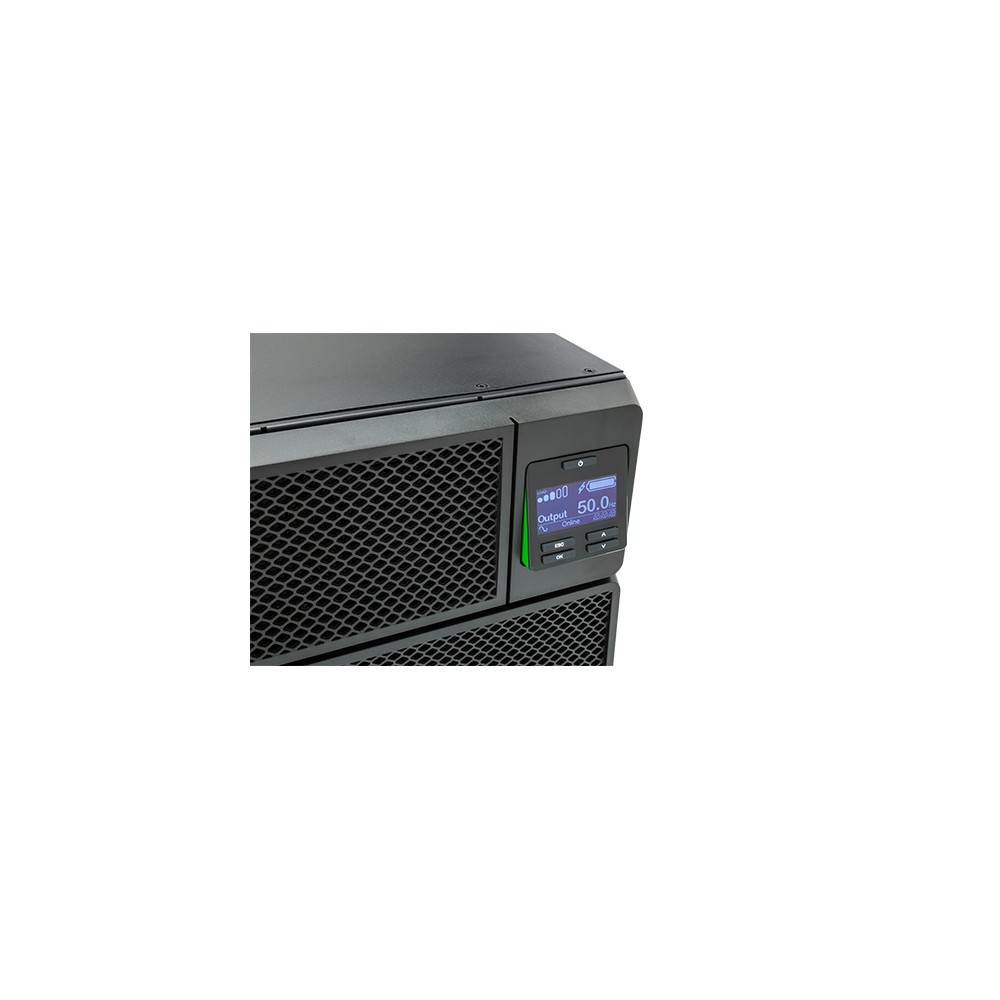

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8408.59 |
| Compliance certificates | RoHS |
| Packaging data | |
| Packaging content | Web/SNMP Management Card |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 66.9 kg |
| Management card included | Yes |
| Certificates | |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Management card included | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Packaging content | Web/SNMP Management Card |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Weight | 54.4 kg |
| Width | 432 mm |
| Package weight | 66.9 kg |
| Height | 130 mm |
| Depth | 719 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8408.59 |
| Other features | |
| Packaging content | Web/SNMP Management Card |
| Identifiers | |
| Additional EANs | 7313043011968 |
