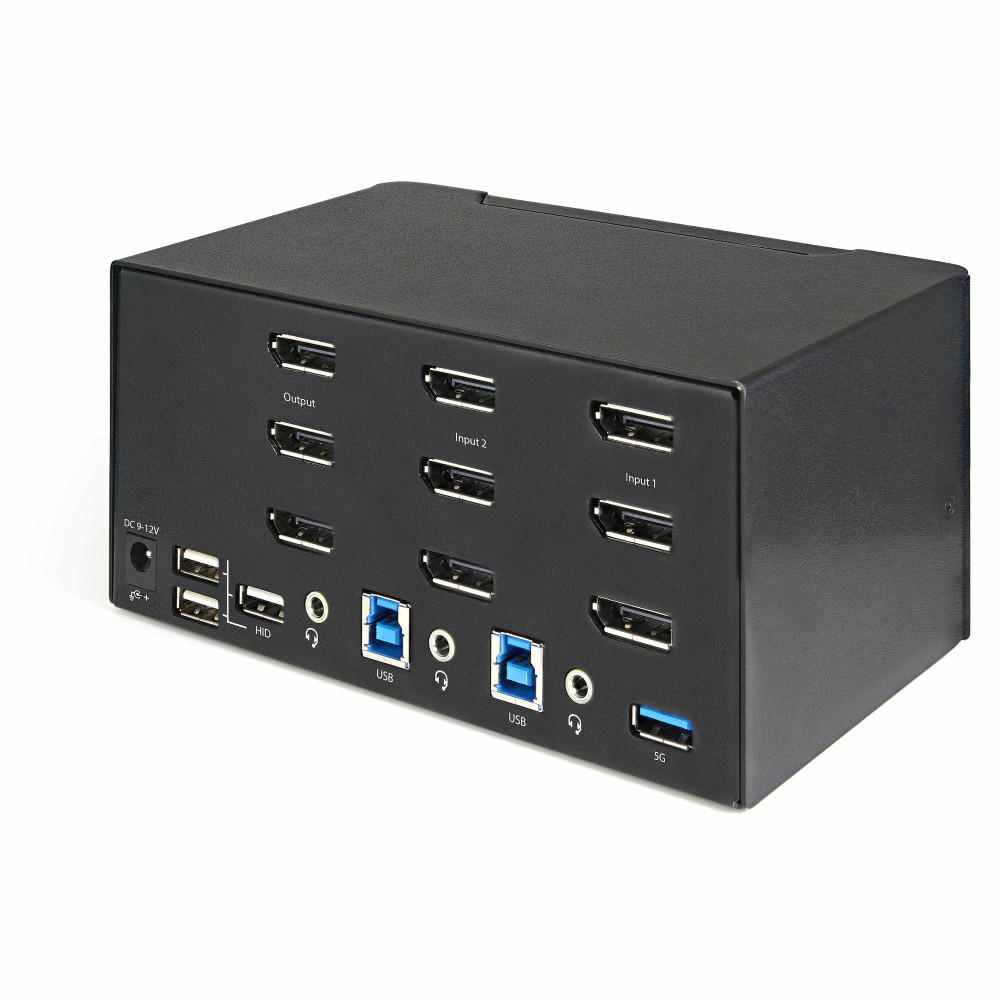

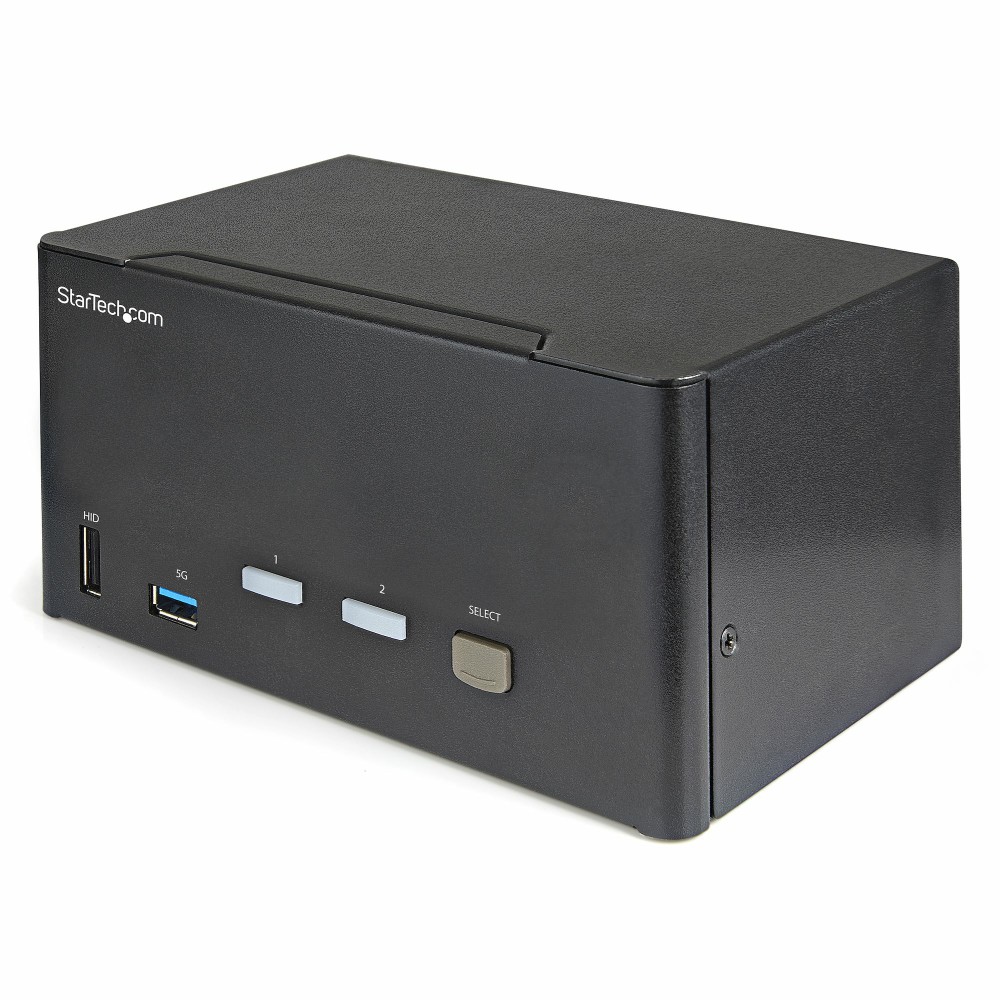

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch 4K 60Hz USB 3.0 Hub Black

SKU: SV231TDPU34K

Original price was: £473.00.Current price is: £425.70. inc VAT

Out of stock

Out of stock

More Ways to Pay

  • Klarna Buy now, pay later with Klarna at checkout
  • PayPal Pay in 3 interest-free payments with PayPal at checkout

About This Item

  • Controls 2 computers
  • Supports triple 4K (3840 x 2160 pixels) monitors at 60Hz
  • Integrated DisplayPort 1.2 and USB 3.0 hub with 2 ports
  • Features hotkey and push-button switching, plus LED indicators
  • 5.1 audio channels and 3 headphone outputs
  • Compatible with Windows, Mac, and Linux operating systems
  • Durable steel housing in black

Payment Methods:

payments
Description

StarTech.com 2 Port KVM – Triple Monitor Control

For professionals managing multiple systems, the StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch 4K 60Hz USB 3.0 Hub Black offers seamless control. This KVM switch is ideal for users who need to operate two computers from one console. We find it particularly beneficial for tasks requiring high-resolution multi-monitor setups. It significantly streamlines your workspace.

Core specifications

Metric Spec.
Video Type DisplayPort 1.2
Max Resolution 3840 x 2160 (4K UHD)
Refresh Rate 60 Hz
USB Ports 2x USB 3.2 Gen 1, 4x USB 2.0
Audio 5.1 Channels, 3.5mm
Computers 2

Flawless 4K Visuals Across Three Displays

This KVM switch delivers stunning 4K resolution at 60Hz. It supports three monitors, ensuring sharp and detailed images. Enjoy an immersive visual experience across your entire setup. This is perfect for graphic design, video editing, or detailed data analysis.

Integrated USB 3.0 Hub for Peripheral Sharing

We have included a built-in USB 3.0 hub. It lets you share two USB 3.0 peripherals between your connected computers. This eliminates the need for duplicate devices. You also get four USB 2.0 HID ports for your keyboard and mouse.

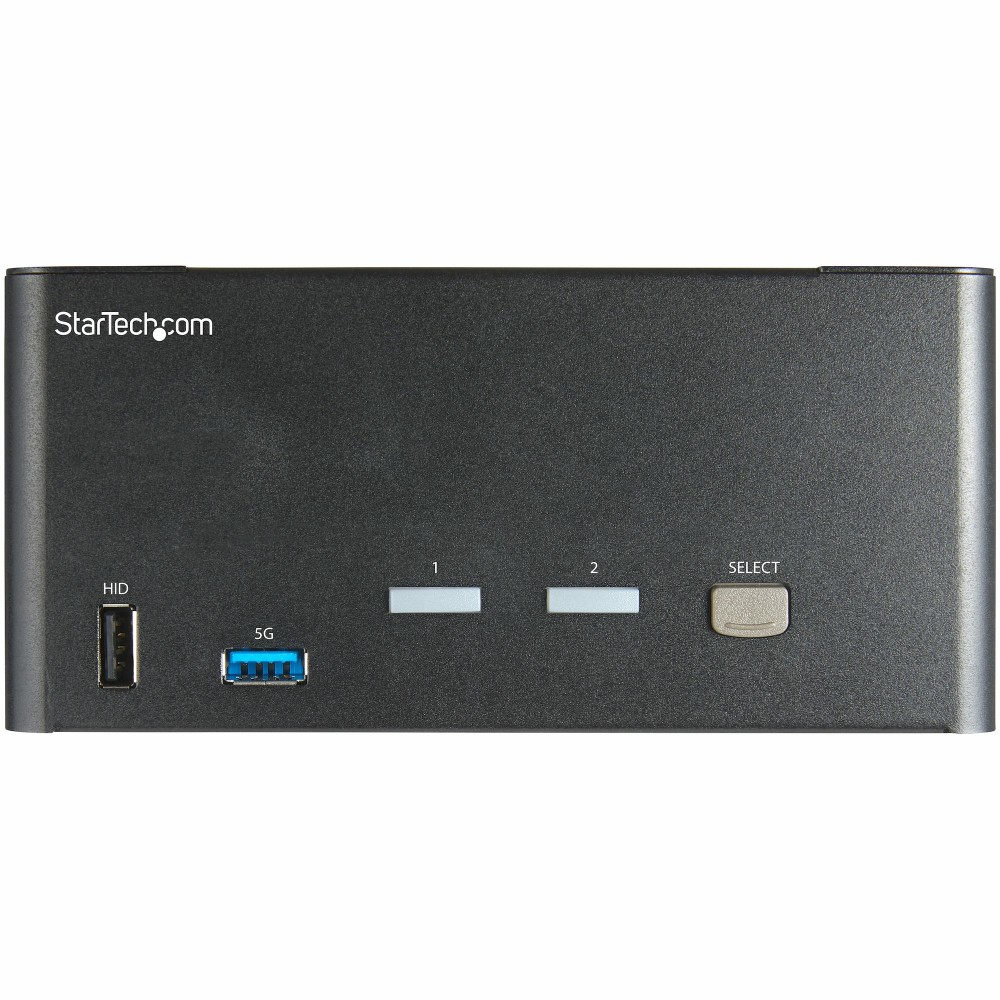

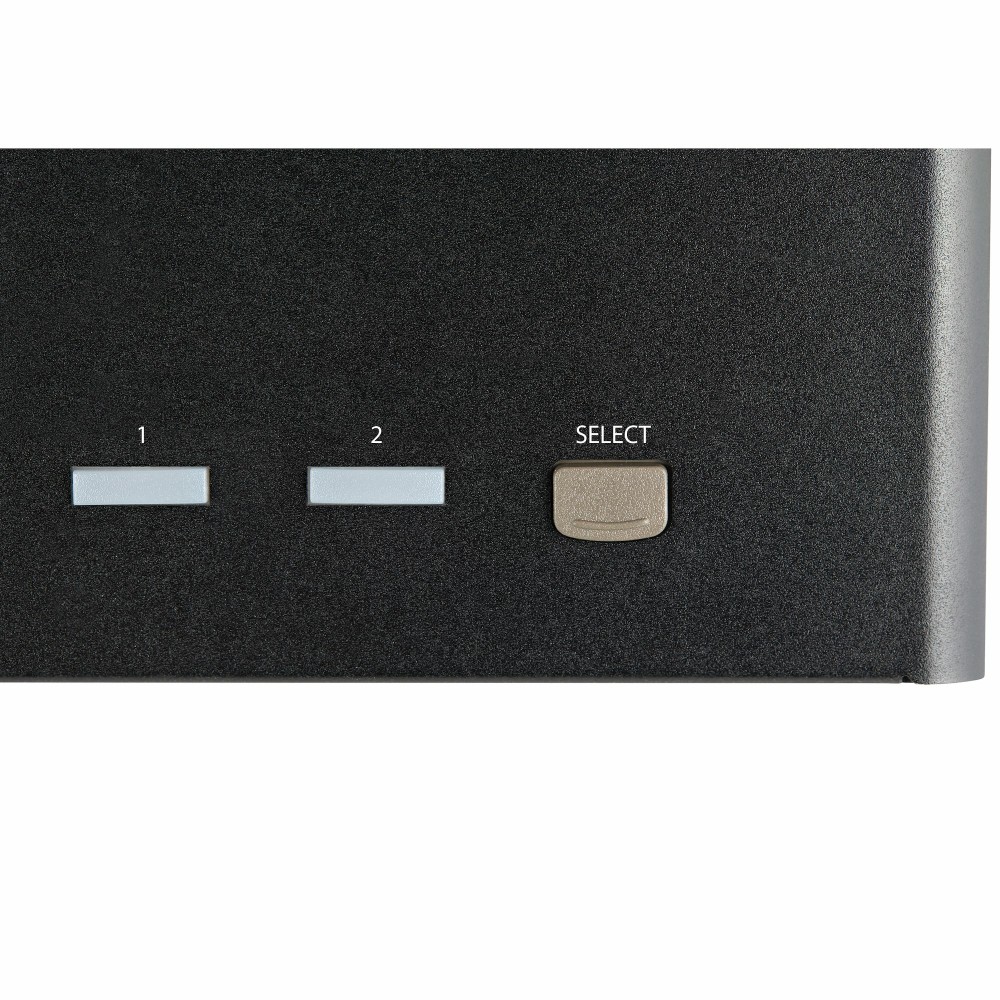

Hotkey and Push Button Switching

Switching between your two connected systems is effortless. Use the front-panel push buttons for quick changes. Alternatively, hotkey functionality provides rapid access. A buzzer confirms each successful switch.

Broad Operating System Compatibility

This KVM switch offers wide compatibility. It works seamlessly with Windows, Mac, and Linux operating systems. This ensures flexible integration into various IT environments. It supports diverse professional setups.

What’s in the box

  • StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch 4K 60Hz USB 3.0 Hub Black
  • Universal Power Adapter (UK, EU, AU, JP, US)
  • Quick-start guide
  • Rubber feet

Worth checking first

  • Confirm your computers have DisplayPort 1.2 outputs.
  • Confirm your monitors support DisplayPort 1.2 inputs.
  • Confirm your operating system is Windows, Mac, or Linux.

Frequently Asked Questions

Q: Can I use this KVM with only two monitors?

A: Yes, it will function perfectly with two or even one monitor connected.

Q: Does this KVM switch support HDR content?

A: Yes, this model supports HDR (High Dynamic Range) content.

Q: Are cables included with this KVM switch?

A: No, we do not include DisplayPort or USB cables with this unit.

Q: Can I connect a USB-C dock to the KVM?

A: You can connect a USB-C dock using an appropriate adapter to a DisplayPort input.

Our verdict

This KVM switch is an excellent choice for users managing two computers with a triple 4K monitor setup. It combines high-resolution video with convenient peripheral sharing. We back this product with a 2-year warranty and free lifetime technical support.

Specifications
Ports & interfaces
Console USB ports quantity4
Console ports3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity9
DisplayPort version1.2
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Audio connectionsYes
Headphone outputs3
DC-in jackYes
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
HDCPYes
Performance
Daisy chainNo
HDCPYes
HD type4K Ultra HD
Video bandwidth60 Hz
Maximum resolution3840 x 2160 pixels
Scan interval3,8,15,30 s
Audio channels5.1
Number of displays supported3
Technical details
Product colourBlack
Scan interval3,8,15,30 s
Push buttonYes
On Screen Display (OSD)No
LED indicatorsYes
Hot keysYes
IP controlNo
USB hubYes
Design
Mean time between failures (MTBF)156000 h
Product colourBlack
Push buttonYes
LED indicatorsYes
Hot keysYes
CertificationCE, RoHS, FCC
Housing materialSteel
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Input current1 A
Output current3 A
Power plug typeType M
Compatible power plug typesAU, EU, JP, UK, US
Output voltage12 V
Power consumption (typical)36 W
Input voltage100 - 240 V
Video
HD type4K Ultra HD
Video bandwidth60 Hz
Maximum resolution3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width160 mm
Depth100 mm
Height98 mm
Weight850 g
Package width187 mm
Package depth239 mm
Package height96 mm
Packaging data
Package width187 mm
Package depth239 mm
Package height96 mm
Packaging content
Rubber feetYes
Quick installation guideYes
Certificates
CertificationCE, RoHS, FCC
Other features
IP controlNo
Push buttonYes
Hot keysYes
Logistics data
Master (outer) case width404 mm
Master (outer) case length322 mm
Master (outer) case height284 mm
Products per master (outer) case6 pc(s)
Harmonized System (HS) code85176200
Identifiers
Distributor SKUsV274274, CC61187, 94262, 6989299, 10349697, 428143, CLSV231TDPU34K
Additional EANs0650308817840
