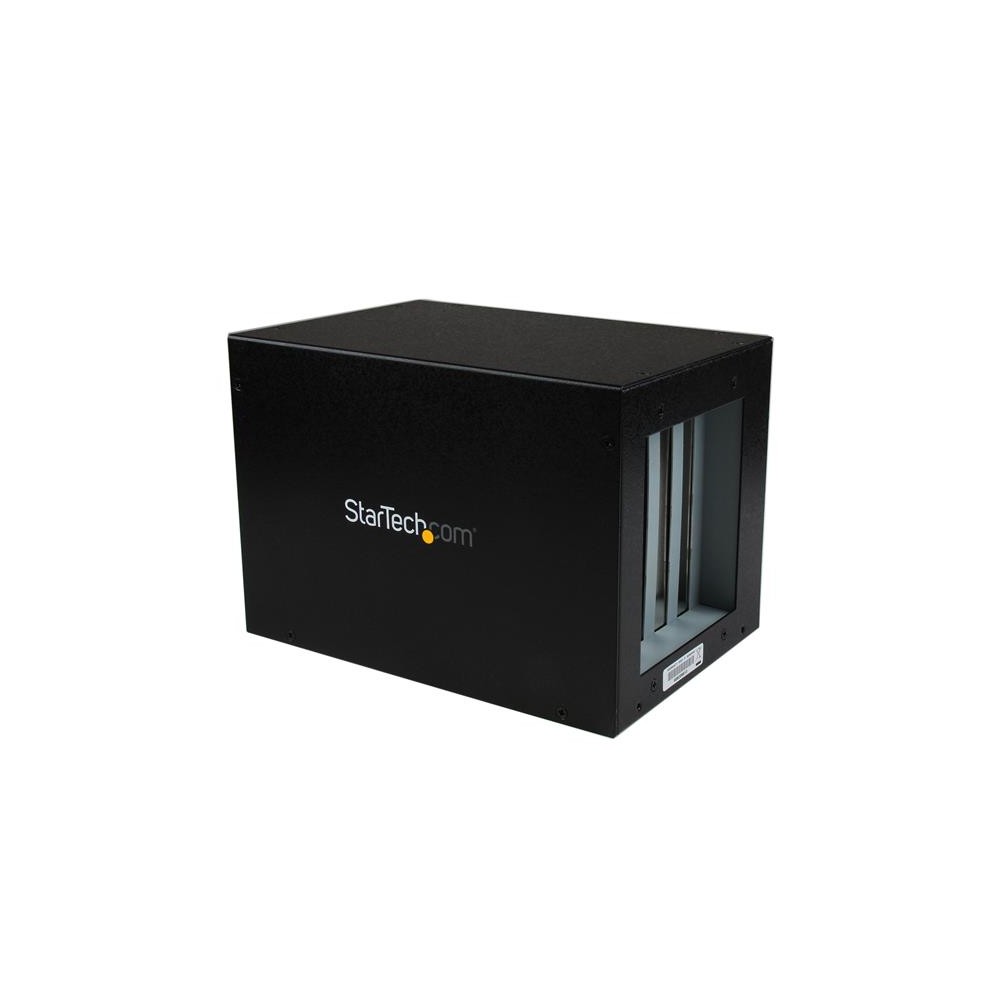

StarTech.com PCI Express to 4 Slot PCI Expansion System – Black
£427.00 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Four external PCI expansion card slots
- Plug and Play functionality
- Black finish
- CE, FCC, RoHS certified
- Operates between 0 – 55 °C
- Includes AC and DVI cables
- Compact dimensions: 137 x 204 x 142 mm
Payment Methods:
You may also like
StarTech.com 1U Brush Strip Cable Management Panel, Steel
In stock
StarTech.com PEX2S1050 2-Port PCIe RS232 Serial Card with 16C1050 UART, 460.8 Kbps
In stock
Cables Direct CDL M6 Cage Nuts – Pack of 50
In stock
StarTech.com Expansion – Enhanced PCI Connectivity
We understand the challenges of expanding older systems. The StarTech.com PCI Express to 4 Slot PCI Expansion System – Black is a robust solution for users needing additional PCI card slots. This system allows you to integrate legacy PCI cards into modern PCIe-enabled computers. It is ideal for engineers, hobbyists, and IT professionals extending the life of specialised hardware.
Essential Specifications
| Metric | Spec. |
|---|---|
| Output Voltage | 12 V |
| Output Current | 3 A |
| Operating Temperature | 0 – 55 °C |
| Weight | 2.4 kg |
| Ports | 4 PCI slots |
Seamless Integration for Legacy Hardware
This expansion system provides four 32-bit/33MHz PCI slots. It connects to your host computer via a single PCI Express connection. This allows your system to recognise the installed PCI cards as if they were directly attached to the motherboard.
High Bandwidth for Critical Applications
The x1 PCIe host controller card delivers up to 250MBps of total bandwidth. This ensures smooth and reliable operation for your PCI expansion cards. You can run demanding applications without performance bottlenecks.
Effortless Setup with Plug and Play
We know your time is valuable. This system features true Plug and Play functionality. It integrates quickly into your existing setup. You can get up and running with minimal configuration.
Durable and Certified Design
Built for consistent performance, this expansion system is CE, FCC, and RoHS certified. We ensure it meets stringent quality and environmental standards. Its black finish offers a professional aesthetic.

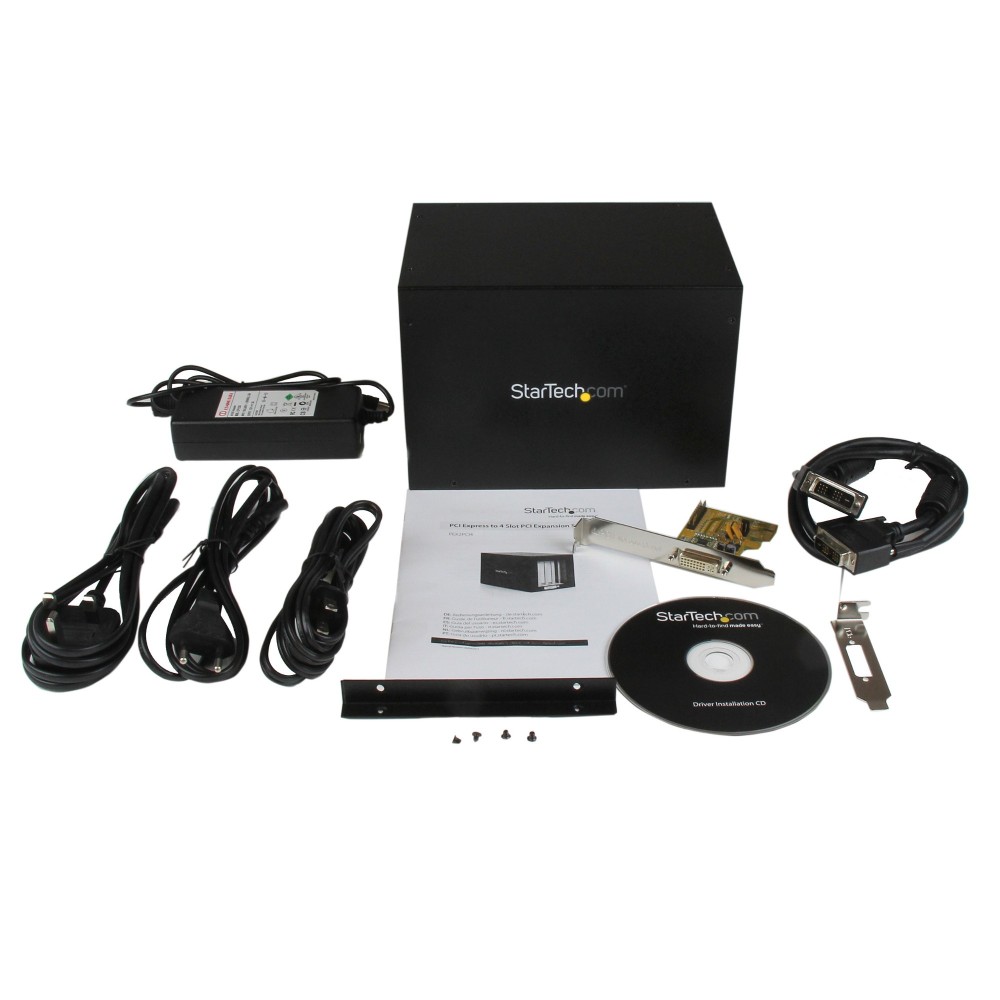

Box Contents
- AC Power Cable
- DVI Cable
- User Manual
Before You Order
- Confirm your computer has an available PCI Express slot.
- Confirm your PCI cards are 32-bit/33MHz compatible.
- Confirm you have adequate space for the expansion system (137mm W x 204mm D x 142mm H).
Frequently Asked Questions
Q: Can I use this with a laptop?
A: Yes, this system can be used with laptops that have an available PCI Express slot.
Q: What cable connects the expansion chassis to my computer?
A: A DVI cable is included for a direct and reliable connection.
Q: Do I need to install any drivers?
A: The system is designed for Plug and Play operation, typically requiring no additional driver installation.
Q: What is the power output for the PCI slots?
A: The system provides 12V output voltage and 3A output current.
Our Recommendation
This expansion system is an excellent choice for extending the utility of your existing PCI cards. It is ideal for users with specific hardware that requires PCI slots on a modern system. Warranty cover varies by product, so please contact us to confirm.
| Technical details | |
|---|---|
| Plug and Play | Yes |
| Performance | |
| Plug and Play | Yes |
| Product colour | Black |
| Harmonized System (HS) code | 84719000 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Colour | |
| Product colour | Black |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Features | |
| Plug and Play | Yes |
| Harmonized System (HS) code | 84719000 |
| Power | |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 137 mm |
| Depth | 204 mm |
| Height | 142 mm |
| Weight | 2.4 kg |
| Package width | 200 mm |
| Package depth | 250 mm |
| Package height | 240 mm |
| Package weight | 2.4 kg |
| Packaging data | |
| Manual | Yes |
| Package width | 200 mm |
| Package depth | 250 mm |
| Package height | 240 mm |
| Package weight | 2.4 kg |
| Cables included | AC, DVI |
| Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 270 mm |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Ports quantity | 4 |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, DVI |
| Identifiers | |
| Distributor SKUs | V239896, CQ38925, 96020, 4462104, CLPEX2PCI4 |
| Additional EANs | 0102930694974 |
