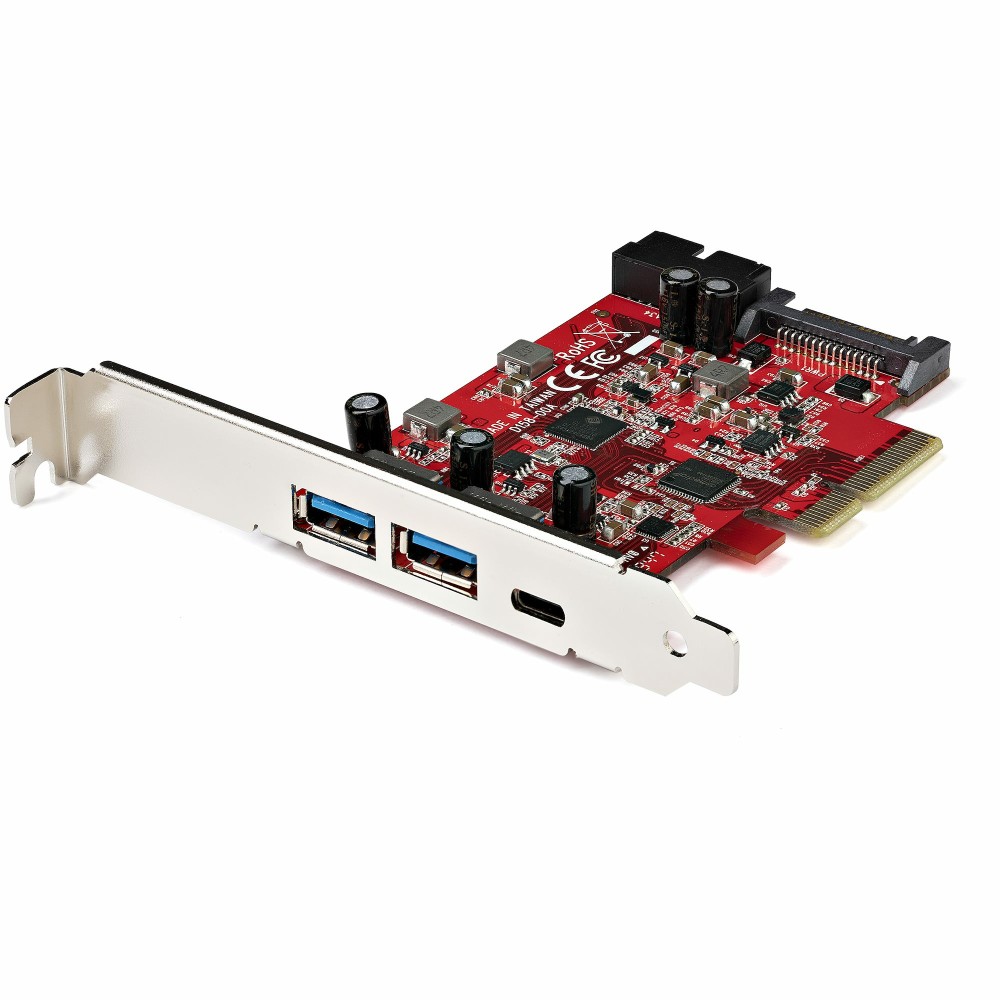

StarTech.com PEXUSB312A1C1H 5-Port USB 3.2 Gen 2 PCIe Card – 1x USB-C, 2x USB-A, 2x IDC – 10Gbps
£64.22 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- PCIe 3.0 host interface
- 10 Gbit/s maximum data transfer rate

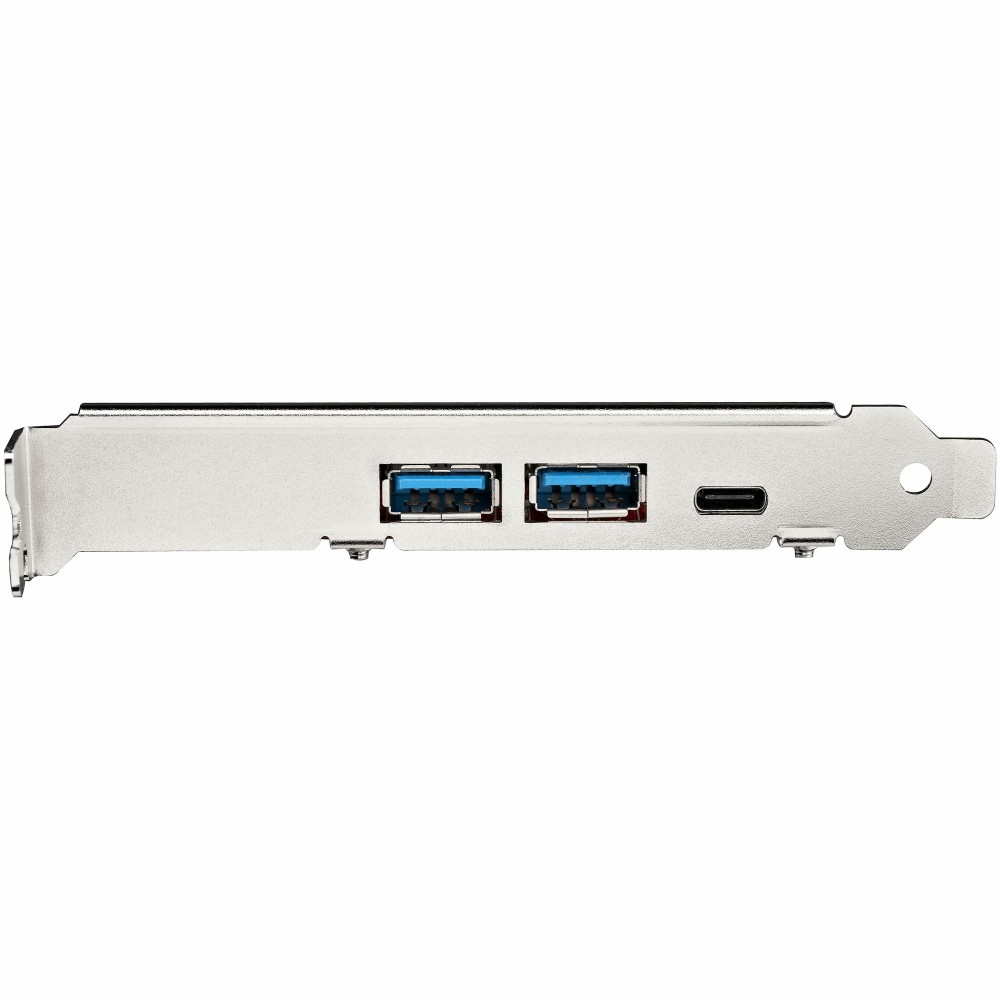

- 2x USB-A (10Gbps), 1x USB-C (10Gbps), and 2x internal IDC (5Gbps) ports
- ASMedia ASM3142 and Genesys Logic GL3590 chipsets
- UASP support for enhanced performance
- Compatible with Windows, Mac, and Windows Server operating systems
- Includes mounting brackets and quick installation guide
Payment Methods:
You may also like
Lenovo 4XF1L53431 Internal PCIe Thunderbolt 4 Mini DisplayPort Interface Card Server
In stock
Digitus 2-Port Serial Interface Card PCIe, 2 x RS232 DB9, UART 16C950, 128000 bps
In stock
StarTech.com PEXUSB312A1C1H – Enhanced Connectivity for Your System
We offer the StarTech.com PEXUSB312A1C1H 5-Port USB 3.2 Gen 2 PCIe Card – 1x USB-C, 2x USB-A, 2x IDC – 10Gbps to significantly expand your PC’s connectivity. This card is ideal for users needing a versatile upgrade. It provides a blend of modern and legacy USB ports, enhancing your system’s data transfer capabilities.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Host Interface | PCIe 3.0 |
| USB-A Ports | 2 |
| USB-C Ports | 1 |
| Internal USB IDC | 2 ports (5Gbps) |
| UASP Support | Yes |
Unleash 10Gbps Data Transfer
This PCIe card delivers exceptional performance for your peripherals. With a maximum data transfer rate of 10Gbps, you can move large files quickly. This speed minimises waiting times for external drives and other high-bandwidth devices.
Versatile USB Port Options
We understand the need for varied connectivity. This card features one USB-C port, two USB-A ports, and internal IDC headers. You can connect a wide range of devices, from the latest USB-C gadgets to traditional USB-A peripherals. The internal IDC headers offer additional flexibility for front panel expansion.
Seamless Integration with PCIe 3.0
The card utilises a PCIe 3.0 host interface, ensuring broad compatibility with many motherboards. This integration provides a stable and high-speed connection. It allows the USB ports to operate at their full potential.
Broad Operating System Support
We ensure this card works with your existing setup. It supports a wide array of Windows operating systems, including Windows 10, 8.1, 8, and 7. Mac users are also covered, with support for macOS High Sierra, Mojave, Catalina, Big Sur, and Ventura. Windows Server versions are also compatible.
What’s in the Box
- StarTech.com 5-Port USB 3.2 Gen 2 PCIe Card

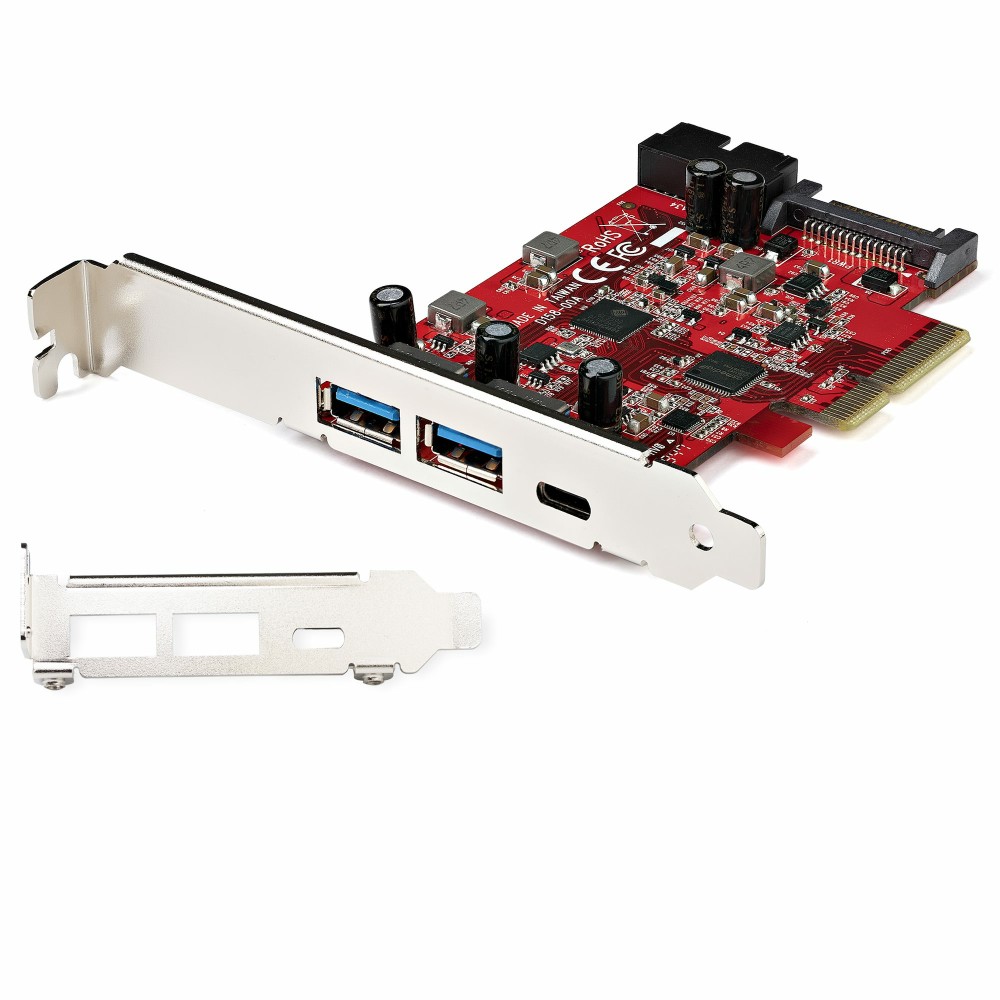

- Mounting brackets
- Quick installation guide
Before You Order
- Confirm your computer has an available PCIe expansion slot.
- Check your operating system is listed as supported for full functionality.
- Verify your power supply has a SATA power connector available for the card.
Frequently Asked Questions
Q: Does this card support older USB devices?
A: Yes, it is backward compatible with USB 3.2 Gen 1, USB 2.0, and USB 1.1 devices.
Q: What is UASP support?
A: UASP (USB Attached SCSI Protocol) enhances data transfer speeds for UASP-enabled storage devices.
Q: Can I connect a front panel USB hub to the internal IDC headers?
A: Yes, the internal IDC headers are designed for connecting front panel hubs or card readers.
Q: Does this card provide power delivery over USB-C?
A: No, this card does not support USB Power Delivery.
The Bottom Line for Your PC
This StarTech.com PCIe card is an excellent choice for expanding your system’s USB capabilities. It offers high-speed data transfer and diverse port types in a single, convenient solution. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Internal SATA ports quantity | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Chipset | ASMedia - ASM3142, Genesys Logic - GL3590 |
| Data transfer rate (max) | 10 Gbit/s |
| Compliance certificates | CE, RoHS |
| Performance | |
| UASP support | Yes |
| Chipset | ASMedia - ASM3142, Genesys Logic - GL3590 |
| Data transfer rate (max) | 10 Gbit/s |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Red |
| Design | |
| Mean time between failures (MTBF) | 1677495 h |
| Internal | Yes |
| Product colour | Red |
| Features | |
| UASP support | Yes |
| Chipset | ASMedia - ASM3142, Genesys Logic - GL3590 |
| Data transfer rate (max) | 10 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
| Weight & dimensions | |
| Width | 68.9 mm |
| Depth | 102 mm |
| Height | 14.4 mm |
| Weight | 60 g |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 125 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 125 g |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 500 mm |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Other features | |
| Chipset | ASMedia - ASM3142, Genesys Logic - GL3590 |
| Identifiers | |
| Distributor SKUs | V273653, CB93544, 10309381, 341119, CLPEXUSB312A1C1H |
