StarTech.com PEXUSB3S42V 4 Port PCIe USB 3.2 Gen 1 Card Adapter, 2 Dedicated 5Gbps Channels, UASP, SATA/LP4 Power
£69.38 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Four USB 3.2 Gen 1 Type-A ports with two dedicated 5 Gbps channels
- PCIe host interface, compatible with PCIe 2.0 standard
- Full-height / low-profile expansion card form factor for versatile installation
- UASP support for up to 70% faster read and 40% faster write speeds
- Optional SATA or LP4 power for up to 900mA per port
- Hot-swap capability and backward compatibility with USB 2.0/1.1 devices
- Supports Windows (7, 8, 8.1, 10), Linux, and Windows Server OS
Payment Methods:
You may also like
StarTech.com PEXUSB3S42V – Dual-Channel USB Expansion
For PC builders and system integrators, the StarTech.com PEXUSB3S42V 4 Port PCIe USB 3.2 Gen 1 Card Adapter, 2 Dedicated 5Gbps Channels, UASP, SATA/LP4 Power offers a robust solution. This adapter adds four USB 3.2 Gen 1 ports to your desktop. It provides dedicated bandwidth for improved peripheral performance.
Core Expansion Metrics
| Metric | Spec. |
|---|---|
| USB Ports | 4x USB 3.2 Gen 1 Type-A |
| Host Interface | PCIe 2.0 x4 |
| Data Transfer Rate | 5 Gbps (per channel) |
| Chipset | 2x Renesas/NEC µPD720202 |
| Power Connector | SATA or LP4 |
Enhanced Peripheral Performance
We know that shared bandwidth can limit performance. This adapter features two independent 5 Gbps channels. This means two ports share one channel. It effectively doubles the available bandwidth compared to single-channel cards. Your high-speed peripherals will operate more efficiently.
Faster Data Transfers with UASP
The card supports UASP (USB Attached SCSI Protocol). When paired with a UASP-enabled enclosure, transfers are significantly faster. This protocol processes multiple commands simultaneously. It reduces waiting times for large data transfers. This is ideal for external hard drives and SSDs.
Power for High-Demand Devices
Power delivery is crucial for many USB devices. This card includes an optional SATA or LP4 power connector. It supplies up to 900mA per port for USB 3.2 Gen 1 devices. USB 2.0 devices receive 500mA. We also include support for Apple Mode Battery Charging 1.2.
Flexible Installation Options
We understand diverse system requirements. This PCIe USB card comes with a standard profile bracket. A low-profile bracket is also included. This allows installation in both full-height and small form-factor PCs. It ensures broad compatibility.

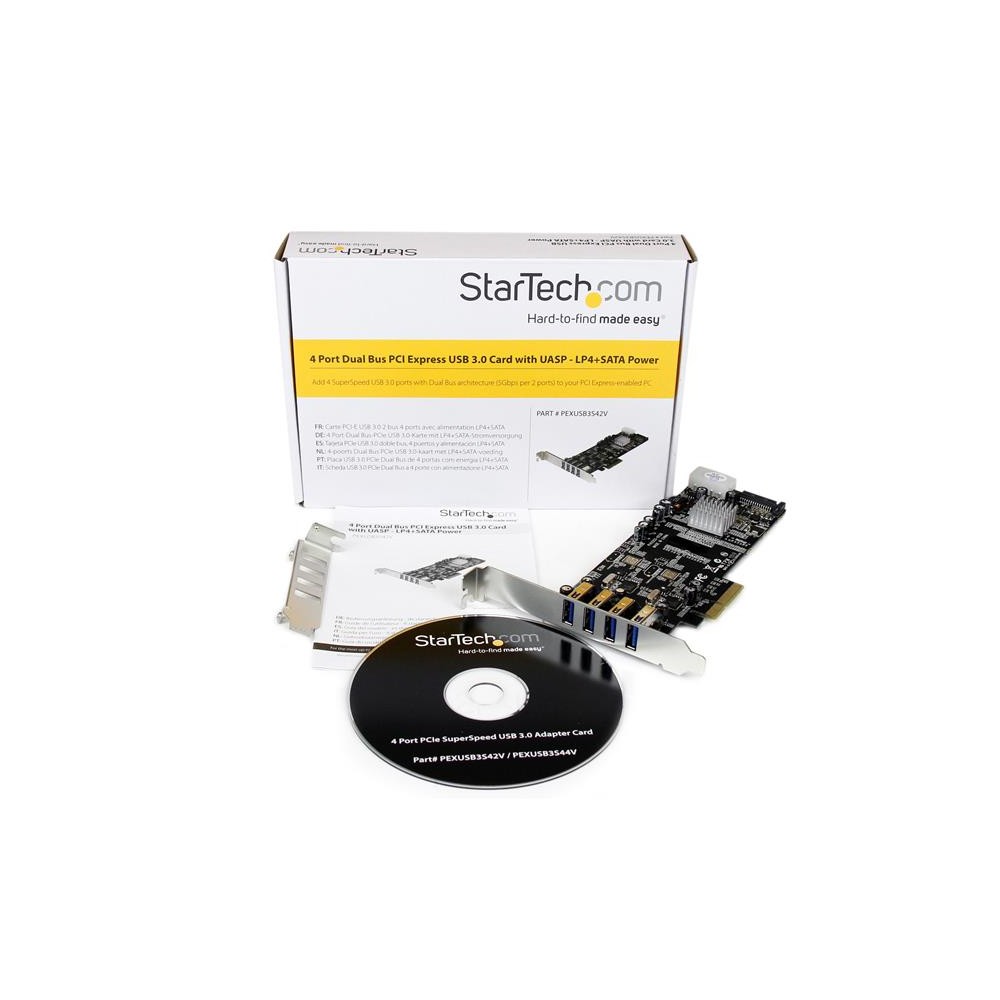

What you receive
- StarTech.com PEXUSB3S42V 4 Port PCIe USB 3.2 Gen 1 Card Adapter
- Low-profile bracket
- User manual
- Driver CD
Worth checking first
- Confirm your PC has an available PCIe x4 slot.
- Confirm your power supply has a spare SATA or LP4 power connector.
- Confirm your operating system is Windows (7/8/8.1/10) or Linux.
Frequently Asked Questions
Q: Does this card require external power?
A: Yes, it needs either a SATA or LP4 power connection from your PSU for full functionality.
Q: Is this card compatible with older USB devices?
A: Yes, it offers backward compatibility with USB 2.0 and 1.1 devices.
Q: Can I charge my iPhone with this card?
A: Yes, it supports Apple Mode USB Battery Charging Specification 1.2 for compatible devices.
Q: Does it come with drivers?
A: Yes, drivers are included on a CD and typically available for download.
Q: What is UASP?
A: UASP is a protocol that can significantly increase USB 3.2 Gen 1 transfer speeds with compatible devices.
Our Verdict
This StarTech.com adapter is perfect for users needing extra USB 3.2 Gen 1 ports with robust performance. Its dual-channel design and UASP support make it a strong choice. It is suitable for workstations and gaming PCs alike. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Technical details | |
| Chipset | 2 x Renesas / NEC - µPD720202 |
| Data transfer rate (max) | 5 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| UASP support | Yes |
| Maximum cable length | 3 m |
| Hot-swap | Yes |
| Chipset | 2 x Renesas / NEC - µPD720202 |
| Data transfer rate (max) | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FCC |
| Design | |
| Maximum cable length | 3 m |
| Hot-swap | Yes |
| Internal | Yes |
| Certification | CE, FCC |
| Features | |
| UASP support | Yes |
| Chipset | 2 x Renesas / NEC - µPD720202 |
| Data transfer rate (max) | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 167 mm |
| Height | 120 mm |
| Weight | 90 g |
| Package width | 142 mm |
| Package depth | 207 mm |
| Package height | 41 mm |
| Package weight | 200 g |
| Packaging data | |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 142 mm |
| Package depth | 207 mm |
| Package height | 41 mm |
| Package weight | 200 g |
| User guide | Yes |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 315 mm |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| User guide | Yes |
| Other features | |
| Chipset | 2 x Renesas / NEC - µPD720202 |
| Identifiers | |
| Distributor SKUs | V239920, V933014, 96206, 4783350, 894344, CLPEXUSB3S42V |
| Additional EANs | 0650308545972 |
