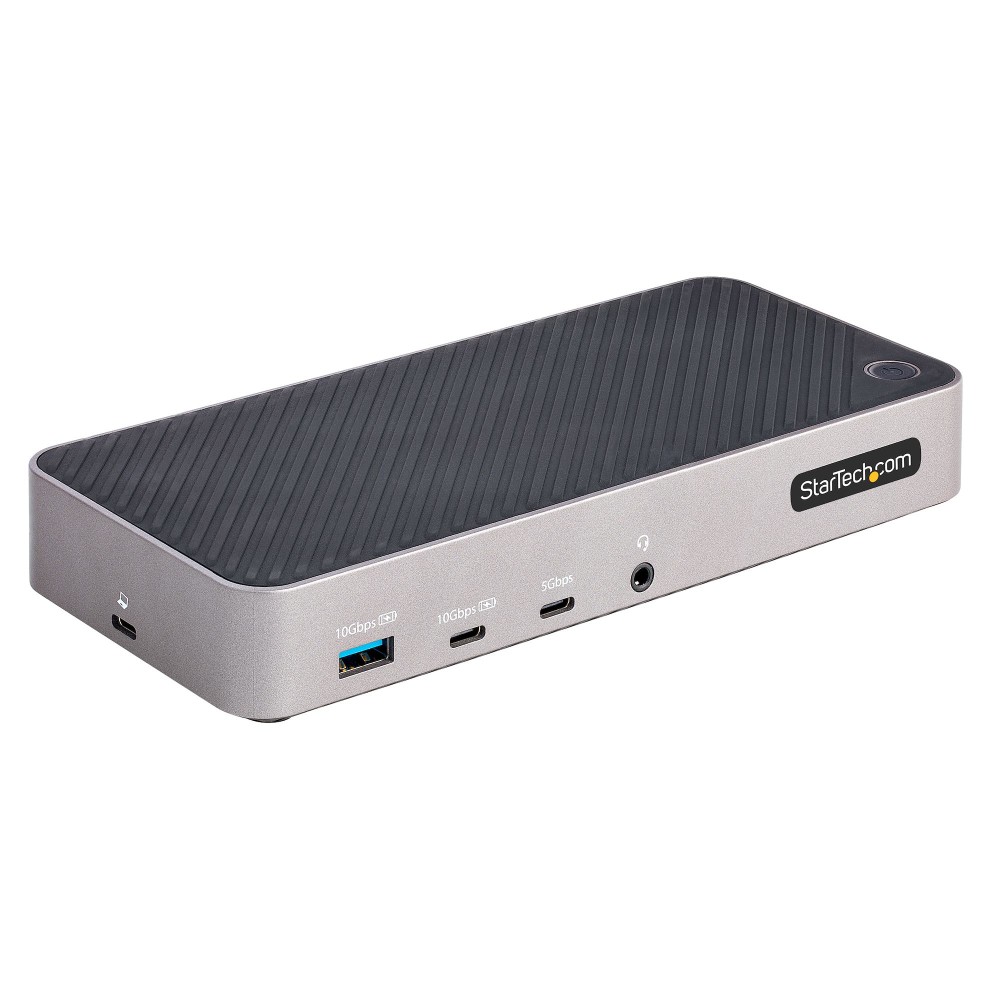

StarTech.com USB-C Triple 4K 60Hz Monitor Docking Station, 100W PD, Grey
Original price was: £173.42.£159.55Current price is: £159.55. inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Triple 4K monitor support (2x HDMI 2.0, 2x DisplayPort 1.4) at 60Hz
- 100W USB Power Delivery 3.0 for charging host devices
- USB 3.2 Gen 2 Type-C host interface with 10 Gbit/s data transfer
- Five USB ports: 2x USB-A (Gen 1), 1x USB-C (Gen 1), 1x USB-A (Gen 2), 1x USB-C (Gen 2)
- Integrated Gigabit Ethernet with Wake-on-LAN and 3.5mm audio jack
- Kensington cable lock slot for enhanced security
- Wide OS compatibility including Windows, macOS, ChromeOS, Linux, and Android
Payment Methods:
You may also like
StarTech.com Triple 4K 60Hz Monitor Docking Station – Expanded Workspaces
We are pleased to offer the StarTech.com USB-C Triple 4K 60Hz Monitor Docking Station, 100W PD, Grey. This versatile docking station is ideal for professionals needing to expand their workspace with multiple high-resolution displays. It offers broad compatibility across various operating systems, empowering a productive multi-monitor setup.
Essential Specifications
| Metric | Spec. |
|---|---|
| Maximum Digital Resolution | 4096 x 2160 pixels |
| USB Power Delivery | 100 W |
| Ethernet LAN Data Rates | 10,100,1000 Mbit/s |
| Host Interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Product Colour | Grey |
Seamless Multi-Monitor Integration
Achieve an expansive visual workspace with support for three independent 4K displays. This docking station intelligently combines its internal graphics controller with your laptop’s USB-C DP Alt Mode for optimal performance. You can connect various combinations of HDMI and DisplayPort monitors. This setup is perfect for detailed graphic work or complex data analysis.
Versatile Connectivity Options
Beyond display outputs, this dock provides a comprehensive array of ports. You will find two USB-A and one USB-C (5Gbps) ports for your peripherals. Additionally, there is one USB-A and one USB-C (10Gbps) port that supports BC 1.2 for charging devices. A Gigabit Ethernet port ensures reliable wired network access.
Efficient Power Delivery and Charging
This USB-C docking station provides 100W USB Power Delivery. This means your connected host device can charge while you work. The BC 1.2 enabled USB charging ports also feature Overcurrent Protection (OCP). This safeguards your connected USB devices from drawing excessive power.
Broad Operating System Support
The StarTech.com USB-C Triple 4K 60Hz Monitor Docking Station, 100W PD, Grey supports a wide range of operating systems. This includes Windows, macOS, ChromeOS, and Linux. This broad compatibility ensures seamless integration into most professional environments.

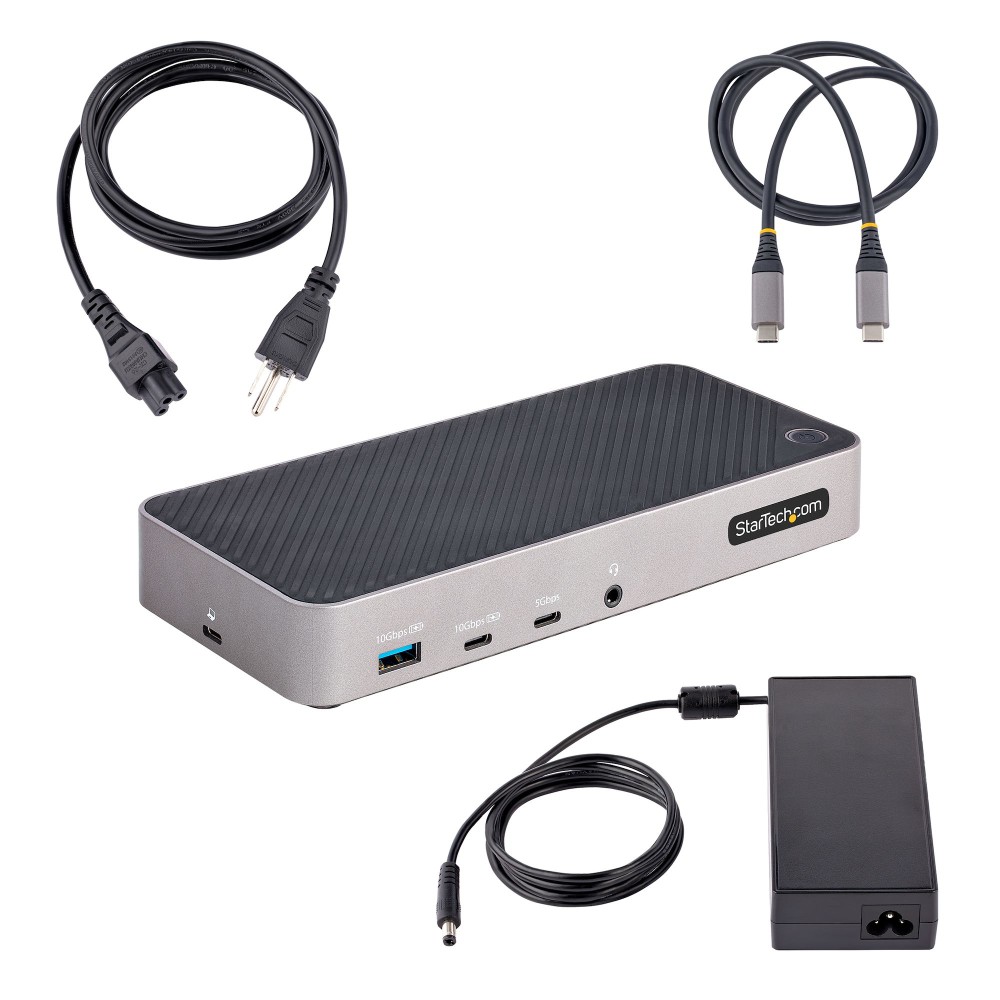

Items Included
- USB Type-C to USB Type-C cable
- AC adapter
- Quick start guide
Before You Buy
- Confirm your laptop has a USB-C port with DisplayPort Alternate Mode support.
- Confirm your operating system is compatible (Windows, macOS, ChromeOS, Linux).
- Confirm your power requirements are met by 100W USB Power Delivery.
Frequently Asked Questions
Q: Can I connect three 4K monitors at 60Hz?
A: Yes, the dock supports two 4K 60Hz displays via DisplayLink and one 4K 30Hz display via DP Alt-Mode.
Q: Does this docking station charge my laptop?
A: Yes, it provides up to 100W USB Power Delivery to charge your host device.
Q: Is there an Ethernet port for wired network access?
A: Yes, it features a Gigabit Ethernet port with Wake-on-LAN support.
Q: What operating systems are supported?
A: It supports Windows, macOS, ChromeOS, and Linux.
Q: Does it have a headphone jack?
A: Yes, there is a 3.5mm 4-position TRRS audio jack for a headset.
Our Recommendation
This docking station is an excellent choice for users requiring robust multi-monitor capabilities and comprehensive connectivity. Its 4K display support and 100W Power Delivery make it ideal for demanding professional workflows. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Networking standards | IEEE 802.3ab |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Performance | |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Grey |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Power |
| Data transfer rate | 10 Gbit/s |
| Cable lock slot type | Kensington |
| HD type | 4K Ultra HD |
| Housing material | Plastic |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Grey |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 290 mm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Input current | 2.5 A |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
| Output voltage | 24 V |
| Output current | 5.41 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 350 g |
| Width | 85 mm |
| Depth | 190 mm |
| Height | 30 mm |
| Package weight | 1.1 kg |
| Package width | 205 mm |
| Package depth | 250 mm |
| Package height | 50 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour | Grey |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.1 kg |
| Package width | 205 mm |
| Package depth | 250 mm |
| Package height | 50 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 290 mm |
| Other features | |
| Chipset | DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0 |
| Identifiers | |
| Distributor SKUs | V308198, CG40692, 94820, 9749348, 2064757, CL116U-USBC-DOCK |
