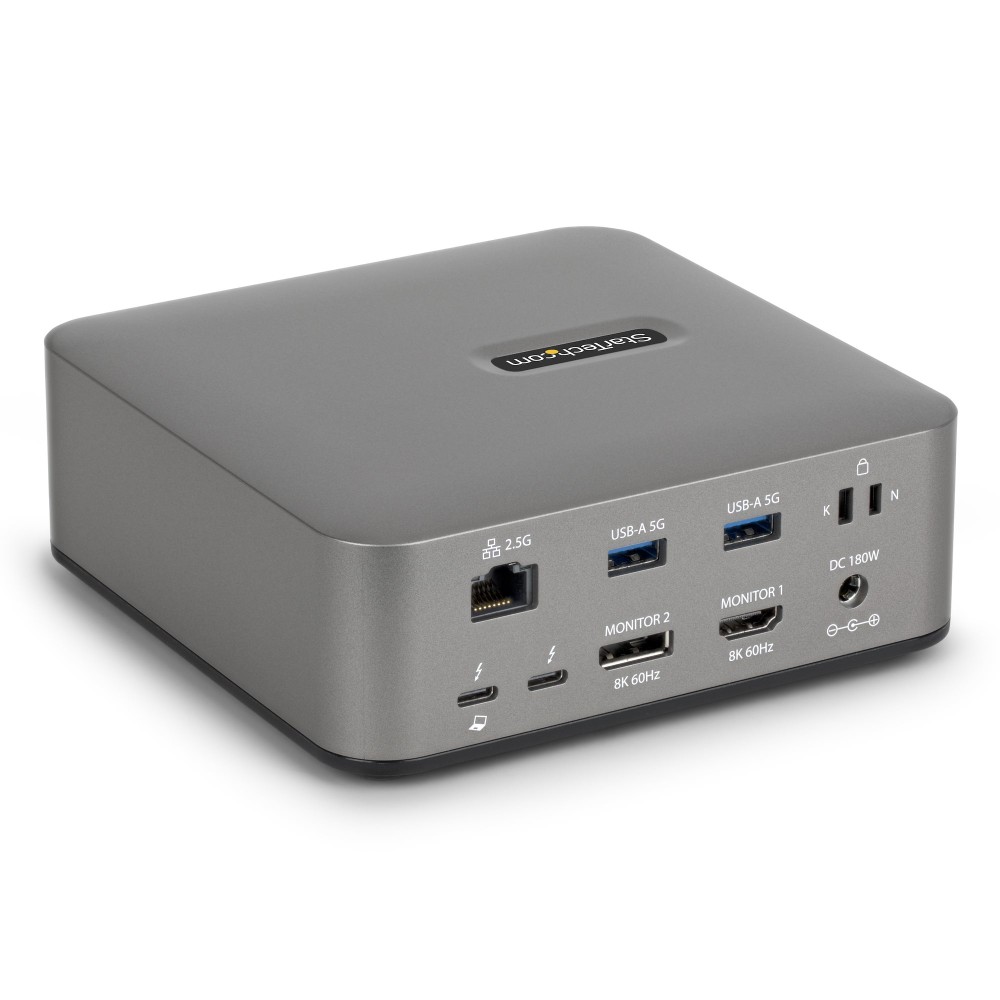

StarTech.com Thunderbolt 5 Universal Docking Station 140W PD 2.5G Ethernet 3 Displays 4K 144Hz Grey
Original price was: £274.79.£259.98Current price is: £259.98.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Thunderbolt 5 host interface compatible with Windows 10 and macOS 15 Sequoia
- Three 4K 144Hz display outputs using HDMI DisplayPort and USB-C
- 140W USB Power Delivery charging plus dedicated 30W port for mobile devices

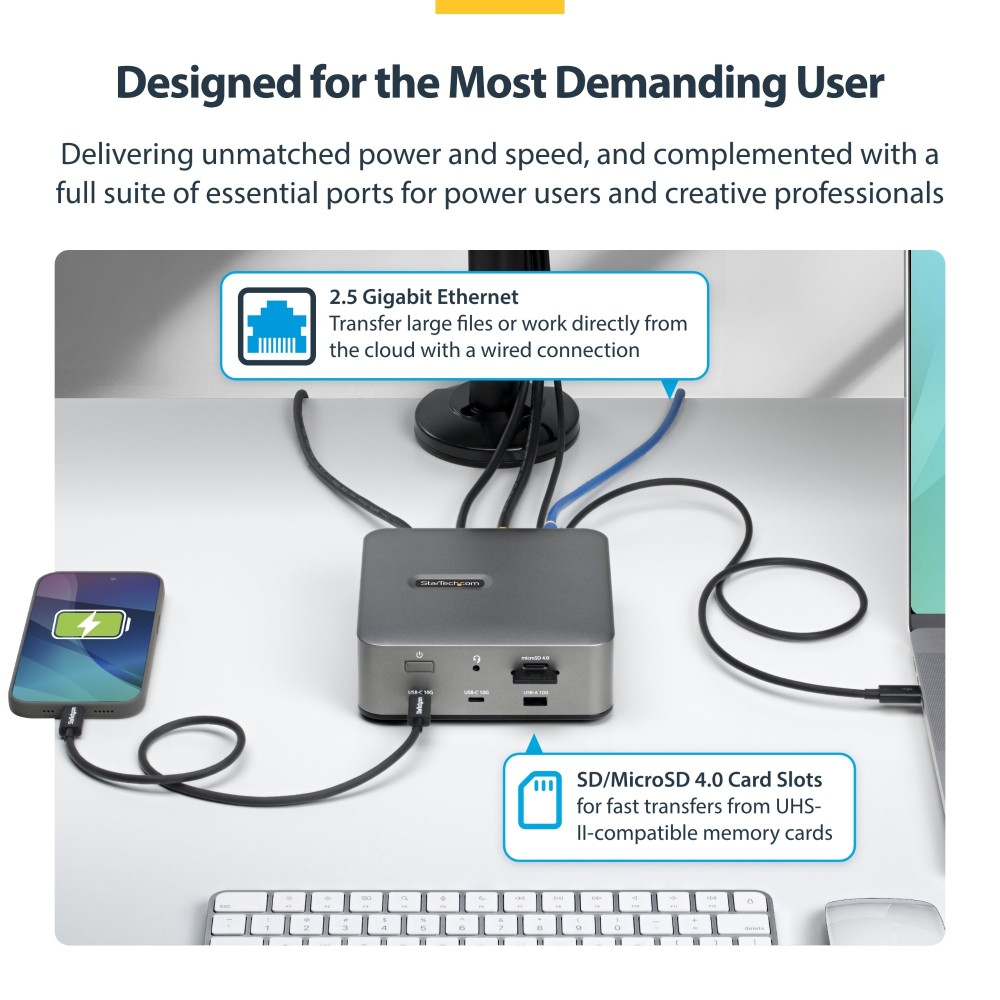

- 2.5G Ethernet RJ-45 port providing faster wired network access

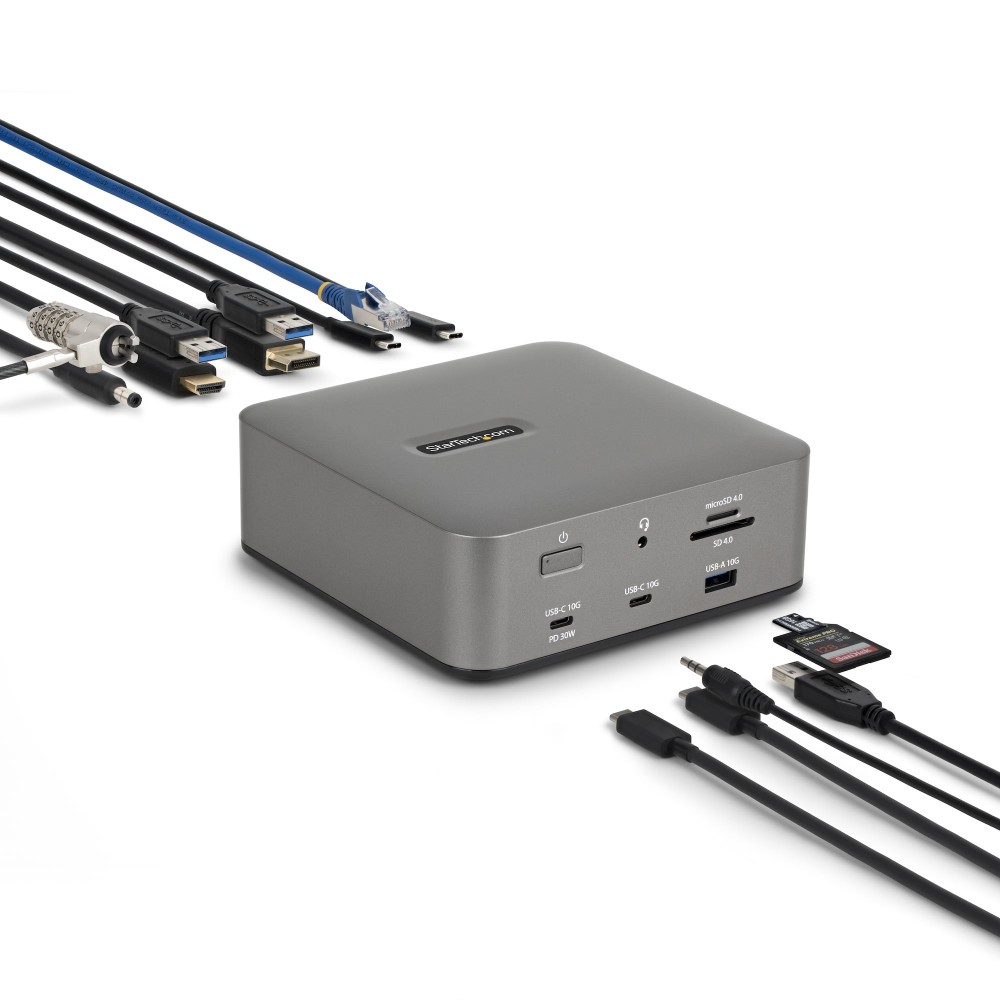

- Multiple USB-A and USB-C ports including three Gen 2 Type-A and Type-C options
- Integrated SD and microSD 4.0 card slots for quick file transfers
- Dual Kensington and Nano cable lock slots for physical security
You may also like

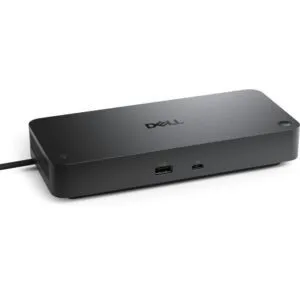

Dell Thunderbolt 4 SD25TB4 Dock
In stock
Kensington SD4781P EQ Dual 4K Docking Station USB-C & USB-A
In stock

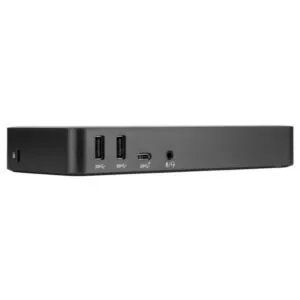

Targus DOCK430EUZ USB-C Docking Station Black
In stock
Anker A83772Z1 USB-C Docking Station Black
In stock

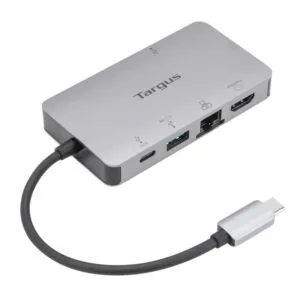

Targus DOCK419 USB 3.2 Gen 1 Type-C Dock Grey
In stock
StarTech.com Thunderbolt 5 Docking Station – High Performance Connectivity
We recommend the StarTech.com Thunderbolt 5 Universal Docking Station 140W PD 2.5G Ethernet 3 Displays 4K 144Hz Grey for power users. It transforms your laptop into a multi-monitor workstation effortlessly. You gain 140W charging and fast networking in one cable.
Key technical metrics
| Metric | Spec. |
|---|---|
| Host Interface | Thunderbolt 5 |
| Max Power Delivery | 140W |
| Display Support | Triple 4K 144Hz |
| Ethernet Speed | 2.5Gbps |
| Audio Port | 3.5mm Jack |
| Card Reader | SD/microSD |
StarTech.com Thunderbolt 5 Universal Docking Station 140W PD 2.5G Ethernet 3 Displays 4K 144Hz Grey capabilities

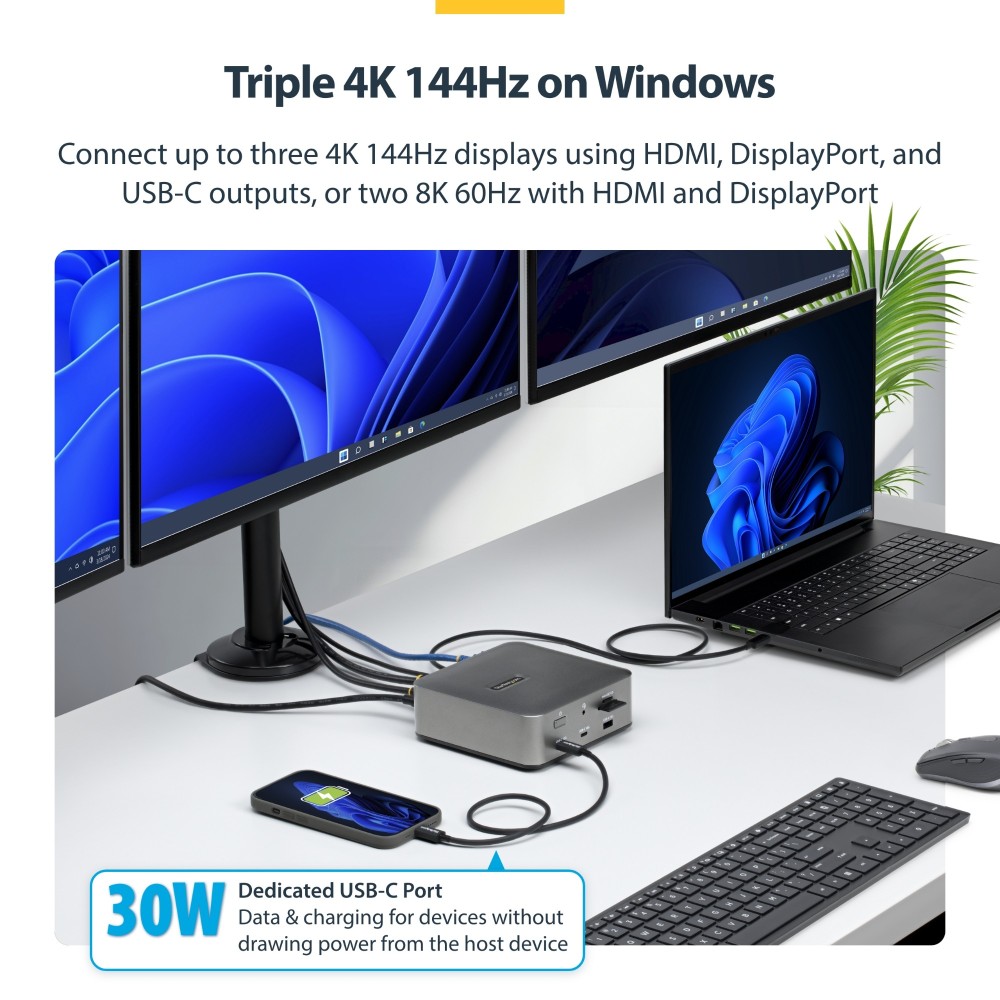

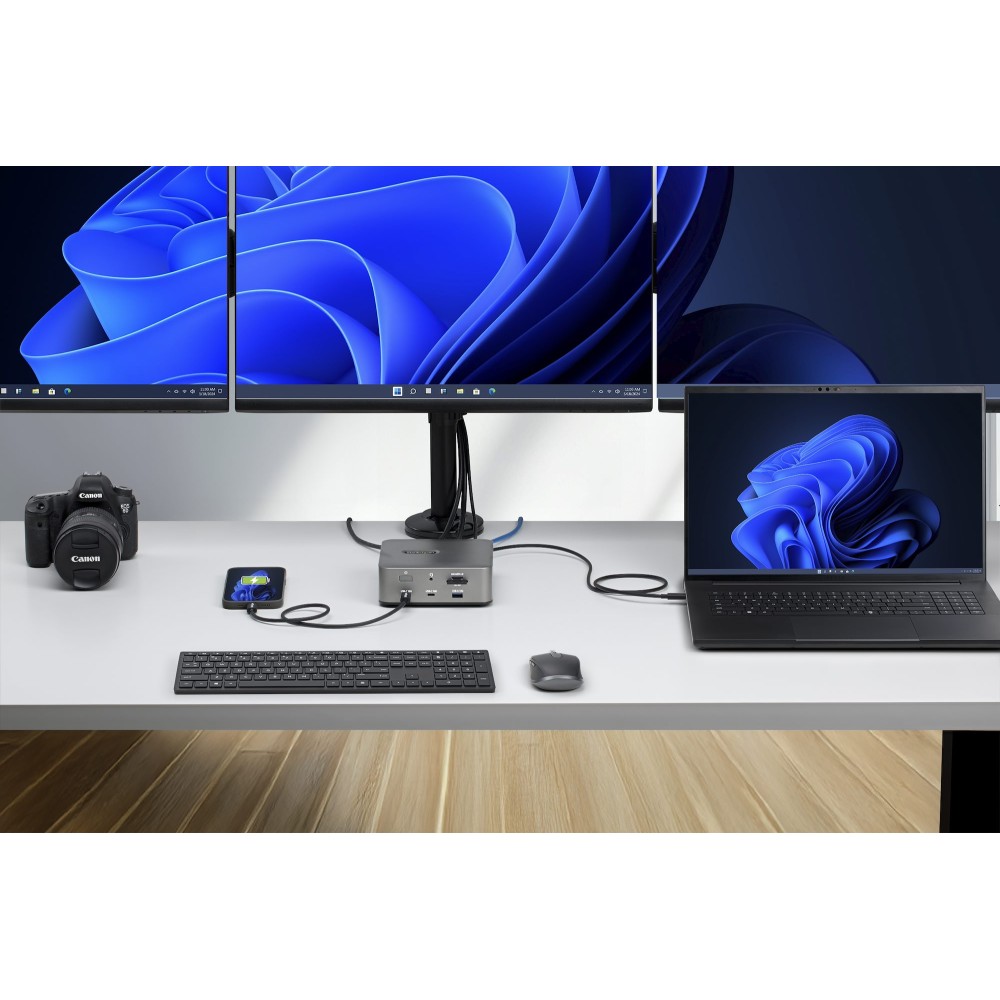

Multi-monitor setup flexibility

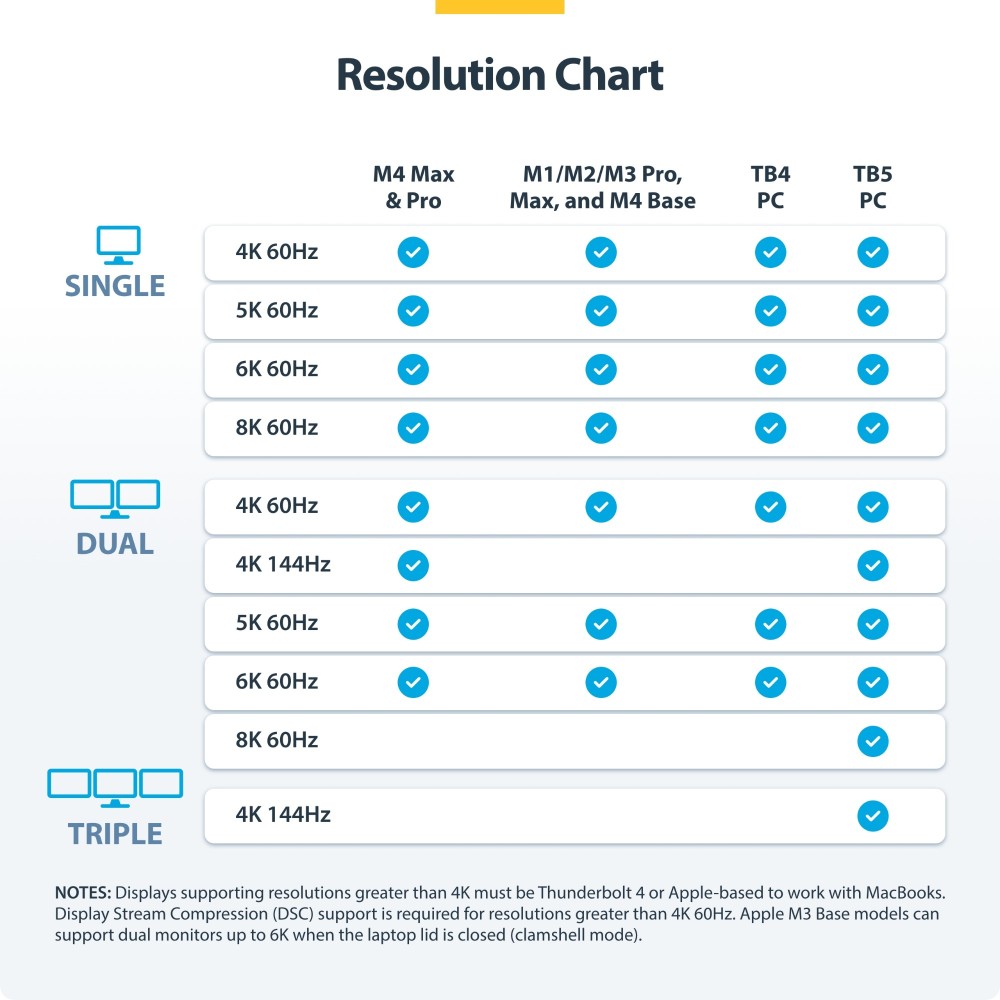

Connect up to three 4K screens with 144Hz refresh rates. Use HDMI, DisplayPort, and USB-C outputs together. This layout supports complex workflows without lag.

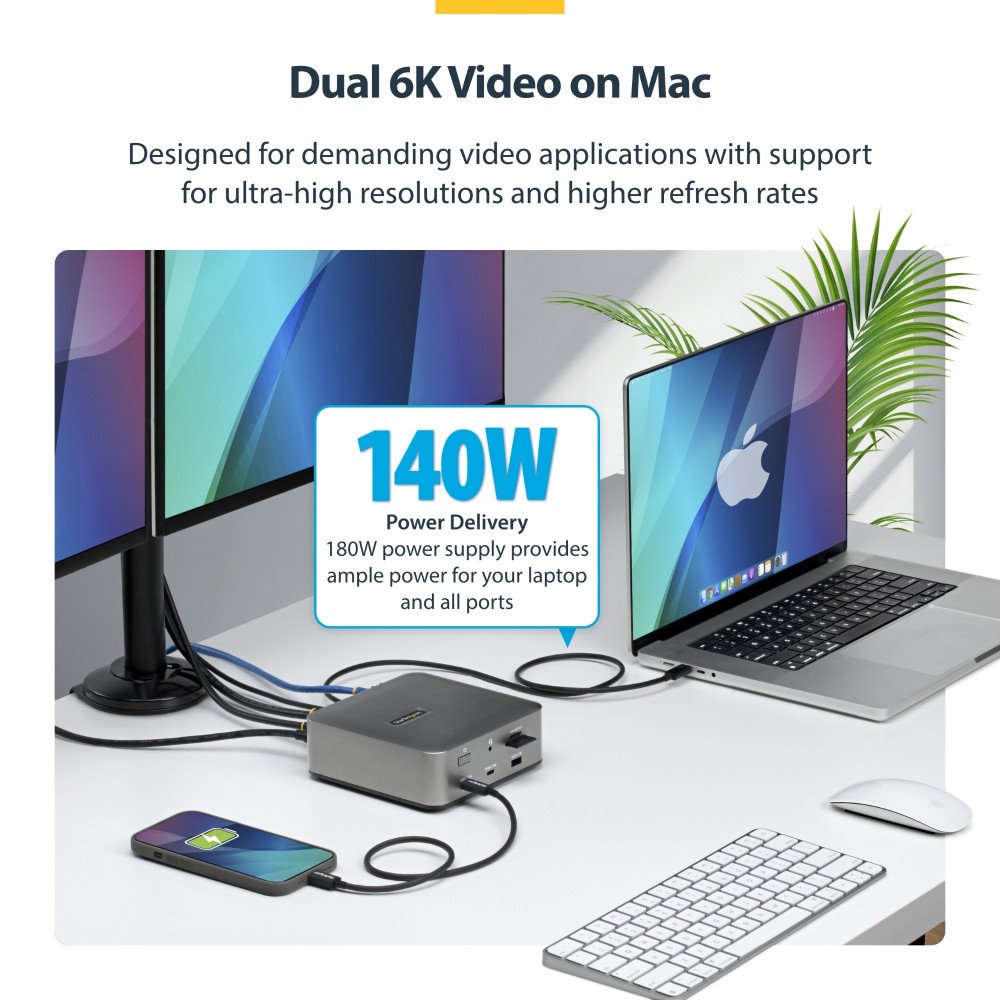

Rapid laptop charging support
You receive 140W of power for your main device. It handles high-end laptops efficiently through one cable. A second USB-C port charges phones independently.
Stable wired network access
Use the 2.5G Ethernet port for reliable connections. It reduces latency during video calls and file transfers. The connection works automatically without extra drivers.
Physical asset protection
Two slots let you secure the dock physically. This prevents theft in shared office environments easily. Use Kensington locks for added safety.

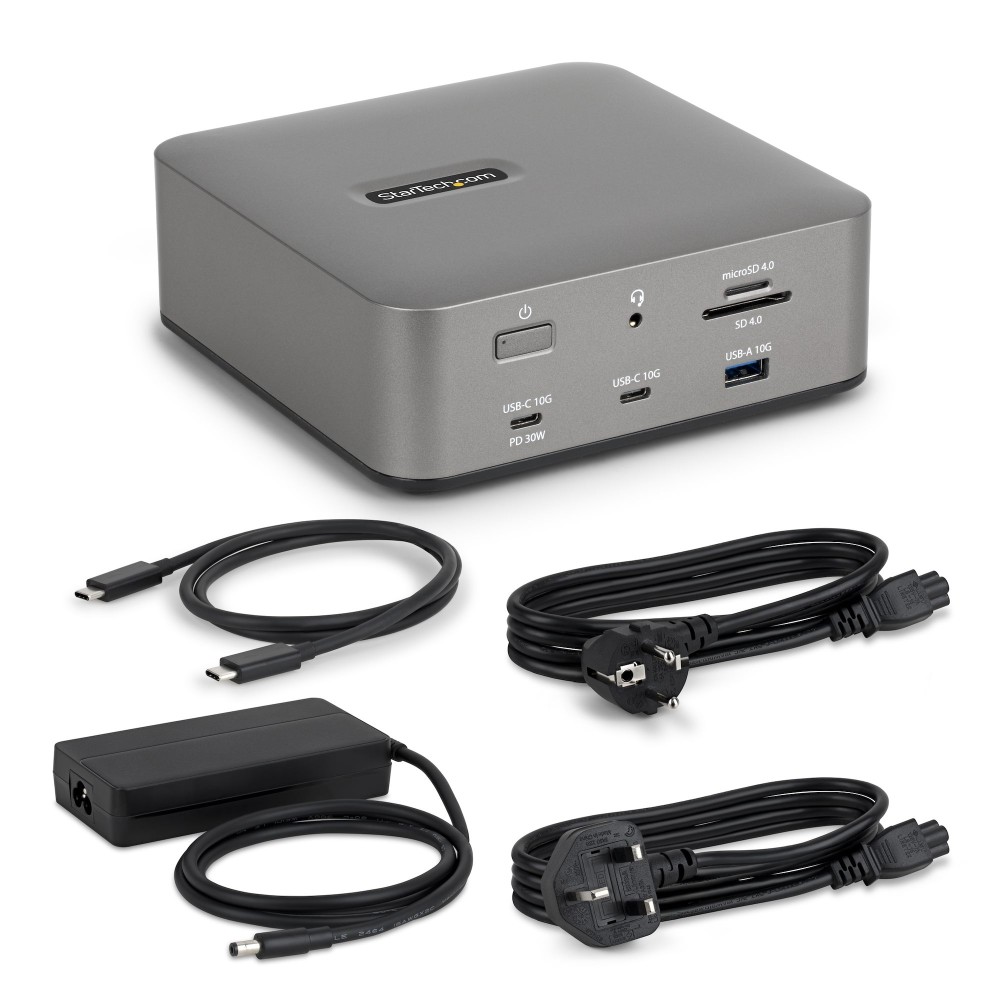

Standard package contents
You get a Thunderbolt cable and power adapter. These items are inside the box when delivered.
Compatibility checks
- Confirm your laptop supports Thunderbolt 5 or 4.
- Verify your operating system matches supported versions.
Frequently Asked Questions
Frequently Asked Questions
Q: Does it work with Mac?
A: Yes, it supports macOS 15 and later systems fully.
Q: How many phones can it charge?
A: One phone charges at 30W via the dedicated port.
Q: Is the Ethernet port fast?
A: It provides 2.5Gbps speeds for quicker data access.
Q: Can I use SD cards here?
A: You can insert SD and microSD cards easily.
Final assessment
This dock suits professionals needing multiple screens and fast charging. It delivers solid performance for workstations.

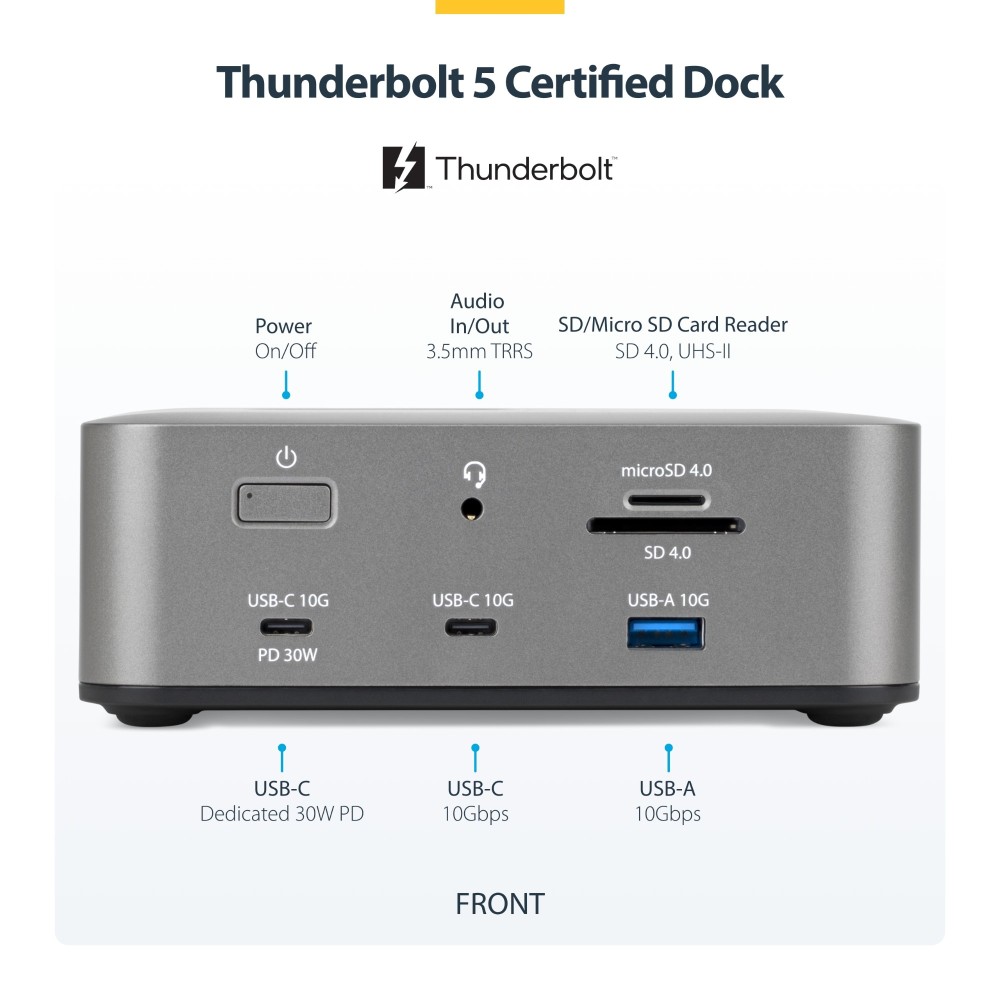

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |

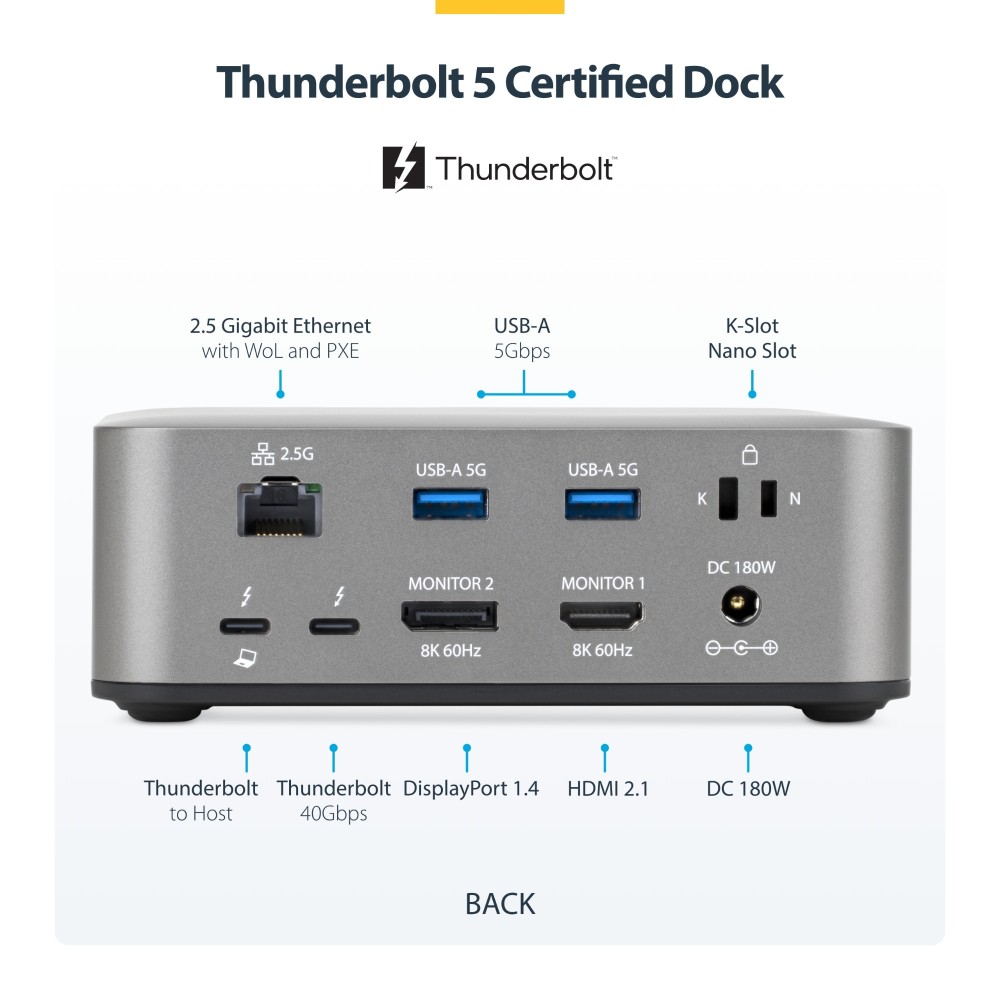

| Host interface | Thunderbolt 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| Thunderbolt 5 ports quantity | 1 |
| Network | |
| Full duplex | Yes |
| Networking standards | IEEE 802.3bz |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Full duplex | Yes |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Product colour | Grey |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Cable lock slot type | Kensington, Nano |
| HD type | 4K Ultra HD |
| Housing material | Plastic |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Product colour | Grey |
| Cable lock slot | Yes |
| Data transfer rate | 40 Gbit/s |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| User guide | Yes |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 170 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Power | |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Weight | 592 g |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 50 mm |
| Package weight | 1.8 kg |
| Package width | 302 mm |
| Package depth | 169 mm |
| Package height | 59 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
| Product colour | Grey |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington, Nano |
| Packaging data | |
| Package weight | 1.8 kg |
| Package width | 302 mm |
| Package depth | 169 mm |
| Package height | 59 mm |
| Packaging content | |
| User guide | Yes |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 170 mm |
| Other features | |
| Chipset | Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U |
