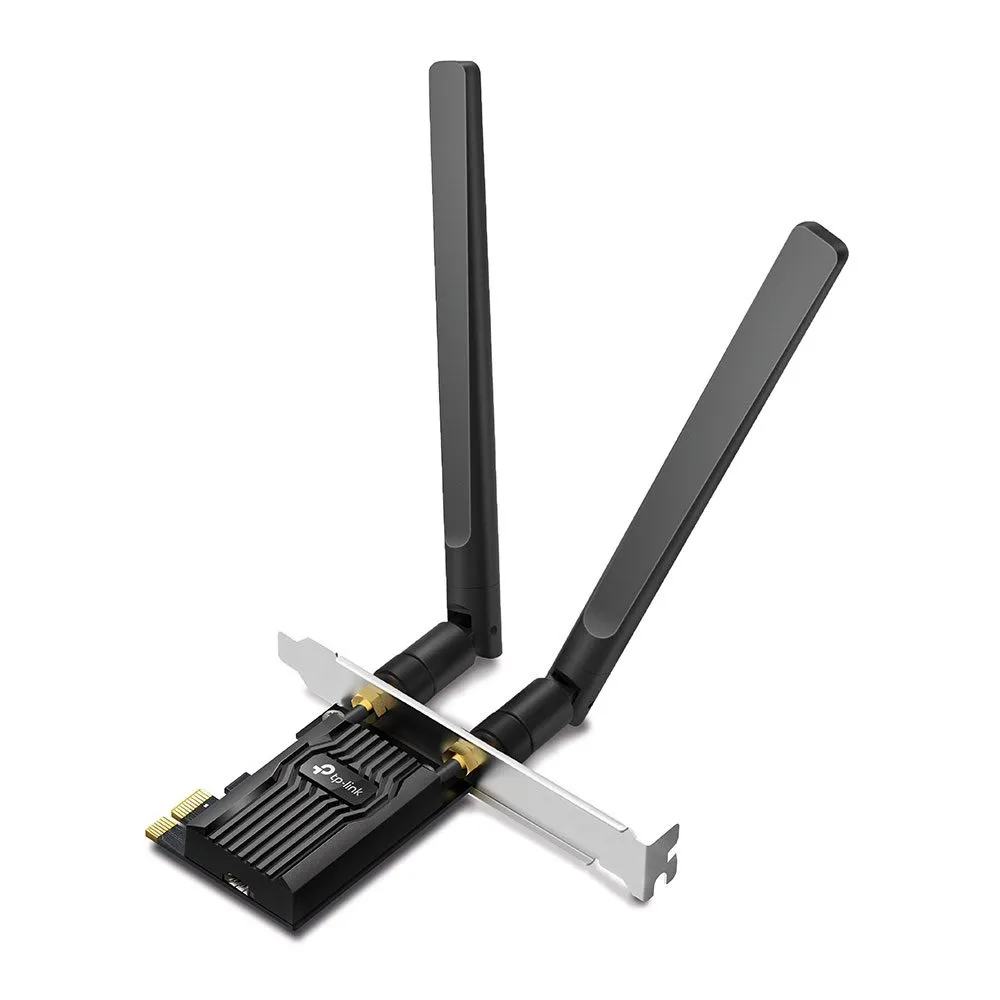

TP-Link AX1800 Wi-Fi 6 PCIe Adapter
£42.62 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Wi-Fi 6 PCIe adapter with dual-band 2.4/5 GHz connectivity
- Up to 1800 Mbps data transfer rate for high-speed networking
- Bluetooth 5.2 technology for enhanced wireless device connectivity
- Supports WPA3 security for advanced network protection
- External high-gain antennas for extended Wi-Fi coverage
- PCI Express interface for internal desktop PC installation
Payment Methods:
You may also like
ASUS PCE-AX1800 BT5.2 WLAN / Bluetooth 1775 Mbit/s
In stock
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter | Next-Gen Wireless Upgrade
The TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter delivers cutting-edge wireless performance for desktop PCs, combining Wi-Fi 6 speeds up to 1800 Mbps with Bluetooth 5.2 connectivity. This internal PCIe card eliminates Wi-Fi bottlenecks and brings future-proof networking to your system.
Product Specifications
| Metric | Spec. |
|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Maximum Speed | 1800 Mbps |
| Bluetooth Version | 5.2 |
| Antenna Configuration | External high-gain (2) |
| Security | WPA3, WPA2, WEP |
Wi-Fi 6 Performance That Eliminates Bottlenecks
Experience true gigabit wireless speeds with Wi-Fi 6 technology. The AX1800 adapter supports 1024-QAM modulation and 160 MHz channels, delivering 40% faster throughput than Wi-Fi 5. OFDMA technology divides channels into smaller sub-channels, allowing multiple devices to communicate simultaneously without congestion. Whether you’re gaming, streaming 4K content, or transferring large files, this adapter ensures your PC’s wireless connection never holds you back.

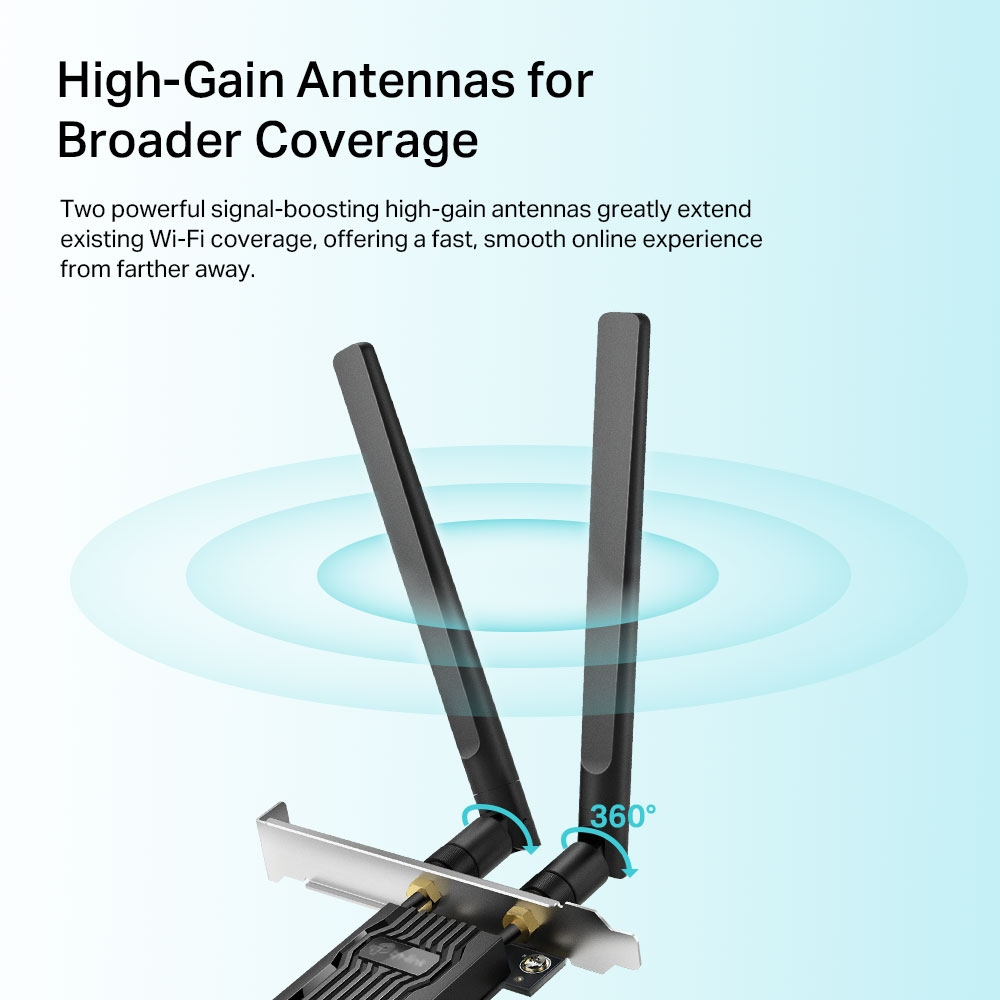

Superior Coverage with High-Gain Antennas
Two external high-gain antennas extend your wireless range significantly compared to standard internal adapters. The beamforming technology focuses the signal directly to your router, reducing dead spots and maintaining stable connections throughout your home or office. You’ll experience consistent speeds even when your PC is located farther from the router, making this ideal for larger spaces or multi-story buildings.
Bluetooth 5.2 for Modern Peripherals
The integrated Bluetooth 5.2 module provides twice the speed and four times the range of Bluetooth 4.2. Connect wireless keyboards, mice, headphones, game controllers, and other peripherals with improved stability and lower latency. The Bluetooth header cable ensures clean installation while maintaining full functionality for all your wireless devices.
Advanced Security with WPA3 Protection
WPA3 encryption provides individualized data protection and safeguards against brute-force attacks, ensuring your wireless connection remains secure. The adapter supports the latest security protocols including 802.1x RADIUS authentication, giving you enterprise-grade protection for home or office networks. Your online activities, financial transactions, and personal data stay protected with cutting-edge security standards.

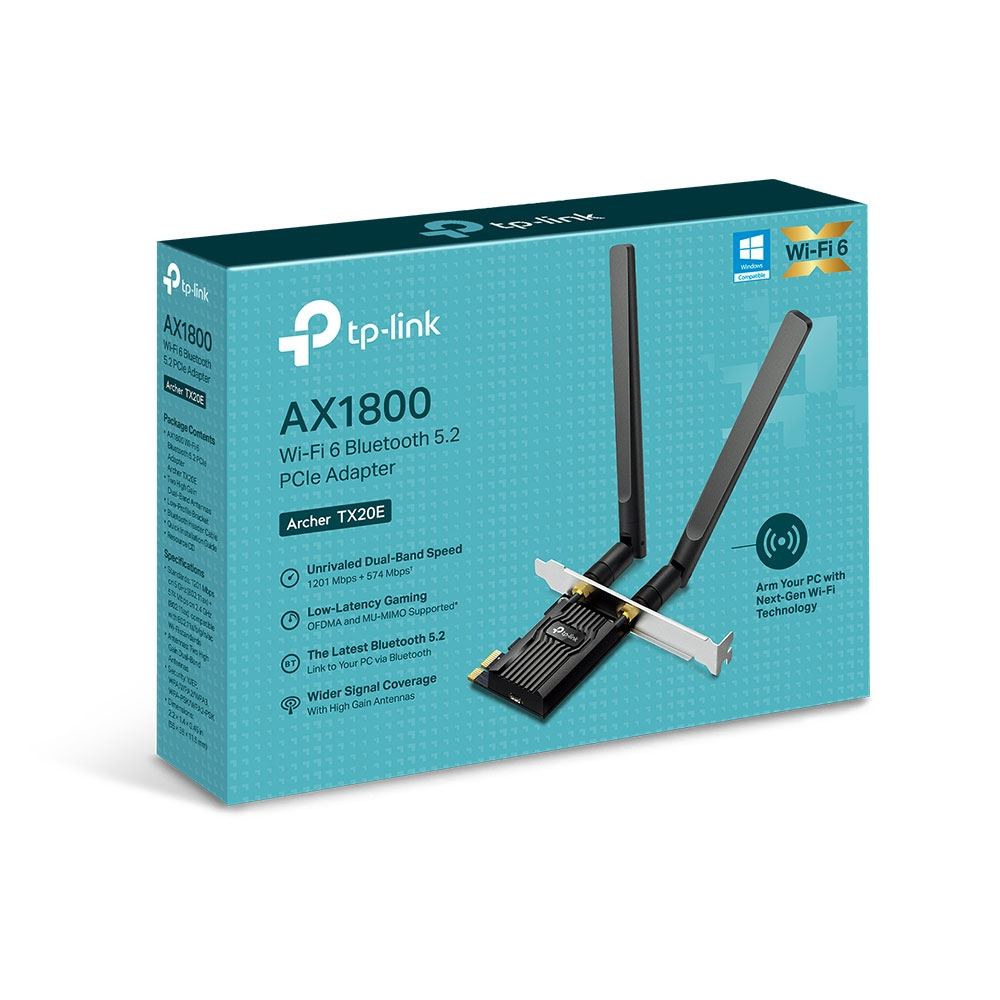

Box contents
- TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Two external high-gain antennas
- Bluetooth header cable
- Quick installation guide
- Resource CD
- Mounting brackets
Key points to check
- Confirm your PC has an available PCIe x1 or larger slot
- Verify your operating system is Windows 10 (64-bit) or Windows 11 (64-bit)
- Check your router supports Wi-Fi 6 (802.11ax) for full speed benefits
- Ensure adequate space inside your case for the adapter’s dimensions
Common questions
Does this adapter work with older Wi-Fi standards?
Can I use this with a laptop?
What’s the difference between Wi-Fi 6 and previous versions?
Do I need special drivers for Windows 11?
How do I install the external antennas?
Summary & warranty
The TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter is perfect for desktop users seeking to upgrade from outdated wireless technology or add high-performance Wi-Fi to a wired-only system. The combination of Wi-Fi 6 speeds, Bluetooth 5.2 connectivity, and robust security makes this a comprehensive wireless solution for modern computing needs. Covered by the applicable manufacturer warranty.
| Weight | 0.1 kg |
|---|---|
| Interface | WLAN, Bluetooth |
| Host interface | PCI Express |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Wi-Fi band | Dual-band (2.4 GHz, 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Product colour | Black |
| Antenna | Yes |
| Internal | Yes |
| Transmitting power CE | 23 dBm |
| Transmitting power FCC | 27 dBm |
| Operating modes | Infrastructure mode |
| Component for | PC/Server |
| Antenna design | External |
| Operating temperature T-T | 0 – 40 °C |
| Storage temperature T-T | -40 – 70 °C |
| Operating relative humidity H-H | 10 – 90% |
| Storage relative humidity H-H | 5 – 90% |
| Sustainability compliance | Yes |
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 20.9 mm |
| Package width | 201.5 mm |
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 220 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Bluetooth header cable | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Bluetooth version | 5.2 |
