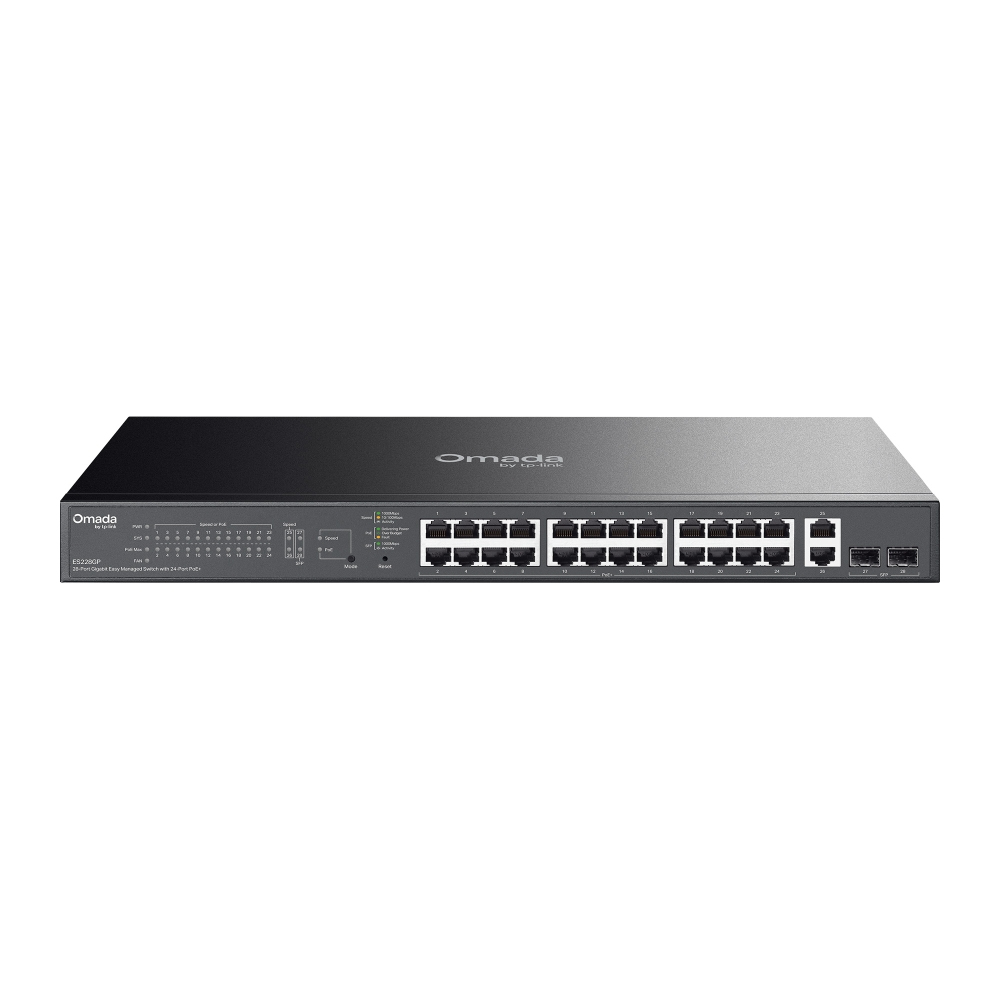

TP-Link ES228GP Managed L2 Gigabit Ethernet PoE+ Network Switch 24x PoE+ 2x SFP Rackmount Black
£218.47 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Managed L2 Gigabit Ethernet switch
- 24 PoE+ ports with 250W total budget, plus 2 SFP slots
- 56 Gbit/s switching capacity, 41.67 Mpps forwarding rate
- Supports VLAN, QoS, link aggregation, and IGMP snooping
- Rackmount design with 2 fans for efficient cooling
- Omada Central Essentials for cloud-based management
- Ideal for surveillance, Wi-Fi coverage, and wired connections
Payment Methods:
You may also like
TP-Link TL-SG1005P 5-Port PoE Switch
In stock
TP-Link ES228GP – Robust Network Control
The TP-Link ES228GP Managed L2 Gigabit Ethernet PoE+ Network Switch 24x PoE+ 2x SFP Rackmount Black is built for demanding network environments. This switch provides robust, centralised control for businesses and surveillance systems. It combines high performance with flexible power delivery. We find it ideal for expanding modern wired networks.
Core Connectivity Details
| Metric | Spec. |
|---|---|
| RJ-45 Ethernet Ports | 26 (Gigabit) |
| PoE+ Ports | 24 |
| Total PoE Budget | 250 W |
| SFP Module Slots | 2 |
| Switching Capacity | 56 Gbit/s |
| MAC Address Table | 8000 entries |
Streamlined Cloud Management
Manage your network devices effortlessly with Omada Central Essentials. This platform offers free, cloud-based oversight. It simplifies monitoring for Omada access points, switches, and gateways. This feature is particularly beneficial for surveillance setups and small business infrastructures.
Powering Your Devices
With 24 Power over Ethernet Plus (PoE+) ports, this switch delivers power and data. Each port supplies up to 30W. The total PoE budget is a substantial 250W. This supports numerous IP cameras or wireless access points. Eliminate extra power cables for a cleaner installation.
Enhanced Network Security
Integrated VLAN support enhances network security and efficiency. Features like Port-based VLAN and Tagged VLAN segment traffic. This isolates critical systems and reduces broadcast storms. Loop protection also prevents network disruptions.
Reliable Data Delivery
Benefit from Quality of Service (QoS) support. This prioritises critical data traffic. Voice and video streams remain smooth and uninterrupted. Jumbo frame support (15000 bytes) further improves large data transfers. This ensures efficient operation under heavy loads.
Installation Versatility
Designed for rack mounting, this switch integrates seamlessly into server racks. Its black finish offers a professional appearance. The included AC cable ensures quick setup. Surge protection also safeguards your investment.
Before You Order
- Confirm your rack has suitable space for a 1U device.
- Verify your powered devices require PoE+ (802.3at) power.
- Check the total power consumption of your PoE devices against the 250W budget.
- Confirm your planned network layout can benefit from L2 managed features.
Frequently Asked Questions
Q: Does this switch support web-based management?
A: Yes, it includes comprehensive web-based management tools for easy configuration.
Q: What is the total PoE power budget for this switch?
A: The total Power over Ethernet budget is 250 Watts across its 24 PoE+ ports.
Q: Can I use this switch with non-PoE devices?
A: Yes, it works with all standard Ethernet devices, including those not requiring PoE.
Q: How many SFP slots does this switch have?
A: It features two SFP module slots for fibre optic connections.
Q: Is this switch suitable for surveillance systems?
A: Yes, its PoE+ capabilities and managed features make it ideal for IP camera networks.
The Bottom Line
The TP-Link ES228GP offers a powerful, managed solution for complex networks. It suits businesses needing reliable PoE+ delivery and advanced network control. Its cloud management simplifies operations significantly. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 41.67 Mpps |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| Power protection features | Surge protection |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power protection features | Surge protection |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 4 MB |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
| Identifiers | |
| Distributor SKUs | 93773, 11941836, 3860669, CLES228GP |
| Additional EANs | 1210002609760 |
