TP-Link Omada Industrial 10-Port Gigabit Switch 6 PoE+ 2 PoE++ Ports 240W Cloud Managed DIN Rail
Original price was: £273.59.£258.73Current price is: £258.73.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Cloud-managed web interface for centralised control
- Ten Gigabit ports with six PoE+ and two PoE++ outputs
- 240W total Power over Ethernet budget
- IEEE 802.3af at and bt networking standards
- Industrial-grade DIN rail mounting with IP40 aluminium casing
- 20 Gbit/s switching capacity and 14.88 Mpps forwarding rate
- Wide operating temperature range from -40°C to 75°C
You may also like

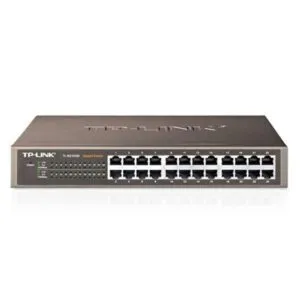

TP-Link 24-Port Gigabit Network Switch
In stock
TP-Link 10-Port Smart PoE+ Switch
In stock
TP-Link JetStream 8-Port L2+ Managed Switch
In stock
TP-Link Managed PoE Network Switch
In stock
TP-Link TL-SG1024 Unmanaged Gigabit Switch
In stock
TP-Link TL-SG1016 16-Port Unmanaged Switch
In stock
TP-Link Omada Industrial Switch – Robust PoE++ Networking
We recommend the TP-Link Omada Industrial 10-Port Gigabit Switch 6 PoE+ 2 PoE++ Ports 240W Cloud Managed DIN Rail for demanding environments. It delivers reliable power and data to industrial devices. This switch ensures stable connectivity in harsh conditions.
Core Technical Metrics
| Metric | Spec. |
|---|---|
| Port Count | 10 Gigabit |
| PoE Budget | 240W |
| Form Factor | DIN Rail |
| Operating Temp | -40°C to 75°C |
| Management | Cloud Managed |
TP-Link Omada Industrial 10-Port Gigabit Switch 6 PoE+ 2 PoE++ Ports 240W Cloud Managed DIN Rail Power Features
We support high-wattage devices with 240W total budget. Six ports deliver PoE+ while two offer PoE++. This allows flexible camera and access point deployment.
Built for Tough Industrial Sites
The aluminium casing provides IP40 protection. It operates between -40°C and 75°C. You gain resilience against temperature extremes.
Simplified Central Control
Cloud management streamlines network oversight. You can configure settings remotely via web interface. This reduces on-site maintenance time significantly with the TP-Link Omada Industrial 10-Port Gigabit Switch 6 PoE+ 2 PoE++ Ports 240W Cloud Managed DIN Rail.
Compatibility Checks Before Purchase
- Confirm your enclosure supports DIN rail mounting.
- Verify your power supply matches 12-57V DC.
- Check that your devices require PoE+ or PoE++.
Frequently Asked Questions
Q: Is this switch cloud managed?
A: Yes, it supports cloud management for centralised control.
Q: What is the total PoE budget?
A: The total Power over Ethernet budget is 240W.
Q: Does it support fibre uplinks?
A: Yes, it includes two combo SFP ports.
Q: What is the operating temperature range?
A: It operates reliably from -40°C to 75°C.
Q: Can I mount it on a wall?
A: Yes, it supports both DIN rail and wall mounting.
Our Final Recommendation
This switch suits industrial networks needing high power. It balances performance with rugged durability.
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 4000 MB |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | DIN rail |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Power | |
| DC input voltage | 12 - 57 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 120 mm |
| Height | 60 mm |
| Performance | |
| Packet buffer memory | 4000 MB |
| Auto-negotiation | Yes |
| Technical details | |
| Form factor | DIN rail |
| Product colour | Grey |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4000 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Identifiers | |
| Additional EANs | 1210002602129 |
