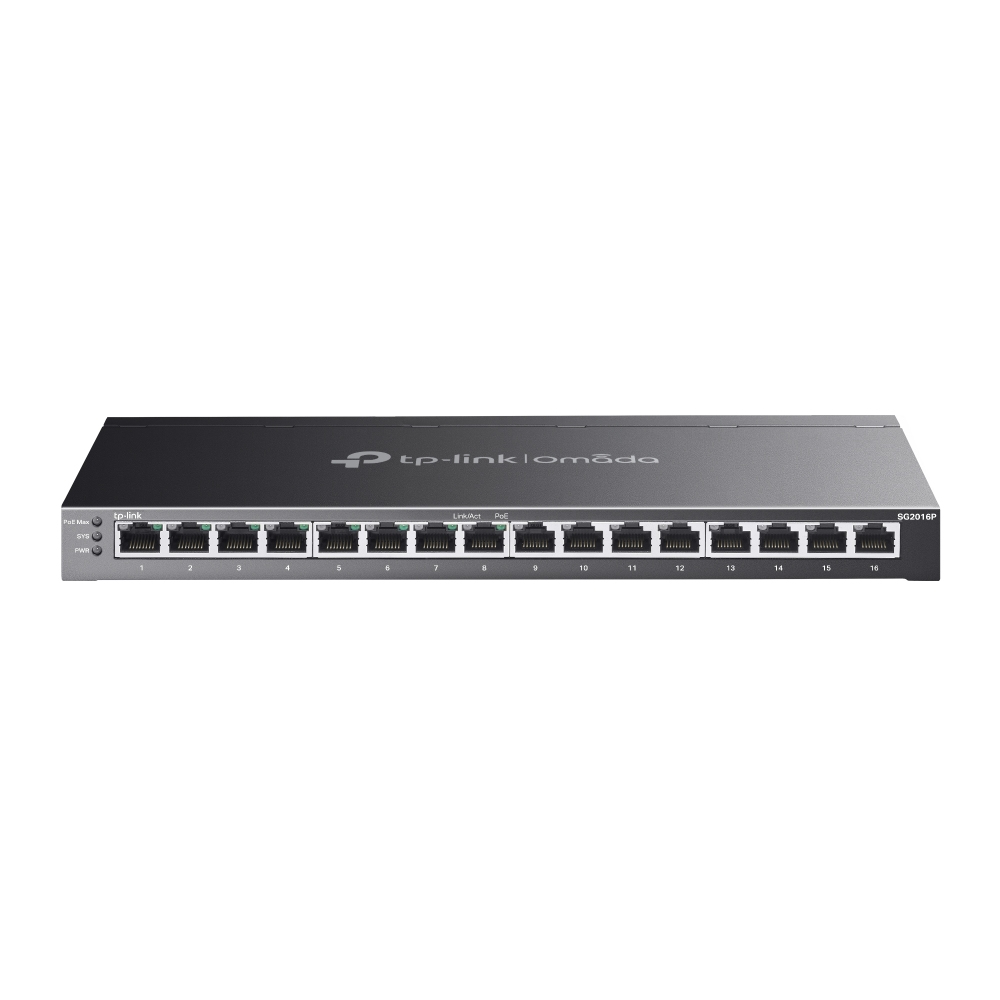

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ L2/L2+ Managed 120W Black
£162.10 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 16 Gigabit Ethernet ports with 8 PoE+ ports, 120W total PoE budget
- Managed L2/L2+ switch with cloud management capability
- Advanced security features including ARP inspection and Access Control Lists
- Supports up to 4000 VLANs and QoS for traffic prioritisation
- Rack-mountable, fanless design for quiet operation
- Dual stack IPv4/IPv6 support and firmware upgradeable
Payment Methods:
You may also like
TP-Link Omada SG2016P – Intelligent Network Management
We present the TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ L2/L2+ Managed 120W Black, a robust solution designed for growing businesses. This managed switch offers seamless integration into the Omada SDN platform, simplifying network administration. It provides a cost-effective and reliable foundation for your network infrastructure.
Core Network Statistics
| Metric | Spec. |
|---|---|
| Total Ports | 16 Gigabit Ethernet |
| PoE+ Ports | 8 |
| PoE Budget | 120 W |
| Switching Capacity | 32 Gbit/s |
| MAC Address Table | 8000 entries |
Streamlined Management with Omada SDN
Our Omada SDN integration centralises your network control. You can manage multiple devices from a single interface. This simplifies configuration and monitoring across your entire network.
Powering Devices with PoE+
With eight PoE+ ports and a 120 W total budget, this switch powers compatible devices. IP cameras, access points, and VoIP phones connect directly. This removes the need for separate power adapters.
Enhanced Network Security
We prioritise your network’s security. This switch includes ARP inspection and IP-MAC-Port binding. It also supports 802.1X authentication for user and device verification.
Optimised Traffic Flow
Quality of Service (QoS) support ensures critical data gets priority. Voice and video applications run smoothly. Jumbo frame support helps handle large data packets efficiently.
Resilient and Reliable Operations
Spanning Tree Protocol (STP) prevents network loops. This maintains network stability. Our fanless design ensures quiet operation, ideal for various environments.
Before you order
- Confirm your existing network infrastructure is compatible with Gigabit Ethernet.
- Confirm your PoE+ devices meet the 120 W total power budget.
- Confirm your rack mounting solution is suitable for a 286 mm wide device.
Frequently Asked Questions
Q: Can this switch be managed remotely?
A: Yes, it supports cloud management through the Omada SDN Controller.
Q: What types of devices can I power with the PoE+ ports?
A: You can power devices like IP cameras, wireless access points, and VoIP phones.
Q: Does this switch support advanced VLAN configurations?
A: Yes, it supports up to 4000 VLANs, including Tagged, Multicast, and Voice VLANs.
Q: Is this switch suitable for a small office environment?
A: Yes, its features and management capabilities are well-suited for small and medium-sized businesses.
Q: What is the maximum power consumption of this device?
A: The maximum power consumption for this switch is 146.5 W.
Our verdict
The TP-Link Omada 16-Port Gigabit Smart Switch provides a powerful and practical networking solution. It suits businesses seeking advanced management and PoE+ capabilities. Its robust feature set supports secure and efficient network operations. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Switch layer | L2/L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 23.81 Mpps |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protocols | |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Product colour | Black |
| LED indicators | PoE, Power, System |
| Rack mounting | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 146.5 W |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 499.98 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Technical details | |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | PoE, Power, System |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Identifiers | |
| Distributor SKUs | 10379444, 76458, 9850373, EF005032, 3860404, CLSG2016P |
| Additional EANs | 4897098689493 |
