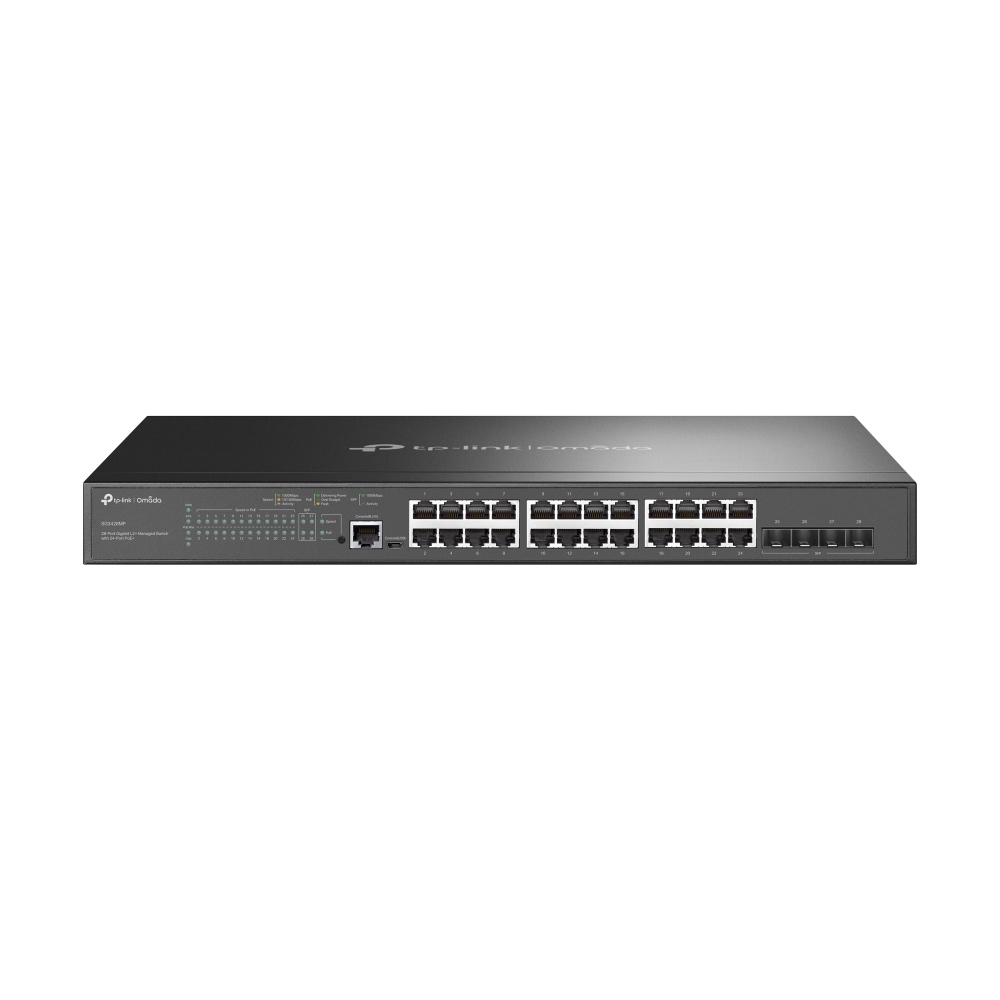

TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch, 24x PoE+ Ports, 384W Budget
Original price was: £343.92.£323.28Current price is: £323.28. inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Managed L2+ switch with 24 Gigabit Ethernet PoE+ ports
- 384W total PoE budget with 30W per port
- Four SFP module slots for fibre connectivity
- Advanced security with ARP inspection, ACL, and IP-MAC-Port Binding
- Cloud-managed with Quality of Service (QoS) and VLAN support
- 56 Gbit/s switching capacity and 12 MB packet buffer memory
- Rack-mountable 1U form factor with two cooling fans
Payment Methods:
You may also like
TP-Link TL-SG1005P 5-Port PoE Switch
In stock
TP-Link Omada SG3428MP – Advanced Network Management
We present the TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch, 24x PoE+ Ports, 384W Budget. This managed switch is ideal for expanding business networks. It provides robust L2+ features and Power over Ethernet capabilities. We designed it for reliable and secure network solutions.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Switching Capacity | 56 Gbit/s |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 16000 entries |
| PoE+ Ports Quantity | 24 |
| Total PoE Budget | 384 W |
Streamlined Power over Ethernet
This switch offers 24 PoE+ ports. Each port delivers up to 30W of power. This simplifies deployments for IP cameras and access points. The total PoE budget is a substantial 384W. It supports numerous powered devices efficiently.
Enhanced Security Features
Our L2+ managed switch includes advanced security. IP-MAC-Port Binding (IMPB) prevents unauthorised access. Access Control List (ACL) functions protect against attacks. These features safeguard your network integrity. We prioritise your data security.
Intelligent Traffic Management
Quality of Service (QoS, L2 to L4) ensures smooth data flow. It prioritises critical traffic effectively. This prevents lag in voice and video applications. Multicast support also optimises network efficiency. We aim for consistent network performance.
Flexible Management Options
Manage your network via an intuitive web interface. Command Line Interface (CLI) offers granular control. SNMP provides comprehensive monitoring capabilities. Cloud management is also available for convenience. The TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed PoE+ Switch, 24x PoE+ Ports, 384W Budget is highly adaptable.
Comprehensive VLAN Support
This switch supports various VLAN types. These include port-based, tag-based, and voice VLANs. Up to 4000 VLANs are available. This allows for flexible network segmentation. It enhances security and performance.
Before You Order
- Confirm your power requirements match the 384W PoE budget.
- Ensure rack space is available for the 1U form factor.
- Check your existing network infrastructure for compatibility.
Frequently Asked Questions
Q: Does this switch support 10 Gigabit Ethernet?
A: No, this switch operates at Gigabit Ethernet speeds (10/100/1000 Mbps).
Q: Can I manage this switch from the cloud?
A: Yes, it supports cloud-managed operation within the Omada SDN platform.
Q: How many SFP module slots are available?
A: There are 4 SFP module slots for fibre uplinks.
Q: Does it have a console port for direct access?
A: Yes, it includes both an RJ-45 and a Micro-USB console port.
Our Verdict
This switch is perfect for businesses needing robust network expansion. It combines powerful management with ample PoE+ delivery. We recommend it for secure and efficient network operations. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Network | |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 41.66 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, LLDP/LLDP-MED |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Performance | |
| Export Control Classification Number (ECCN) | EAR99 |
| Packet buffer memory | 12 MB |
| Power | |
| Power consumption (max) | 480.1 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1637.14 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Quick start guide | Yes |
| User guide | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Identifiers | |
| Distributor SKUs | 10319417, 68929, 9852525, 3860287, CLSG3428MP |
| Additional EANs | 6935364010737 |
