TP-Link SG2206MP L2 Gigabit PoE Network Switch

TP-Link SG2206MP | 6-Port L2 PoE+ Switch with SFP

The TP-Link SG2206MP network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) suits small UK offices and installers. It delivers PoE+ power and data over one cable. You get four PoE+ ports and one SFP uplink for fibre. This model is ideal for access points, cameras, and IP phones. It also supports non-PoE devices like PCs and printers. Because it is L2 managed, you gain VLANs and link aggregation. So, it supports reliable, segmented networks.

Key Specifications

PoE+ Power for UK Installations

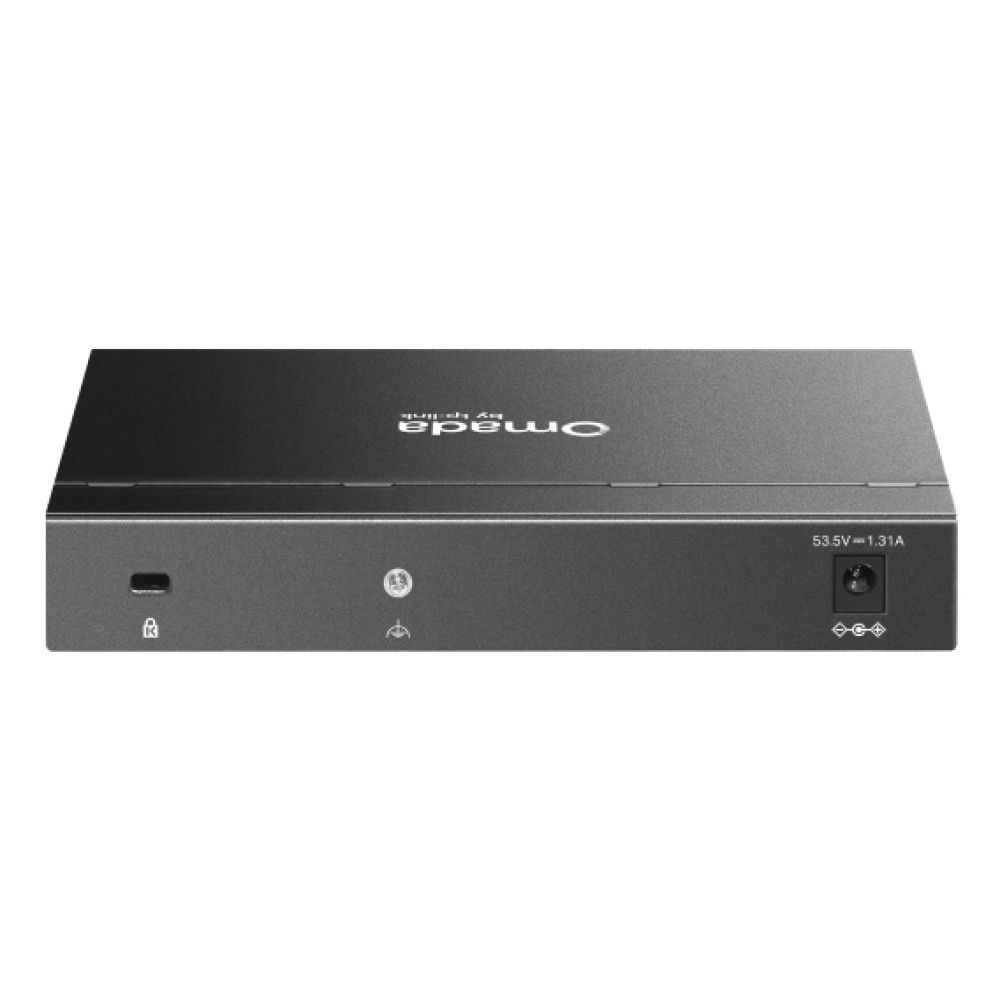

Four ports support IEEE 802.3af/at PoE+. Each port supplies up to 30 W. The total budget is 63 W. This powers most UK access points and IP cameras. It also supports IP phones without extra injectors. However, you should verify total device draw before deployment. In practice, plan loads to stay within 63 W. The switch uses a 53.5 V DC power supply.

Flexible Uplink and Stacking

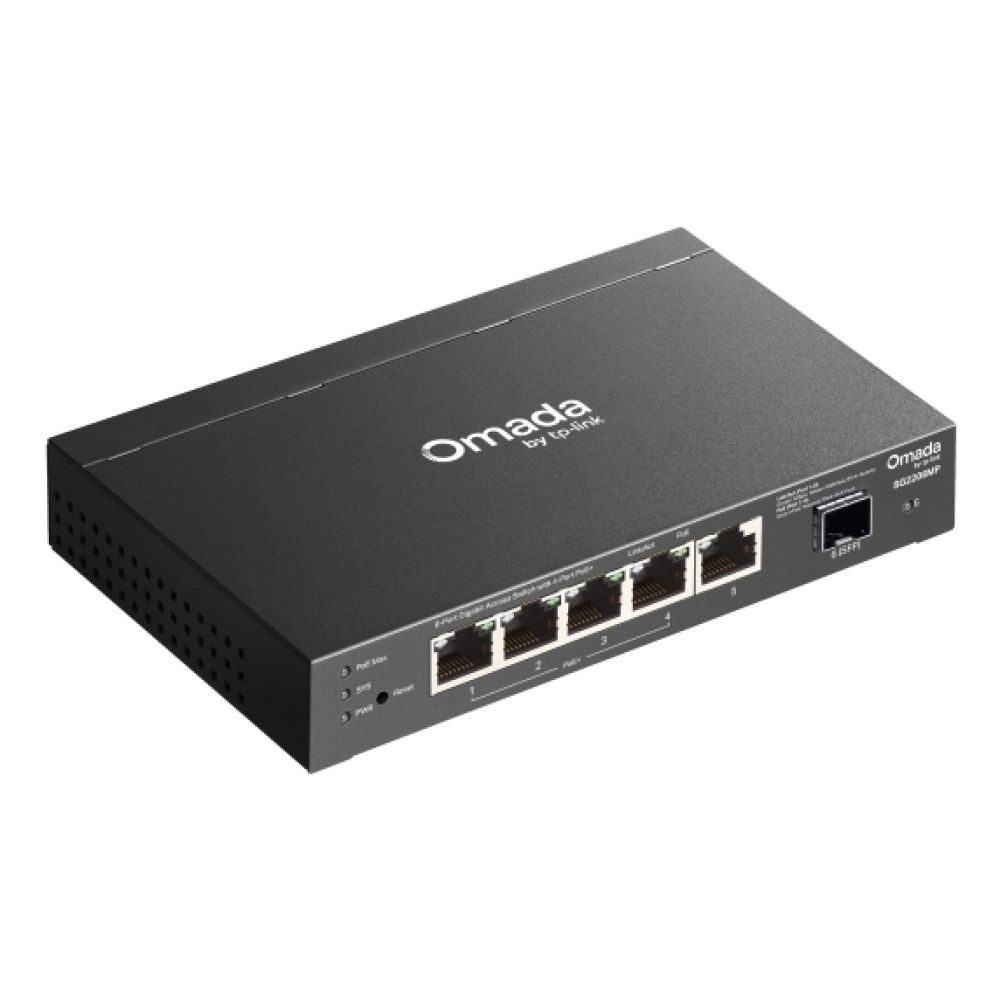

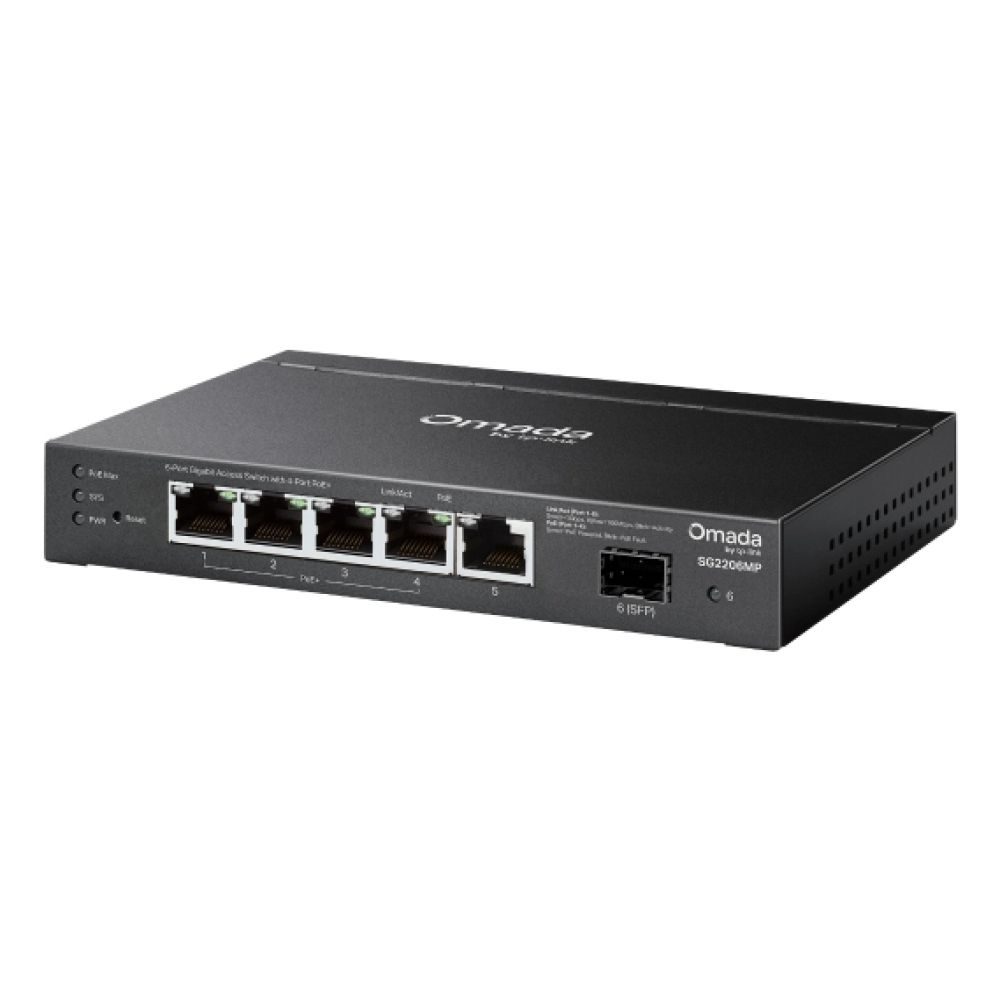

You get five RJ-45 ports and one SFP slot. The SFP port suits fibre uplinks to a core switch. This helps extend runs beyond typical copper limits. The unit is also stackable. So, you can link multiple units for easier management. Link aggregation is supported for higher uplink bandwidth. Always confirm SFP module compatibility before purchase.

L2 Management for Control

This is a Layer 2 switch with business features. It supports VLANs, spanning tree, and loop protection. Port mirroring helps with troubleshooting. Rate limiting and IGMP snooping aid traffic control. DHCP relay and server options are included. Routing entries are 230. The packet buffer is 4.1 MB. These features suit managed small networks.

Compact Design and Mounting

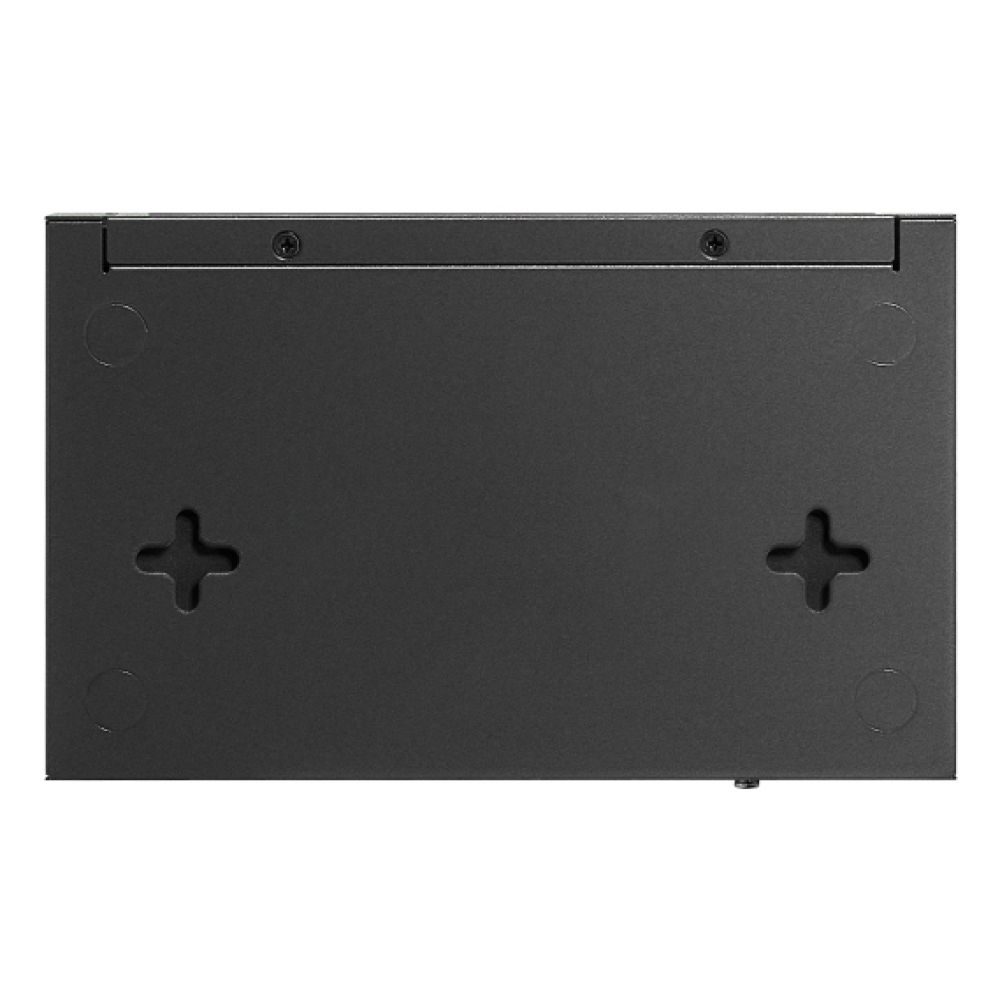

The switch fits a 158 mm width and 100.7 mm depth. Height is 25.4 mm. Rack mounting is supported with included brackets. You can also place it on a desk. The max power draw is 73.7 W. Active link detection helps with cable diagnostics. Always verify UK plug type and rack kit fit.

Box contents

• TP-Link SG2206MP switch unit
• Power supply unit (included)
• Rack mounting brackets (if specified)
• Quick installation guide (if specified)

Check before you buy

• Confirm UK plug type and voltage compatibility.
• Verify SFP module type for your fibre uplink needs.
• Check total PoE device load against the 63 W budget.
• Confirm warranty region and UKCA/CE marking requirements.

Frequently Asked Questions

Q: Does the TP-Link SG2206MP support PoE+ on all ports?

A: No, four ports support PoE+. The fifth RJ-45 port is non-PoE. The SFP port is for uplink only.

Q: Can I stack multiple SG2206MP units?

A: Yes, the switch is stackable. Verify the stacking method and cable requirements in the manual.

Q: Is there an SFP module included?

A: The switch has one SFP slot. The module is not specified. You must source a compatible SFP.

Q: What is the switching capacity?

A: The switching capacity is 12 Gbit/s. This suits gigabit edge deployments.

Q: Does it support VLANs and link aggregation?

A: Yes, VLANs and link aggregation are supported. This helps segment traffic and boost uplinks.

The Consultant’s verdict & warranty

This switch suits UK installers and small businesses needing PoE+ with an SFP uplink. It is ideal for access points, cameras, and IP phones. It also supports non-PoE devices. The L2 features provide control without complexity. Covered by the standard Manufacturer Warranty.
