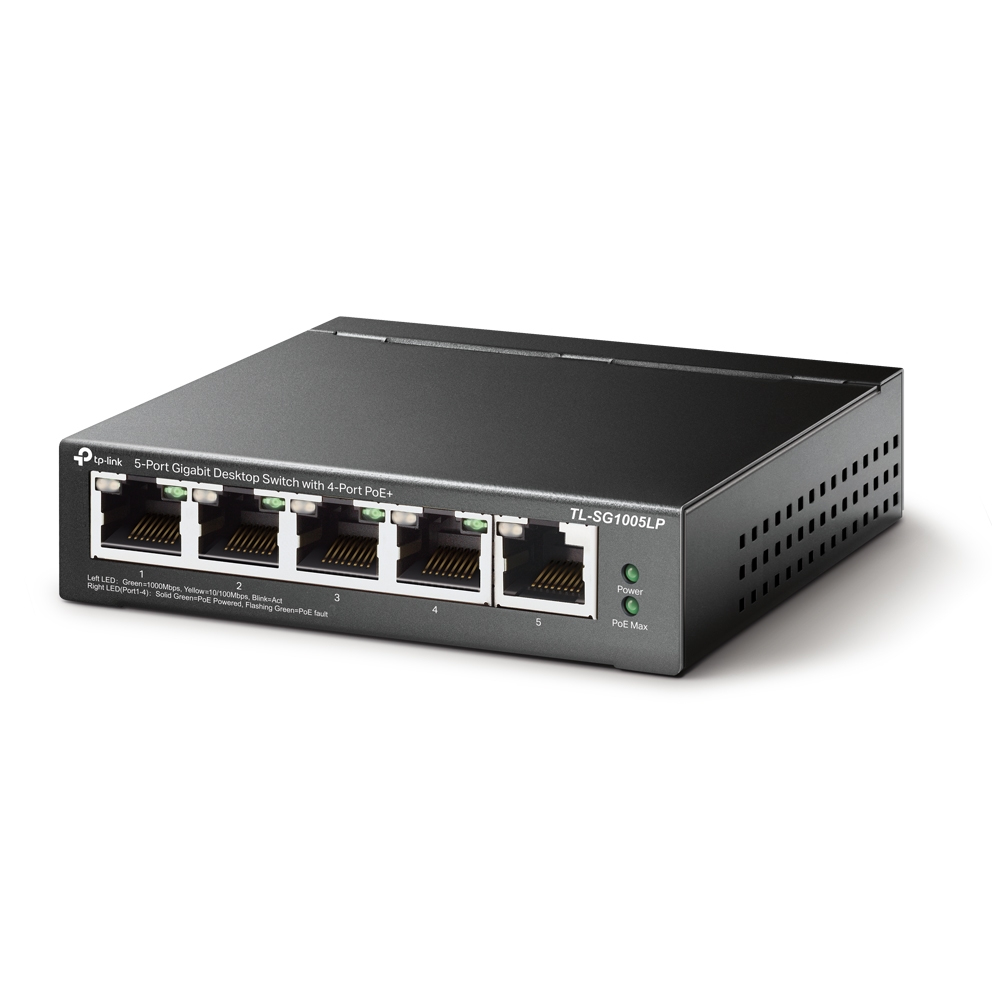

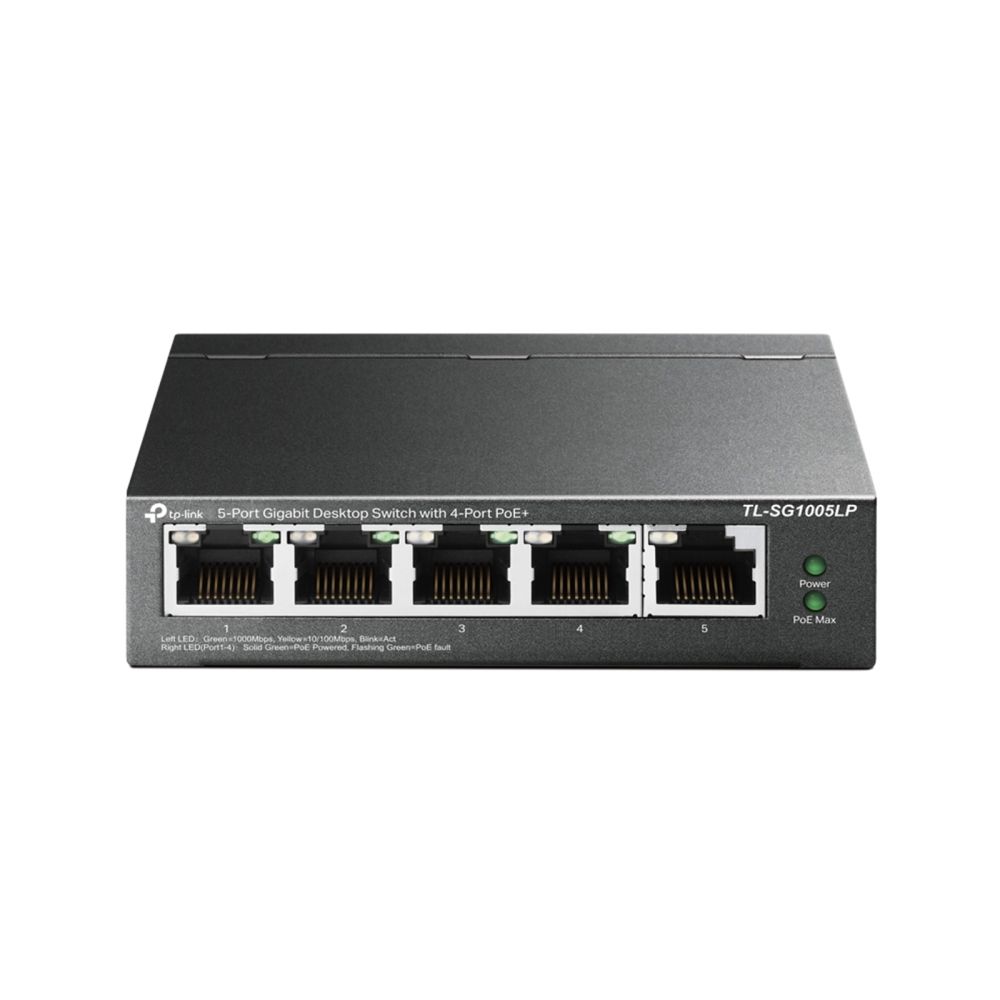

TP-Link TL-SG1005LP PoE Switch
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 5-port unmanaged Gigabit Ethernet switch with 4 PoE+ ports
- 40W total PoE budget supports up to 30W per port for IP cameras, APs, phones
- IEEE 802.3af/at compliant with intelligent power management and overload protection
- QoS support and IGMP snooping for optimized multimedia traffic delivery
- Fanless metal casing with 10Gbps switching capacity and 2000 MAC address table
- Compact 99.8 x 98 x 25mm wall-mountable design with LED indicators
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link TL-SG1005LP | 5-Port Gigabit PoE+ Switch
The TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black delivers reliable networking for small offices and home setups. With four PoE+ ports delivering up to 40 W total power, it powers IP cameras, access points, and VoIP phones without extra adapters.
Quick Specs
| Metric | Spec. |
|---|---|
| Ports | 5 Gigabit (4 PoE+) |
| Total PoE Budget | 40 W |
| Switching Capacity | 10 Gbps |
| Dimensions | 99.8 x 98 x 25 mm |
| Power Supply | Included (100-240V AC) |
Plug-and-Play PoE for Multiple Devices
The TL-SG1005LP’s four PoE+ ports support the 802.3af/at standard, delivering up to 30 W per port. This powers IP cameras, wireless access points, IP phones, and network printers without separate power supplies. The 40 W total budget suits small office surveillance, dormitory networking, or retail point-of-sale systems.
Intelligent Power Management
When total power draw exceeds 40 W, the switch automatically prioritises critical ports, cutting power to lower-priority devices. This prevents overload while ensuring essential equipment stays online. The switch also detects whether connected devices are PoE-compatible, protecting both PoE and non-PoE equipment from damage.
Quality of Service for Clear Communications
Administrators can prioritise traffic using QoS, ensuring voice and video applications remain clear and uninterrupted. This proves essential for VoIP calls, video conferencing, or streaming media where packet loss causes noticeable quality degradation.
Enhanced Network Performance Features
IGMP snooping optimises multicast traffic delivery, particularly beneficial for IPTV or video surveillance systems. The switch supports jumbo frames up to 16,000 bytes for improved data throughput, and its 2,000-entry MAC address table handles growing network device counts without performance loss.
Box Contents
- TP-Link TL-SG1005LP network switch
- Power adapter (100-240V AC)
- User guide
Check before you buy
- Confirm your PoE devices require no more than 30 W per port
- Verify your network devices use standard RJ-45 connectors
- Check you have adequate space for wall mounting (99.8 x 98 x 25 mm)
- Ensure your devices support Gigabit Ethernet speeds
Frequently Asked Questions
Q: Does this switch support managed configuration?
A: No, this is an unmanaged switch with plug-and-play operation.
Q: Can I mount this in a standard rack?
A: No, this switch is designed for desktop or wall mounting only.
Q: What is the maximum cable length supported?
A: The switch supports cable runs up to 100 metres.
Q: Does it support Power over Ethernet on all five ports?
A: Only four ports provide PoE+ power; the fifth port is standard Gigabit Ethernet.
Q: Is the switch fanless?
A: Yes, it operates silently without a cooling fan.
The Consultant’s verdict & warranty
The TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black suits small businesses, home offices, and retail environments needing simple, reliable PoE networking. Its metal casing ensures durability, while intelligent power management protects connected devices. Covered by the standard Manufacturer Warranty.
| Weight | 0.75 kg |
|---|---|
| Switch type | Unmanaged |
| Quality of Service QoS support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet copper ports quantity | 5 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames | 16000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| IGMP snooping | Yes |
| Wall mountable | Yes |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power consumption max | 47.5 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.81 A |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet plus PoE+ ports quantity | 4 |
| Total Power over Ethernet PoE budget | 40 W |
| Power over Ethernet PoE | Yes |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 40 °C |
| Operating relative humidity H-H | 10 – 90% |
| Heat dissipation | 161.98 BTU/h |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 730 g |
| User guide | Yes |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Certification | FCC, CE, RoHS |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| LED indicators | Yes |
| Harmonized System HS code | 85176990 |
| Distributor SKUs | 69129, 5808061, EF005145, SG1005LP, STD10015306, NPTPL-TLSG1005LP, CLTL-SG1005LP |
