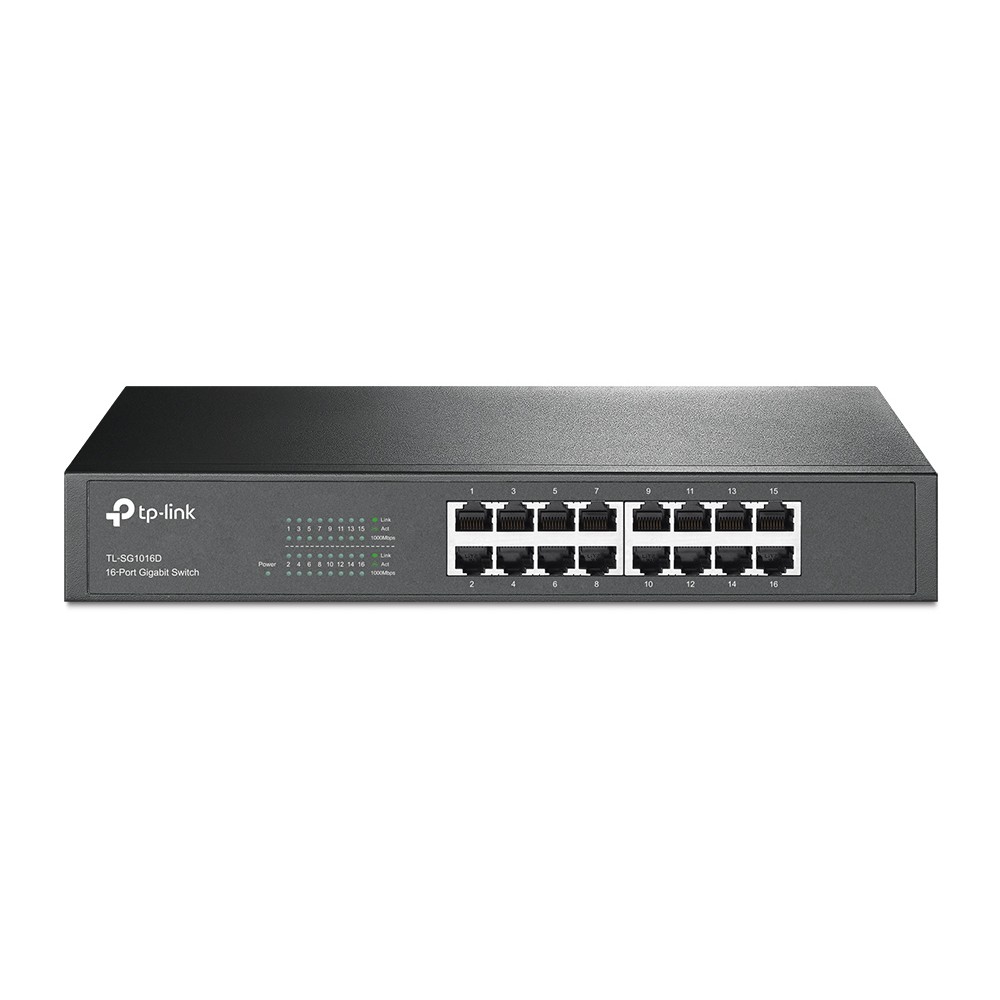

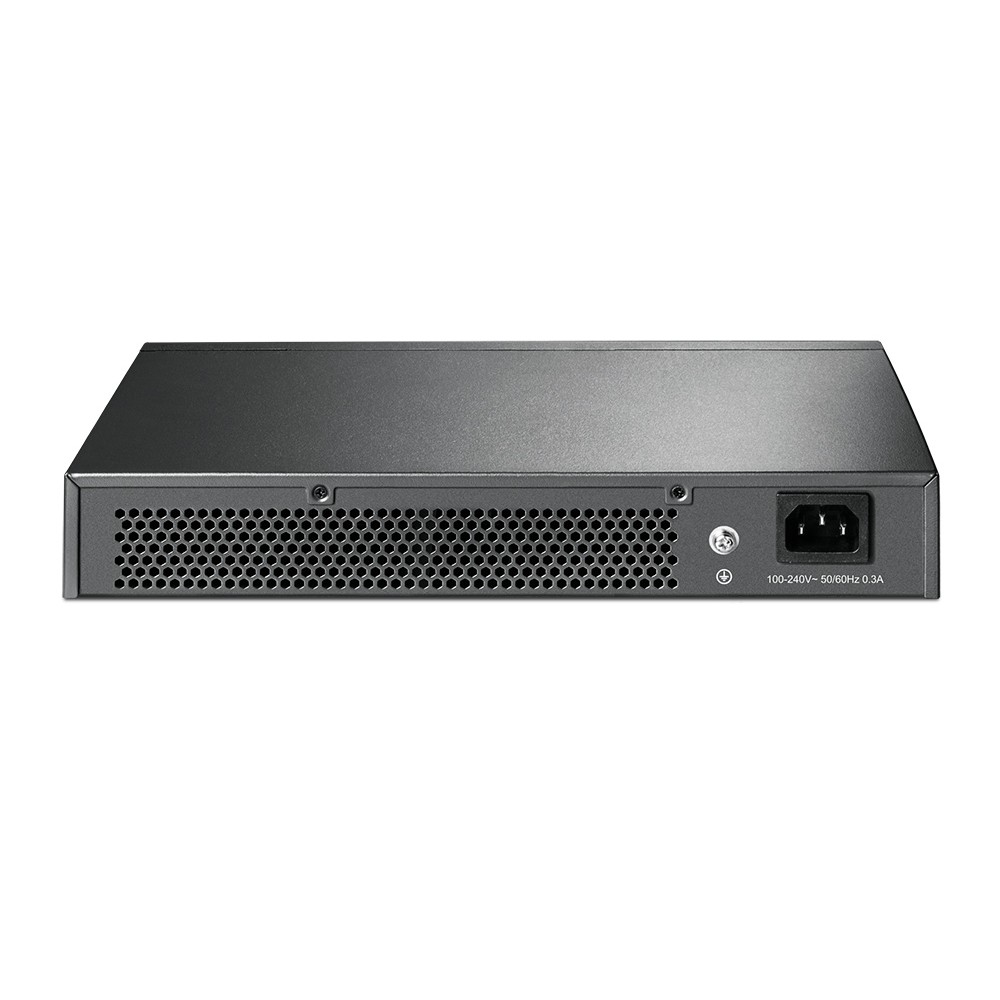

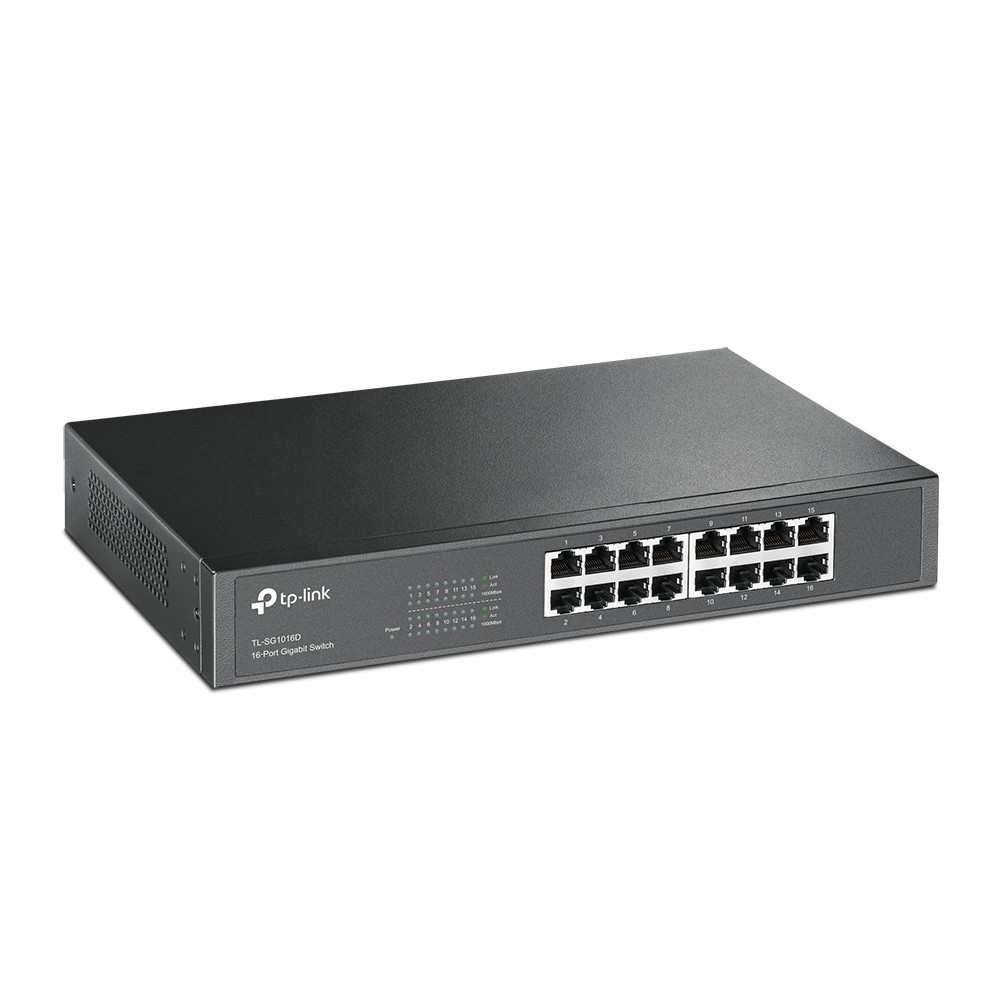

TP-Link TL-SG1016D Unmanaged L2 Gigabit Ethernet Switch 16-Port Rack Mount Black
Original price was: £59.48.£55.92Current price is: £55.92. inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Unmanaged L2 Gigabit Ethernet switch with 16 RJ-45 ports
- Quality of Service (QoS), VLAN support (32 VLANs), and Link Aggregation
- 32 Gbit/s switching capacity and 23.08 Mpps throughput
- Energy-efficient technology, saving up to 40% power consumption
- Rack-mountable black design with LED indicators
- Jumbo frames support up to 9000 bytes for large data transfers
- Plug and Play setup with Auto MDI/MDI-X
Payment Methods:
You may also like
TP-Link TL-SG1016D – Essential Network Expansion
The TP-Link TL-SG1016D Unmanaged L2 Gigabit Ethernet Switch 16-Port Rack Mount Black provides a straightforward solution for expanding your network. This unmanaged switch is ideal for small to medium businesses and home users needing reliable, high-speed connectivity. It simplifies network upgrades, offering plug-and-play operation for instant Gigabit speeds across 16 ports. We find it perfect for those requiring robust performance without complex setup.
Core Network Metrics
| Metric | Spec. |
|---|---|
| Basic RJ-45 Ports | 16 |
| Switching Capacity | 32 Gbit/s |
| MAC Address Table | 8000 entries |
| Packet Buffer Memory | 0.5 MB |
| Jumbo Frame Support | 9000 bytes |
| Max Power Consumption | 11.73 W |
Seamless Gigabit Connectivity
Our TL-SG1016D switch delivers 16 Gigabit Ethernet ports. This allows for rapid data transfer, crucial for bandwidth-intensive tasks. For example, moving large files like CAD drawings or high-resolution video becomes significantly faster. We ensure smooth operation for all your connected devices.
Energy-Efficient Operation
We understand the importance of energy savings. This switch incorporates innovative energy-efficient technology. It can automatically adjust power consumption based on link status and cable length. This helps reduce running costs and minimises your carbon footprint.
Simplified Installation
Setting up your network should be easy. The TL-SG1016D features a plug-and-play design, requiring no configuration. Auto MDI/MDIX eliminates the need for crossover cables. Also, auto-negotiation on each port senses device speeds for optimal performance.
Enhanced Data Handling
This switch supports various networking standards for efficient data flow. Features like QoS support and VLAN capabilities allow for better network management. We include broadcast storm control and flow control to maintain stable network performance. This ensures your data packets are handled effectively.
Flexible Rack-Mount Design
We’ve designed this switch for versatile deployment. Its rack-mountable form factor allows for integration into existing server racks. This helps keep your network infrastructure organised and tidy. The included rack mount kit makes installation straightforward.

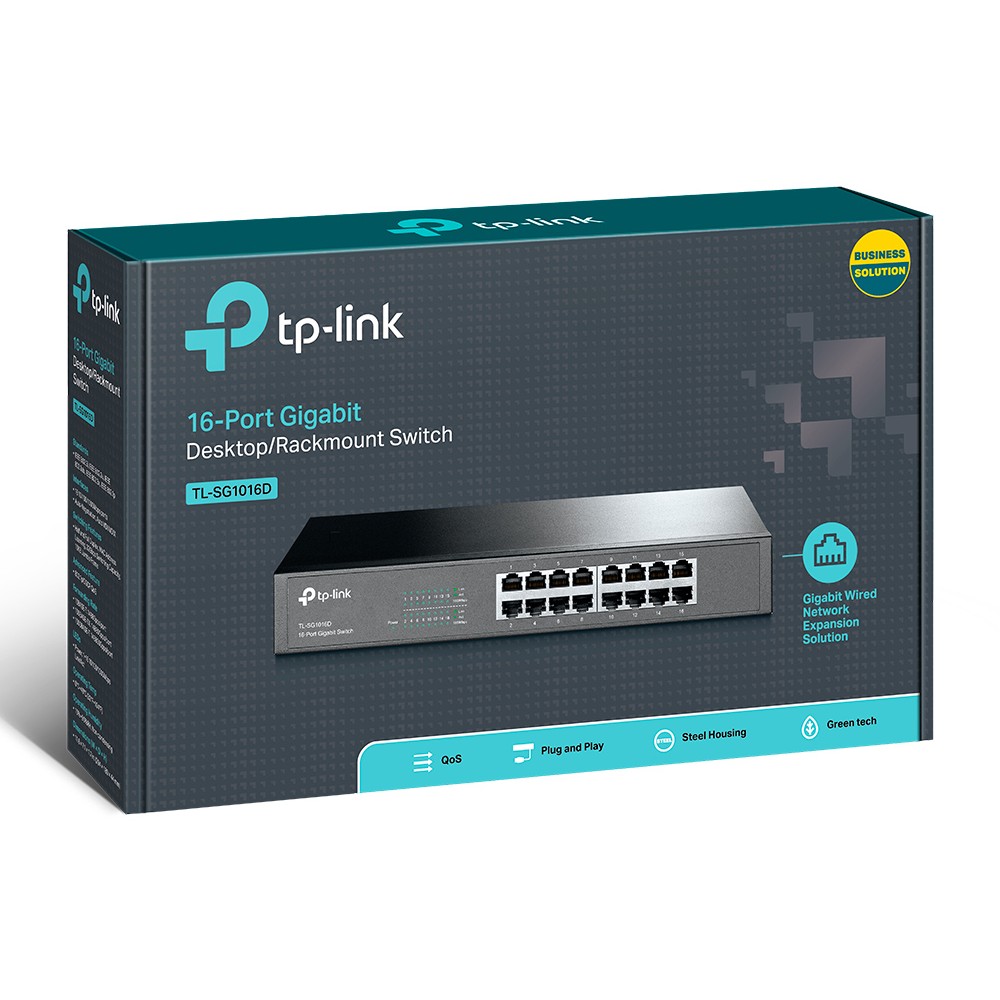

What’s in the Box
- TP-Link TL-SG1016D Unmanaged L2 Gigabit Ethernet Switch
- Rack mount kit
- User guide
- AC power cable
Before You Order
Confirm you have available rack space if you plan to rack-mount this unit. Confirm your power outlet meets the AC input voltage requirements (100-240V). Confirm your network devices are compatible with Gigabit Ethernet for optimal performance.
Frequently Asked Questions
Q: Is this switch managed or unmanaged?
A: It is an unmanaged switch, meaning it requires no configuration for basic operation.
Q: Does it support Power over Ethernet (PoE)?
A: No, this model does not feature Power over Ethernet capabilities.
Q: Can I use this switch with old 10/100 Mbps devices?
A: Yes, it is backward compatible and will auto-negotiate with 10/100 Mbps devices.
Q: What is the purpose of jumbo frame support?
A: Jumbo frame support allows for more efficient transfer of large data packets, improving throughput.
Q: Are cables included with the switch?
A: Yes, an AC power cable is included in the box.
Our Verdict
The TP-Link TL-SG1016D Unmanaged L2 Gigabit Ethernet Switch 16-Port Rack Mount Black is an excellent choice for anyone needing a reliable and easy-to-use network expansion. It offers strong performance, energy efficiency, and simple setup. This makes it suitable for upgrading home or small office networks. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 23.08 Mpps |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Number of VLANs | 32 |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
| Power | |
| Power consumption (max) | 11.73 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | 64143, 2325169, 17652, STD10015313, 629288, CLTL-SG1016D |
| Additional EANs | 6935364020613 |
