TP-Link 5-Port Gigabit Smart PoE Switch
£51.55 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 5-port Gigabit Smart Switch with 4 PoE+ ports for small business networks
- Supports IEEE 802.3af/at PoE standard with 30W per port and 65W total budget
- Web-based management with QoS, VLAN, and traffic prioritization features
- Fanless design with compact desktop form factor for quiet operation

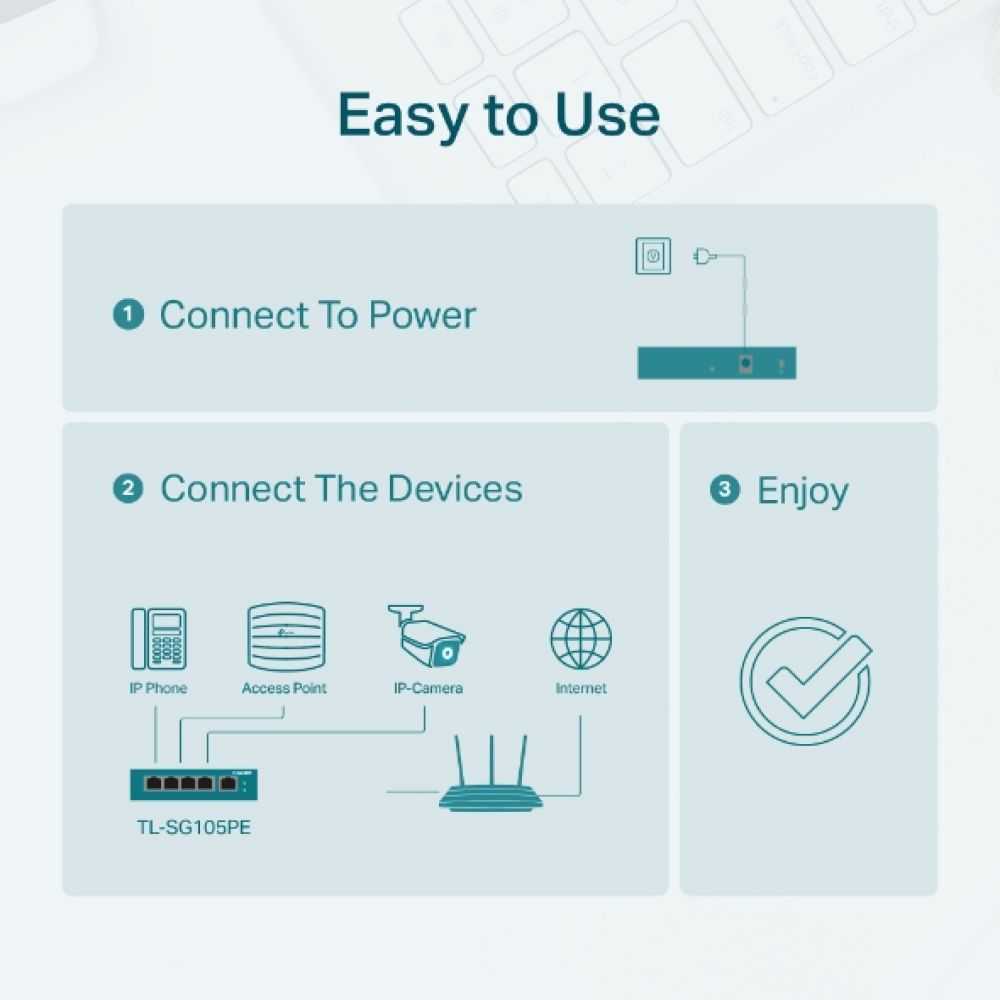

- Auto-negotiation and Auto-MDI/MDI-X for plug-and-play installation
Payment Methods:
You may also like
TP-Link TL-SG1005P 5-Port PoE Switch
In stock

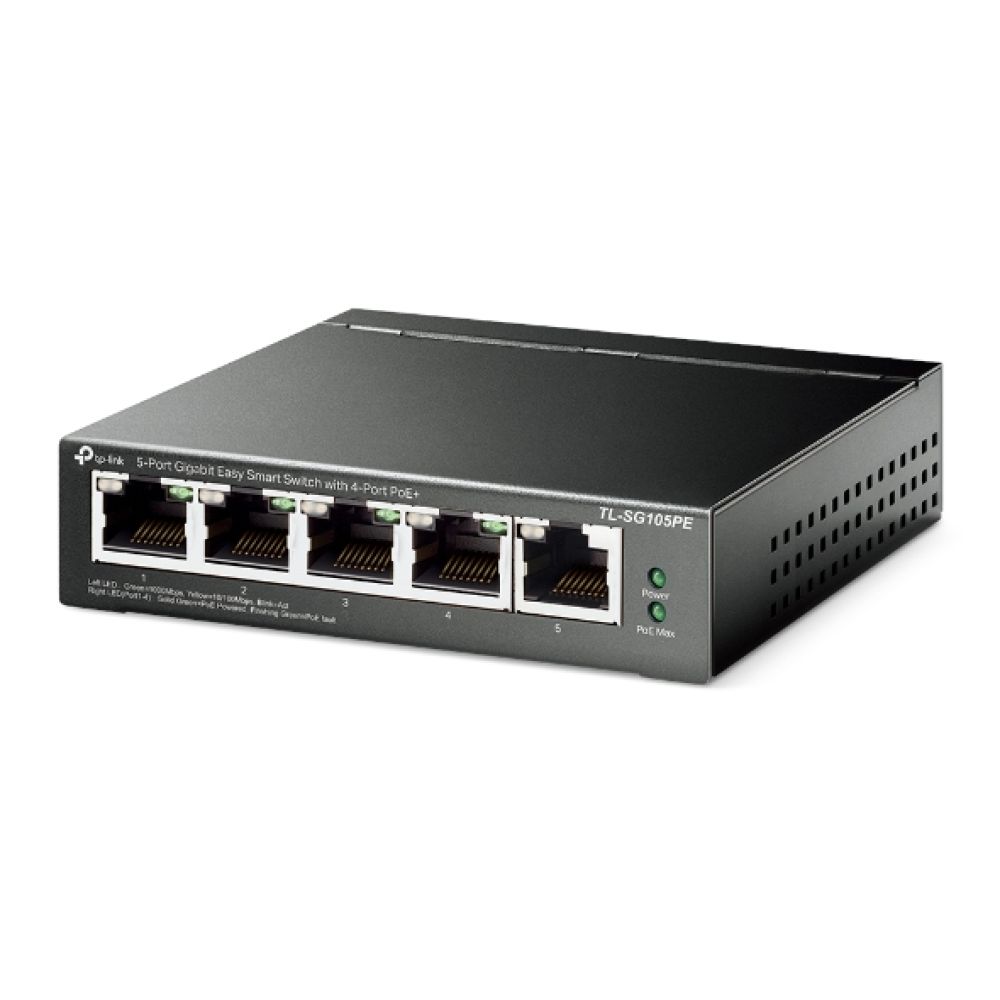

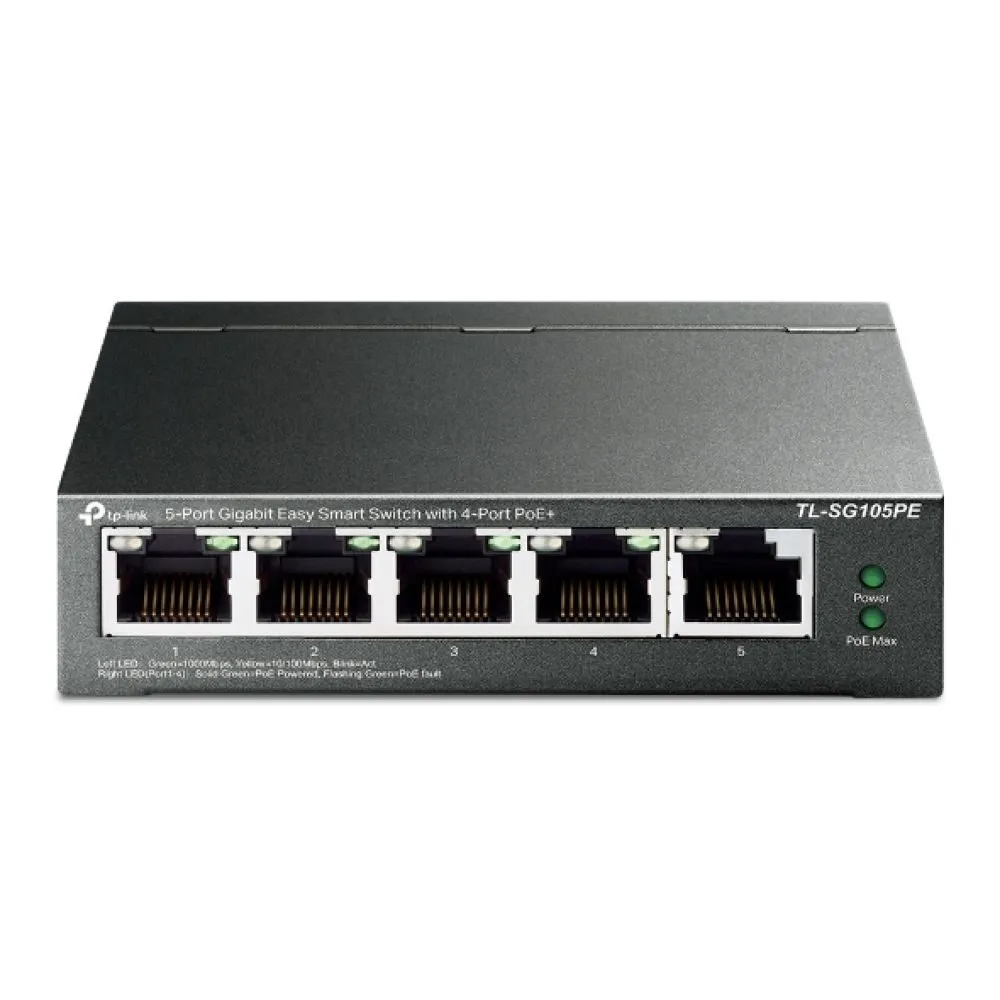

TP-Link TL-SG105PE | 5-Port Gigabit PoE+ Smart Switch
The TP-Link TL-SG105PE is a 5-port Gigabit Easy Smart PoE+ Switch designed for small businesses needing simple network management with PoE capabilities. This switch offers 4 PoE+ ports that can automatically detect and power compatible devices like IP cameras, wireless access points, and VoIP phones.
Key Specifications
| Metric | Spec. |
|---|---|
| PoE+ Ports | 4 |
| Total PoE Budget | 65W |
| Maximum Power per Port | 30W |
| Switching Capacity | 10Gbps |
| VLAN Support | Yes (4000 VLANs) |

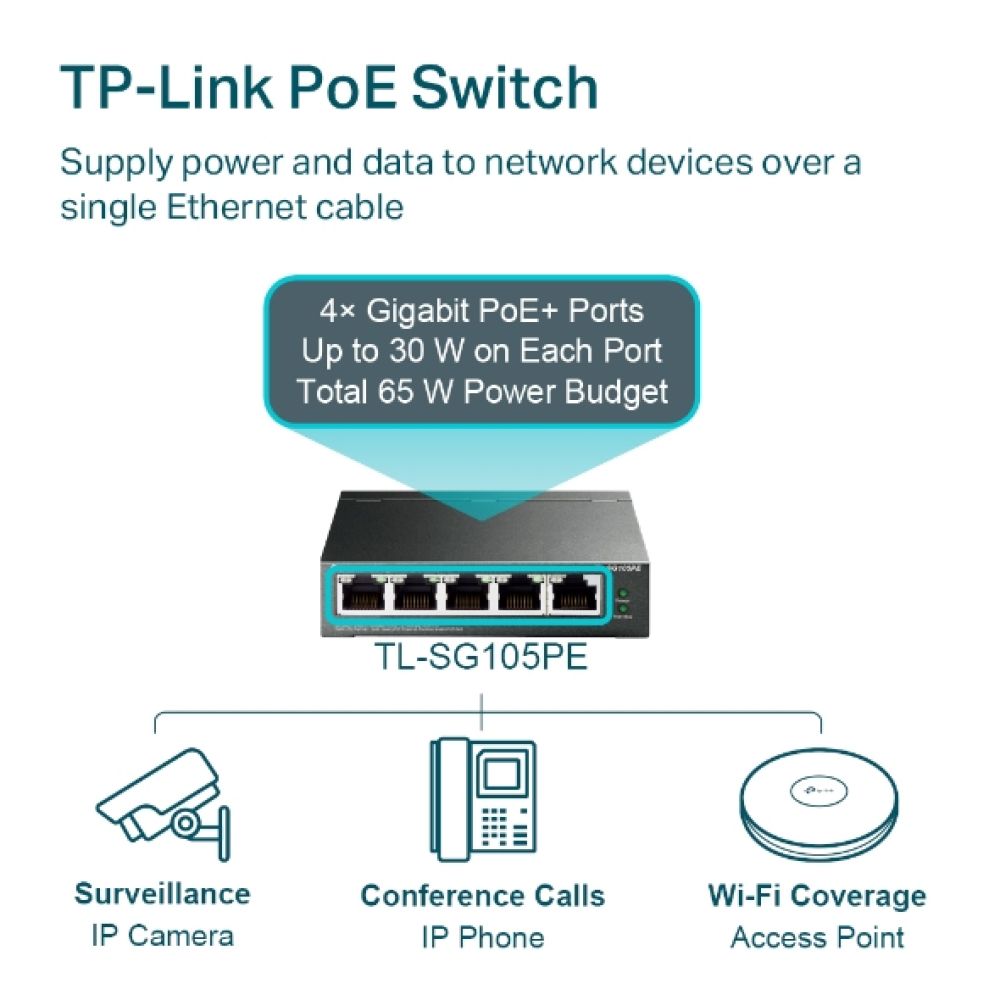

Power Over Ethernet Simplified
Four of the five auto-negotiation RJ45 ports (1-4) support Power over Ethernet, eliminating the need for separate power adapters for compatible devices. Each PoE port can deliver up to 30W, making it suitable for powering multiple access points or security cameras across your network. The switch intelligently manages power distribution to ensure stable operation even when multiple high-power devices are connected.
Intelligent Network Management
Through its web-based interface, you gain access to essential network management features without the complexity of enterprise-grade systems. Monitor traffic patterns, prioritize critical applications using QoS, and implement VLAN segmentation for enhanced security. The switch supports port-based, tag-based, and MTU VLAN configurations, allowing you to create separate network segments for different departments or device types.
Overload Protection & Smart Power Management
When power demand exceeds 65W total, the TL-SG105PE automatically prioritizes port 1 over port 2, port 2 over port 3, and so on. This intelligent arrangement prevents system overload by selectively cutting power to lower-priority ports when necessary. For example, if ports 1, 2, and 4 each use 15.4W and a 20W device connects to port 3, the switch will disconnect port 4 to maintain stable operation.
Enhanced Network Visibility
Built-in diagnostic tools help you identify and resolve network issues quickly. Port mirroring allows traffic monitoring for troubleshooting, while loop prevention protects against network loops that can cause downtime. The cable diagnostics feature helps locate physical connection problems, saving valuable time during network maintenance.
In the Box
- TP-Link TL-SG105PE Switch
- Power adapter (DC input)
- Mounting kit
- Quick installation guide
Things to check first
- Confirm your PoE devices support IEEE 802.3af/at standards
- Verify your power requirements don’t exceed 65W total budget
- Check available space – dimensions are 99.8 × 98 × 25mm
- Ensure your network devices support Gigabit Ethernet speeds
Frequently Asked Questions
Can this switch power all five ports simultaneously?
What happens when the total PoE power exceeds 65W?
Does this switch support rack mounting?
Can I manage this switch remotely?
Is it worth it?
The TP-Link TL-SG105PE offers excellent value for small businesses needing PoE capabilities without enterprise complexity. Its combination of managed features, intelligent power management, and straightforward web interface makes it ideal for powering access points, cameras, and phones while maintaining network visibility. Covered by the applicable manufacturer warranty.
| Weight | 0.75 kg |
|---|---|
| Certification | FCC, CE, RoHS |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service QoS support | Yes |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet copper ports quantity | 5 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames | 16000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power consumption max | 75.16 W |
| Power supply included | Yes |
| Input current | 1.31 A |
| Power source | DC |
| Power over Ethernet PoE power per port | 30 W |
| Power over Ethernet plus PoE+ ports quantity | 4 |
| Total Power over Ethernet PoE budget | 65 W |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 95% |
| Operating temperature T-T | 0 – 40 °C |
| Operating relative humidity H-H | 10 – 90% |
| Heat dissipation | 256.3 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 770 g |
| User guide | Yes |
| Product colour | Black |
| Rack mounting | No |
| Packet buffer memory | 1 MB |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |

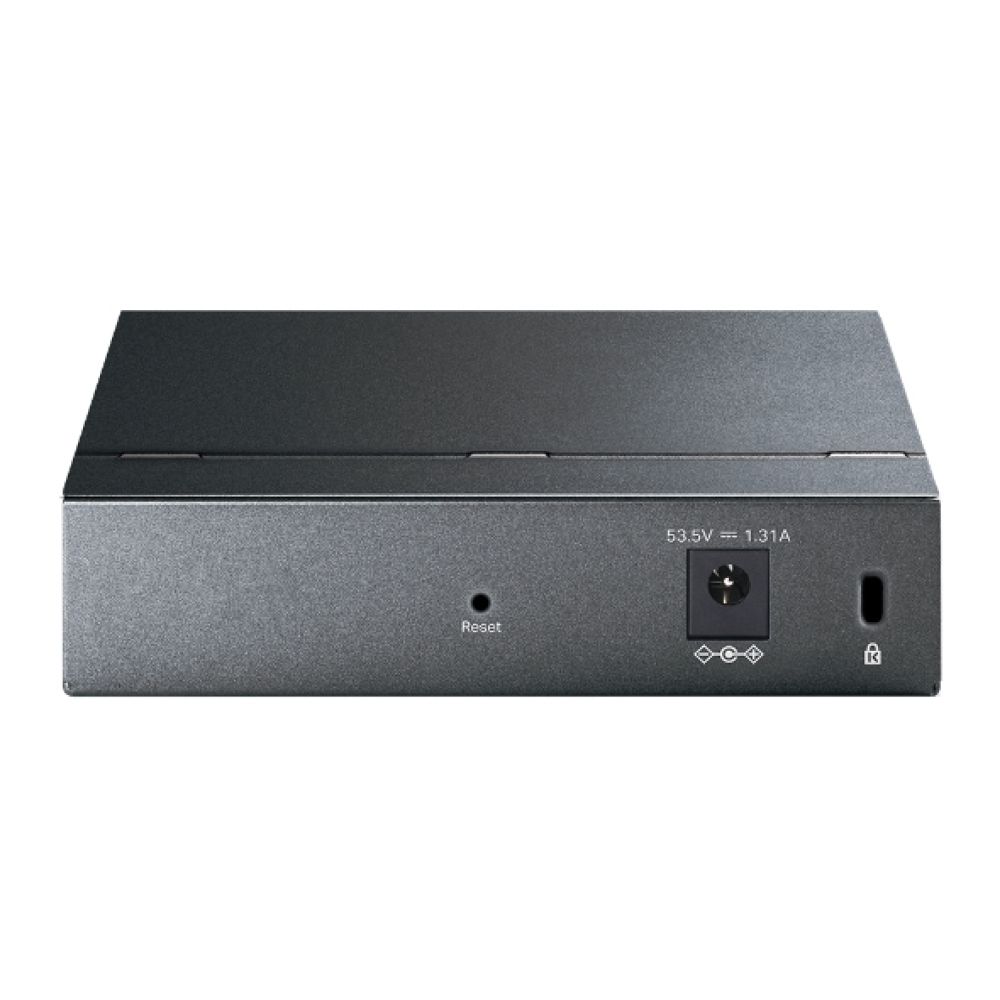

| Input voltage | 53.5 V |
| Harmonized System HS code | 85176990 |
| Distributor SKUs | 10308522, 69127, 5818011, 17059, SG105PE, STD10015321, NPTPL-TLSG105PE, 3860358, 1512756 |
