TP-Link TL-SG116 Unmanaged Gigabit Switch
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 16-port unmanaged gigabit switch for easy network expansion
- Energy-efficient design with automatic power adjustment
- VLAN support with 32 VLANs and protocol-based tagging
- Plug-and-play installation with auto MDI/MDI-X and auto-negotiation
- QoS support for smooth latency-sensitive traffic like voice and video
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link TL-SG116 | 16-Port Gigabit Desktop Switch
The TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black delivers reliable, high-speed connectivity for home and small office networks. With 16 Gigabit ports, this unmanaged switch expands your network capacity instantly, enabling seamless transfer of large files and supporting bandwidth-intensive applications without the need for complex configuration.
Key Specifications
| Metric | Spec. |
|---|---|
| Ports | 16 x Gigabit Ethernet |
| Switching Capacity | 32 Gbps |
| MAC Address Table | 8,000 entries |
| Power Consumption | Max 9.3 W |
| Dimensions | 286 x 111.7 x 25.4 mm |
Plug and Play Simplicity
The TL-SG116 features true plug-and-play functionality with no configuration required. Auto-MDI/MDIX technology eliminates the need for crossover cables, while auto-negotiation automatically detects and adjusts to the optimal speed (10/100/1000Mbps) for each connected device. The fanless design ensures completely silent operation, making it ideal for noise-sensitive environments like offices and home studios.
Energy-Efficient Networking
This switch incorporates intelligent energy-saving technology that automatically adjusts power consumption based on link status and cable length. When a port has no connected device, it enters power-saving mode. This eco-friendly approach significantly reduces energy usage compared to conventional switches, lowering both operating costs and environmental impact without compromising performance.
Advanced Network Management
Despite being unmanaged, the TL-SG116 includes professional-grade features typically found on managed switches. Support for 802.1Q VLAN tagging, IGMP snooping, and QoS (802.1p/DSCP) enables traffic prioritization for voice and video applications. With 32 VLANs, link aggregation support, and broadcast storm control, the switch provides enterprise-level network stability and efficiency.

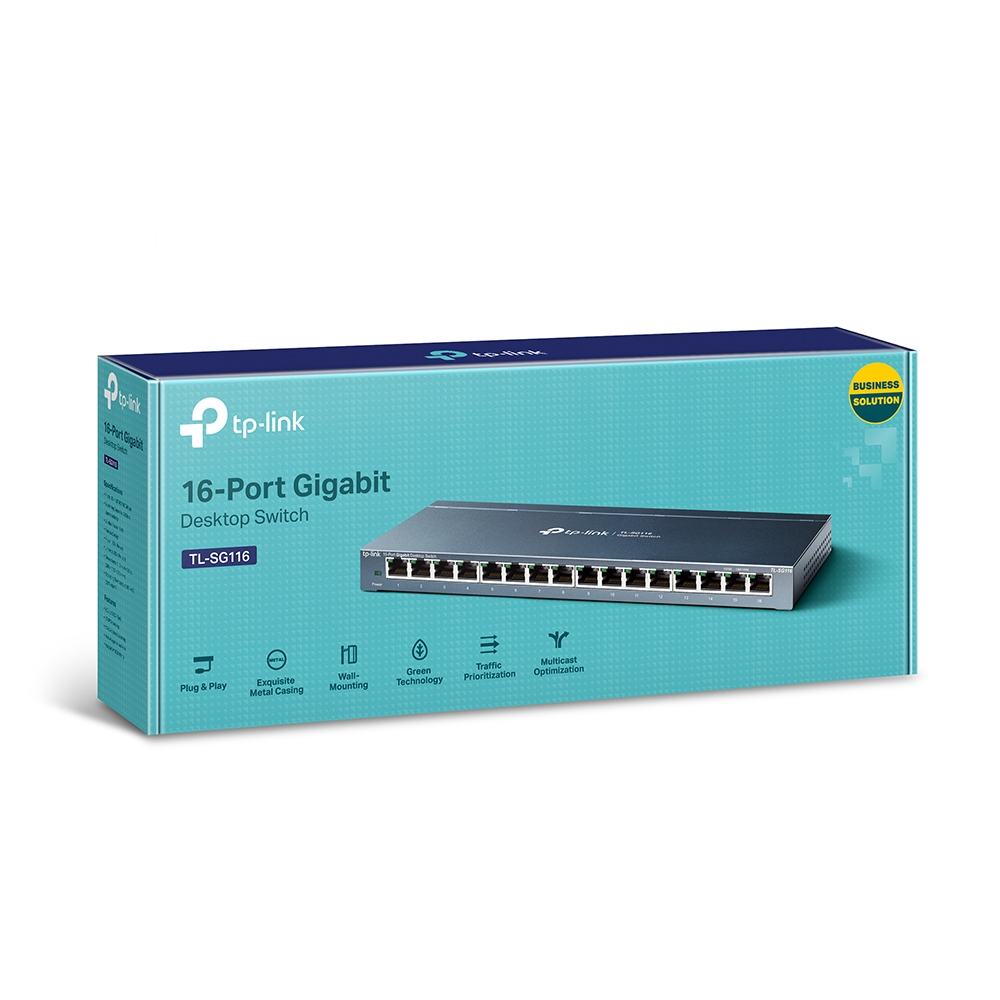

Box Contents
- TP-Link TL-SG116 16-Port Gigabit Switch
- Power adapter (AC)
- Quick start guide
Check before you buy
- Confirm your devices support Gigabit Ethernet speeds for optimal performance
- Verify you have sufficient space for desktop placement (286 x 111.7 x 25.4 mm)
- Check your power outlet voltage matches the 220V AC requirement
- Ensure you have enough Cat5e/Cat6 cables for all 16 ports
Frequently Asked Questions
Q: Is this switch suitable for gaming?
A: Yes, the TL-SG116 provides low-latency Gigabit connectivity ideal for gaming consoles and PCs, with QoS support for prioritizing gaming traffic.
Q: Can I mount this switch on a wall?
A: Yes, the TL-SG116 includes wall-mounting capability for flexible installation options.
Q: Does this switch support Power over Ethernet?
A: No, the TL-SG116 does not support PoE. It’s a standard Gigabit switch requiring separate power for connected devices.
Q: What’s the maximum data transfer speed?
A: Each port supports up to 1000Mbps, with a total switching capacity of 32Gbps across all ports.
Q: Is this switch managed or unmanaged?
A: The TL-SG116 is an unmanaged switch, meaning it operates without configuration or monitoring software.
The Consultant’s verdict & warranty
The TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black offers exceptional value for users needing reliable, high-speed network expansion without complexity. Its combination of 16 Gigabit ports, energy efficiency, and professional features makes it perfect for small offices, creative professionals, and home networks handling multiple devices. Covered by the standard Manufacturer Warranty.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Cable length detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 23.81 Mpps |
| Number of VLANs | 32 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 9.3 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.6 A |
| DC input voltage | 9 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | 67197, 4861469, EF004981, 17552, TPTLSG116, STD10015325, NPTPL-TLSG116, 1328421 |
| Additional EANs | 1210002616997 |

Reviews
Clear filtersThere are no reviews yet.
