TP-Link JetStream 16-Port Smart PoE Switch
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 16-port Gigabit PoE+ managed switch for surveillance
- Up to 30W per port, 192W total PoE budget
- Web-based management with QoS and VLAN support
- 2 SFP slots for fiber uplink, 1U rack-mountable
- Intelligent power management prevents overload
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

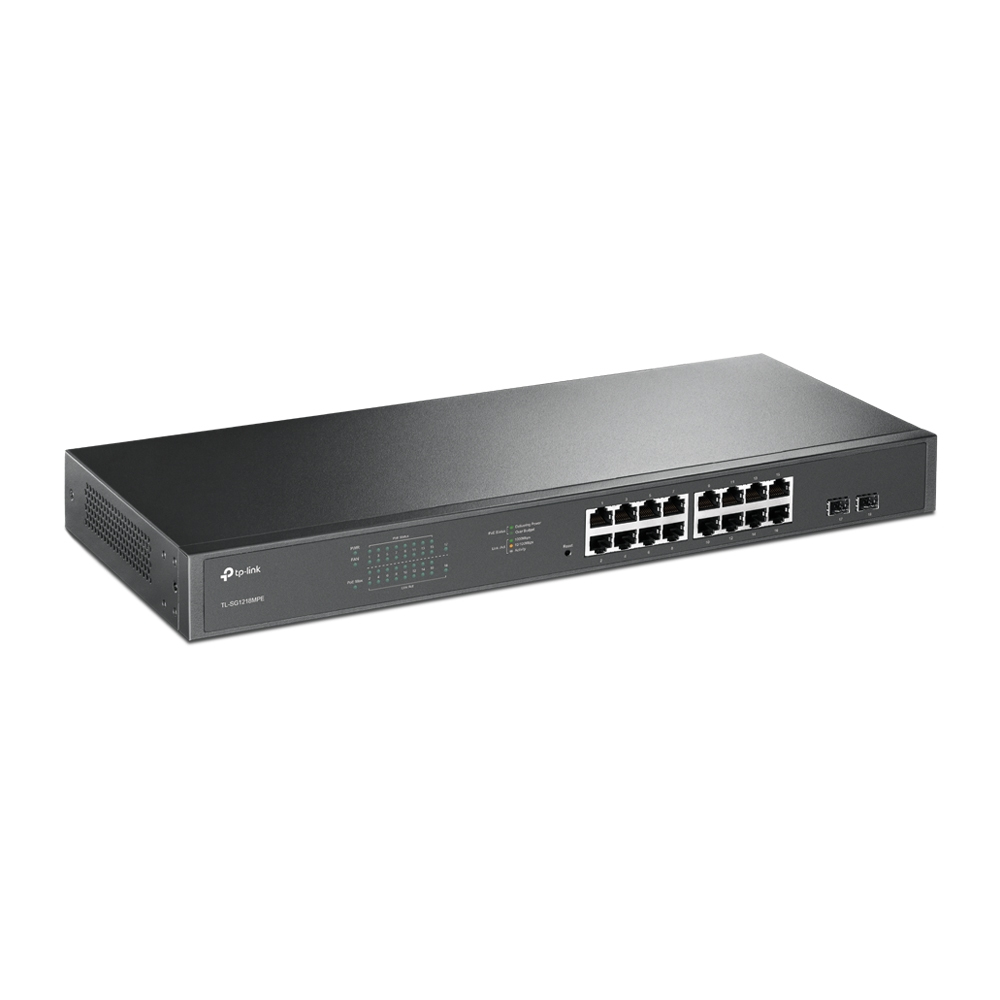

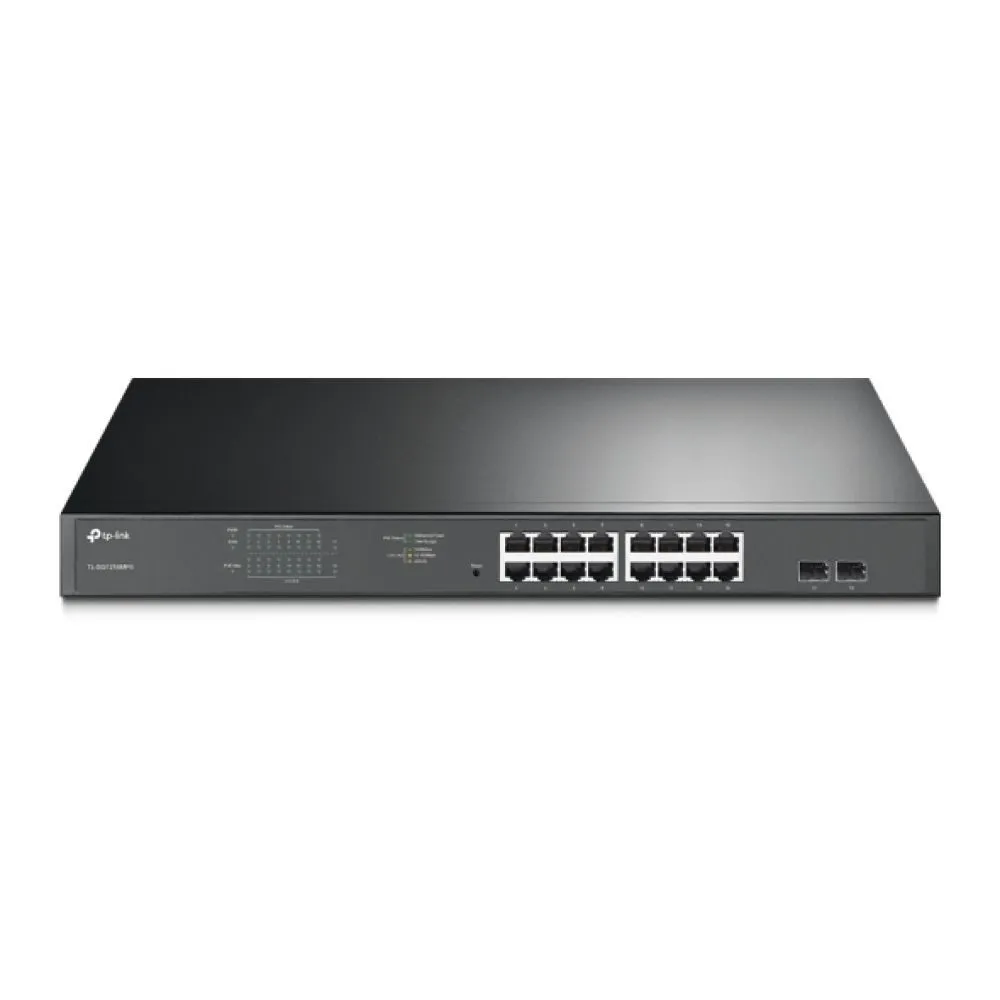

TP-Link TL-SG1218MPE | 16-Port Managed PoE+ Switch for Surveillance
The TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch (TL-SG1218MPE) delivers enterprise-grade networking with 16 PoE+ ports and a 192W power budget, making it ideal for small to medium business surveillance systems requiring reliable, centralised power delivery.
Slim Specs Table
| Metric | Spec. |
|---|---|
| PoE+ Ports | 16 (30W per port) |
| Total PoE Budget | 192W |
| Switching Capacity | 36Gbps |
| VLAN Support | 32 VLANs |
| Management | Web-based, L2 Managed |
Intelligent PoE Power Management for Uninterrupted Surveillance
This switch complies with IEEE 802.3af/at standards, providing up to 30W per port across all 16 PoE+ ports. When total power consumption exceeds 192W, intelligent power management automatically cuts power to lower-priority ports, ensuring critical devices remain powered and protecting the switch from overload.
Enterprise-Grade Network Control
With 32 VLANs and port-based virtual LAN features, you can segment surveillance traffic from general network usage. The switch supports link aggregation for bandwidth bonding, broadcast storm control to prevent network flooding, and IGMP snooping for efficient multicast traffic handling across your surveillance network.
Advanced Management & Monitoring
The web-based interface provides real-time network monitoring, traffic prioritisation, and enhanced QoS. Features like port mirroring allow traffic analysis for security auditing, while the 4.1MB packet buffer memory and 23.8Mpps forwarding rate ensure smooth data flow even during high-traffic periods.
Robust Build & Reliability
Housed in a 1U rack-mountable chassis with dual fans, this switch operates between 0-50°C and 10-90% humidity. The 8,000 MAC address table, 9,000-byte jumbo frame support, and 36Gbps switching capacity deliver enterprise-level performance for demanding surveillance applications.
Box contents
- TP-Link TL-SG1218MPE switch
- Rack mounting kit
- AC power cable
- User guide
Check before you buy
- Confirm your PoE devices require 802.3af/at compatibility
- Verify your surveillance system’s total power requirements (≤192W)
- Check rack space availability for 1U mounting
- Ensure your network infrastructure supports Gigabit Ethernet
Frequently Asked Questions
Q: Can this switch power IP cameras?
A: Yes, it supports up to 30W per PoE+ port, suitable for most IP cameras and access points.
Q: How many VLANs can I create?
A: The switch supports up to 32 VLANs with port-based VLAN features.
Q: What happens when power demand exceeds 192W?
A: Intelligent power management cuts power to lower-priority ports to protect critical devices.
Q: Is this suitable for outdoor surveillance systems?
A: It operates between 0-50°C, suitable for indoor use or climate-controlled environments.
Q: Can I monitor network traffic?
A: Yes, the web-based interface includes network monitoring and port mirroring capabilities.
The Consultant’s verdict & warranty
The TP-Link TL-SG1218MPE offers exceptional value for businesses deploying PoE surveillance systems, combining intelligent power management with comprehensive network control features. Covered by the standard Manufacturer Warranty.
| Weight | 3 kg |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service QoS support | Yes |
| Switch layer | L2 |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet copper ports quantity | 16 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Fiber ethernet cabling technology | 1000BASE-X |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 23.8 Mpps |
| Loop protection | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Number of fans | 2 fan(s) |
| Power consumption max | 217.22 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet plus PoE+ ports quantity | 16 |
| Total Power over Ethernet PoE budget | 192 W |
| Power over Ethernet PoE | Yes |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 50 °C |
| Operating relative humidity H-H | 10 – 90% |
| Heat dissipation | 741.15 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.91 kg |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Auto-negotiation | Yes |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Packet buffer memory | 4.1 MB |
| Certification | CE, FCC, RoHS |
| Harmonized System HS code | 85176990 |
| Distributor SKUs | 64955, 5428640, W128879769, EF003745, 17056, TPTLSG1218MPE, SG1218MPE, STD10015243, NPTPL-TLSG1218ME |
