TP-Link 24-Port PoE+ Switch
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 24 PoE+ ports with 250 W total budget for IP cameras and devices
- Up to 250 m PoE transmission distance in extend mode

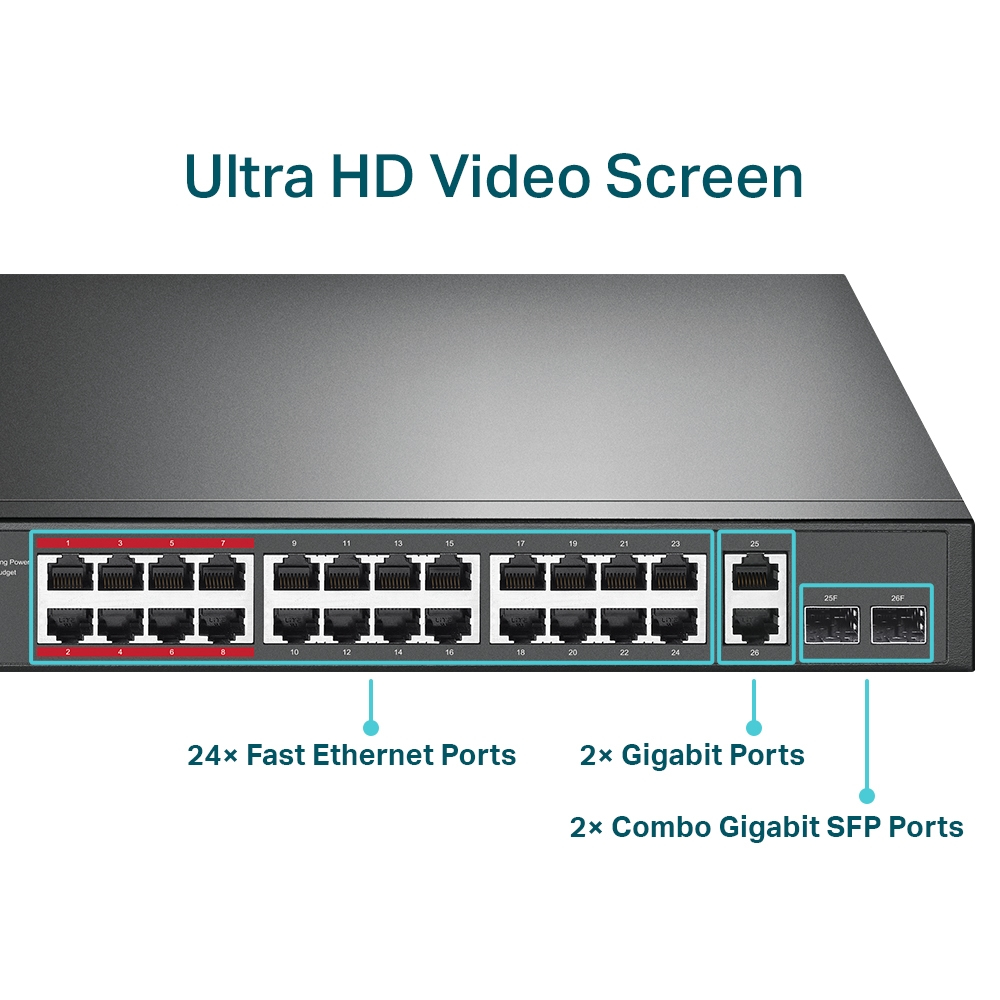

- 2× gigabit RJ45 + 2× combo SFP for smooth HD video monitoring
- One-click priority mode and isolation mode for enhanced security
- Intelligent power management prevents overload and protects equipment
- 1U rack-mountable with 0-50°C operating temperature range
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link TL-SL1226P | 24-Port PoE+ Switch for Surveillance & Networks
The TP-Link TL-SL1226P is a 24-port unmanaged PoE+ switch designed for businesses and installers needing reliable Power over Ethernet delivery. With a 250 W total PoE budget and support for 30 W per port, it powers multiple IP cameras, access points, and VoIP phones without extra adapters.
Slim Specs Table
| Metric | Spec. |
|---|---|
| Total PoE Budget | 250 W |
| PoE Ports | 24 |
| Gigabit RJ45 Ports | 2 |
| Combo SFP Ports | 2 |
| Switching Capacity | 8.8 Gbps |

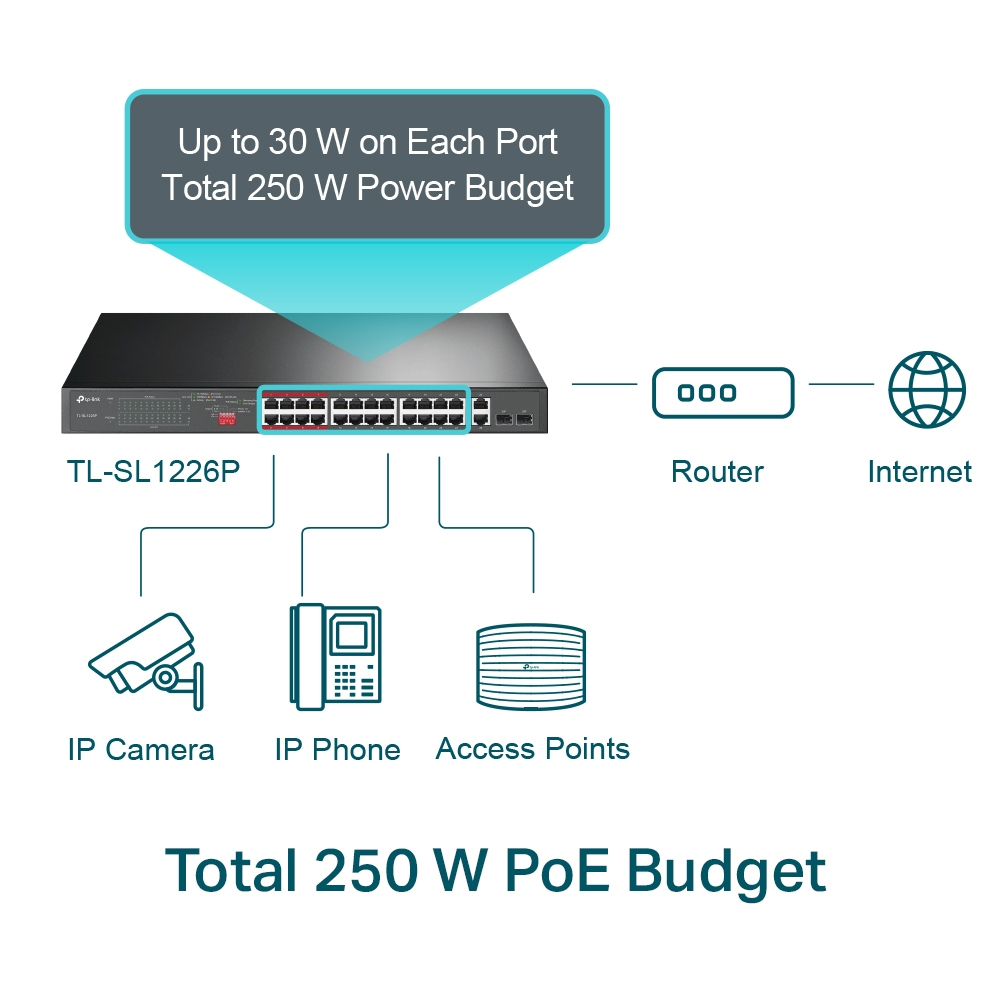

Reliable Power Delivery for 24 Devices
Each PoE port supports up to 30 W, allowing you to connect power-hungry devices like PTZ cameras or dual-radio access points. The 250 W total budget ensures consistent delivery even when all ports are active. Intelligent power management automatically protects against overload by prioritising critical devices.

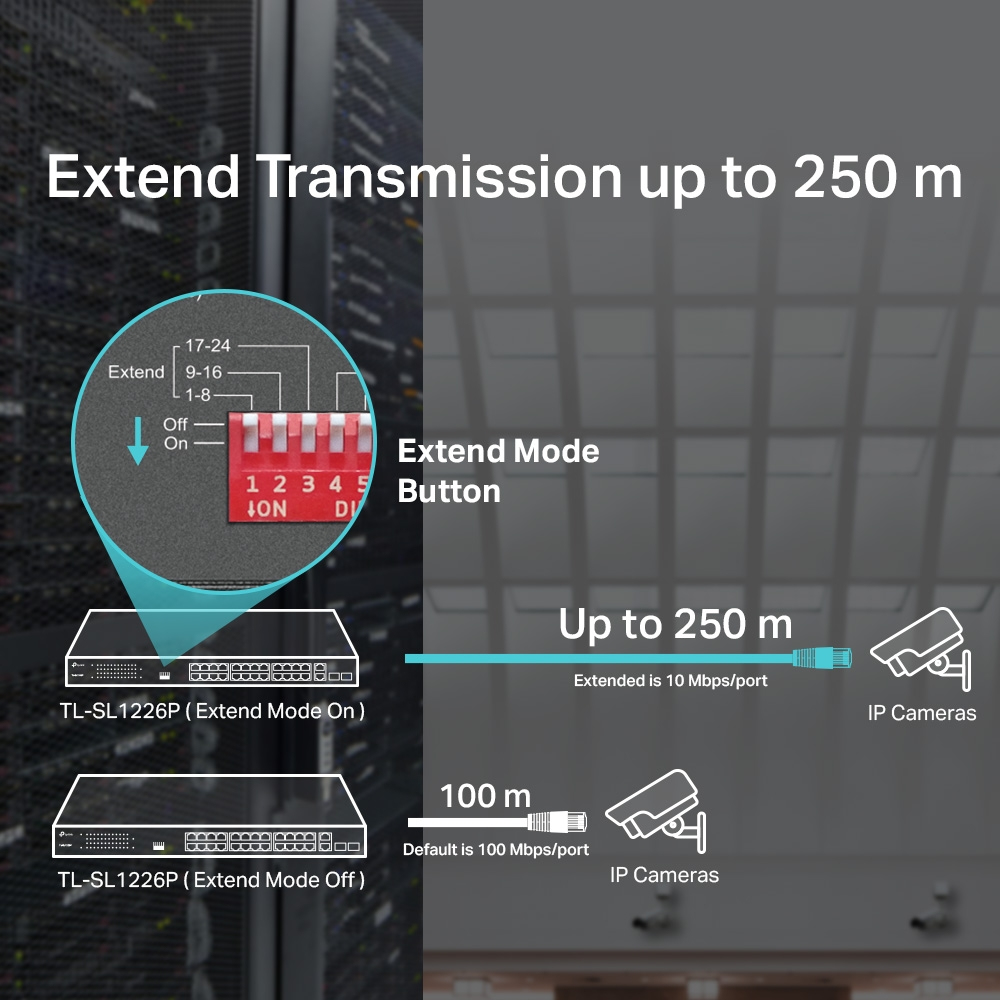

Extended 250 m PoE Transmission
In extend mode, the switch transmits PoE up to 250 m—ideal for large warehouses, campuses, or multi-storey offices. This eliminates the need for extra injectors or power supplies at remote endpoints, reducing installation time and cost.

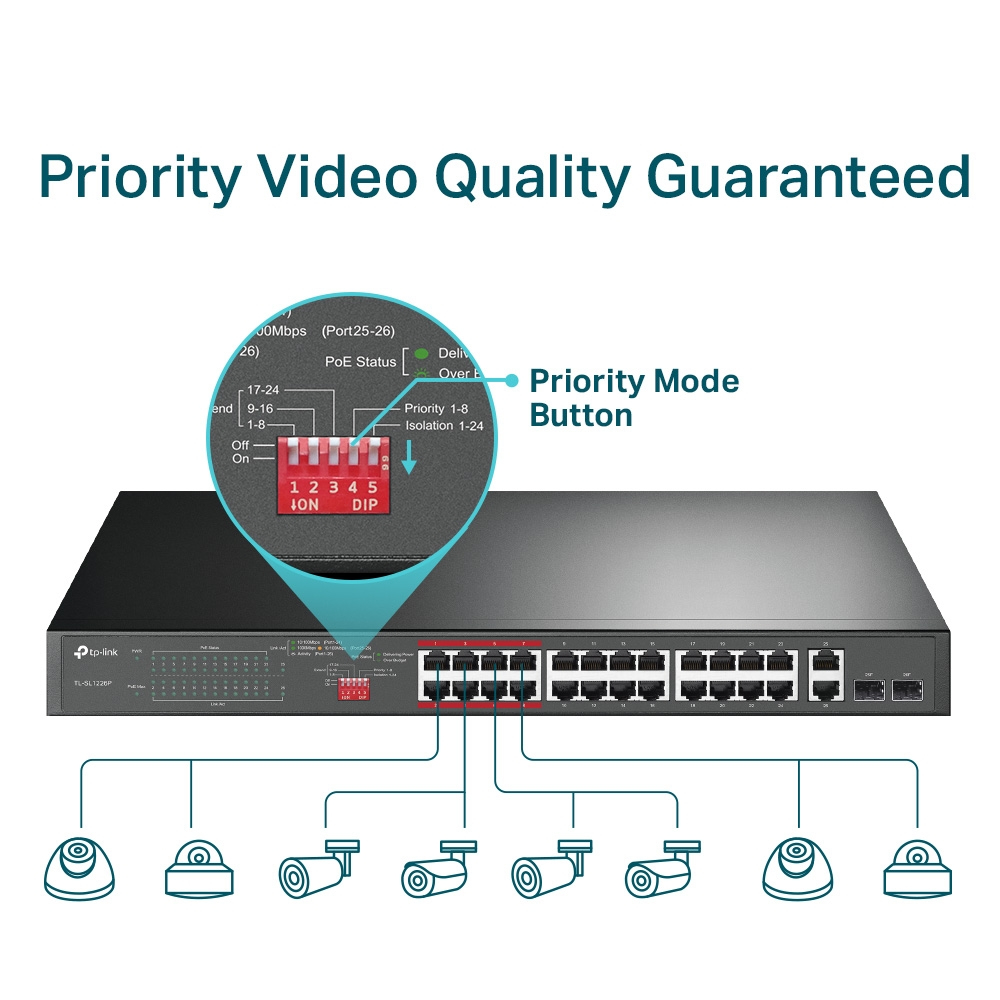

Prioritised Traffic & Enhanced Security
One-touch Priority Mode boosts bandwidth for ports 1–8, ensuring smooth video feeds and voice calls even under heavy load. Isolation Mode separates traffic for all 24 PoE ports, preventing broadcast storms and improving LAN security without complex VLAN configuration.
Built for 24/7 Operation
The metal chassis and dual-fan cooling keep the switch stable between 0–50 °C. With a 10,000-frame jumbo frame size and 8,000 MAC address table, it handles high-definition video streams and multiple concurrent connections without packet loss.
Box contents
- TP-Link TL-SL1226P switch
- Rack mount kit
- Power supply
- Quick start guide
Check before you buy
- Confirm your PoE devices draw ≤30 W each
- Verify your rack has 1U space (440 x 180 x 44 mm)
- Check that your network cameras support IEEE 802.3af/at
- Ensure your environment stays within 0–50 °C
Frequently Asked Questions
Q: Can this switch power 24 full 30 W PoE devices simultaneously?
A: Yes, but total draw must stay under 250 W; the switch will shed lower-priority ports if exceeded.
Q: Does it support VLAN or advanced QoS?
A: No; it is unmanaged and uses simple priority and isolation modes only.
Q: What is the maximum transmission distance without extend mode?
A: Standard PoE distance is 100 m; extend mode increases this to 250 m.
Q: Are the SFP ports copper or fibre only?
A: They are combo ports—use either the RJ45 or SFP slot, not both simultaneously.
Q: Is the switch fanless?
A: No, it has two fans for reliable cooling in continuous operation.
The Consultant’s verdict & warranty
The TP-Link TL-SL1226P is a cost-effective, high-power PoE+ switch for installers and IT managers needing to power multiple devices over long cable runs. Its extend mode, priority traffic control, and robust metal build make it suitable for surveillance, VoIP, and wireless deployments. Covered by the standard Manufacturer Warranty.
| Weight | 2.9 kg |
|---|---|
| Traffic classification | Yes |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet copper ports quantity | 2 |
| Fast Ethernet copper ports quantity | 24 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 8.8 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 6.54 Mpps |
| Number of fans | 2 fan(s) |
| Power consumption max | 281 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet PoE power per port | 30 W |
| Power over Ethernet plus PoE+ ports quantity | 24 |
| Total Power over Ethernet PoE budget | 250 W |
| Power over Ethernet PoE | Yes |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 50 °C |
| Operating relative humidity H-H | 10 – 90% |
| Heat dissipation | 1002.54 BTU/h |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 3.02 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Auto-negotiation | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Packet buffer memory | 4.1 MB |
| Certification | CE, FCC, RoHS |
| LED indicators | Yes |
| Harmonized System HS code | 85176990 |
| Distributor SKUs | 68214, 5672902, TL-SL1226P, SL1226P, NPTPL-TLSL1226P, 1497301 |
