ASUS TUF GAMING B850M-PLUS WIFI7 Motherboard
£212.88 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Micro ATX motherboard for AMD Ryzen 7000/8000/9000 Series on Socket AM5
- Triple M.2 slots with PCIe 5.0 and 4.0 support for high-speed storage
- Wi-Fi 7 and 2.5 Gb Ethernet for ultra-fast network connectivity
- Four DDR5 DIMM slots supporting up to 256 GB of dual-channel memory
- Robust VRM design with military-grade components for stable performance
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock

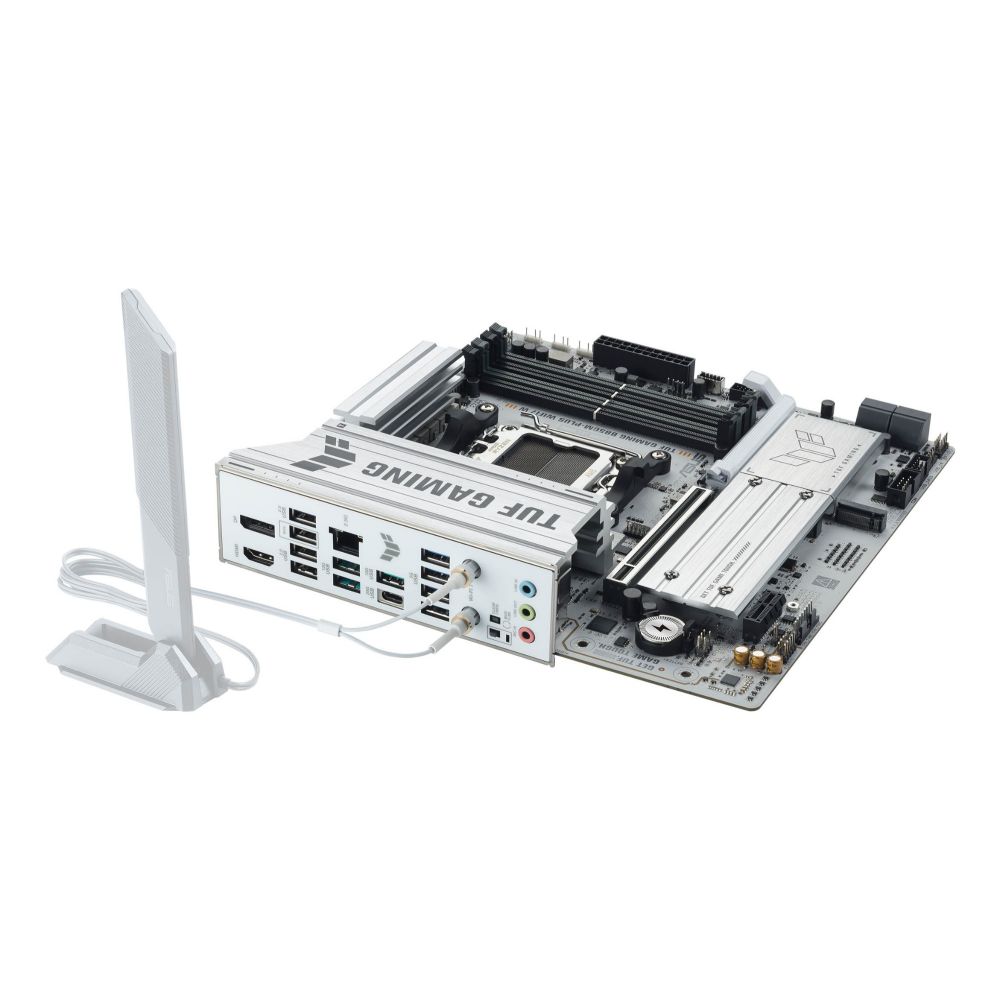

ASUS TUF GAMING B850M-PLUS WIFI7 W | Micro ATX AMD Gaming Motherboard

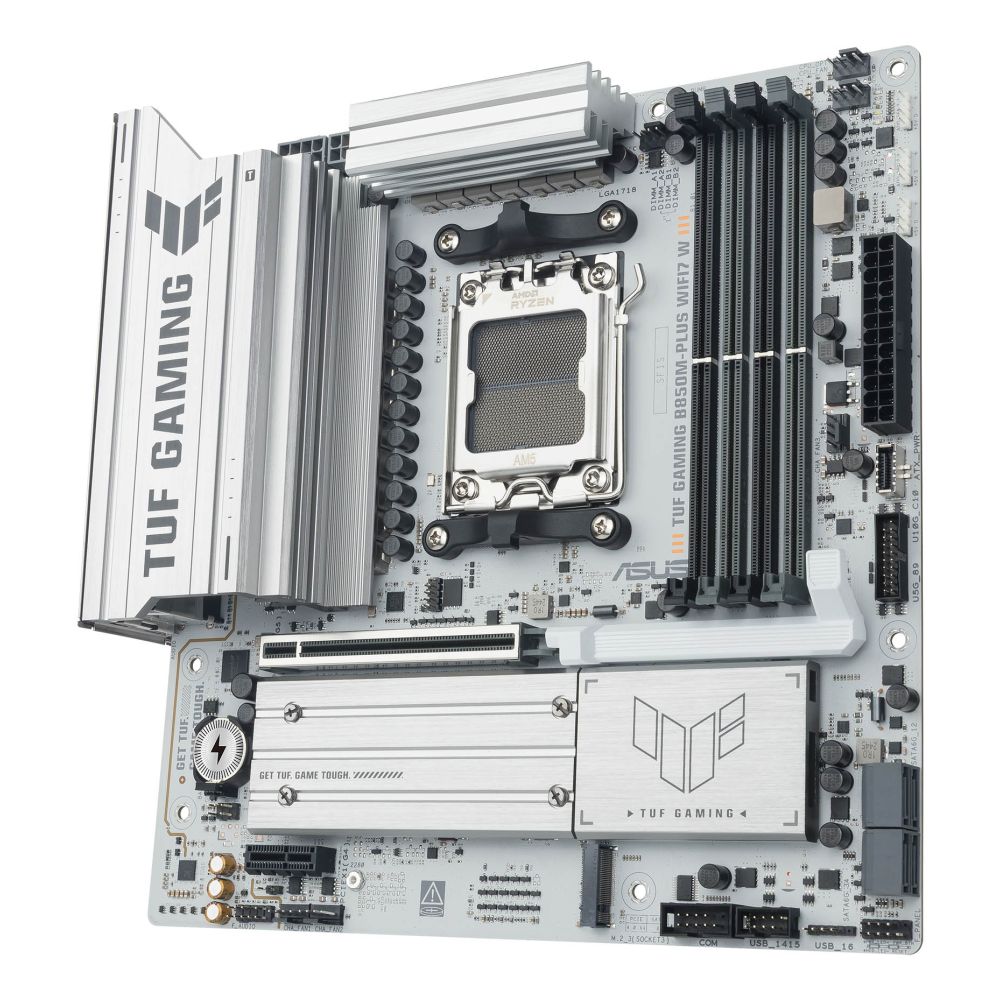

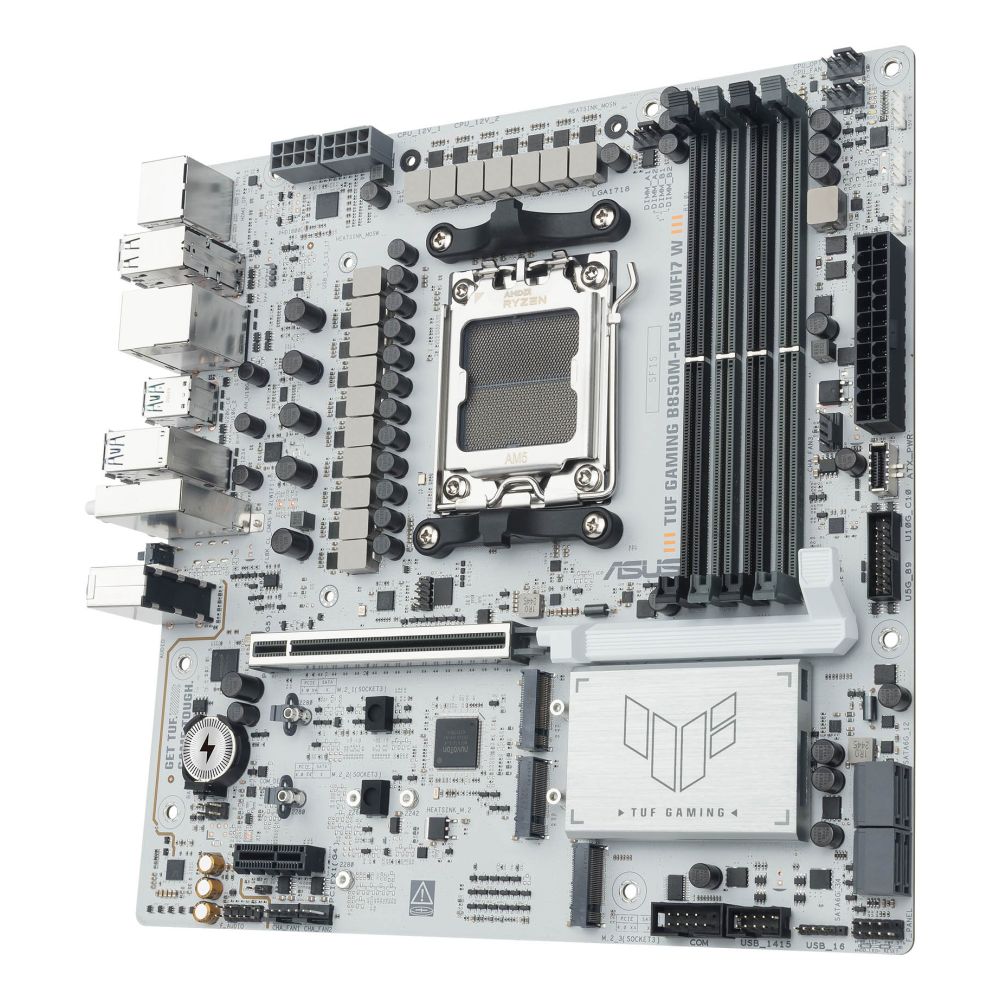

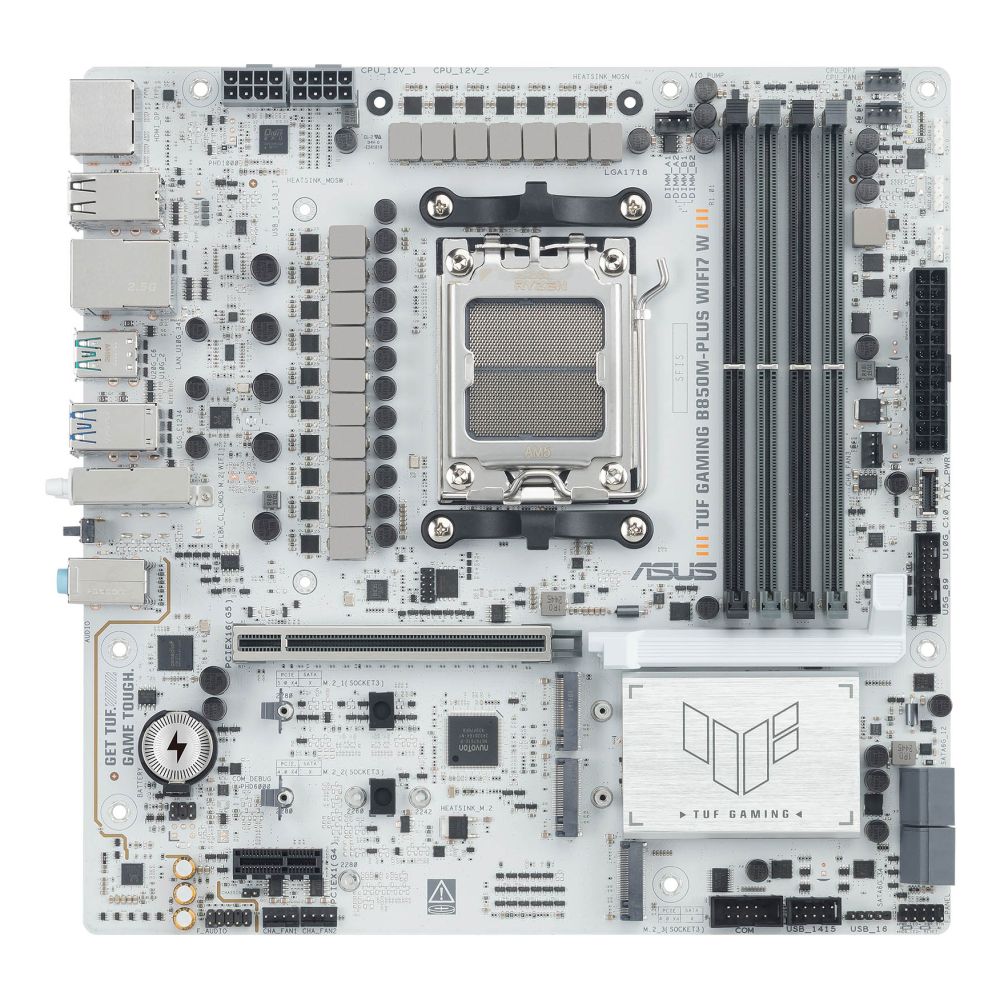

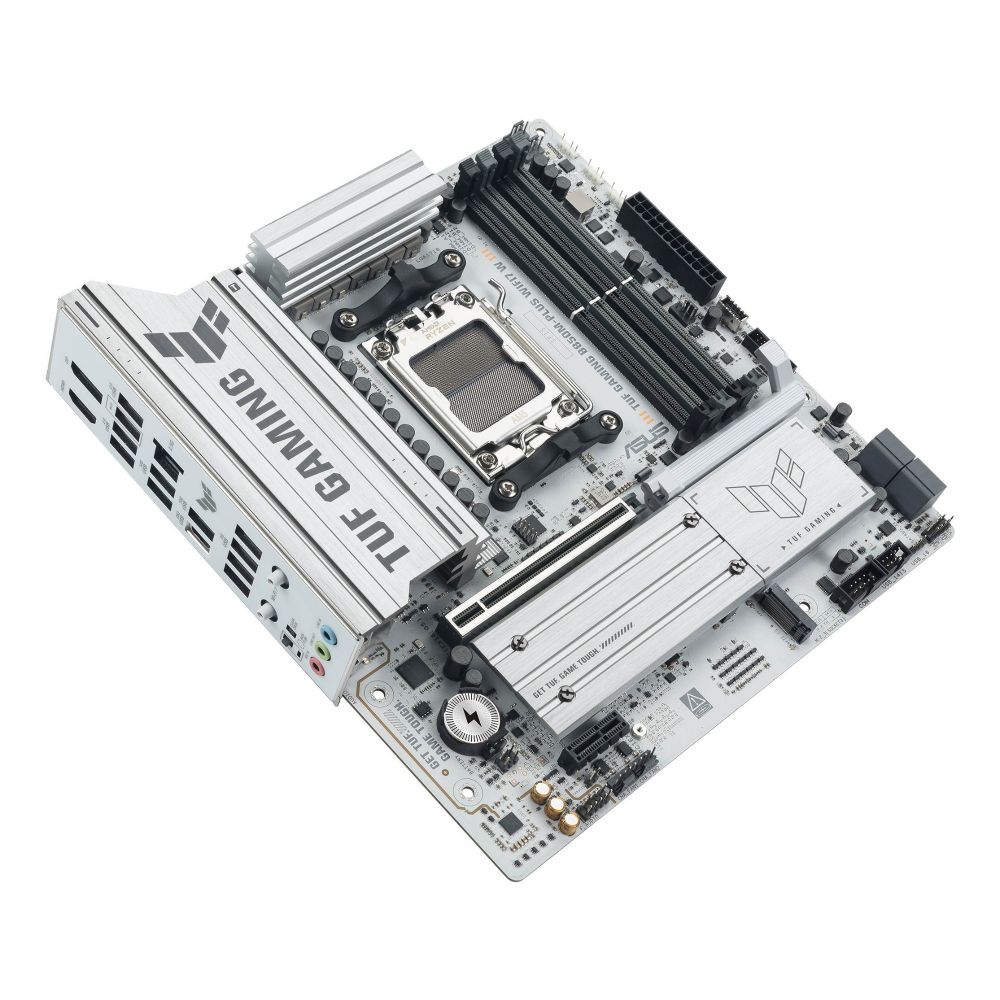

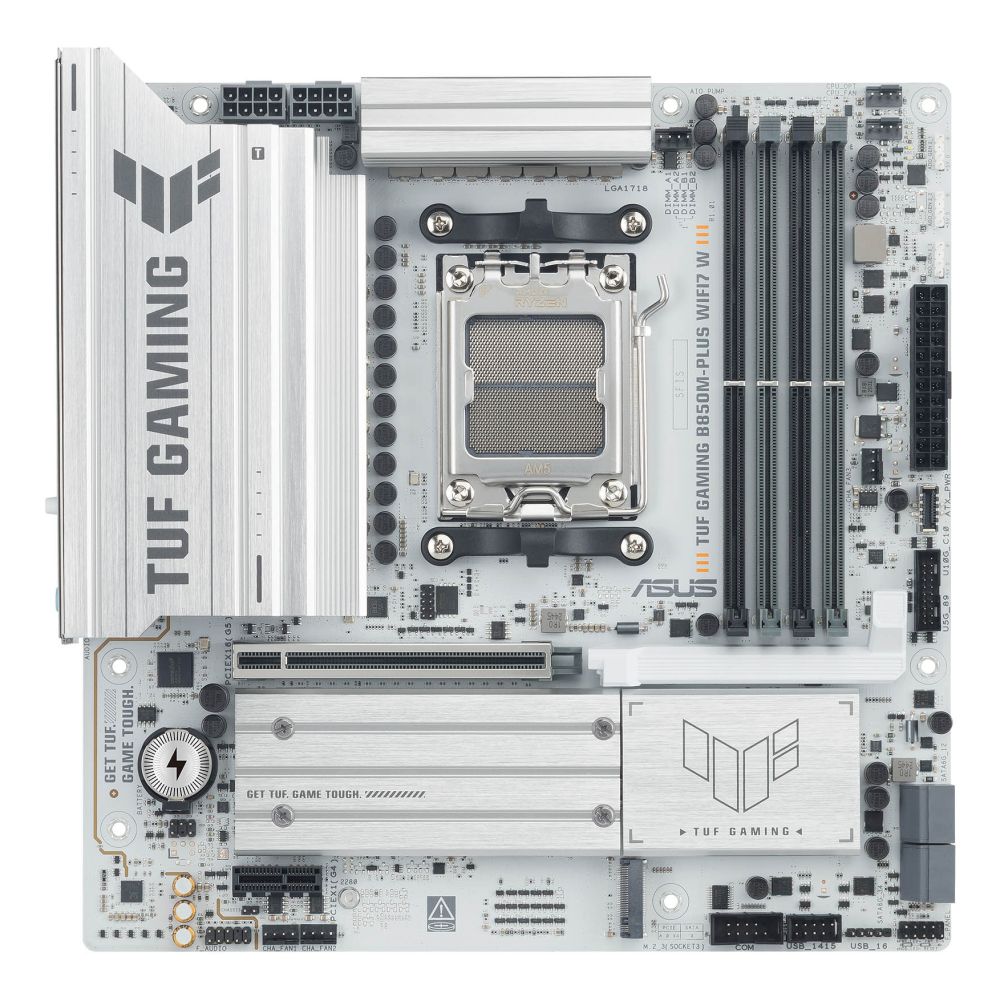

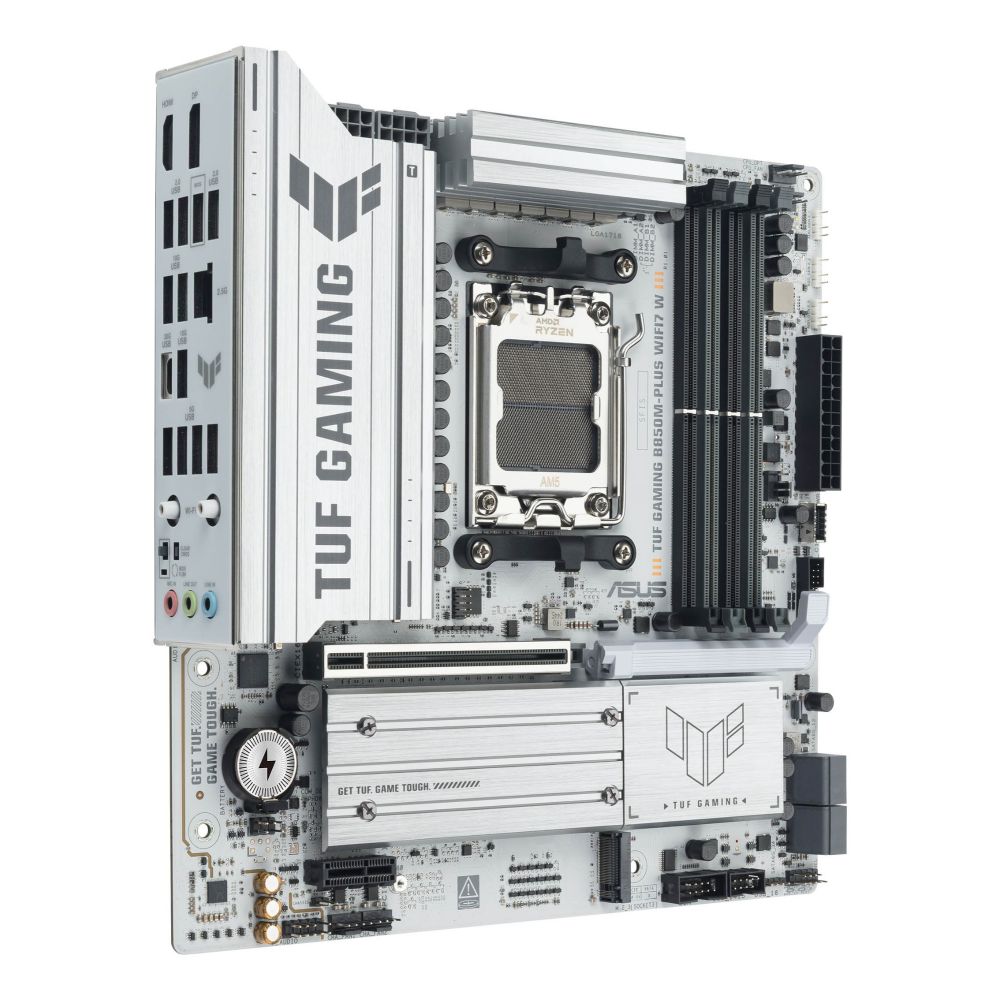

The ASUS TUF GAMING B850M-PLUS WIFI7 W is a micro ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. Designed for gamers and creators who need rock-solid stability, it combines military-grade components, enhanced power delivery, and comprehensive cooling with next-gen connectivity including WiFi 7 and 2.5Gb Ethernet.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | micro ATX |
| Socket | AM5 |
| Memory Support | DDR5 (up to 256 GB) |
| WiFi | Wi-Fi 7 (802.11be) |
| Ethernet | 2.5Gb LAN |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x1 |
| M.2 Slots | 3 (up to PCIe 5.0) |
| USB Ports | 4x USB 3.2 Gen 1, 3x USB 3.2 Gen 2, 4x USB 2.0, 1x USB 3.2 Gen 2×2 Type-C |
Rock-Solid Power & Cooling for Marathon Gaming
Engineered with military-grade TUF components and a robust VRM design, this motherboard delivers stable power even under heavy workloads. The enhanced cooling system includes multiple fan headers and heat sinks to keep temperatures in check during extended gaming sessions. Whether you’re pushing frame rates or running AI workloads, the B850M-PLUS WIFI7 W maintains consistent performance without thermal throttling.
Next-Gen Connectivity & Storage
With three M.2 slots supporting PCIe 5.0 and 4.0, you can install ultra-fast NVMe SSDs for lightning-quick load times. The onboard WiFi 7 and 2.5Gb Ethernet ensure low-latency online gaming and smooth streaming. Multiple USB ports, including a high-speed Type-C, make it easy to connect peripherals, external drives, and VR headsets without bottlenecks.
AI Optimisation for Smarter Performance
Exclusive to ASUS AMD 800 and 600 series boards, AI Cache Boost fine-tunes CPU cache and memory pathways to deliver up to 29% faster local LLM performance when paired with a Ryzen 9000 Series CPU. ASUS AI Advisor provides easy, natural-language guidance for overclocking, fan tuning, and system optimisation—ideal for both beginners and experienced builders.
What Is in the Box
- ASUS TUF GAMING B850M-PLUS WIFI7 W motherboard
- SATA cables (quantity not specified)
- Screws and mounting hardware
- Wi-Fi antenna
- User manual and warranty card
Things to Check First
- Confirm your AMD Ryzen processor is AM5 compatible (7000/8000/9000 Series).
- Verify your case supports micro ATX form factor (244 x 244 mm).
- Ensure your PSU has a 24-pin ATX and 8-pin EPS connector.
- Check that your DDR5 memory is on the QVL (Qualified Vendor List) for this board.
Buyer FAQs
Does this motherboard support DDR4 memory?
Can I use this board with an Intel CPU?
How many M.2 drives can I install?
Is WiFi 7 backwards compatible with older Wi-Fi standards?
Does it have built-in RGB lighting?
Buying advice
The ASUS TUF GAMING B850M-PLUS WIFI7 W is ideal for UK gamers and creators seeking a durable, future-proof micro ATX platform with next-gen connectivity and AI-enhanced performance. Its robust build quality, comprehensive cooling, and support for the latest Ryzen CPUs make it a reliable foundation for high-performance PCs. Covered by the applicable manufacturer warranty.
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
|---|---|
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |

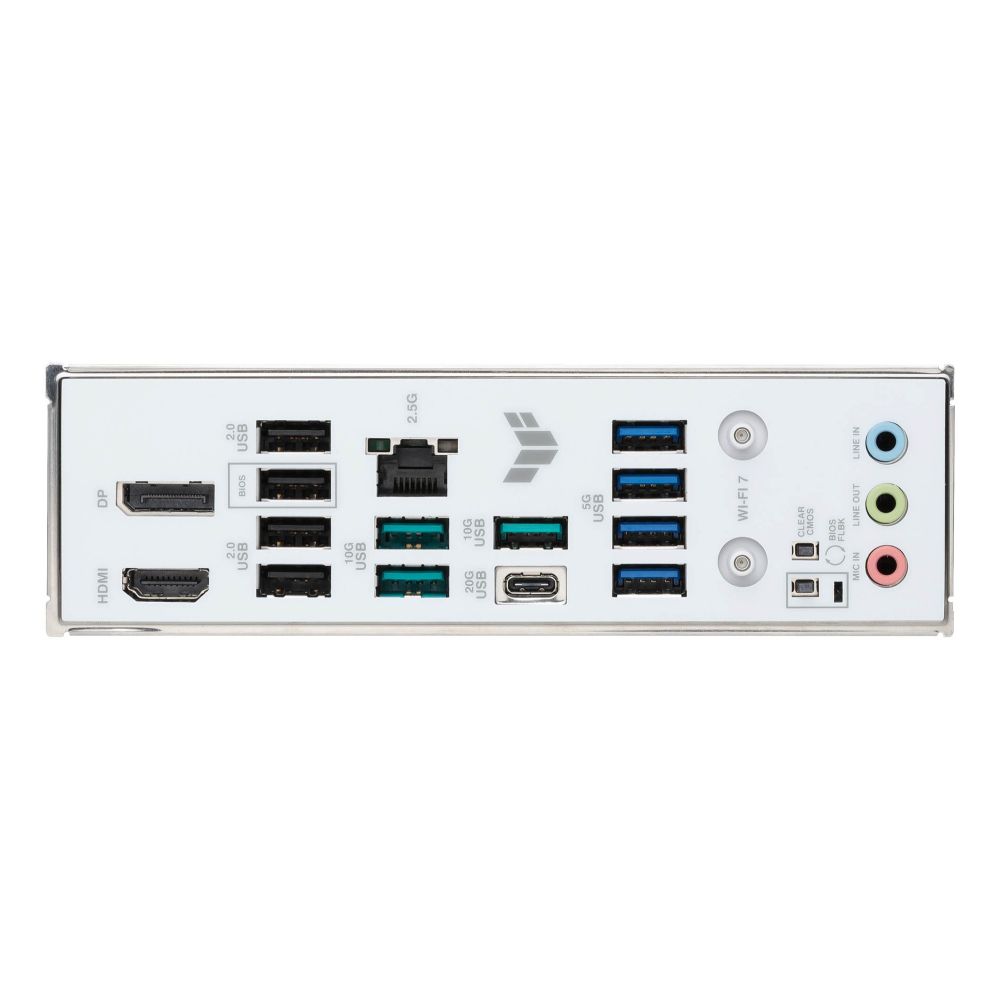

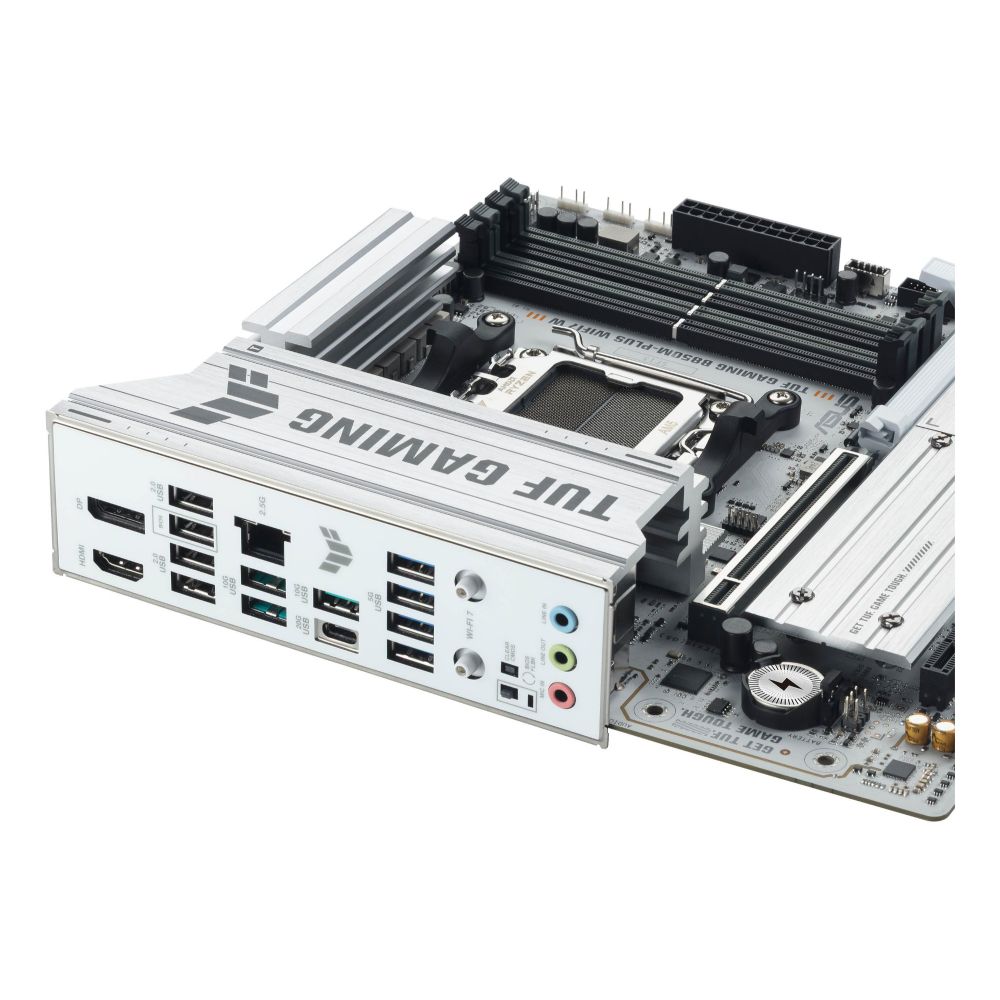

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | White |
| Number of M.2 M slots | 3 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Windows operating systems supported | Windows 11 |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.65 kg |
| PCI Express x1 Gen 4.x slots | 1 |
| Distributor SKUs | MBD-90MB1MD0-M0EAY0, 11890753, 127577, 618712, STD10225174, CL90MB1MD0-M0EAY0 |
