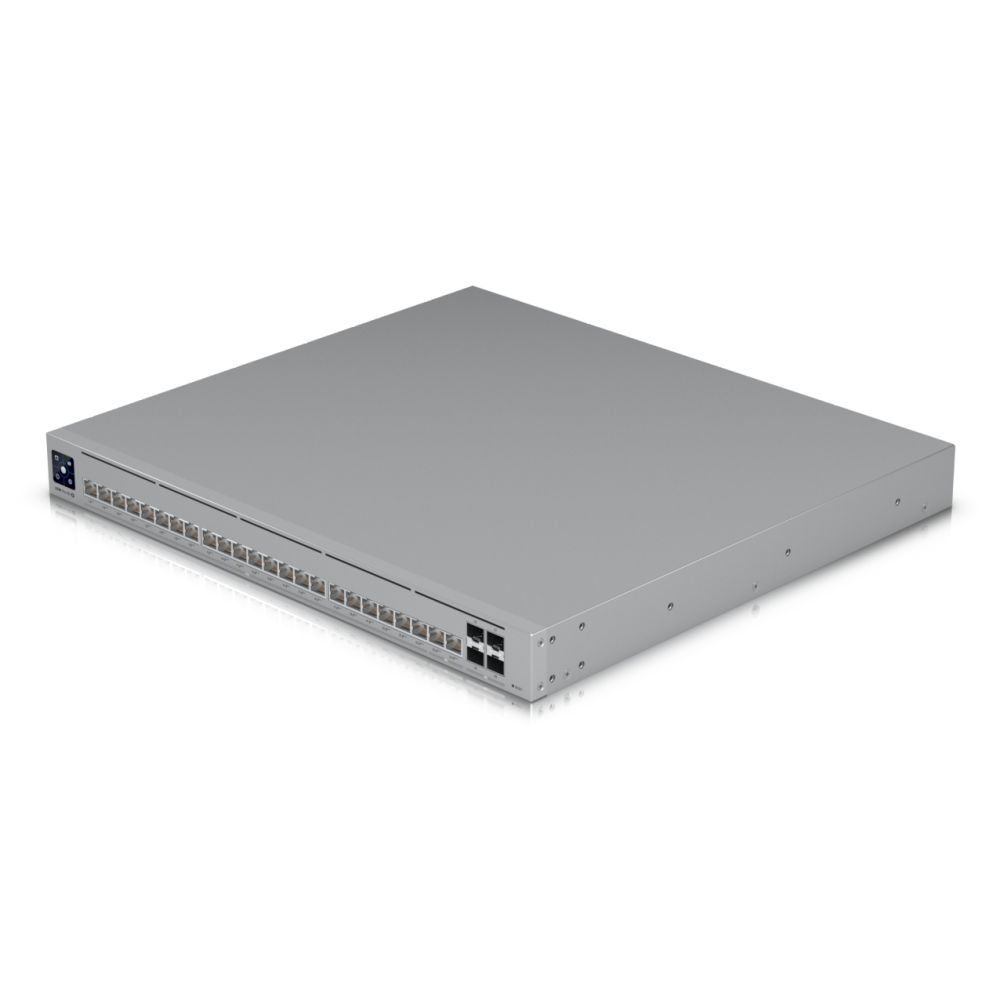

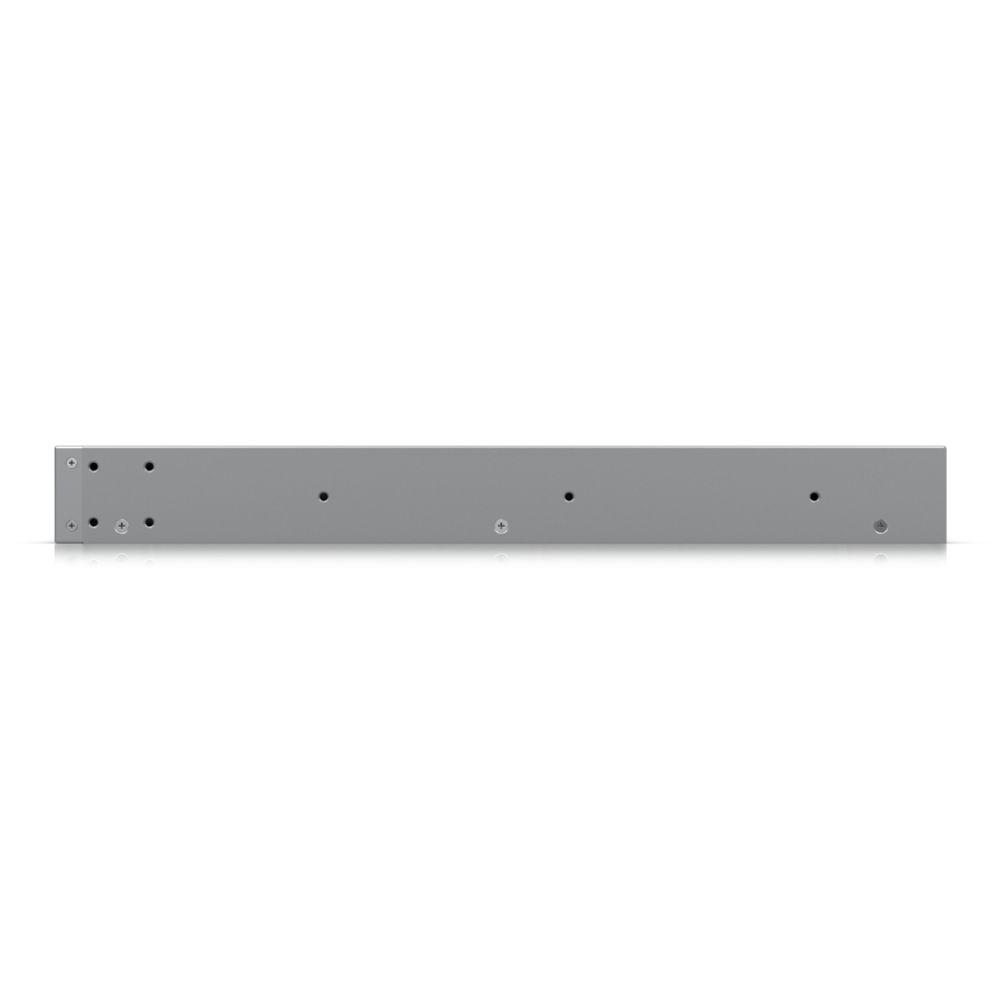

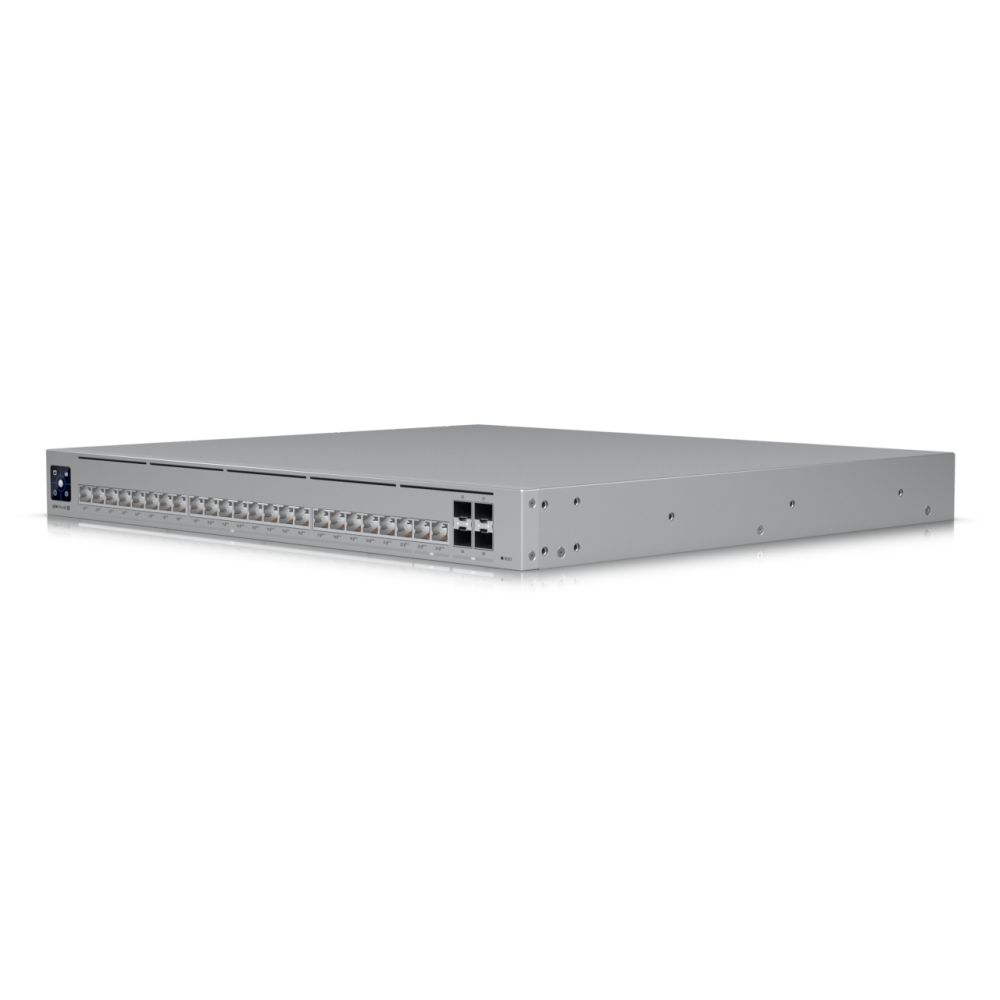

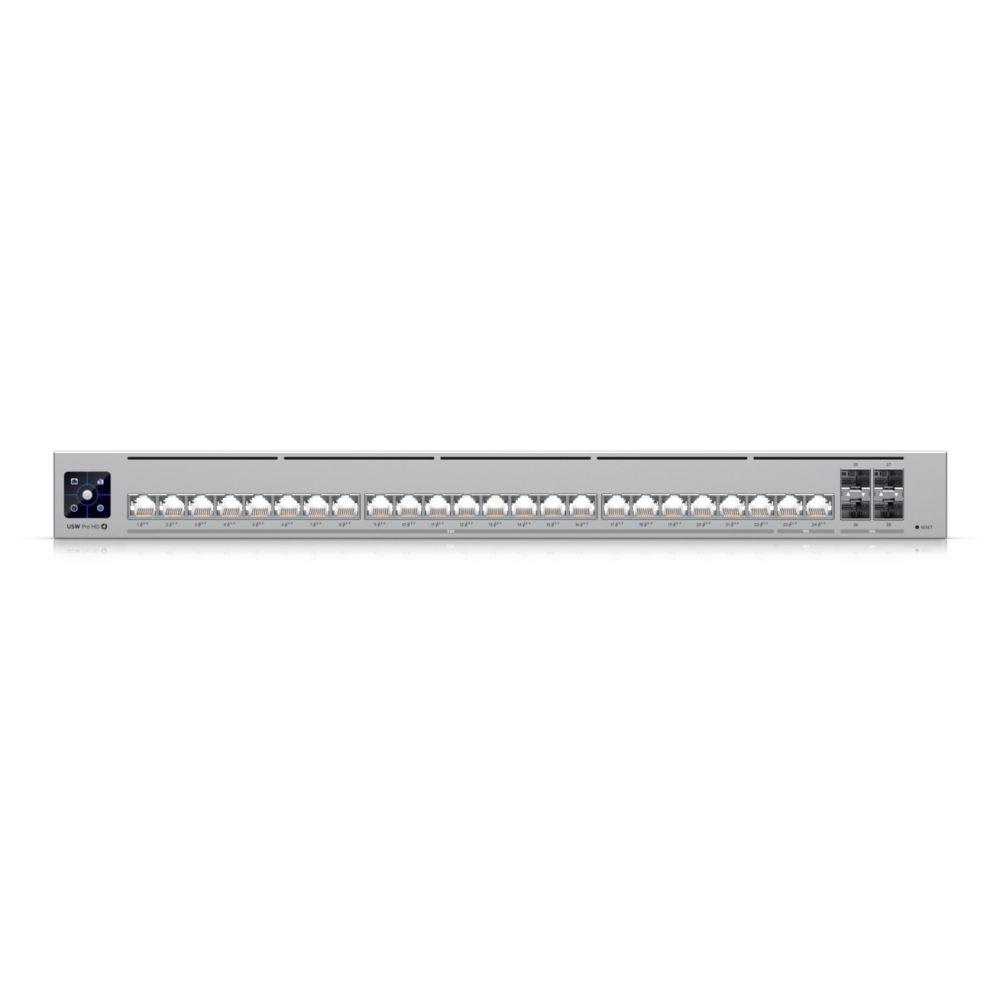

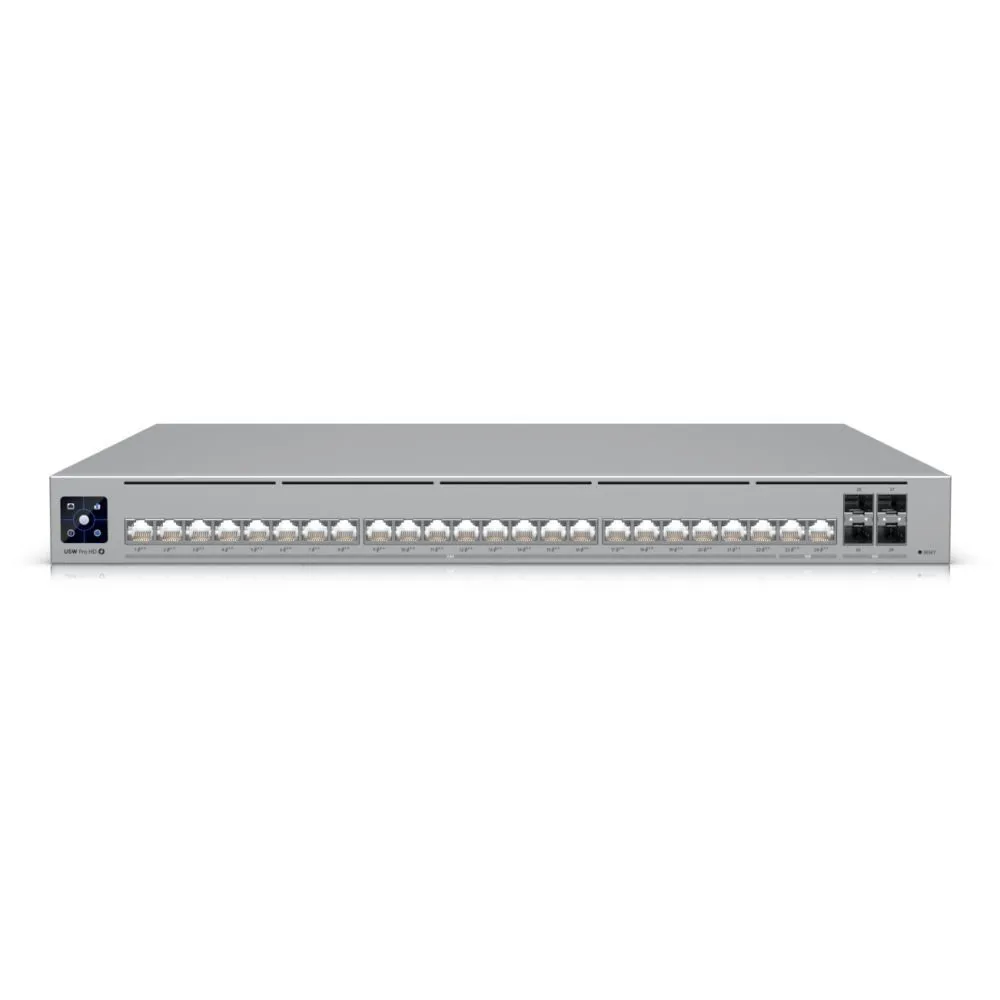

Ubiquiti UniFi Pro HD 24 PoE Managed Switch
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 24-port PoE++ managed switch with 2.5G and 10G connectivity
- 230 Gbps switching capacity with 171 Mpps forwarding rate
- L2/L3 layer support with 12000 IPv4 routes and 32000 MAC entries
- 600W PoE budget, 15.4W per port for 24 PoE++ ports
- 1U rackmount form factor with SGCC housing and LCM display
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Ubiquiti UniFi Pro HD 24 | Professional L3 Managed PoE Switch
The Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey delivers enterprise-grade switching for high-density networks requiring 2.5 GbE and 10 GbE connectivity. With 24 PoE++ ports and 4 SFP+ uplinks, it supports demanding environments like VoIP, surveillance, and high-speed data applications.
Key Specifications
| Metric | Spec |
|---|---|
| Ports | 22x 2.5G PoE++, 2x 10G PoE++, 4x SFP+ |
| Switching Capacity | 230 Gbit/s |
| PoE Budget | 600 W total |
| VLAN Support | 1000 VLANs |
| Form Factor | 1U rack-mountable |
2.5G PoE++ for High-Density Device Deployment
With 22 x 2.5G PoE++ ports delivering up to 15.4 W per port, this switch powers multiple high-bandwidth devices simultaneously. Each port supports 100/1000/2500 Mbps speeds, enabling smooth 4K video streaming, high-resolution IP cameras, and fast wireless access points without additional power injectors.
Layer 3 Routing with Advanced Network Control
The L3 capabilities include 12,000 IPv4 routes, static routing, and IGMP snooping for efficient multicast traffic handling. Rate limiting and port mirroring provide granular control over bandwidth allocation and network monitoring, making it suitable for complex enterprise deployments requiring traffic segmentation and QoS policies.
Enterprise-Grade Reliability and Redundancy
Built with a 2 MB packet buffer and 32,000 MAC address table entries, the switch maintains performance under heavy loads. Redundant power supply support (RPS) and 230 Gbit/s switching capacity ensure continuous operation. Operating temperature range of -5 to 40 °C suits most UK commercial environments.
Scalable SFP+ Uplink Options
Four 10G SFP+ slots provide flexible uplink choices for connecting to core switches or storage networks. This high-speed backbone connectivity prevents bottlenecks when aggregating traffic from the 2.5G copper ports, supporting future network expansion without infrastructure overhaul.
Box Contents
- UniFi Pro HD 24 switch
- Power supply
- Rack mount kit
- Power cable
Check before you buy
- Confirm the switch supports your required PoE device power requirements
- Verify rack space availability for 1U mounting
- Check if SFP+ modules are needed for uplink connectivity
- Ensure your network infrastructure supports 2.5G Ethernet devices
Frequently Asked Questions
Q: What is the maximum power per PoE port?
A: Each PoE++ port can deliver up to 15.4 W of power.
Q: How many VLANs does this switch support?
A: The switch supports up to 1000 VLANs with voice VLAN features.
Q: Can this switch operate in a 19-inch rack?
A: Yes, it has a 1U form factor with included rack mount kit.
Q: What operating temperature range is supported?
A: The switch operates between -5 °C and 40 °C.
Q: Does it include redundant power capability?
A: Yes, it supports redundant power supply (RPS) for backup power.
The Consultant’s verdict & warranty
The Ubiquiti UniFi Pro HD 24 suits network administrators requiring high-density PoE deployment with mixed 2.5G and 10G connectivity. Its Layer 3 routing, extensive VLAN support, and robust power budget make it ideal for growing businesses needing scalable, managed switching. Covered by the standard Manufacturer Warranty.
| Weight | 3.55 kg |
|---|---|
| Switch type | Managed |
| Quality of Service QoS support | Yes |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet copper ports quantity | 22 |
| 10G Ethernet copper ports quantity | 2 |
| Networking standards | IEEE 802.1x |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 12000 |
| MAC address table | 32000 entries |
| Switching capacity | 230 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 171 Mpps |
| Throughput | 115 Gbit/s |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Multicast support | Yes |
| Reset button | Yes |
| Display type | LCM |
| Power consumption max | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply RPS support | Yes |
| Power source | AC/DC/PoE |
| Power connector | AC/DC |
| Power over Ethernet PoE power per port | 15.4 W |
| Total Power over Ethernet PoE budget | 600 W |
| Power over Ethernet PoE | Yes |
| Power over Ethernet 4PPoE PoE++ ports quantity | 24 |
| Operating temperature T-T | -5 – 40 °C |
| Operating relative humidity H-H | 10 – 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Width | 442.4 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Housing material | SGCC |
| Rack mounting | Yes |
| Packet buffer memory | 2 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Link, Speed, Status |
| Rack mount kit | Yes |
| Cables included | Power |
