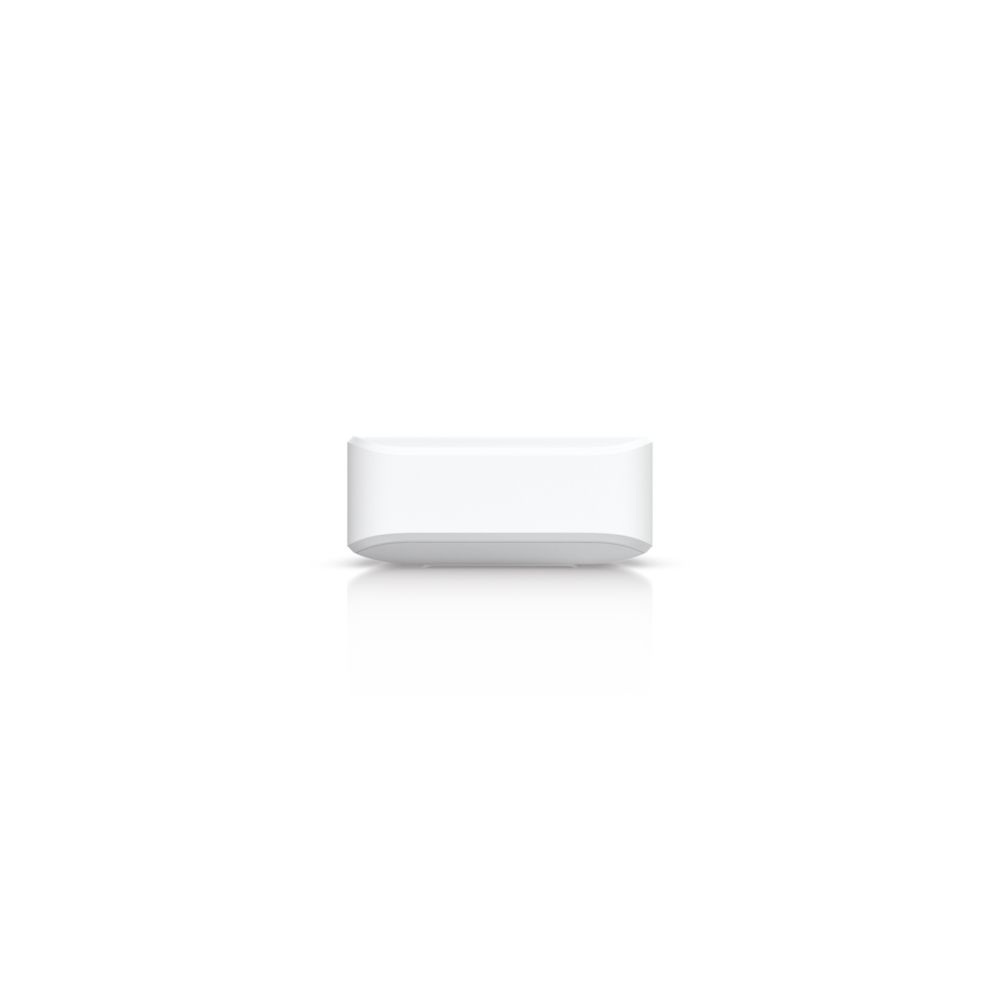

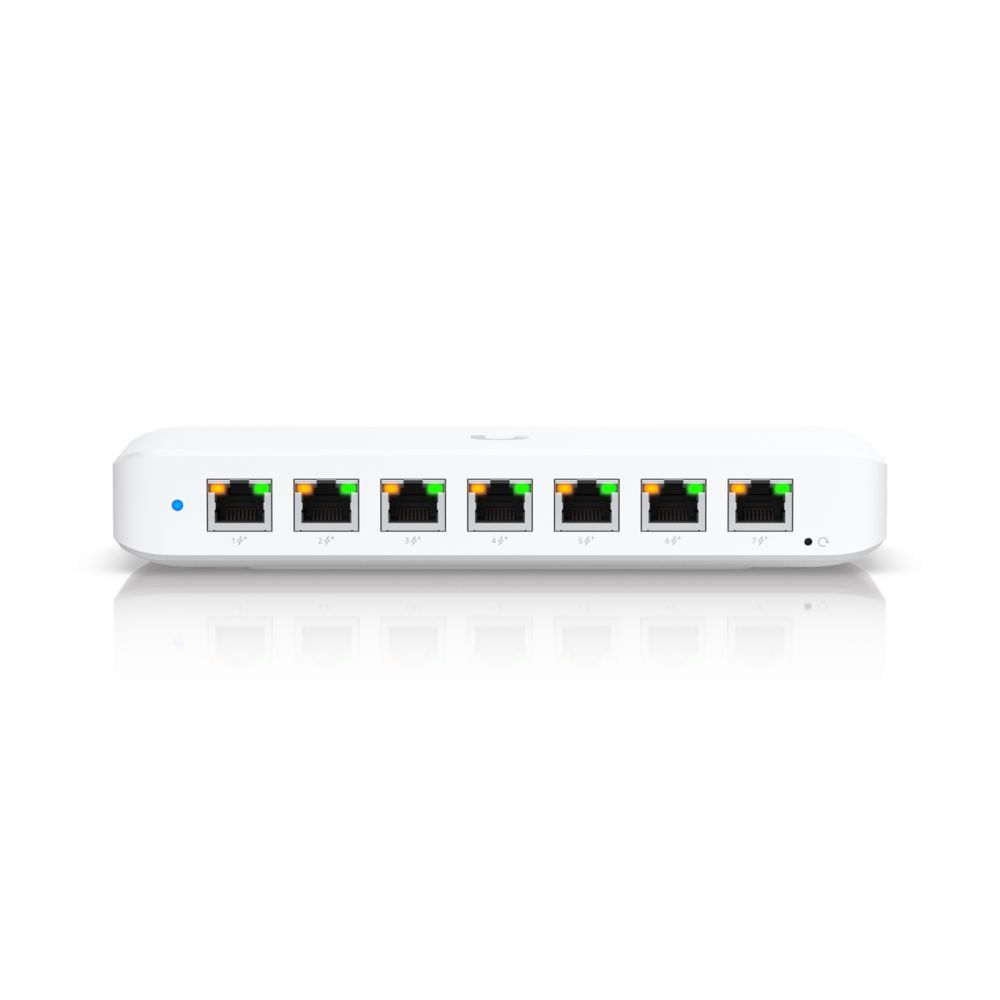

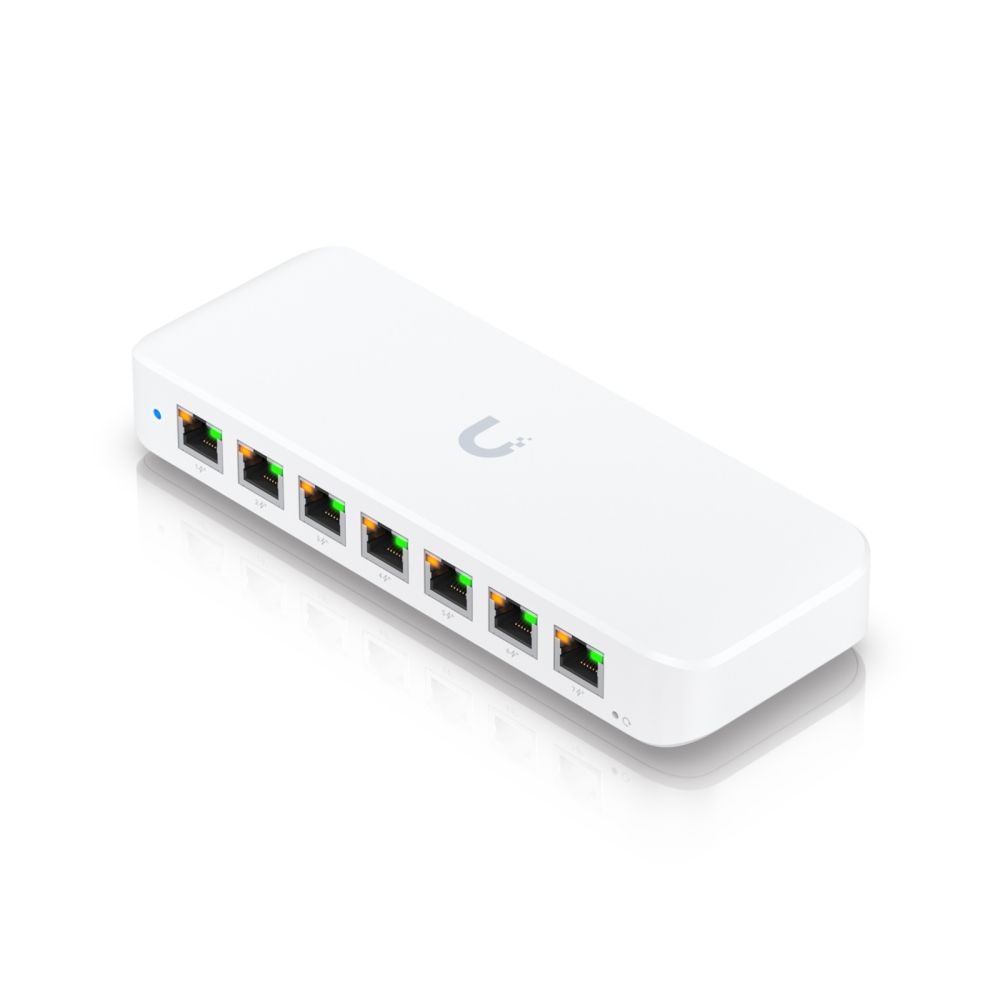

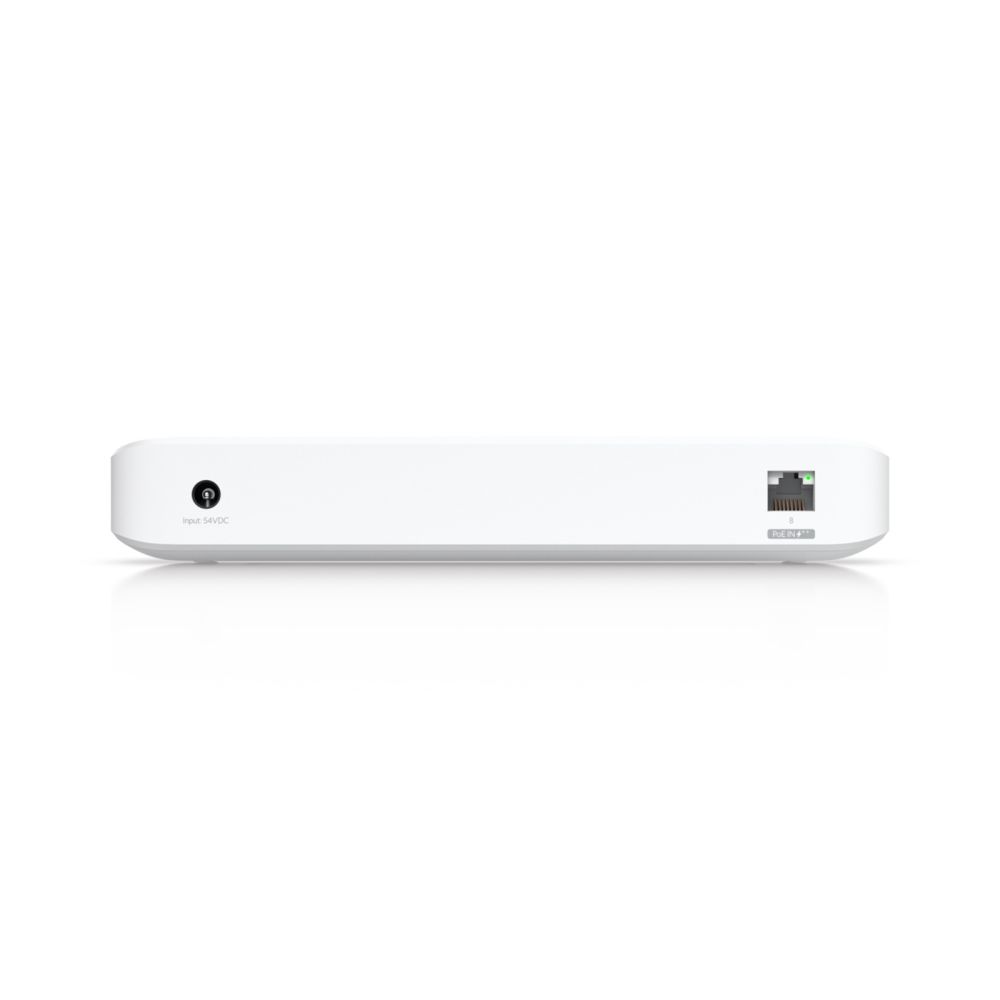

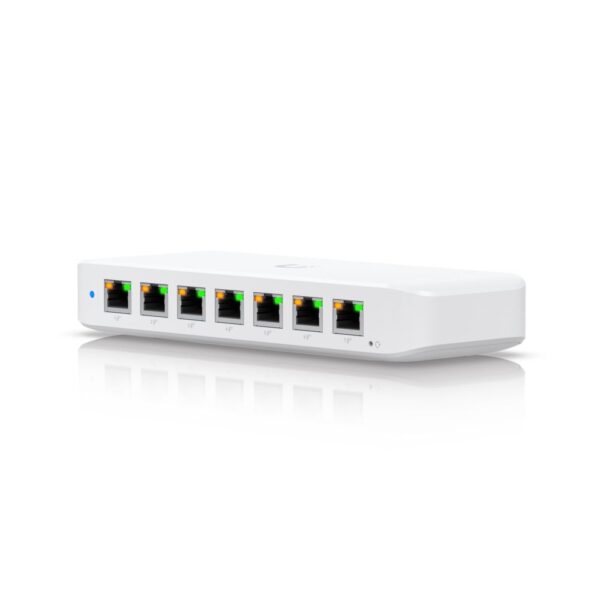

Ubiquiti UniFi Switch Ultra 8 Port
£138.80 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 8-port Gigabit PoE+ Layer 2 switch from Ubiquiti
- 52W total PoE availability with included 60W AC adapter
- Compact polycarbonate enclosure, wall-mountable design
- Managed via UniFi Network software (v8.0.7 and later)
- CE, FCC, IC certified for safety and compliance
Payment Methods:
You may also like
Ubiquiti USW-Ultra-60W | 8-Port PoE+ Gigabit Switch with PoE++ Input
The Ubiquiti USW-Ultra-60W UniFi Switch Ultra 8 Port Layer 2 Gigabit PoE+ Switch delivers compact, high-performance switching for small to medium business networks. With seven PoE+ ports delivering up to 52W total power and an optional PoE++ input for powering via uplink, this switch simplifies deployments of access points, IP cameras, and other powered devices.
Technical Specifications
| Metric | Spec. |
|---|---|
| Ports | 7x PoE+, 1x Gigabit (PoE++ input) |
| Switching Capacity | 16 Gbps |
| Power Budget | 52W PoE+ (included adapter) |
| Dimensions | 203 x 76 x 33 mm |
| Management | UniFi Network v8.0.7+ |
Compact Design Meets Versatile Power Options
The USW-Ultra-60W packs enterprise-grade switching into a small polycarbonate enclosure measuring just 203 x 76 x 33 mm. Its wall-mount capability and lightweight design (320g device only) make it ideal for discreet installations in offices, retail spaces, or home offices. The switch supports both AC adapter input (60W included) and PoE++ input via the dedicated uplink port, allowing flexible power sourcing depending on your infrastructure.
Enterprise Switching Features in a Small Package
Despite its compact size, this switch includes Layer 2 features typically found on larger enterprise switches. Port isolation, storm control, port mirroring, and multicast/broadcast rate limiting provide network security and stability. Flow control and jumbo frame support ensure smooth traffic handling for bandwidth-intensive applications. The total non-blocking throughput of 8 Gbps and switching capacity of 16 Gbps deliver reliable performance for connected devices.
Simplified Management Through UniFi Network
The switch integrates seamlessly with UniFi Network Controller software (version 8.0.7 and later), providing centralized management through an intuitive web interface. Real-time monitoring of Ethernet status, PoE delivery, and link/activity indicators helps IT administrators maintain network health. The factory reset button offers straightforward recovery options if configuration issues arise.
In the box
- Ubiquiti USW-Ultra-60W switch
- 54V, 1.1A/60W power adapter
- Wall mount bracket
- Quick start guide
Before you order
- Confirm your powered devices are compatible with PoE+ (up to 30W per port) or PoE++ input requirements
- Verify you have UniFi Network Controller version 8.0.7 or later for management
- Check mounting location can accommodate the 203 x 76 x 33 mm dimensions
- Confirm your network infrastructure supports Gigabit Ethernet connections
Buyer FAQs
Can this switch power UniFi access points?
What is the maximum power available per PoE port?
Can I use the PoE++ input port as a regular data port?
Does this switch support VLANs?
What are the operating temperature limits?
Our recommendation
The Ubiquiti USW-Ultra-60W UniFi Switch Ultra 8 Port Layer 2 Gigabit PoE+ Switch offers an excellent balance of compact design, power flexibility, and enterprise features for small to medium deployments. Its ability to accept both AC power and PoE++ input provides deployment versatility, while the included 52W power budget supports multiple powered devices. Covered by the applicable manufacturer warranty.
| Weight | 0.95 kg |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Throughput | 8 Gbit/s |
| Multicast support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| Power consumption max | 9 W |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Input current | 1.1 A |
| DC input voltage | 44 – 57 V |
| Power source | DC/PoE |
| Power connector | DC-in jack |
| Power over Ethernet PoE power per port | 30 W |
| Power over Ethernet plus PoE+ ports quantity | 7 |
| Total Power over Ethernet PoE budget | 42 W |
| Power over Ethernet PoE ports quantity | 7 |
| Power over Ethernet 4PPoE PoE++ ports quantity | 1 |
| Operating temperature T-T | -20 – 45 °C |
| Operating relative humidity H-H | 10 – 90% |
| Width | 203 mm |
| Depth | 76 mm |
| Height | 33 mm |
| Weight | 320 g |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Activity, Link, PoE, Status |
| Manual | Yes |
| Cables included | Power |
