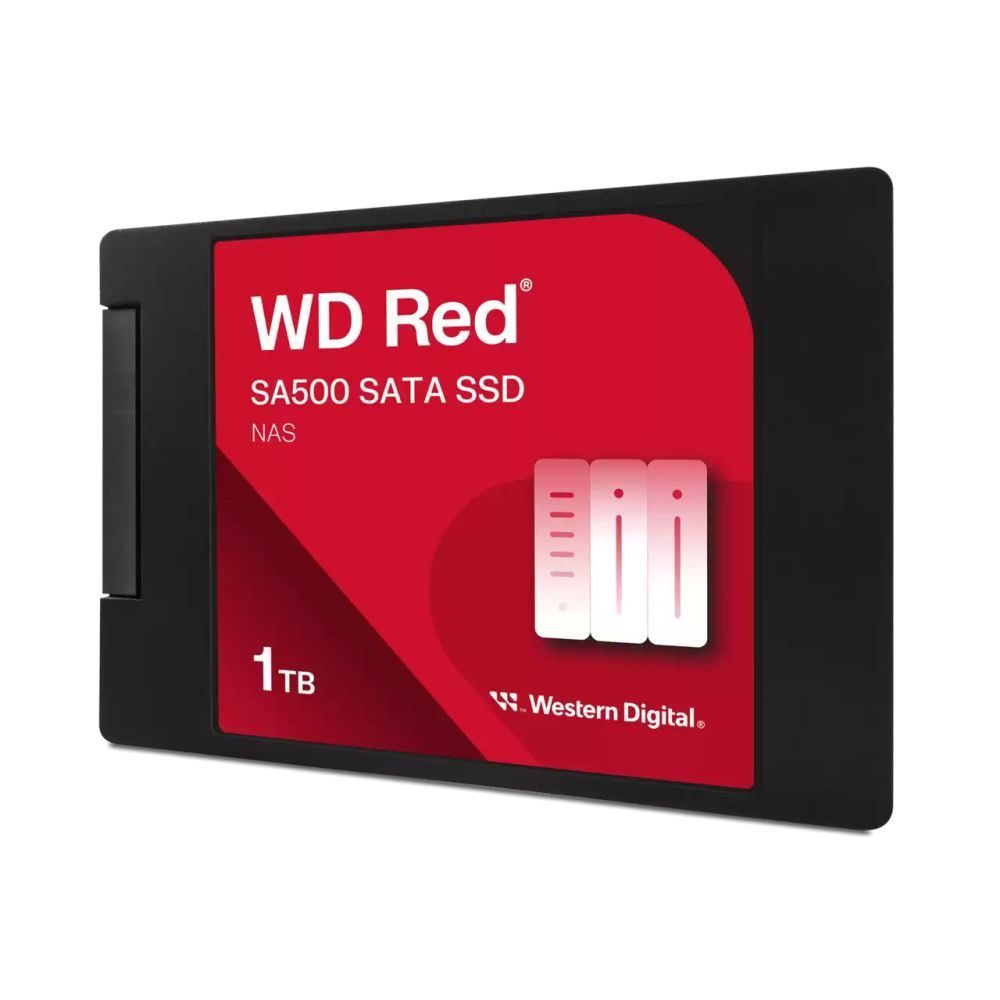

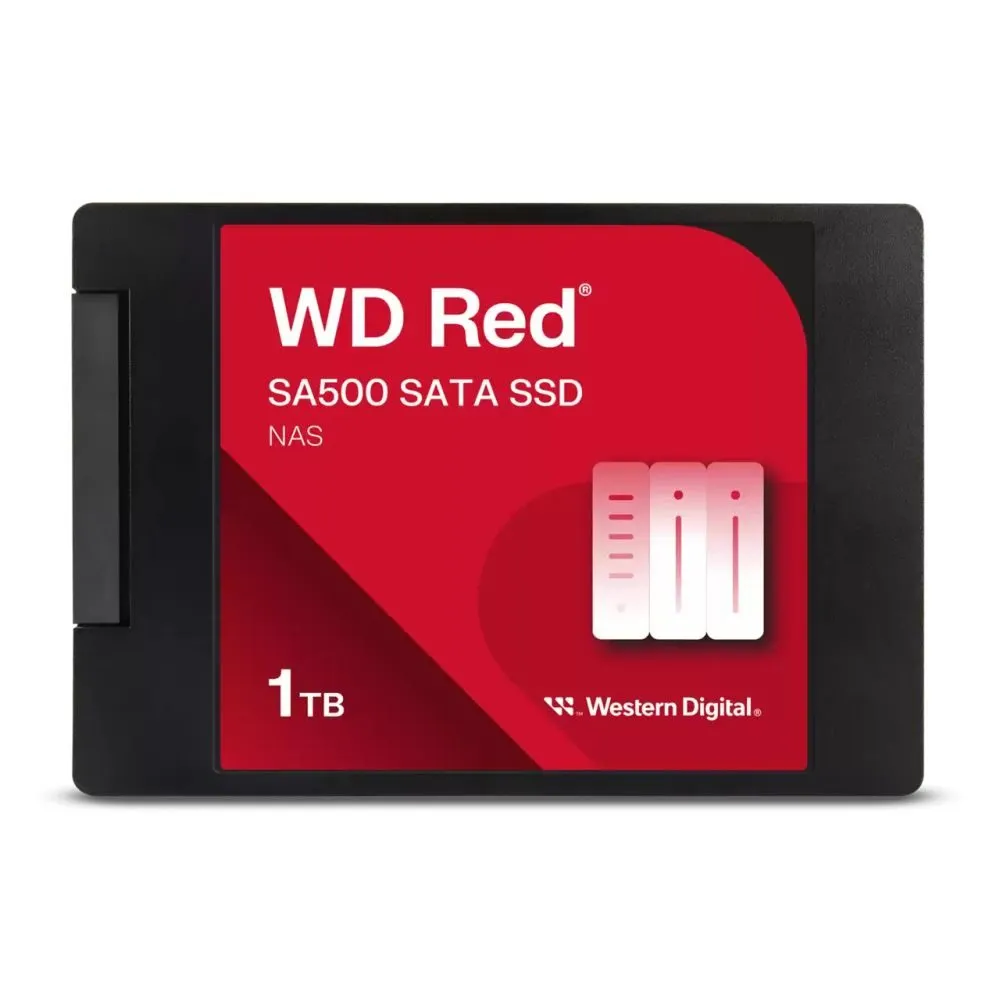

Western Digital WDS100T1R0A 1TB 2.5″ SATA 3D NAND SSD

Western Digital WDS100T1R0A | 1 TB 2.5″ NAS SATA SSD

The Western Digital WDS100T1R0A internal solid state drive 1 TB 2.5″ Serial ATA 3D NAND is built for 24/7 NAS environments. It targets users who need reliable caching and consistent throughput. The key USP is proven endurance for always-on systems.

Western Digital WDS100T1R0A internal solid state drive 1 TB 2.5″ Serial ATA 3D NAND

This drive uses 3D NAND memory to deliver stable SATA performance. It suits OLTP databases, multi-user offices, and video editing workflows. Because it is designed for NAS, it handles heavy read and write loads efficiently.

Slim Specs Table

Optimised for NAS Caching

The WD Red SA500 is purpose-built for NAS systems. It caches frequently accessed files to reduce latency. In practice, this speeds up photo rendering and 4K/8K video editing.

Consistent 24/7 Reliability

Unlike standard consumer SSDs, this model is tested for continuous operation. It maintains performance under heavy multi-user loads. So, it fits environments where uptime is critical.

Efficient SATA Performance

With read speeds up to 560 MB/s and write speeds up to 530 MB/s, the drive maximises SATA interface potential. This boosts productivity in home and office setups. However, actual speeds depend on your NAS configuration.

High Random I/O for Databases

The drive delivers 95,000 IOPS random read and 85,000 IOPS random write (4KB). This supports OLTP databases and multi-user access. Also, it improves responsiveness for demanding applications.

Robust Endurance and Thermal Range

The TBW rating is 600. Operating temperature is 0–70 °C, with storage from -55 to 85 °C. The physical dimensions are 69.8 mm width, 100.2 mm depth, 7 mm height, and 37.4 g weight. These specs help confirm fit in your NAS bay.

Box contents

• Western Digital WDS100T1R0A 1 TB 2.5″ SATA SSD
• Standard 2.5″ drive mounting screws (if included by distributor)
• Quick start guide (if included by distributor)

Check before you buy

• Confirm your NAS accepts a 2.5″ SATA SSD and has a free bay.
• Verify the SATA interface and cable compatibility with your NAS model.
• Check the warranty region is valid for the UK (UKCA/CE markings present).
• Confirm distributor SKU matches your order (e.g., 255648, DWDS100T1R0A).

Frequently Asked Questions

Q: Is this drive suitable for 24/7 NAS use?

A: Yes, it is designed and tested for continuous operation in NAS environments.

Q: Does it support caching for large files?

A: Yes, it is optimised for caching to speed up frequent file access.

Q: What is the TBW rating?

A: The TBW rating is 600.

Q: What are the random IOPS specs?

A: Random read is 95,000 IOPS and random write is 85,000 IOPS (4KB).

Q: What certifications apply?

A: It includes FCC, UL, TUV, KC, RCM, BSMI, VCCI, Morocco, CE, UKCA, and CB-Scheme.

The Consultant’s verdict & warranty

This SSD is ideal for NAS users who need reliable caching and consistent 24/7 performance. It suits small offices, creative workflows, and database environments. Covered by the standard Manufacturer Warranty.
