StarTech.com 1m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, S/FTP, LSZH

StarTech.com 1m White CAT8 Ethernet Cable | Snagless LSZH Shielded Patch Cord

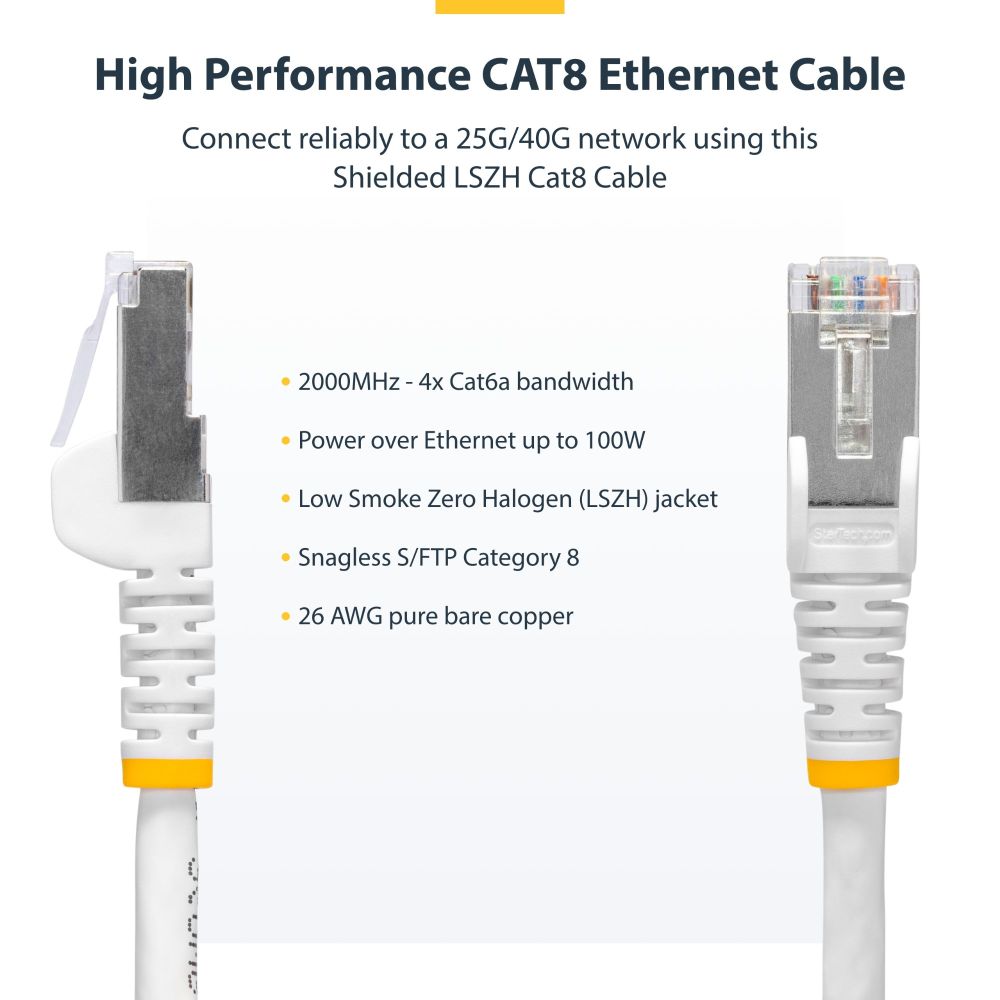

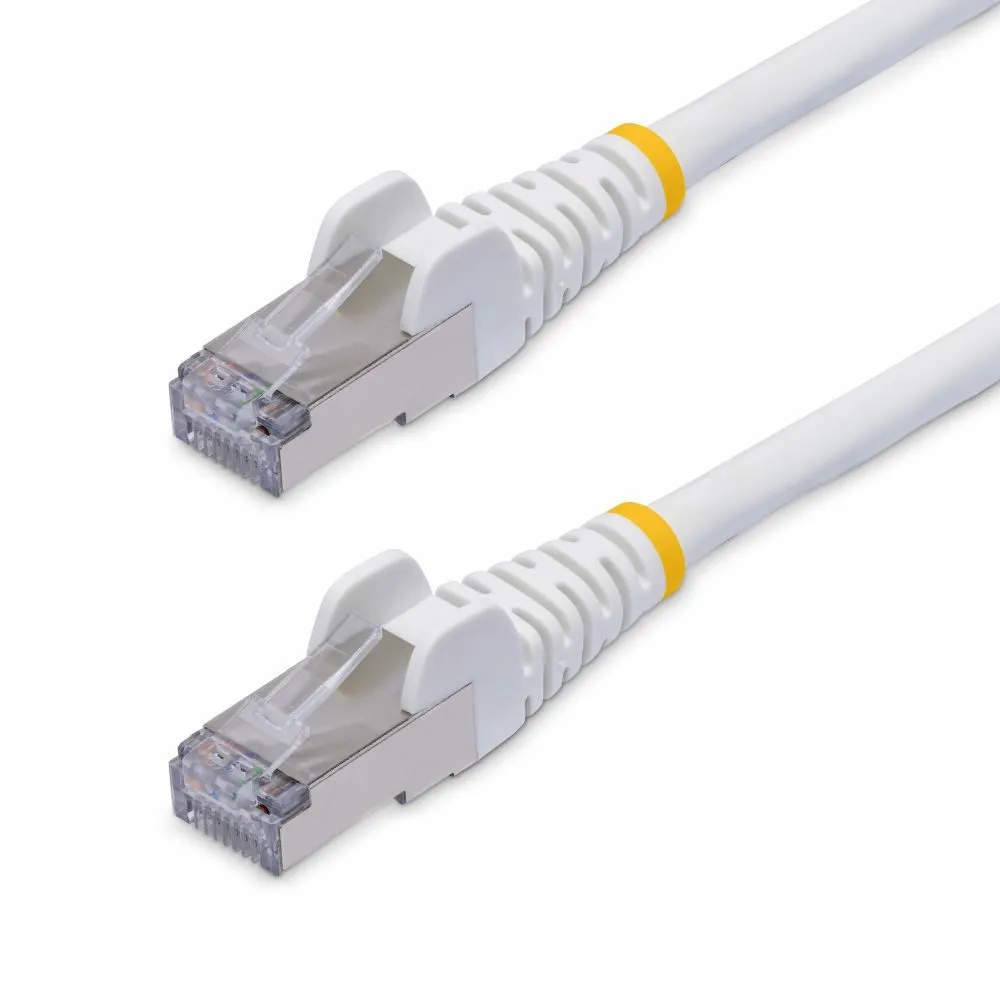

The StarTech.com 1m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs,… connects reliably to high-speed 25G/40G networks. It is designed for UK businesses needing robust performance in data centres or industrial racks. The key USP is its S/FTP shielding and LSZH jacket, which ensures safety and EMI protection. This cable supports PoE++ for modern devices.

Slim Specifications

High-Frequency 25/40G Performance

This cable operates at a maximum frequency of 2000MHz. This specification enables up to four times higher throughput compared to Cat6a standards. It supports 25 Gigabit and 40 Gigabit Ethernet interfaces. The solid conductor type ensures stable signal integrity over short distances. You can use it for 40GBase-T applications.

Enhanced Safety with LSZH Jacket

The jacket material is Low Smoke Zero Halogen (LSZH). This construction emits low smoke and minimal toxic fumes if exposed to extreme heat or fire. Because of this, it is suitable for poorly ventilated areas. It also meets specific building code requirements in residential and industrial settings. The outer diameter is 5.6 mm, allowing for neat routing.

Reliable Shielding and Connectivity

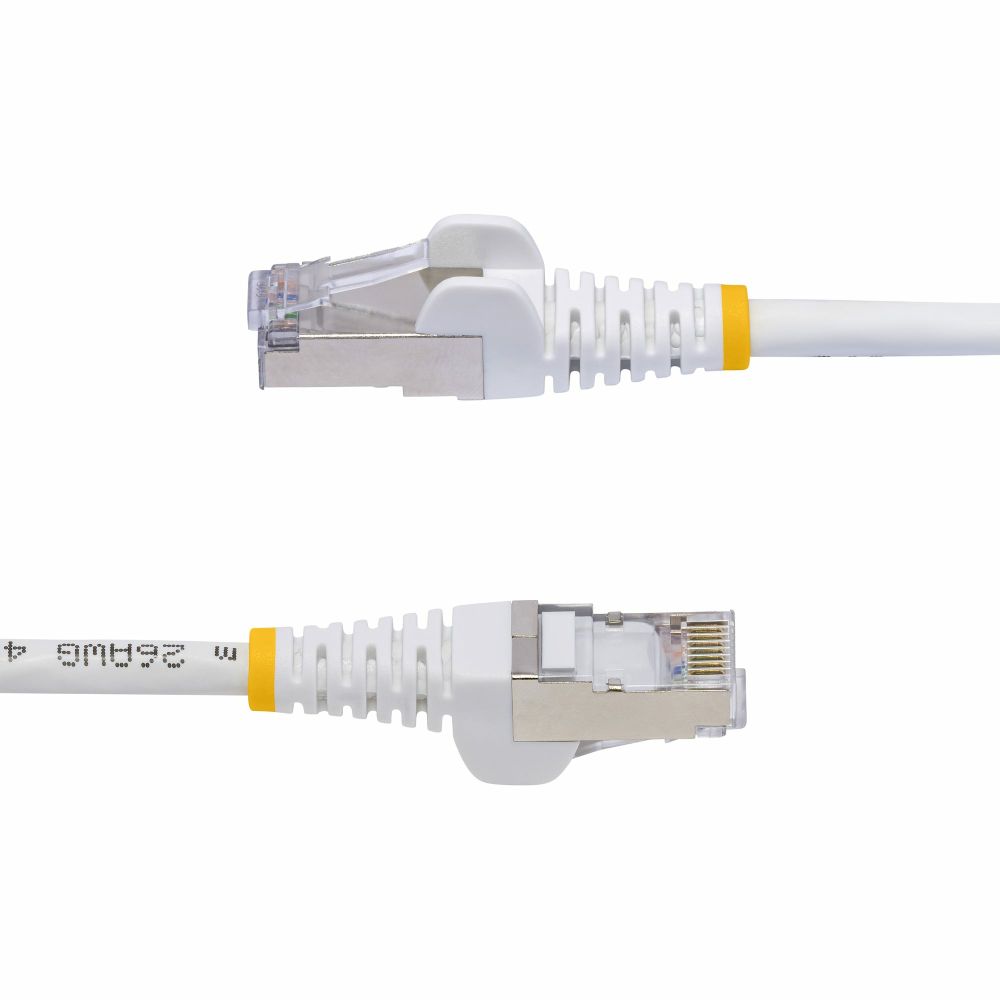

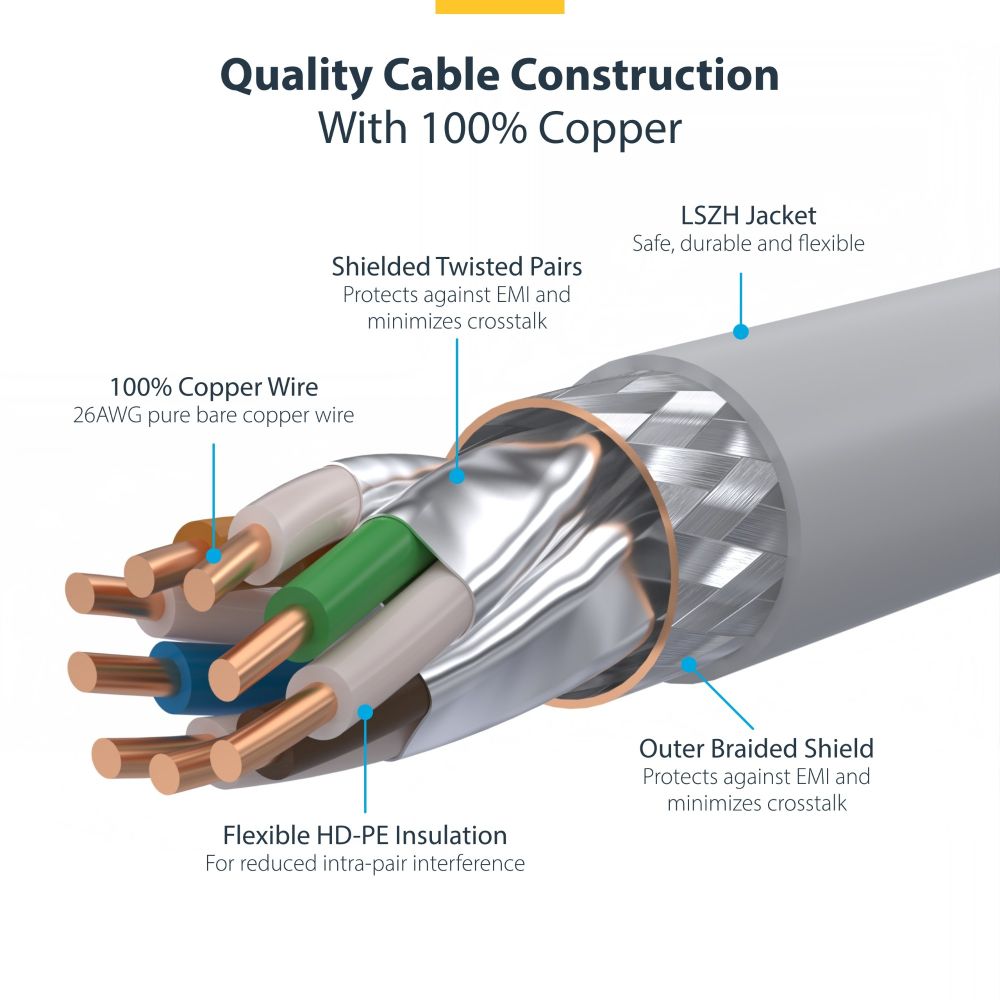

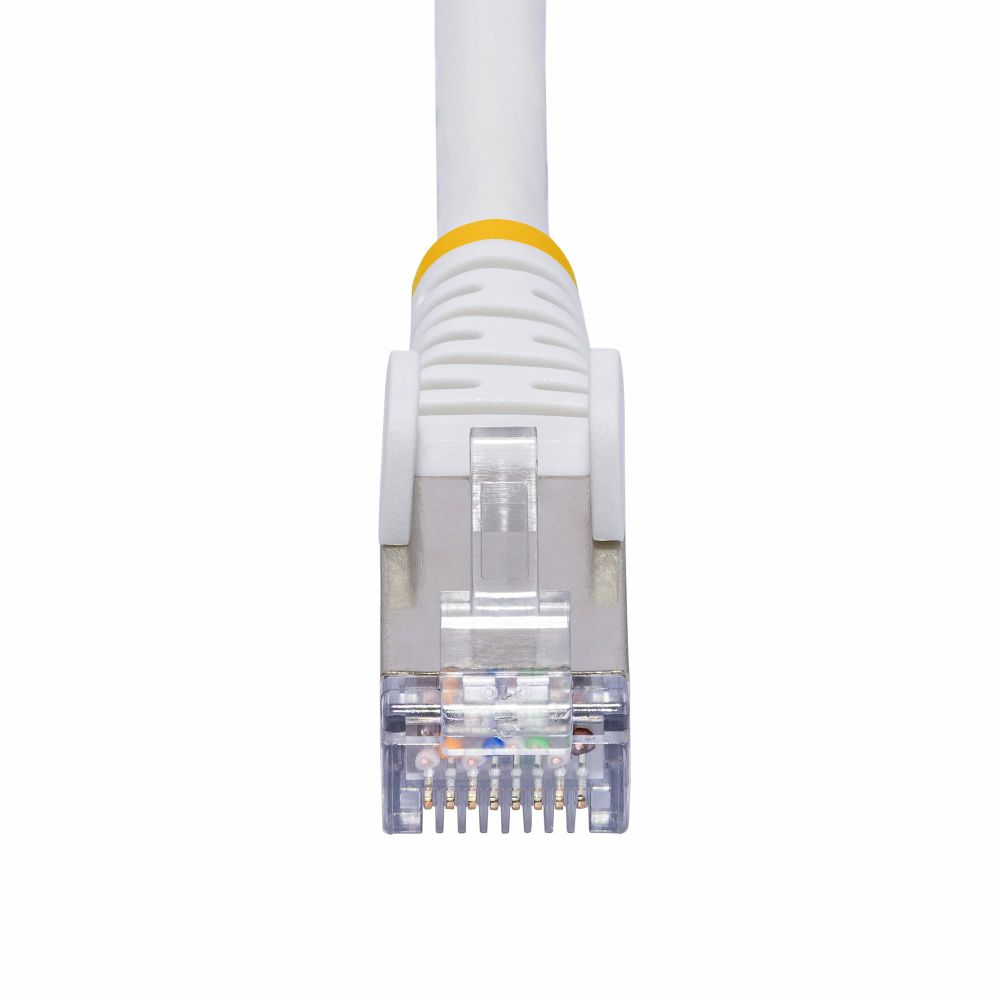

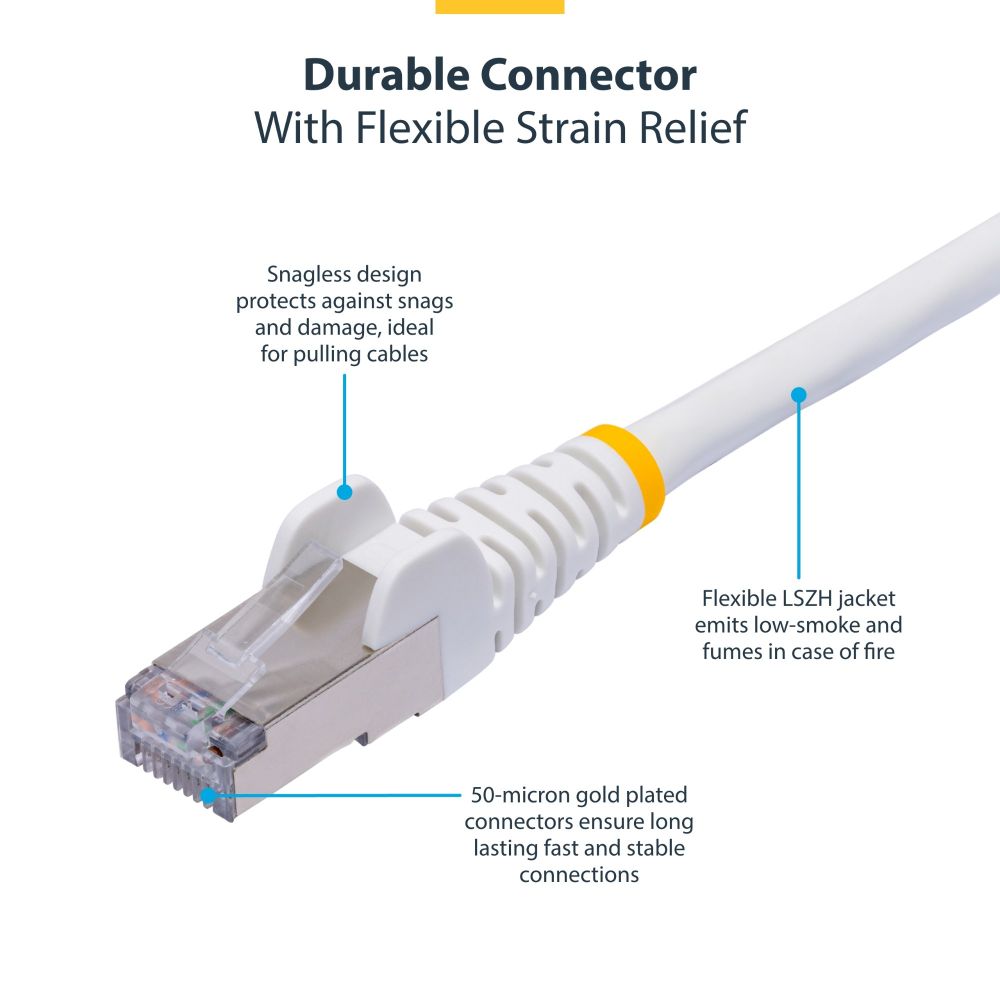

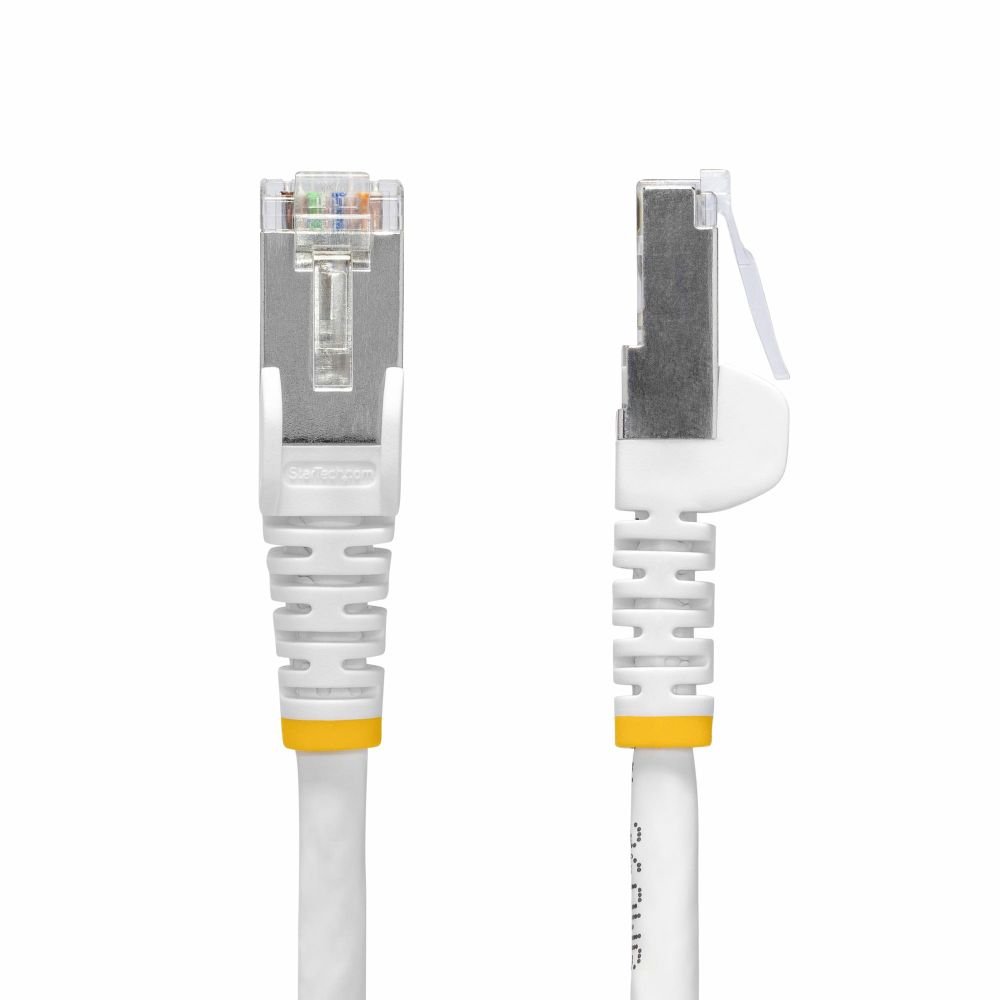

The cable uses S/FTP (S-STP) shielding with gold-plated RJ-45 connectors. Each twisted pair is shielded in aluminium-mylar foil and tinned copper braid. This design provides strong protection against electromagnetic interference (EMI). The snagless boots protect the clips during installation. Connector mating cycles are rated beyond 750, ensuring durability.

Certified Performance and Compatibility

This cable is ETL Verified to meet ANSI/TIA-568.2-D standards. It is also TIA/EIA-T568B certified. Each cable is tested using a Fluke® DSX2-8000 CableAnalyzer. This guarantees performance for 25G/40G applications. It is backward compatible with Cat 6/6a and Cat 5/5e standards. This ensures seamless integration into existing UK networks.

Box contents

• 1 x StarTech.com 1m White CAT8 Ethernet Cable

Check before you buy

• Confirm your switch or NIC supports 25G/40GBase-T and RJ45 interfaces.
• Verify your rack or cabinet space accommodates a 1m patch lead with a 5.6 mm diameter.
• Ensure your PoE source provides up to 100W PoE++ (4PPoE) power budget.
• Check UKCA or CE marking requirements for your specific installation environment.

Frequently Asked Questions

Q: Is this cable suitable for outdoor use?

A: No, the operating temperature range is 0 to 50 °C, and it is designed for indoor use.

Q: Does this cable support PoE+?

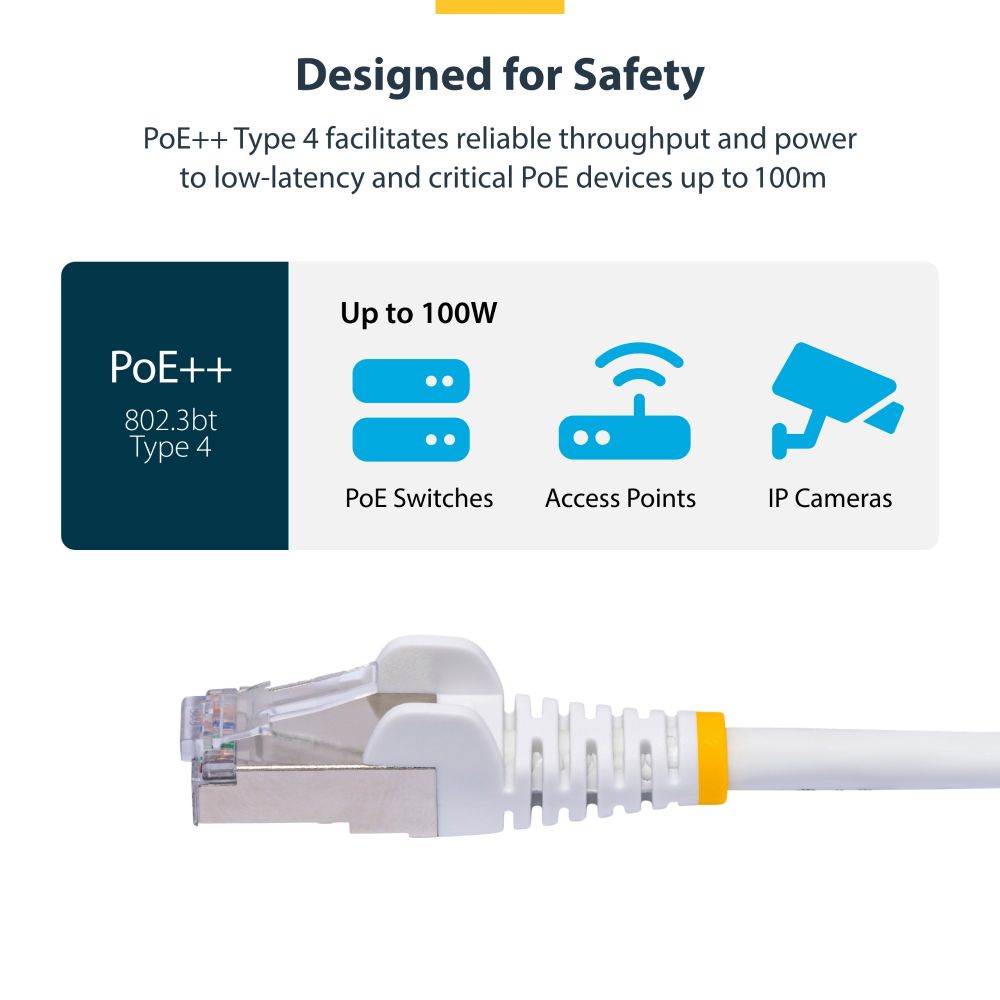

A: Yes, it supports PoE++ (4PPoE) with a total power budget of up to 100W.

Q: Is the connector shielding effective?

A: Yes, the connectors are shielded, and the cable uses S/FTP construction for EMI protection.

Q: What is the conductor material?

A: It uses 26AWG pure bare copper conductors for low resistance and reliable transmission.

Q: Is this cable backward compatible?

A: Yes, it is backward compatible with Cat 6/6a and Cat 5/5e standards.

The Consultant’s Verdict & Warranty

This cable is ideal for UK system integrators and IT managers deploying 25G/40G infrastructure. It suits environments requiring high bandwidth and low smoke safety standards. The S/FTP shielding and pure copper construction ensure reliable, low-latency performance. Covered by the standard Manufacturer Warranty.
