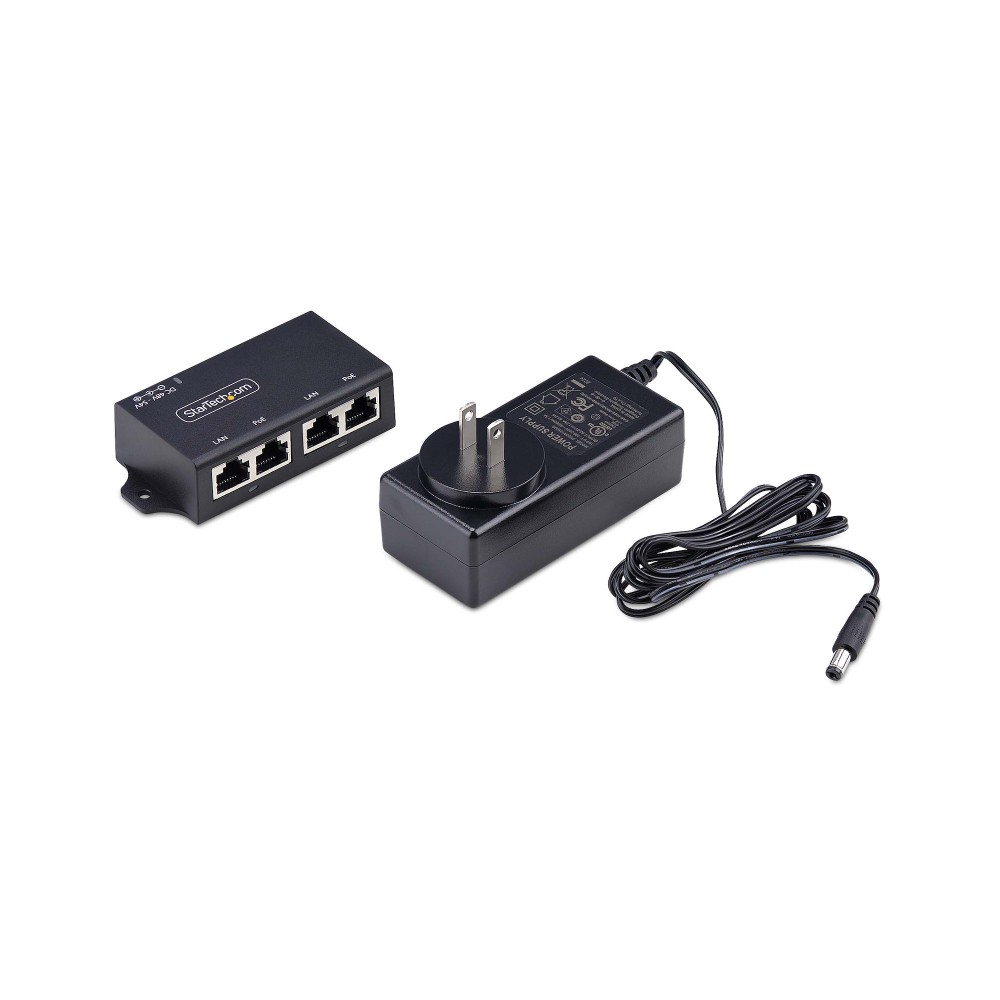

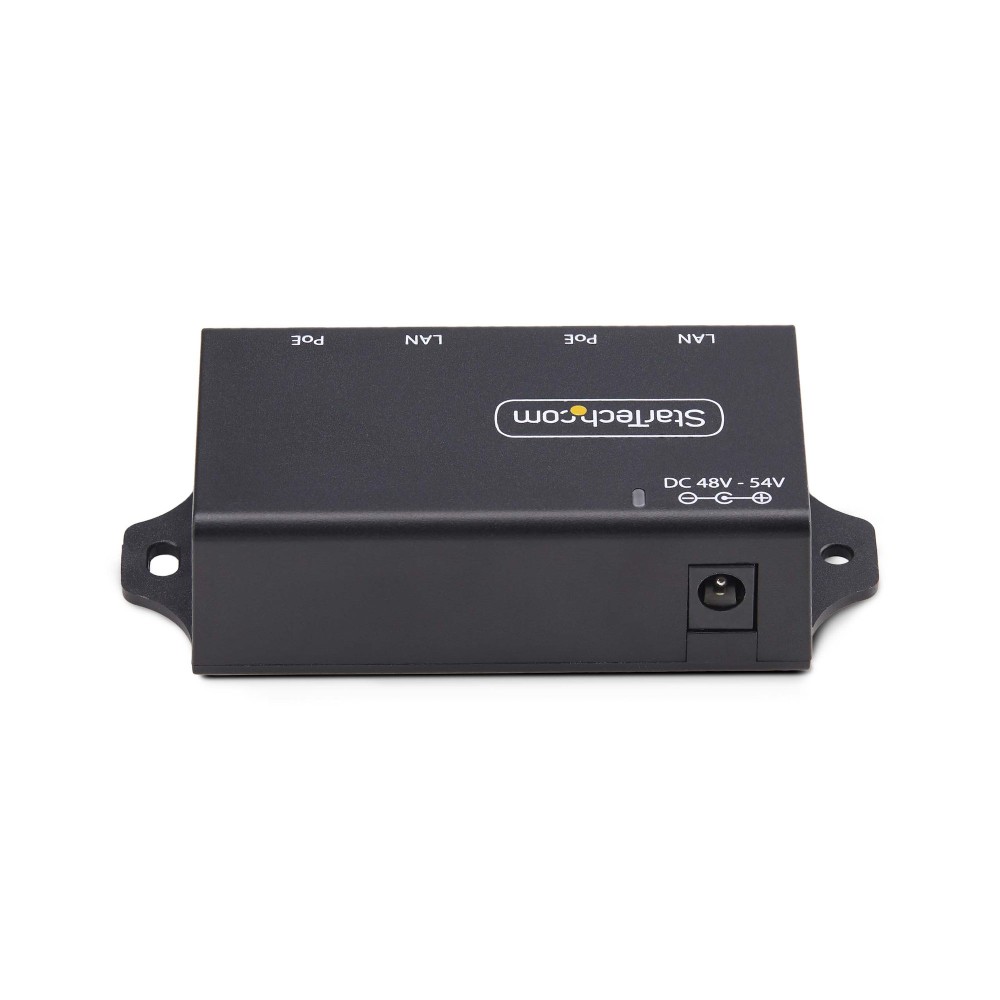

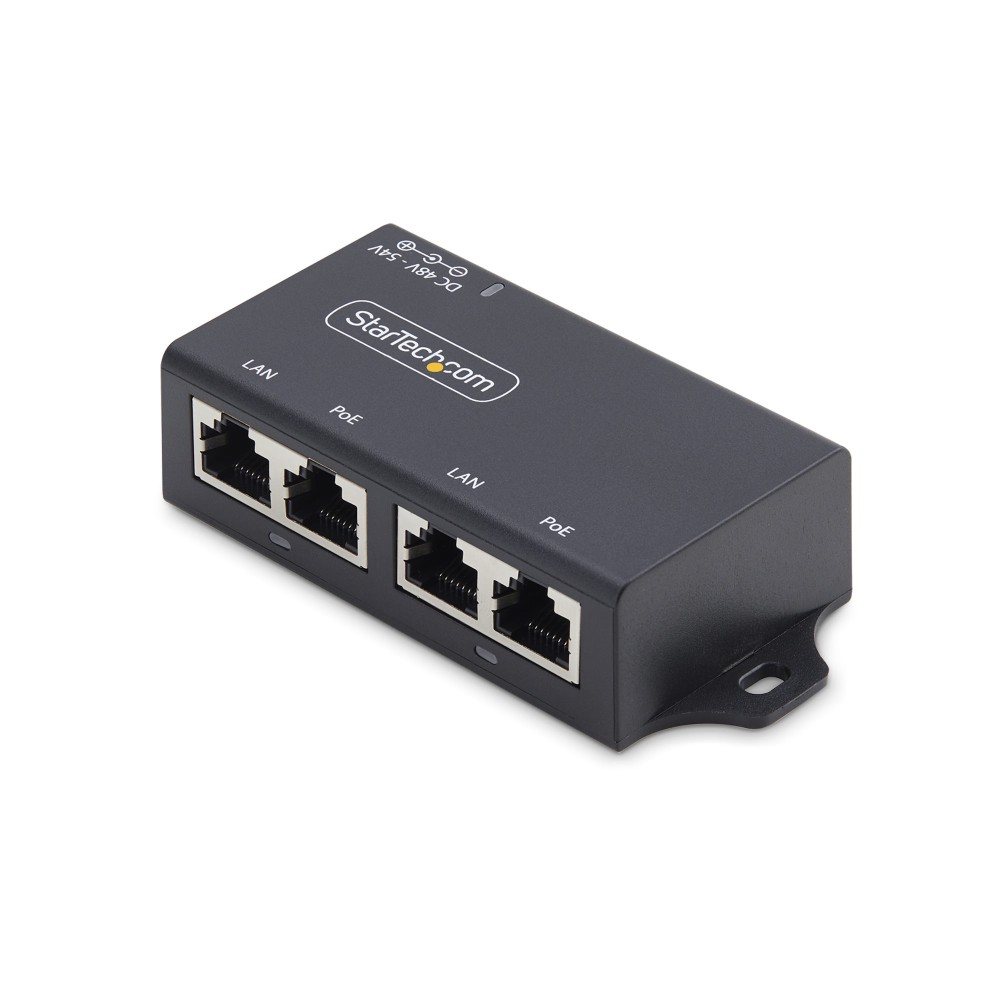

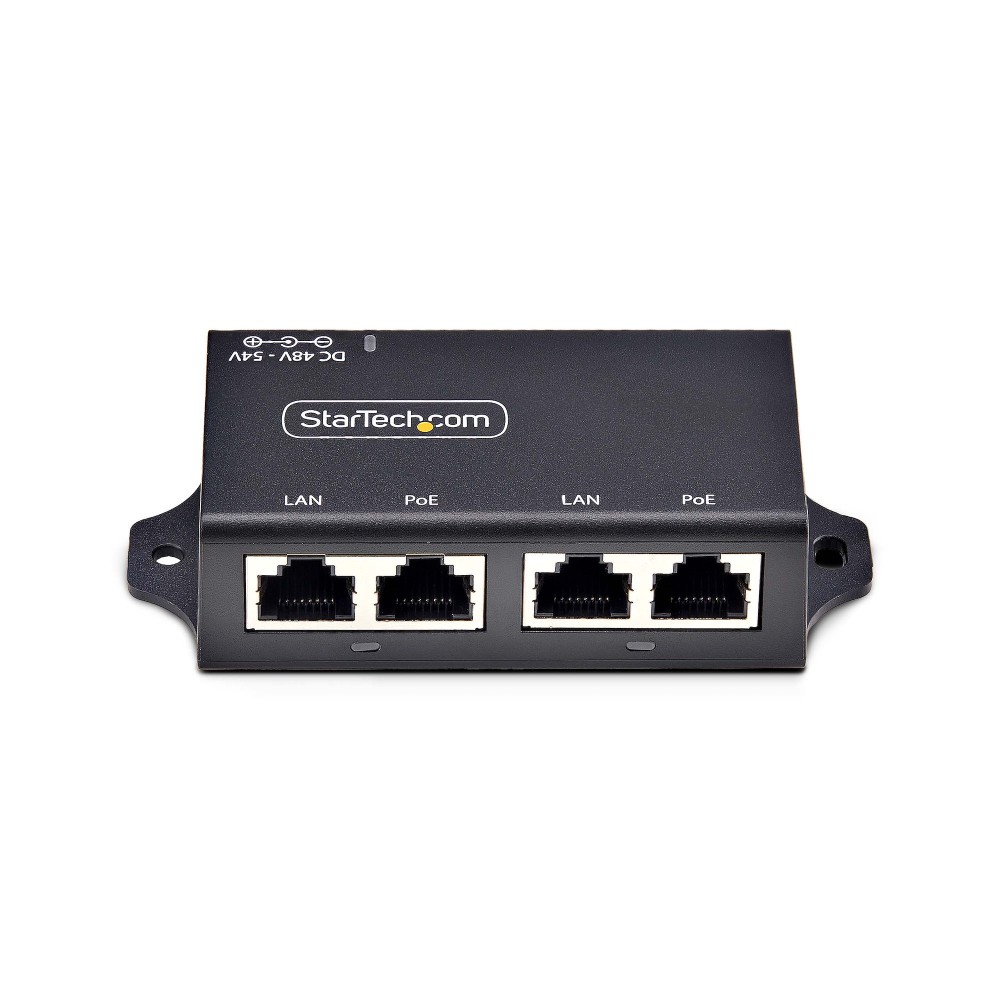

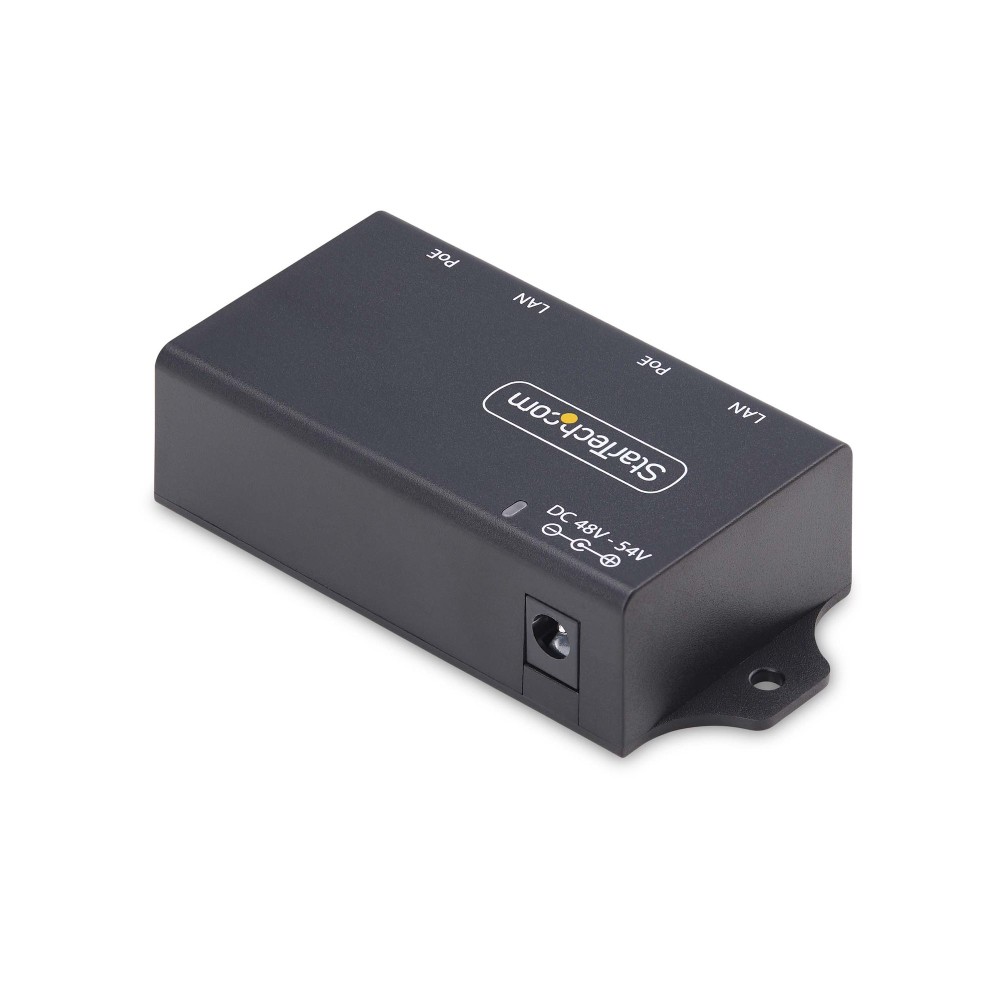

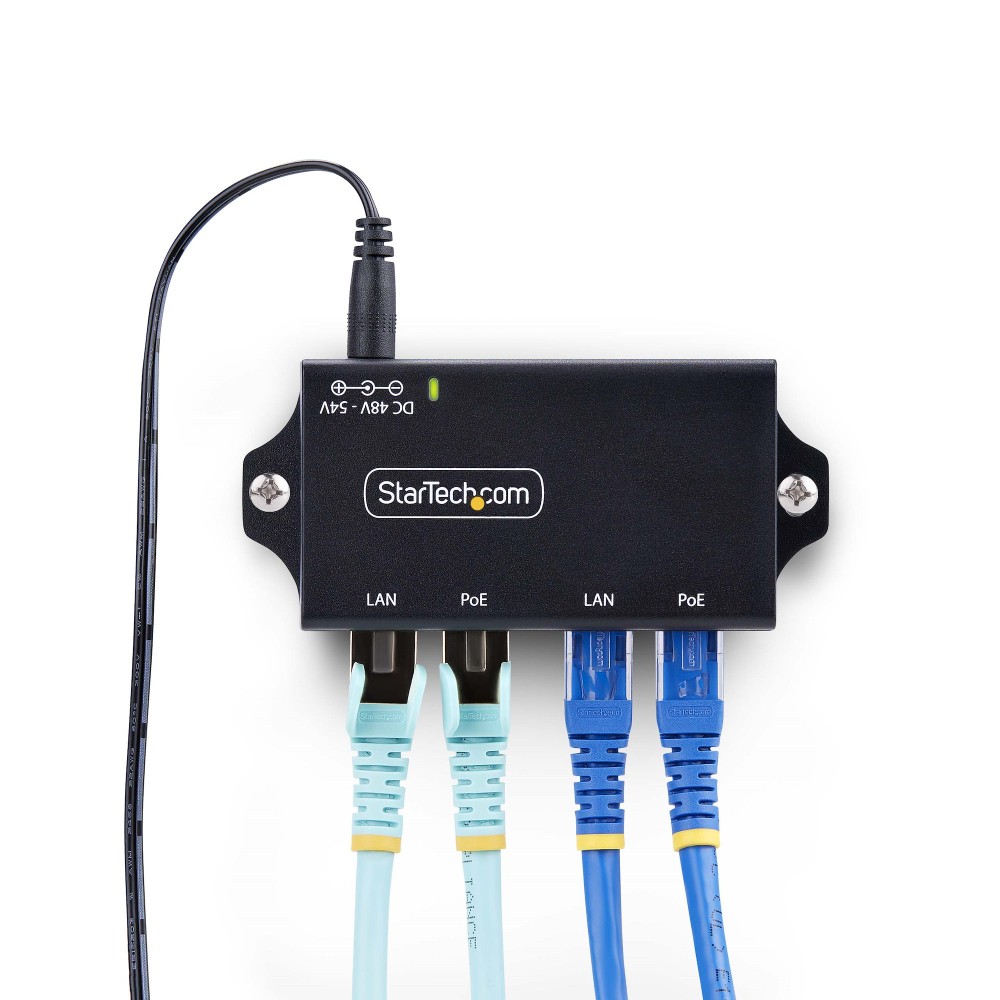

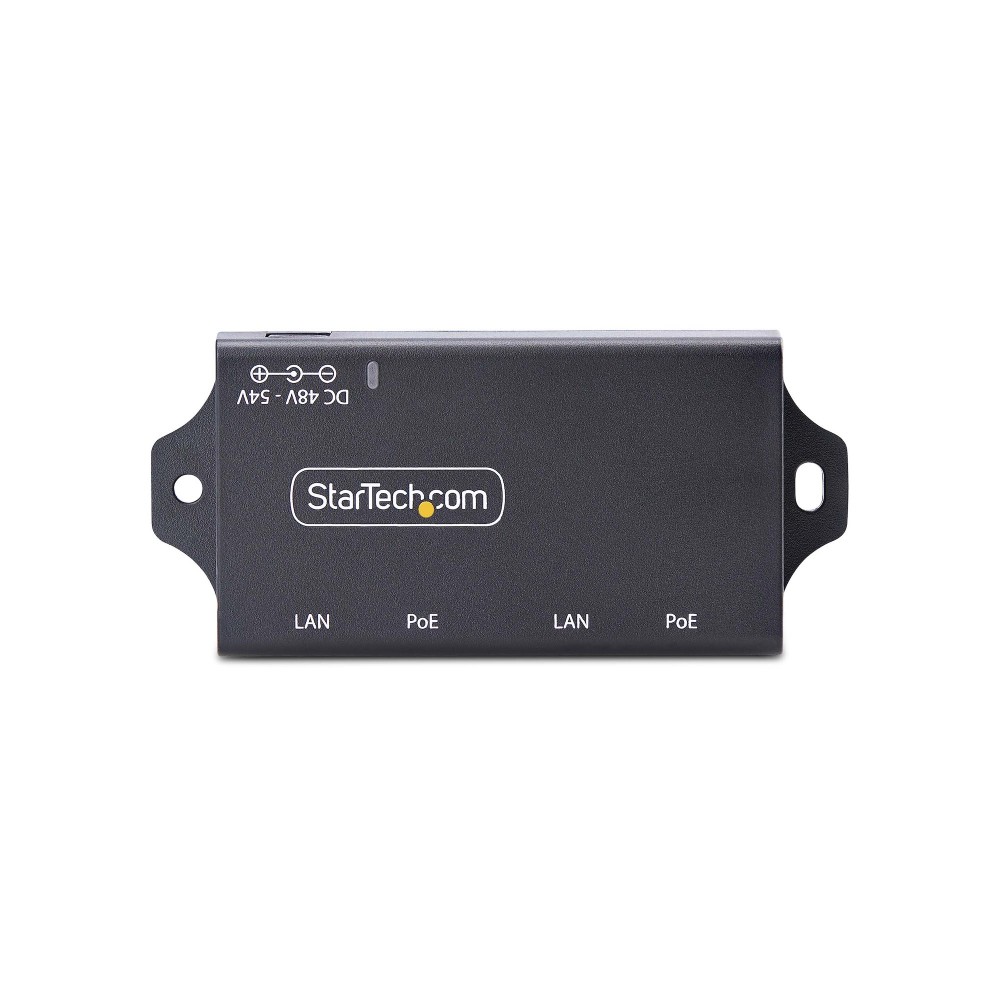

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 30W, Wall Mountable, Black
£66.38 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Gig
Payment Methods:
You may also like
StarTech.com 2-Port Power Injector – Seamless Power & Data
We understand the challenge of powering devices in locations without convenient outlets. The StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 30W, Wall Mountable, Black provides a perfect solution. It delivers both power and data over a single Ethernet cable. This makes it ideal for extending your network to devices like IP cameras or access points.
Essential Specifications
| Metric | Spec. |
|---|---|
| Max. Output Power | 30 W |
| Max. Operating Distance | 100 m |
| Data Rates | 10/100/1000 Mbit/s |
| PoE Standard | 802.3af/at |
| Wall Mountable | Yes |
| Surge Protection | 2 kV |
Power Two Devices with One Unit
This injector supports two devices simultaneously. Each port can deliver up to 30W of power. This is perfect for demanding PoE+ applications. It simplifies your cabling and reduces clutter.
Gigabit Speed for High Performance
Enjoy full Gigabit Ethernet speeds (10/100/1000Mbps). This ensures fast and reliable data transfer. Your connected devices will operate at their peak. It is backward compatible with Fast Ethernet.

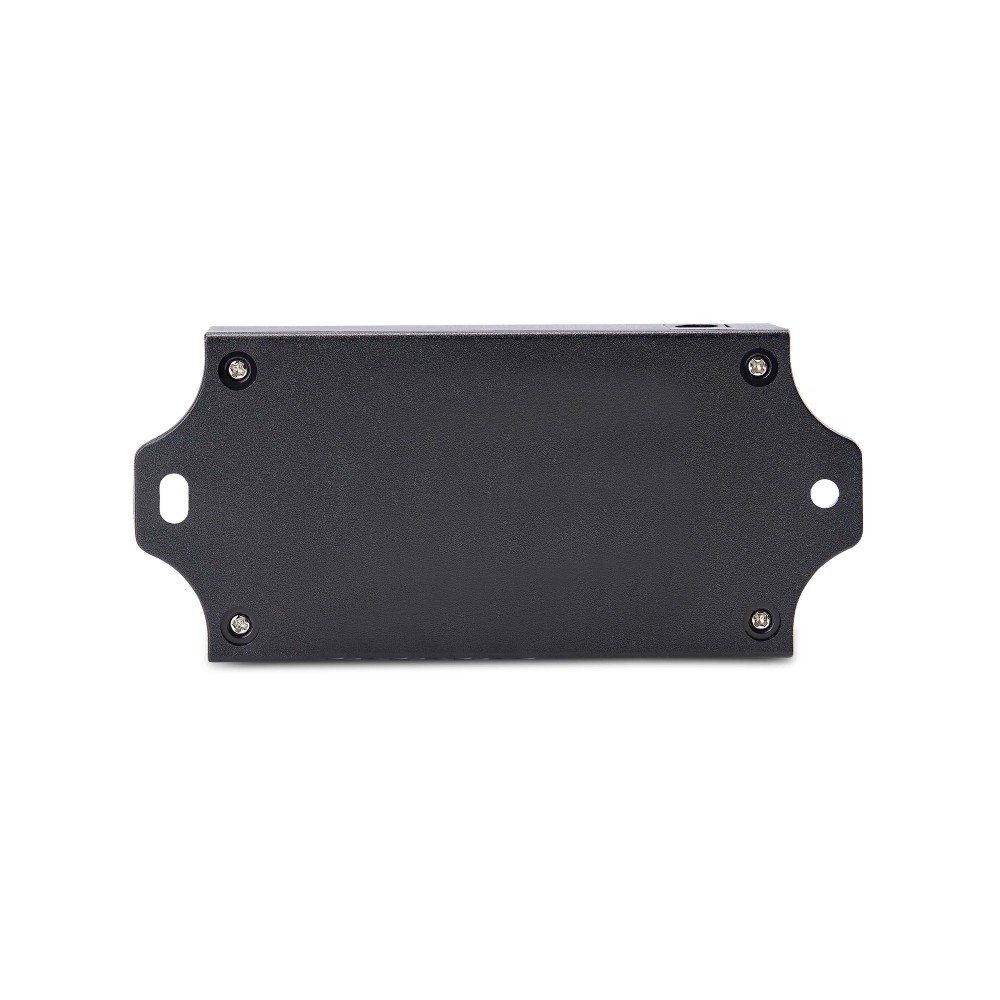

Flexible Deployment with Wall Mounting
The compact design allows for easy integration. We designed it for both desktop and wall-mounted use. This provides flexibility for various installation environments. You can optimise your space efficiently.
Enhanced Network Protection
Built-in 2kV surge protection safeguards your equipment. This protects against unexpected power fluctuations. It ensures the longevity and reliability of your connected devices. We prioritise your network’s stability.
What You Receive
- StarTech.com 2-Port Gigabit Midspan PoE+ Injector
- Quick installation guide
Before You Order
- Confirm your devices are PoE+ (802.3at) or PoE (802.3af) compliant.
- Confirm your power requirements do not exceed 30W per port.
- Confirm your installation location is within 100 metres of the injector.
- Confirm you have standard Ethernet cabling available.
Frequently Asked Questions
Q: Can this injector power both PoE and PoE+ devices?
A: Yes, it supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards.
Q: What is the maximum distance for power and data transmission?
A: It can transmit power and data up to 100 metres (328 feet).
Q: Does this injector require any special software for management?
A: No, it is an unmanaged device, offering simple plug-and-play operation.
Q: Is the injector suitable for outdoor use?
A: No, it is designed for indoor use, as indicated by its operating temperature and humidity ratings.
Our Verdict
This StarTech.com 2-Port Gigabit Midspan PoE+ Injector is an excellent choice for businesses. It suits anyone needing to power two network devices remotely. Its robust features and straightforward setup make it a valuable addition. Warranty cover varies by product, so please contact us to confirm.
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Cabling technology | 10/100/1000 |
| Web-based management | No |
| Chipset | IC Plus - IP802AR |
| Features | |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Plastic |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto-negotiation | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Power | |
| Output power | 30 W |
| Output current | 1.25 A |
| Power consumption (max) | 65 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| AC adapter output voltage | 52 V |
| Input current | 1.5 A |
| AC adapter input voltage | 100 - 240 V |
| Power plug type | Type M |
| Suitable for use in country/location | Europe, United Kingdom |
| Surge protection voltage | 2 kV |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Weight | 60 g |
| Width | 46 mm |
| Depth | 102 mm |
| Height | 25 mm |
| Package weight | 105 g |
| Package depth | 144 mm |
| Package width | 207 mm |
| Package height | 38 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package weight | 105 g |
| Package depth | 144 mm |
| Package width | 207 mm |
| Package height | 38 mm |
| Technical details | |
| Package width | 207 mm |
| Package height | 38 mm |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 40 pc(s) |
| Identifiers | |
| Distributor SKUs | V376389, CL64158, 94954, 10475804, AF221CEPOEINJTR, 540025, NS94954 |
