StarTech.com 2 Port Quad Monitor DisplayPort 1.2 KVM Switch – 4K 60Hz, USB 3.0 Hub, Audio
£605.18 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- KVM switch for two computers
- Supports four DisplayPort 1.2 monitors at 4K 60Hz resolution
- Integrated 2-port USB 3.0 hub for peripheral sharing
- Full audio support with 5.1 channels and 3.5mm stereo
- Compatible with Windows, Mac, and Linux systems
- Easy operation via push button and hotkey switching
- Durable steel housing in black, with rubber feet
Payment Methods:
You may also like
StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables
In stock
StarTech.com SV211DPUA4K 2 Port DisplayPort KVM Switch, 4K 60Hz, USB, Audio, Black
In stock
StarTech.com 2-Port DisplayPort 1.2 KVM Switch, 4K 60Hz, USB 3.0 Hub, Black
In stock
StarTech.com 8 Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor – Black
In stock
Acer Vero B278UG 27″ QHD 120Hz IPS Monitor with 5MP Webcam & KVM Switch, Black
In stock
StarTech.com 2 Port KVM – Quad Monitor Control
We present the StarTech.com 2 Port Quad Monitor DisplayPort 1.2 KVM Switch – 4K 60Hz, USB 3.0 Hub, Audio. This device is ideal for professionals managing multiple systems. It streamlines your workstation by allowing control of two computers from a single console. This enhances productivity and reduces desktop clutter.
Core Connectivity
| Metric | Spec. |
|---|---|
| Monitors Supported | 4 |
| Max Resolution | 3840 x 2160 |
| Video Refresh Rate | 60 Hz |
| USB Hub | Yes |
| Audio Support | Yes |
| Housing Material | Steel |
Seamless High-Resolution Visuals
This KVM switch supports resolutions up to 4K at 60Hz. It drives four large monitors simultaneously. This ensures crisp, clear visuals across all displays. We understand the importance of visual fidelity for design and analysis.
Integrated USB and Audio Management
An integrated USB 3.0 hub allows sharing of two peripherals. Printers and scanners can be accessed by both connected computers. This eliminates the need for duplicate devices. Full digital and analogue audio support is also included.
Effortless System Switching

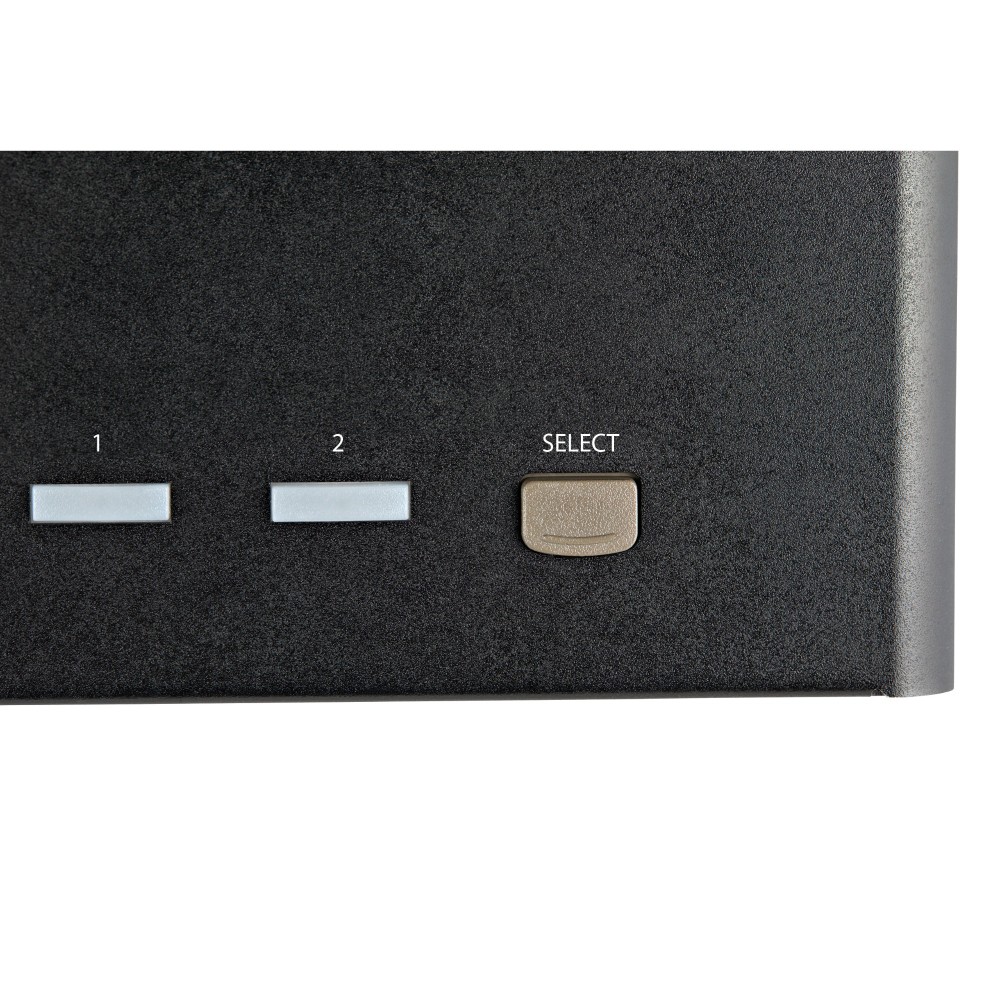

Switching between systems is straightforward. Front-panel pushbuttons provide quick access. Hotkey functionality also allows rapid system changes. A subtle buzzer confirms each successful switch.
Broad Operating System Compatibility
This KVM switch is highly versatile. It supports Windows operating systems. Compatibility extends to Mac and Linux environments too. This ensures broad integration into diverse IT setups.
What’s in the box
- StarTech.com 2 Port Quad Monitor DisplayPort 1.2 KVM Switch
- External power adapter
- Rubber feet
- User manual
Before you order
- Confirm your computers have DisplayPort 1.2 outputs.
- Check your monitors support 4K resolution at 60Hz.
- Ensure you have sufficient DisplayPort and USB cables for your setup.
Frequently Asked Questions
Q: Can I connect more than two computers?
A: No, this model is designed for controlling two computers only.
Q: Does it support HDR content?
A: Yes, it supports 4K 60Hz UHD HDR content.
Q: Are cables included with the KVM switch?
A: Only the power adapter is included; video and USB cables are sold separately.
Q: Can I use hotkeys to switch between computers?
A: Yes, hotkey functionality is a core feature for quick switching.
Q: Does it have an On-Screen Display (OSD)?
A: No, this unit does not feature an OSD.
The bottom line
This KVM switch is an excellent choice for demanding multi-system environments. It offers robust quad-monitor 4K 60Hz support. The integrated USB 3.0 hub and audio support further enhance its utility. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity | 12 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| HDCP | Yes |
| Performance | |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| HDCP | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Audio channels | 5.1 |
| Number of displays supported | 4 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Scan interval | 3,8,15,30 s |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| USB hub | Yes |
| Design | |
| Mean time between failures (MTBF) | 156000 h |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, RoHS |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Weight | 959 g |
| Package width | 187 mm |
| Package depth | 253 mm |
| Package height | 102 mm |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 253 mm |
| Package height | 102 mm |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 291 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Identifiers | |
| Distributor SKUs | V274273, CC61186, 94261, 6870386, 433952, CLSV231QDPU34K |
