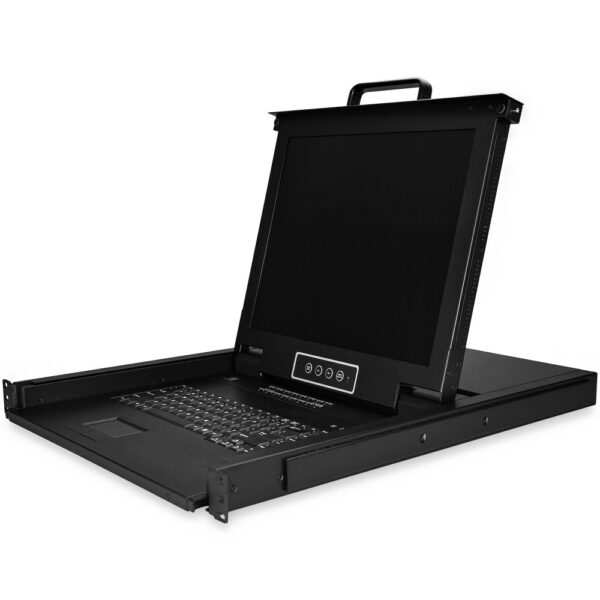

StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables
£1,456.90 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 17″ TFT LCD display with 1280×1024 resolution and 5ms response time
- Integrated 16-port VGA KVM switch with hot-key support and OSD
- 1U rackmount console with built-in QWERTY keyboard and touchpad
- Includes 16 KVM cables, mounting rails, and M5 cage nuts for installation
- Durable steel construction with a 50,000-hour MTBF
- Universal power compatibility (100-240V) with multiple plug types included
Payment Methods:
You may also like
StarTech.com 1U Rackmount KVM Console – Centralised Control
We offer the StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables for IT professionals and system administrators. This console provides centralised control of up to 16 servers. It is an efficient solution for managing multiple systems from a single, compact workstation within your server rack.
Core specifications
| Metric | Spec. |
|---|---|
| Display Size | 17 inches |
| Display Resolution | 1280 x 1024 |
| Rack Capacity | 1U |
| MTBF | 50,000 hours |
| Product Colour | Black |
Streamlined Server Management
This 1U rackmount console integrates a keyboard, touchpad, and 17-inch LCD display. This all-in-one design simplifies your server room setup. You can access and manage up to 16 servers directly, saving valuable rack space.
High-Resolution Visuals
The integrated 17-inch LCD monitor supports a resolution of 1280×1024 pixels. This provides clear and crisp visuals for your server interfaces. The 5:4 aspect ratio is suitable for many legacy system displays.
Robust and Reliable Design
Constructed from durable steel, this console is built for demanding data centre environments. It boasts a Mean Time Between Failures (MTBF) of 50,000 hours. This ensures long-term operational reliability for your critical infrastructure.
Comprehensive Connectivity

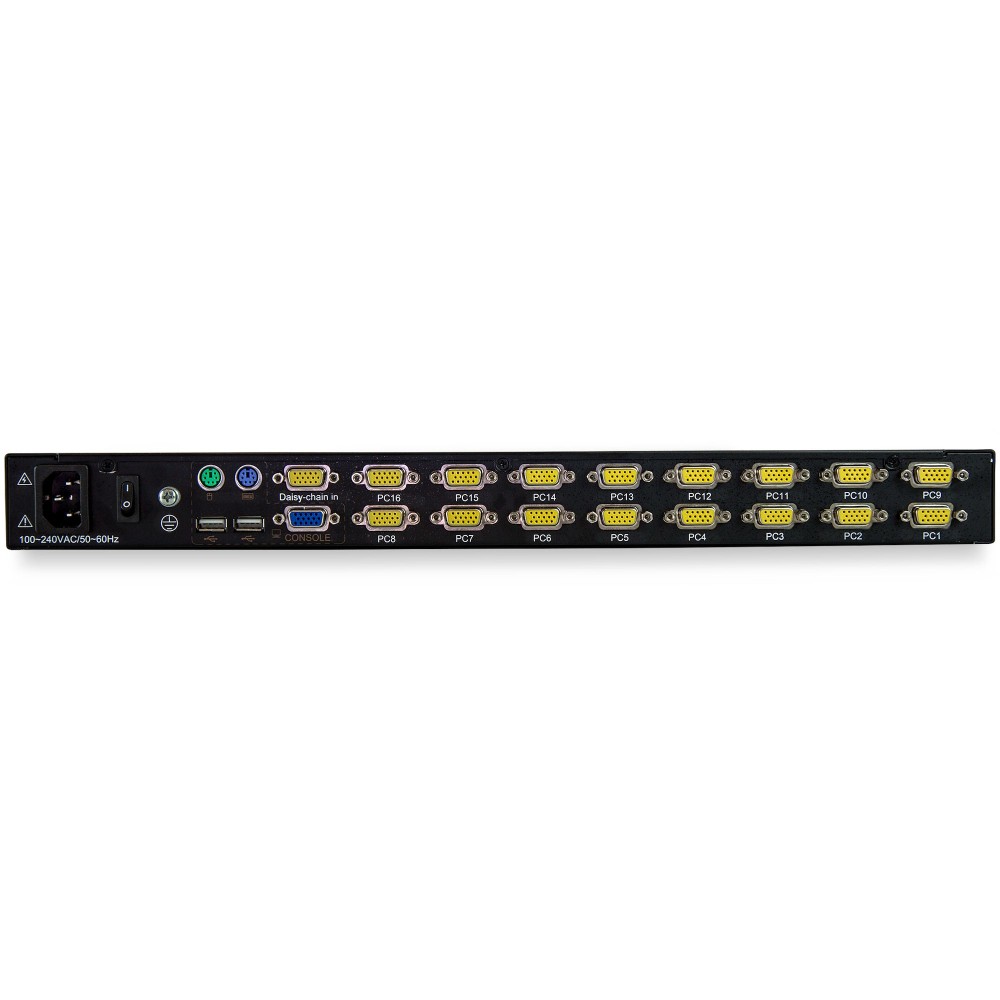

The console supports connectivity to 16 VGA-enabled systems. It includes PS/2 ports for both keyboard and mouse. Two USB 2.0 Type-A ports are also available for peripheral connections.
StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables: Included
You will receive 16 VGA KVM cables, mounting rails, and M5 cage nuts and screws. A comprehensive manual is also supplied for easy installation. Power plugs for ANZ, EU, JP, NA, and UK regions are included.
Before you order
- Confirm your server rack has 1U of available space.
- Confirm your servers use VGA video outputs.
- Confirm your rack mounting depth is between 56 cm and 90 cm.
Frequently Asked Questions
Q: Does this console support USB keyboards and mice?
A: The console features PS/2 ports for keyboard and mouse input.
Q: Can I daisy chain multiple KVM consoles together?
A: This specific model does not support daisy chaining.
Q: Are hot-key switching functions available?
A: Yes, hot keys are supported for quick switching between servers.
Q: What is the power consumption of this device?
A: Typical power consumption is 23 W.
Q: Is an on-screen display (OSD) menu available?
A: Yes, an OSD menu is included for configuration and control.
Our assessment
This StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables is ideal for managing multiple servers in a compact footprint. It suits environments where space is at a premium and direct access to systems is crucial. Warranty cover varies by product, so please contact us to confirm.
| Display | |
|---|---|
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Display | TFT LCD |
| Display diagonal | 43.2 cm (17") |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Pixel pitch | 0.264 x 0.264 mm |
| On Screen Display (OSD) | Yes |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 5:4 |
| Technical details | |
| Key lock | No |
| Daisy chain | No |
| LED indicators | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80% |
| Mean time between failures (MTBF) | 50000 h |
| Material | Steel |
| Product colour | Black |
| Cables included | KVM |
| IP control | No |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Mouse port type | PS/2 |
| Keyboard port type | PS/2 |
| USB 2.0 Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 16 |
| Keyboard | |
| Hot keys | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (typical) | 23 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | FCC, PSE, UL, CE, REACH |
| Weight & dimensions | |
| Mounting depth (min) | 56 cm |
| Mounting depth (max) | 90 cm |
| Weight | 13 kg |
| Width | 448 mm |
| Height | 581 mm |
| Depth | 43 mm |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Package weight | 21.1 kg |
| Packaging content | |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Cables included | KVM |
| Number of screws | 8 |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Cage nuts included | Yes |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | V239994, V934462, 5048573, CLRKCONS1716K |
