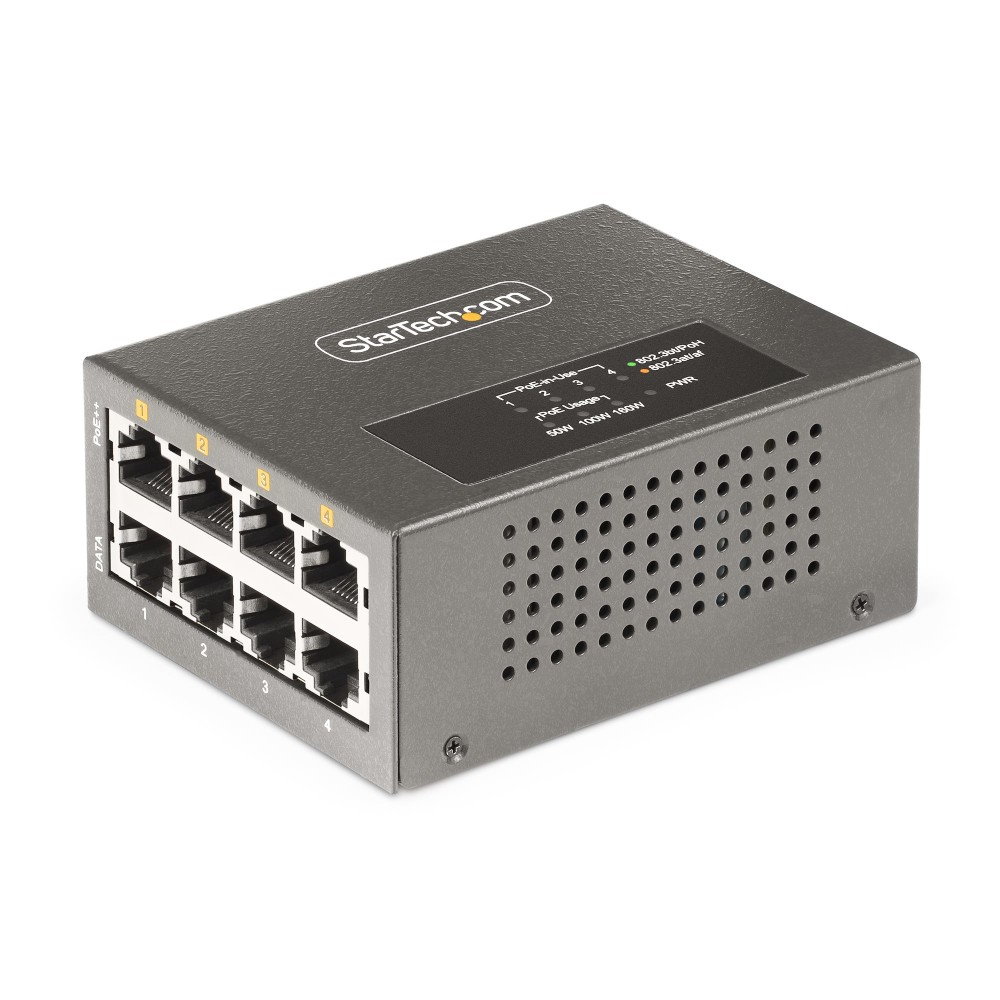

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1Gbps Ethernet, 160W Power Budget, Grey
£321.23 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 4-Port Multi-Gigabit PoE++ Injector Hub for power and data transmission
- Multi-gigabit speeds (10/100/1000/2500/5000 Mbit/s) with NBASE-T technology
- Supports PoE, PoE+, and PoE++ (802.3af/at/bt) standards, up to 95W output
- 160W total Power over Ethernet budget

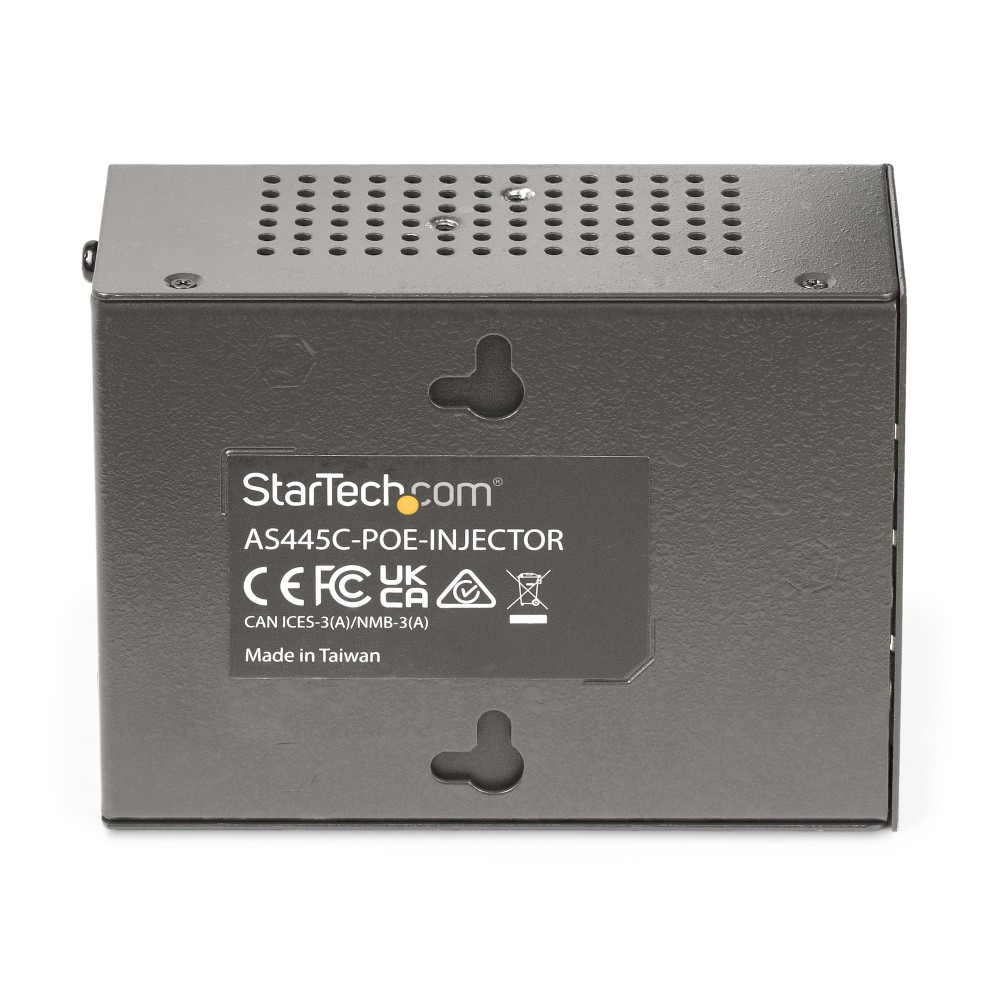

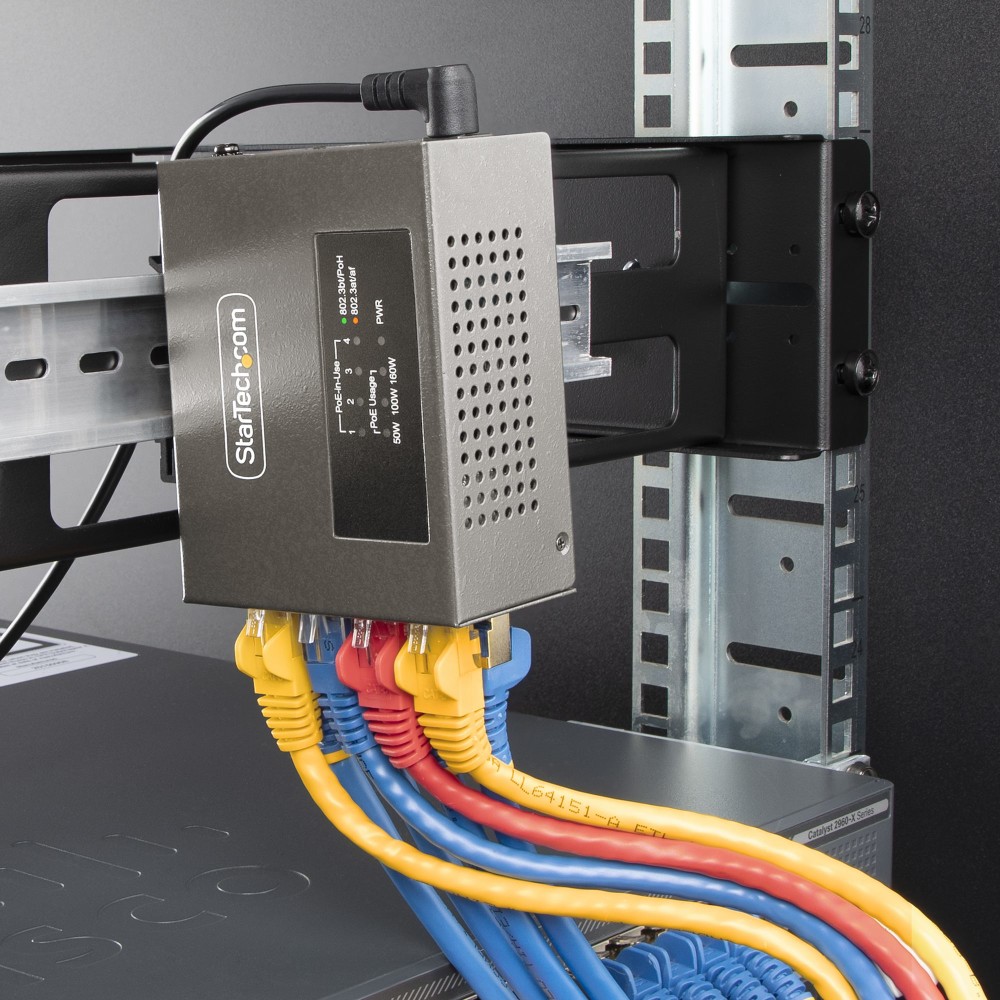

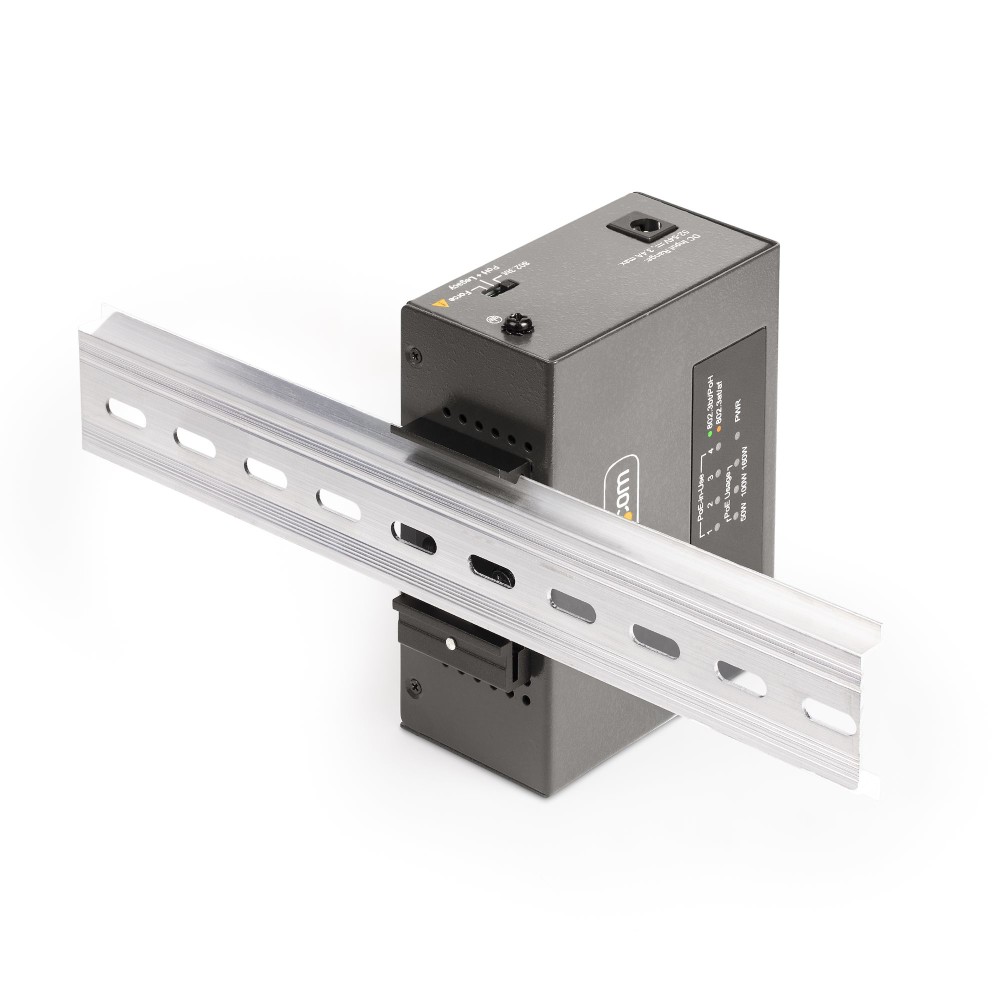

- Wall and DIN rail mountable for versatile installation
- Maximum operating distance of 100 metres
Payment Methods:
You may also like
StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 30W, Wall Mountable, Black
In stock
StarTech.com Injector – Powering Your Network Peripherals
The StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1Gbps Ethernet, 160W Power Budget, Grey is ideal for businesses needing to power multiple network devices. This unit streamlines your setup by delivering data and power over a single Ethernet cable. It’s perfect for remote installations of IP cameras or wireless access points.
Core Network Specifications
| Metric | Spec. |
|---|---|
| Ethernet Speeds | 10, 100, 1000, 2500, 5000 Mbps |
| PoE Budget | 160 W |
| Cable Compatibility | Cat5e, Cat6, Cat6a |
| Max. Cable Distance | 100 m |
| Output Voltage | 54 V |
Simplified Remote Device Deployment

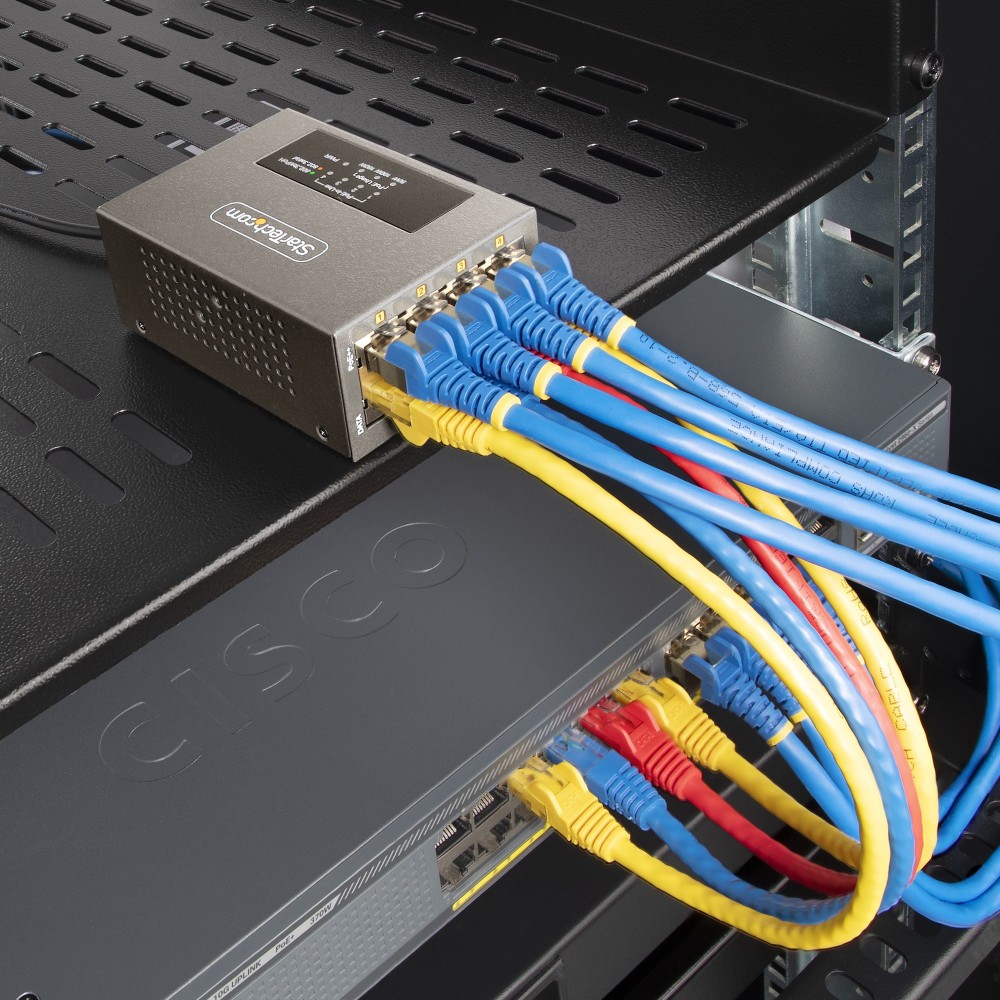

This PoE++ injector simplifies powering your remote devices. It eliminates the need for separate power outlets near each device. You can deploy IP cameras, access points, or digital signage in challenging locations. This reduces cabling complexity and installation costs.
Multi-Gigabit Performance for Demanding Tasks
Experience increased network speeds with multi-gigabit support. This injector handles data rates up to 5Gbps. It is ideal for high-bandwidth applications like streaming HD video. It also supports quick file transfers and reliable network backups. This ensures smooth operation for data-intensive tasks.
Flexible Power for Varied Devices

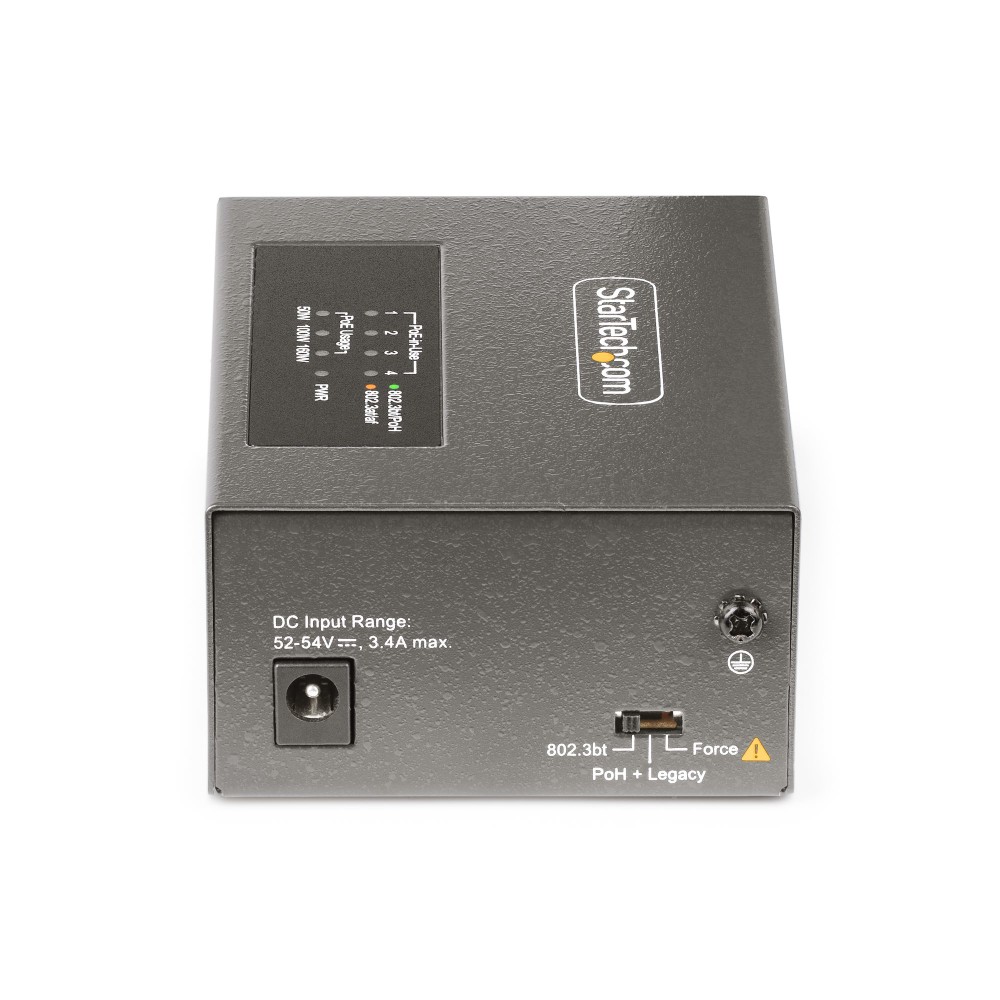

The injector offers flexible power output options. It supports IEEE 802.3af, 802.3at, and 802.3bt standards. You can tailor the power to suit various powered devices. Select from 90W, 95W PoH, or legacy 60W. This ensures broad compatibility with your existing hardware.
Robust and Secure Network Operation
Built with level-4 ESD protection, this unit enhances device safety. It reduces electromagnetic interference, ensuring stable performance. The metal housing provides durability. This minimises downtime and hardware failures in your network infrastructure.
What you receive
- StarTech.com 4-Port Multi-Gigabit PoE++ Injector
- Universal Power Adapter (NA/JP, EU, UK, ANZ)
- Quick Installation Guide
Before you order
- Confirm your devices are PoE, PoE+, or PoE++ compatible.
- Ensure your network cabling is Cat5e, Cat6, or Cat6a.
- Check the total power requirements of your connected devices.
- Confirm the grey colour suits your installation environment.
Frequently Asked Questions
Q: Can this injector power all four ports simultaneously?
A: Yes, it can power up to four devices within its 160W budget.
Q: What Ethernet speeds does this injector support?
A: It supports 10, 100, 1000, 2500, and 5000 Mbps.
Q: Is this injector suitable for outdoor use?
A: No, it is designed for indoor use within specified operating temperatures.
Q: Does it come with a power adapter?
A: Yes, a universal power adapter is included.
Q: Can I mount this injector on a wall or DIN rail?
A: Yes, it is wall or DIN rail mountable for flexible installation.
Our verdict
This StarTech.com injector is a solid choice for expanding your network with PoE-powered devices. Its multi-gigabit speeds and robust power budget make it suitable for demanding applications. We recommend it for businesses seeking efficient and reliable power delivery. Warranty cover varies by product, so please contact us to confirm.
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Chipset | Microsemi - PD69208T4, Microsemi - PD69200R |
| Features | |
| Wall mountable | Yes |
| Maximum operating distance | 100 m |
| Product colour | Grey |

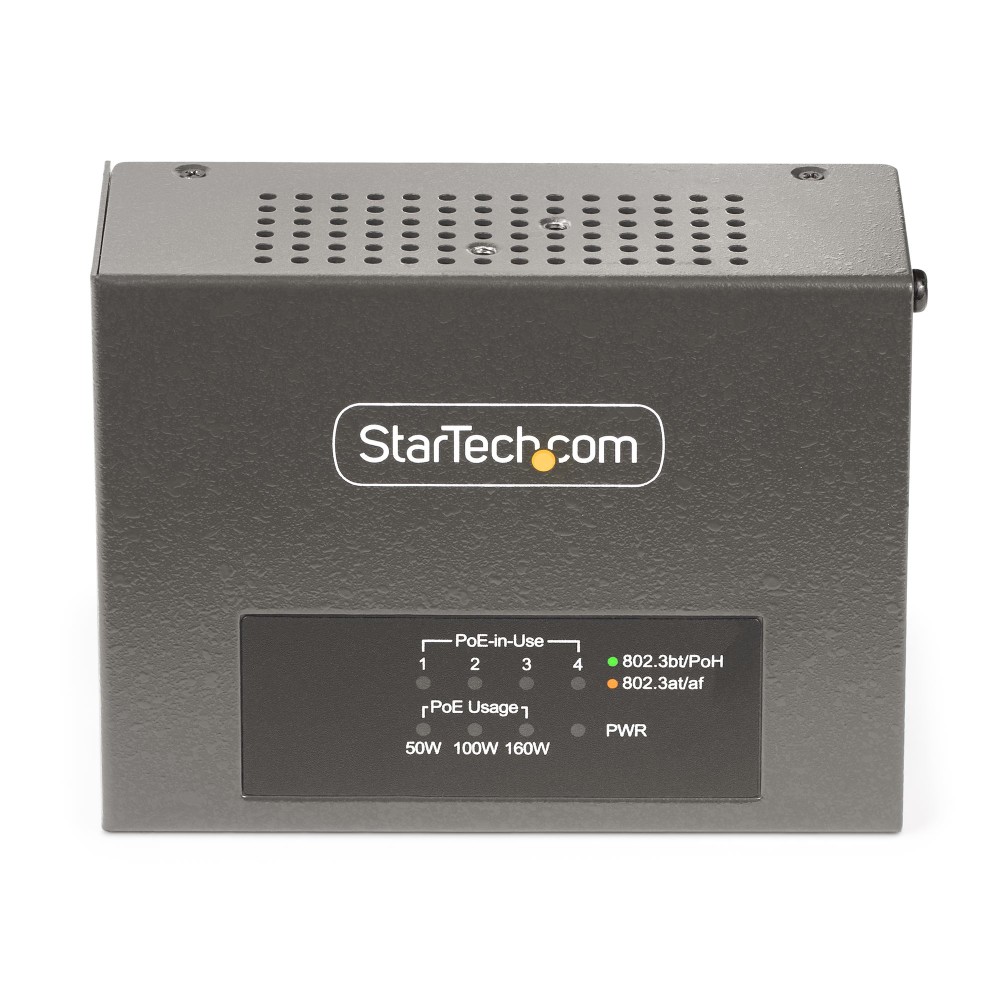

| LED indicators | Status |
| Housing material | Metal |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Ports & interfaces | |

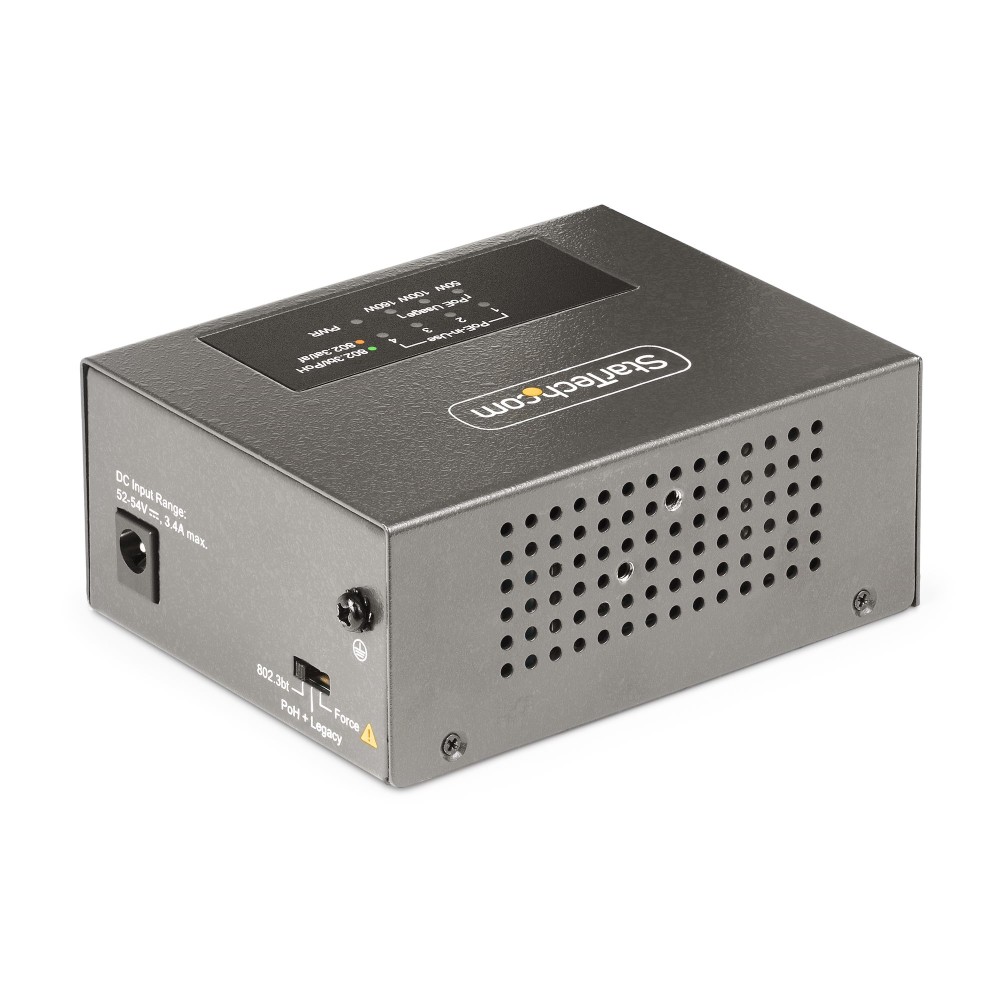

| DC-in jack | Yes |

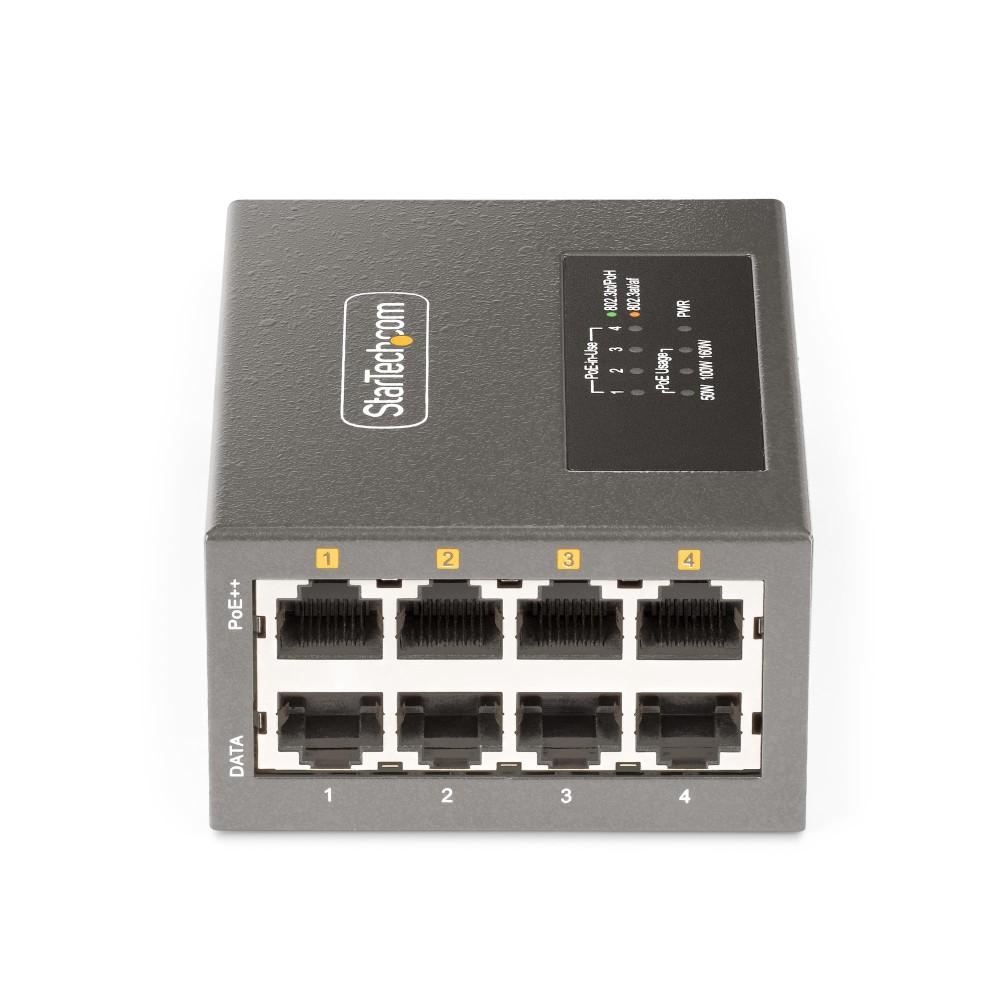

| Ethernet LAN (RJ-45) ports | 8 |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| Power | |
| Output current | 3.3 A |
| Total Power over Ethernet (PoE) budget | 160 W |
| AC adapter output voltage | 54 V |
| Input current | 2.5 A |
| AC adapter input voltage | 100 - 240 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 278 g |
| Width | 70 mm |
| Depth | 94 mm |
| Height | 39 mm |
| Package weight | 1.7 kg |
| Package depth | 178 mm |
| Package width | 310 mm |
| Package height | 93 mm |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
| Packaging data | |
| Package weight | 1.7 kg |
| Package depth | 178 mm |
| Package width | 310 mm |
| Package height | 93 mm |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 310 mm |
| Package height | 93 mm |
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Indication | |
| LED indicators | Status |
| Logistics data | |
| Master (outer) case width | 376 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 479 mm |
| Products per master (outer) case | 10 pc(s) |
| Identifiers | |
| Distributor SKUs | CJ50763, 95013, 9774163, AS445CPOEINJCTR, 10429252, 502454, NS95013 |
