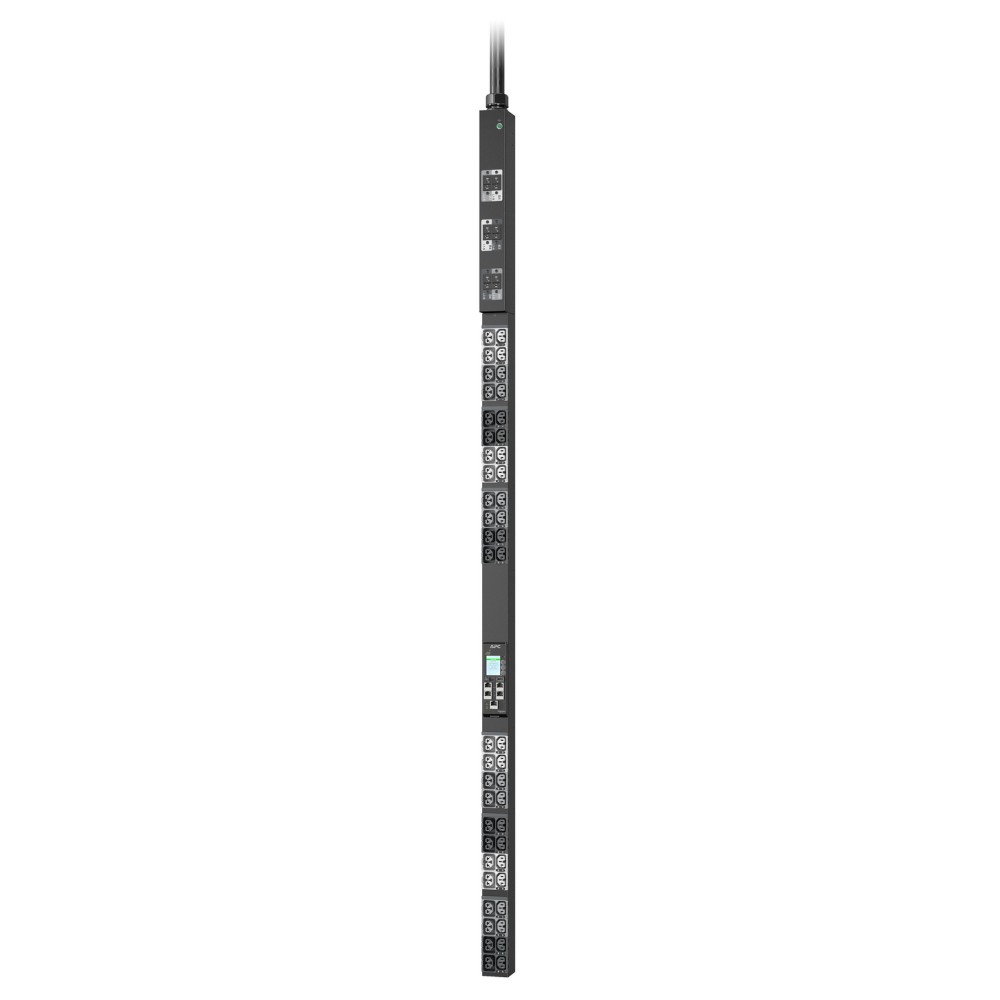

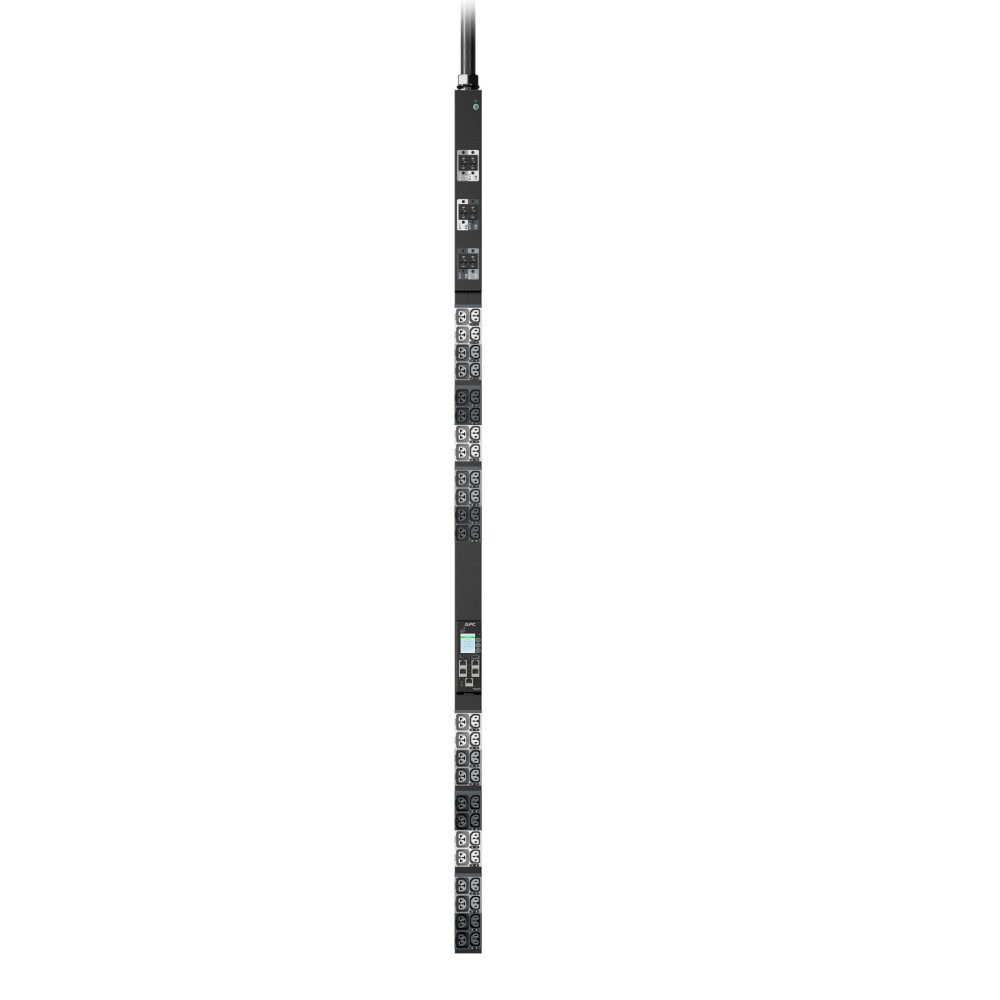

APC NetShelter Rack PDU Advanced Gen 2 Metered 3 Phase 48 Outlet Black 17.3kW 400V 3m Cable
£1,879.64
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Three-phase metered PDU with 48 AC outlets for dense rack power distribution
- 17.3kW load capacity supporting 400V output and 30A maximum current

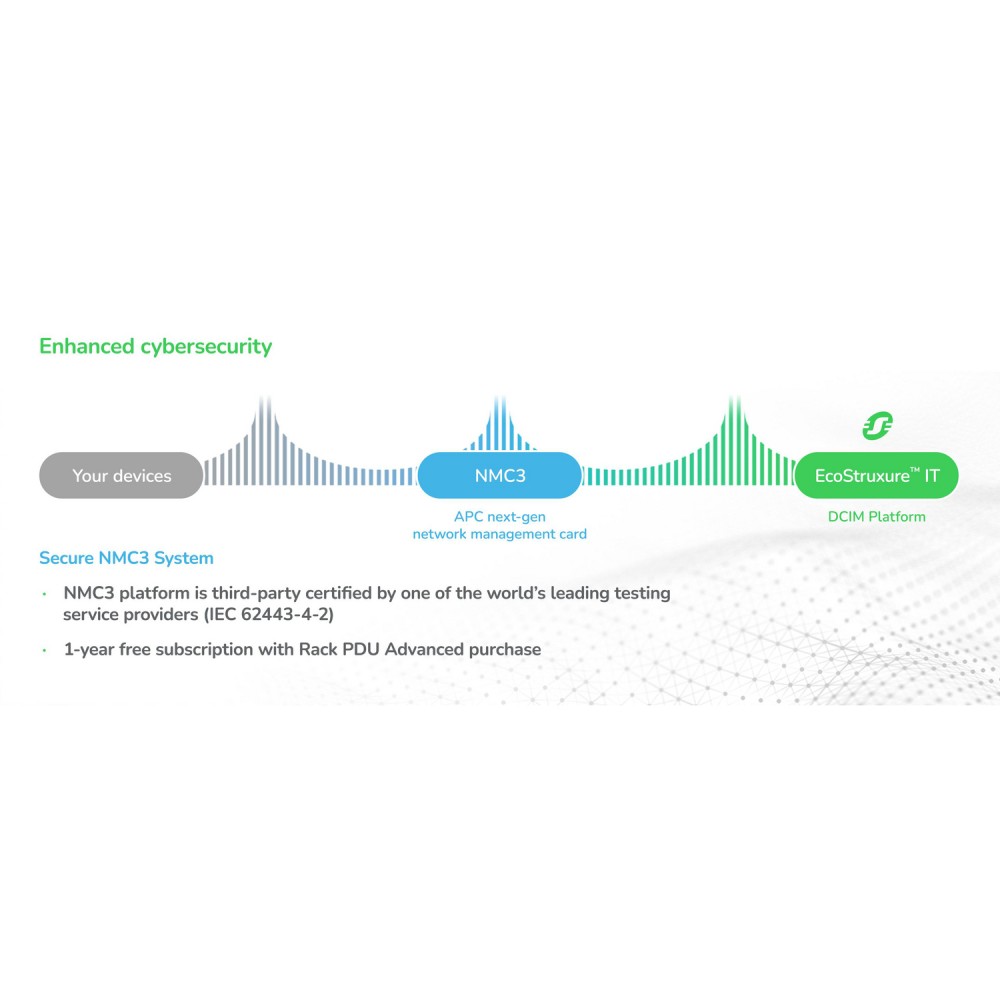

- NMC3 management platform enabling remote access via web SNMP and command line interface
- 0U vertical rack capacity with 56mm width to conserve cabinet space
- Black finish and 3 metre input cable with IEC 60309 connection type
- Environmental sensor ports and cascading link ports for scalable monitoring
- Compliant with UL CSA CE FCC RoHS REACH and WEEE certifications
You may also like
Belkin SoundForm Isolate Wireless Bluetooth In-ear Headphones with Active Noise Cancelling IPX5 and Built-in Microphone Black
In stock
Samsung Essential G3 Monitor 27″ Full HD 144Hz IPS Black
In stock
Samsung Essential G3 Gaming Monitor 24″ Full HD 144Hz IPS Black
In stock
ASRock Z890M Riptide Wi-Fi Intel Z890 Motherboard LGA1851 Socket Micro ATX DDR5 2.5GbE LAN
In stock
APC NetShelter PDU Advanced Gen 2 – High Density Power Metering
We supply the APC NetShelter Rack PDU Advanced Gen 2 Metered 3 Phase 48 Outlet Black 17.3kW 400V 3m Cable for robust data centre needs. This unit delivers reliable power distribution across your server racks. It provides clear visibility into energy usage to prevent overloads.
Key specs for the APC NetShelter Rack PDU Advanced Gen 2 Metered 3 Phase 48 Outlet Black 17.3kW 400V 3m Cable
| Metric | Spec. |
|---|---|
| Load Capacity | 17.3kW |
| AC Outlets | 48 |
| Nominal Output Voltage | 400 V |
| Cable Length | 3 m |
| Height | 1780 mm |
| Weight | 8.4 kg |
Maximise rack space efficiency
You gain 48 outlets in a narrow 56 mm profile. This allows more equipment per rack unit without sacrificing capacity. The mix of C13, C15, C19, and C21 couplers supports varied devices.
Monitor energy usage accurately
Our metered design offers 1% accuracy for precise tracking. You can view real-time load data via the NMC3 platform. This helps you avoid dangerous overloads on your circuits.

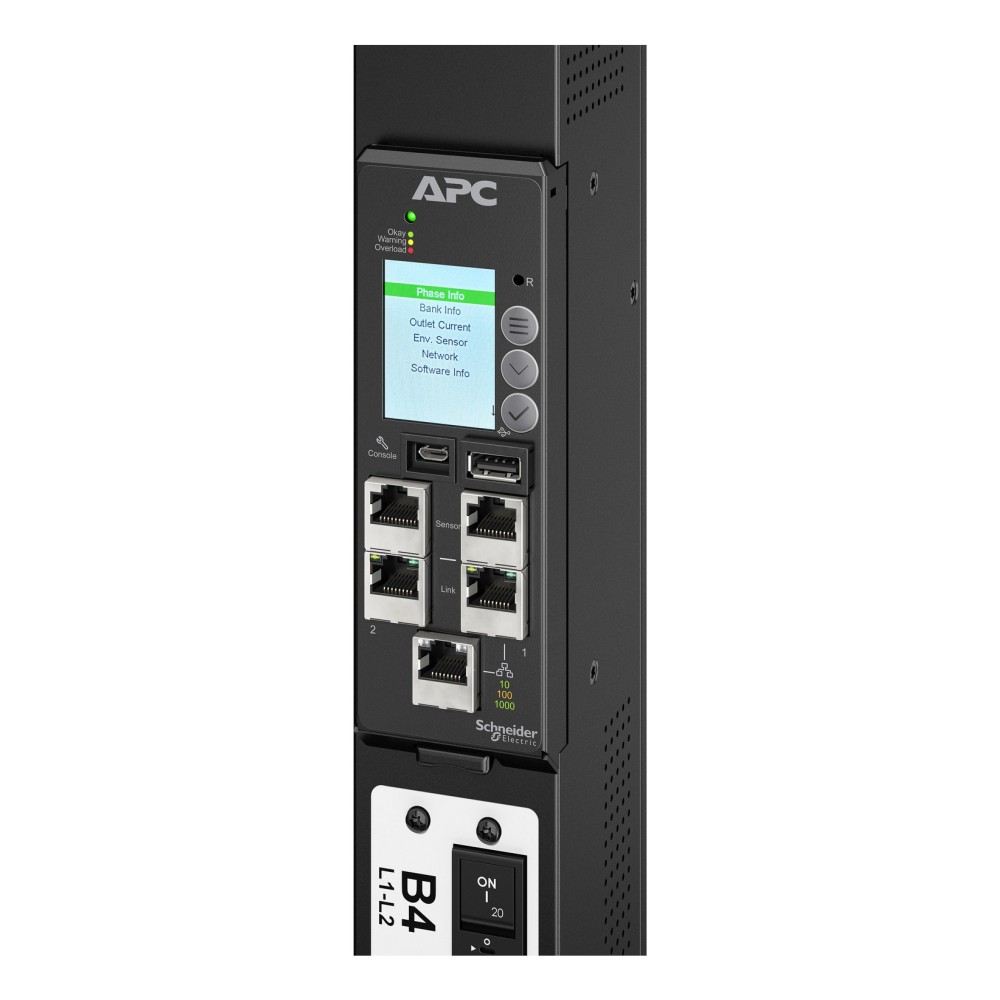

Simplify network management
The device includes a gigabit Ethernet port for standard connectivity. You may manage settings through web interfaces or command line tools. It supports SNMP for seamless integration into existing monitoring systems.
Ensure reliable high temperature operation
Rated for full load at up to 60 C, it handles heat well. Certifications like UL and CE confirm its safety and compliance standards. We recommend it for demanding deployments across multiple regions.
Compatibility checks before purchase
- Confirm your rack supports a 1780 mm height unit.
- Verify your supply matches the 400 V three phase requirement.
- Check that the 3 m cord reaches your power source.
Frequently Asked Questions
Q: Can you cascade multiple units?
A: Yes, two link ports allow cascading up to 32 PDUs.
Q: Is the NMC module replaceable?
A: You can swap the NMC3 unit live to minimise downtime.
Q: Does it support environmental sensors?
A: Two sensor ports exist for optional connectivity sold separately.
Q: What outlet types does it use?
A: It uses 48 combo outlets supporting C13, C15, C19, and C21.
Our final recommendation
This PDU suits dense racks needing detailed power insight. It balances high outlet density with strong management features. We stock it for teams requiring reliable 3 phase distribution.
| Design | |
|---|---|
| Type | Three-phase |
| PDU types | Metered |
| Product colour | Black |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1 |
| Rack capacity | 0U |
| Ports & interfaces | |
| USB ports quantity | 1 |
| AC outlets quantity | 48 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Input connection type | IEC 60309 30 A 3P + N + PE |
| Ethernet LAN (RJ-45) ports | 5 |
| Features | |
| Cable length | 3 m |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1 |
| Management features | |
| Management platform | NMC3 |
| Ergonomics | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 415 3 phases; 400 3 phases |
| Nominal output voltage | 400 V |
| Output voltage | 240 V |
| Maximum current | 30 A |
| Load capacity | 17300 VA |
| AC input frequency | 50/60 Hz |
| Number of phases | 3 |
| Battery replacement accessibility | Non-removable |
| Certificates | |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Weight & dimensions | |
| Weight | 8.4 kg |
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1780 mm |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 1980 mm |
| Package weight | 11.4 kg |
| Packaging data | |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 1980 mm |
| Package weight | 11.4 kg |
| Technical details | |
| Compliance certificates | RoHS, REACH, WEEE |
| Removable battery | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Sustainable packaging | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Packaging without single use plastic | No |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Country of origin | United States |
| Customs product code (TARIC) | 8537109899 |
