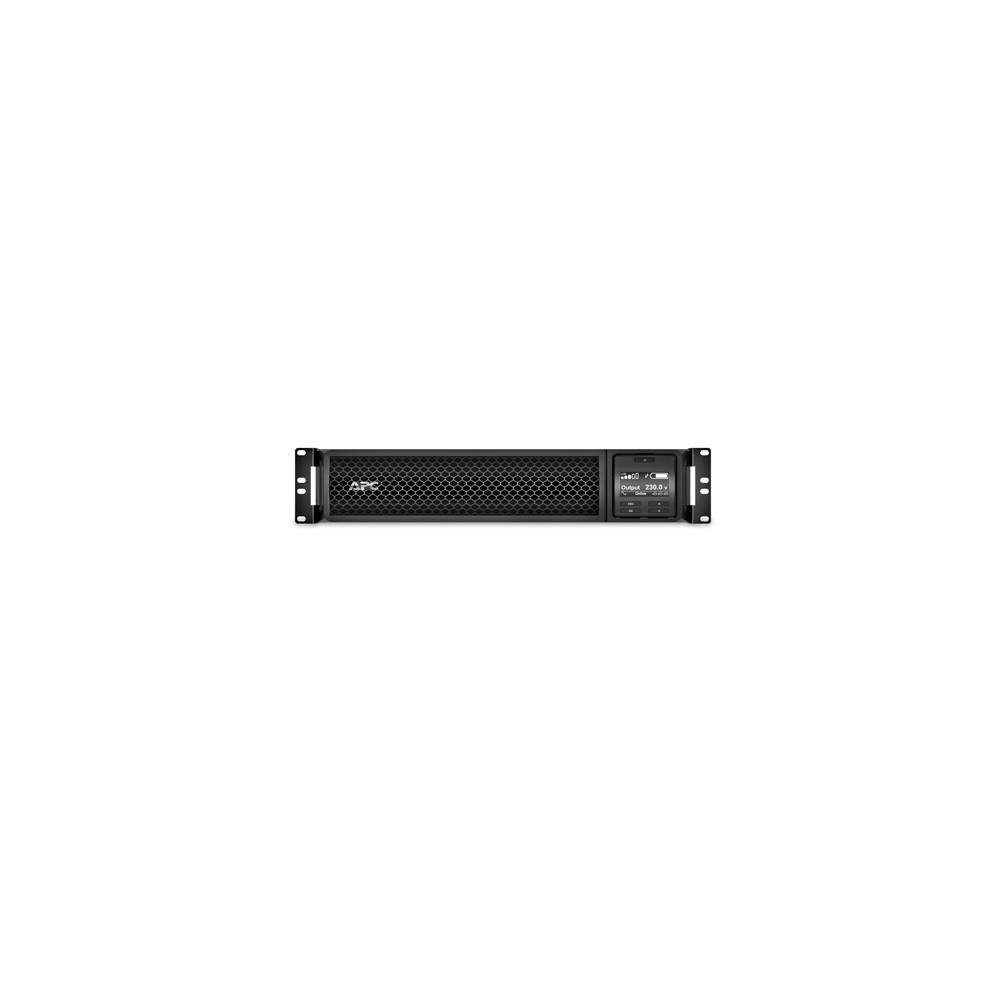

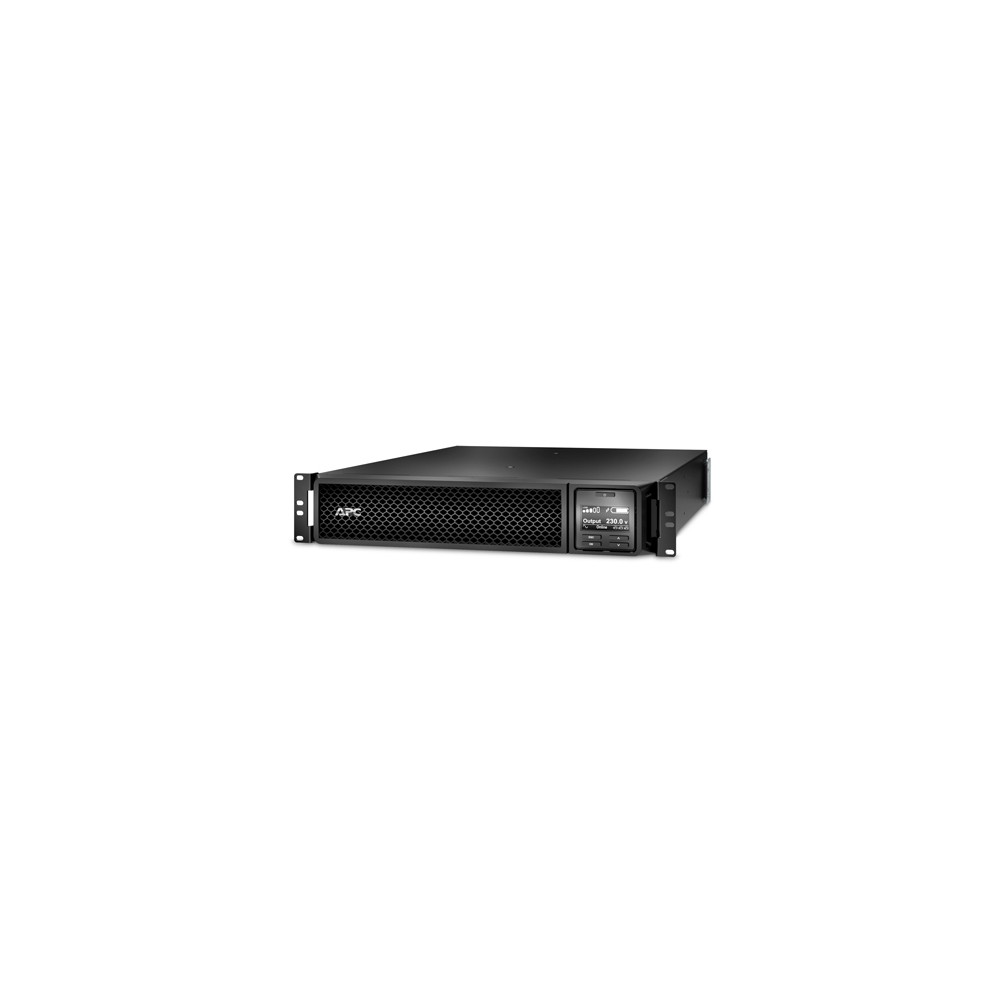

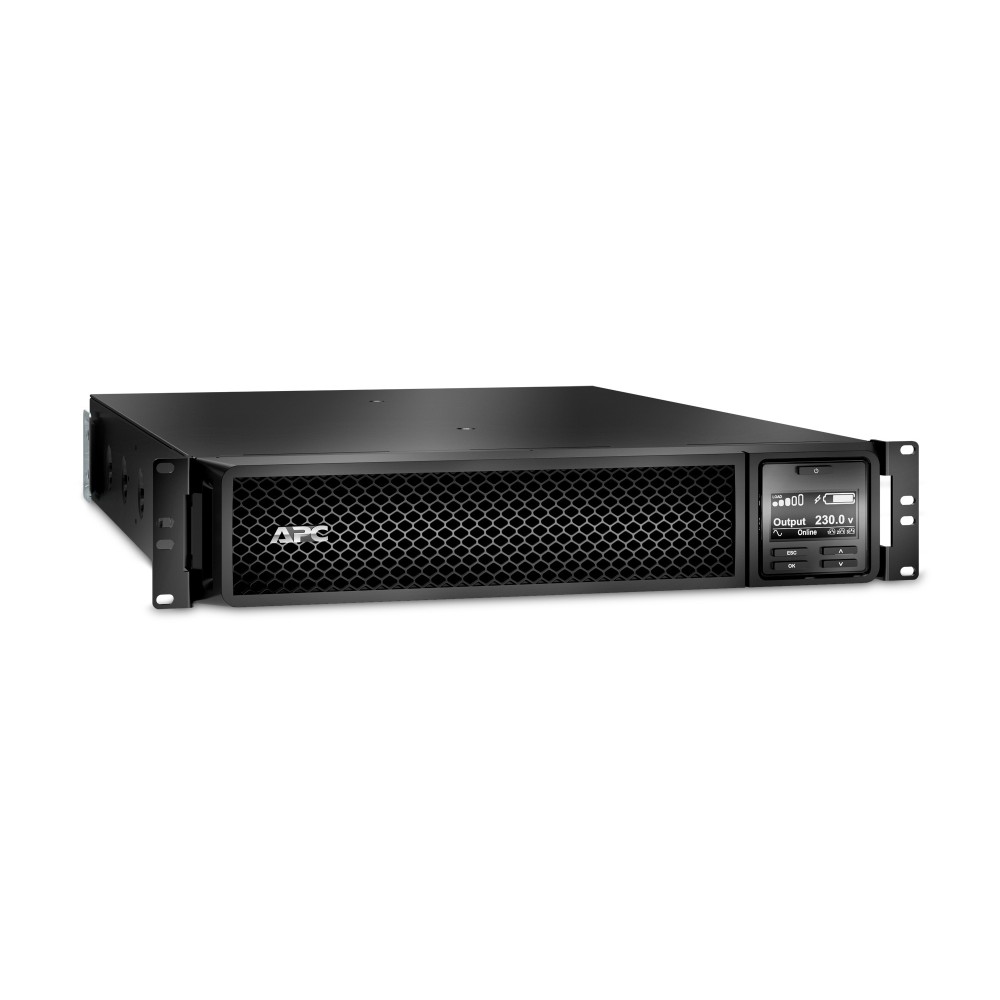

APC Smart-UPS On-Line 3kVA 2700W 2U Rackmount UPS Double Conversion 208V/230V 6x C13 2x C19 Outlets
£3,434.90
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Double-conversion online topology delivers pure sine wave output with 93.5% efficiency
- 3 kVA output capacity supports 2700 W of connected critical IT equipment
- 2U rackmount form factor includes eight AC outlets comprising six C13 and two C19 couplers
- Web-based management and USB interface for remote monitoring and automatic graceful shutdown via PowerChute software
- Hot-swap Sealed Lead Acid battery cartridge for user replacement without powering down connected systems
- Wide input voltage window from 100 V to 275 V ensures operation across diverse power environments
- ENERGY STAR certification with surge protection and compliance to CE RoHS and EN/IEC standards
You may also like
APC Smart-UPS On-Line 3kVA – Double Conversion Reliability
We advise IT managers seeking uninterrupted power for critical servers. The APC Smart-UPS On-Line 3kVA 2700W 2U Rackmount UPS Double Conversion 208V/230V 6x C13 2x C19 Outlets delivers pure sine wave power. This double conversion design eliminates noise and surges instantly. It is designed for your server room needs.
APC Smart-UPS On-Line 3kVA 2700W 2U Rackmount UPS Double Conversion 208V/230V 6x C13 2x C19 Outlets Benefits
This unit offers a highly efficient power conversion system. It reduces energy costs while protecting your equipment. We value this efficiency for operational savings.
Core technical metrics
| Metric | Spec. |
|---|---|
| Output Power | 2700 W |
| Capacity | 3 kVA |
| Outlets | 8 AC outlets |
| Efficiency | 93.5% |
| Warranty | 3 years |
Uninterrupted power quality
Double conversion technology isolates your equipment from the grid. It ensures clean power at all times. Your servers run without interruptions or damage.
Flexible server connectivity
The unit provides multiple IEC outlets for devices. You gain six C13 and two C19 sockets. We find this supports diverse IT hardware well.
Remote monitoring capabilities
You can connect this UPS via USB or serial. The SmartSlot allows for network management cards. This enables remote shutdowns during critical power failures.
Maintenance friendly battery design
The internal battery can be swapped by the user. This allows you to service it safely. Your systems stay online while maintaining the hardware.
What comes in the box
- USB cable
- Rack mount kit
- Software CD
- Installation guide
Before you order
- Confirm your rack has 2U space.
- Confirm your network voltage is 230 V.
- Confirm your server cables fit C13 connectors.
Our final recommendation
This UPS is ideal for demanding enterprise environments. We recommend it for reliable server protection. It comes with a standard 3-year warranty.
Frequently Asked Questions
Q: Does it support remote management?
A: You can add an optional management card for network monitoring.
Q: How long does the battery last?
A: Typical backup time is 11 minutes at half load.
Q: Can I replace the battery myself?
A: Yes, it supports hot-swappable battery cartridge replacement.
Q: Is it suitable for generators?
A: Yes, double conversion technology works well with generators.
Q: What is the output waveform?
A: It delivers a true sine wave output.
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 93.5% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
| Cable length | 2.44 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |

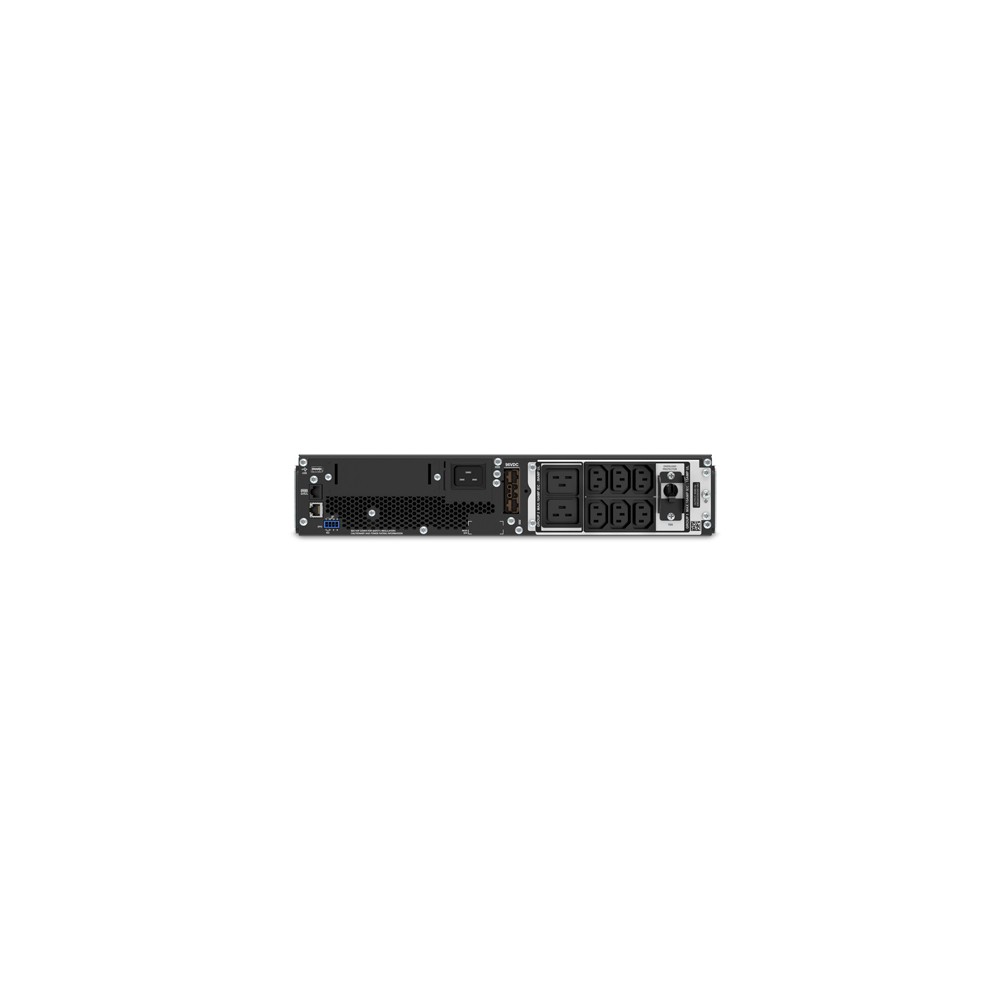

| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Number of output IEC jumpers | 2 |
| SmartConnect port | No |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 93.5% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 505 VAh |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |

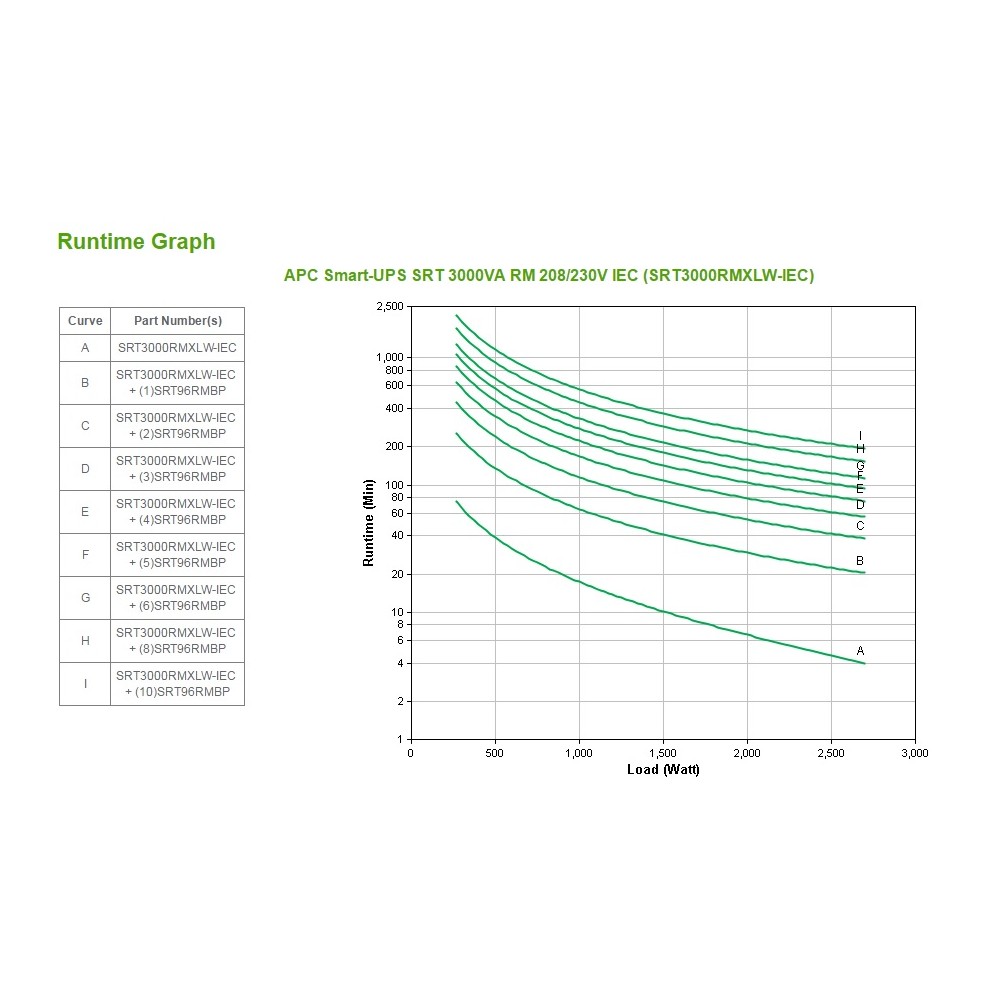

| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Cable length | 2.44 m |

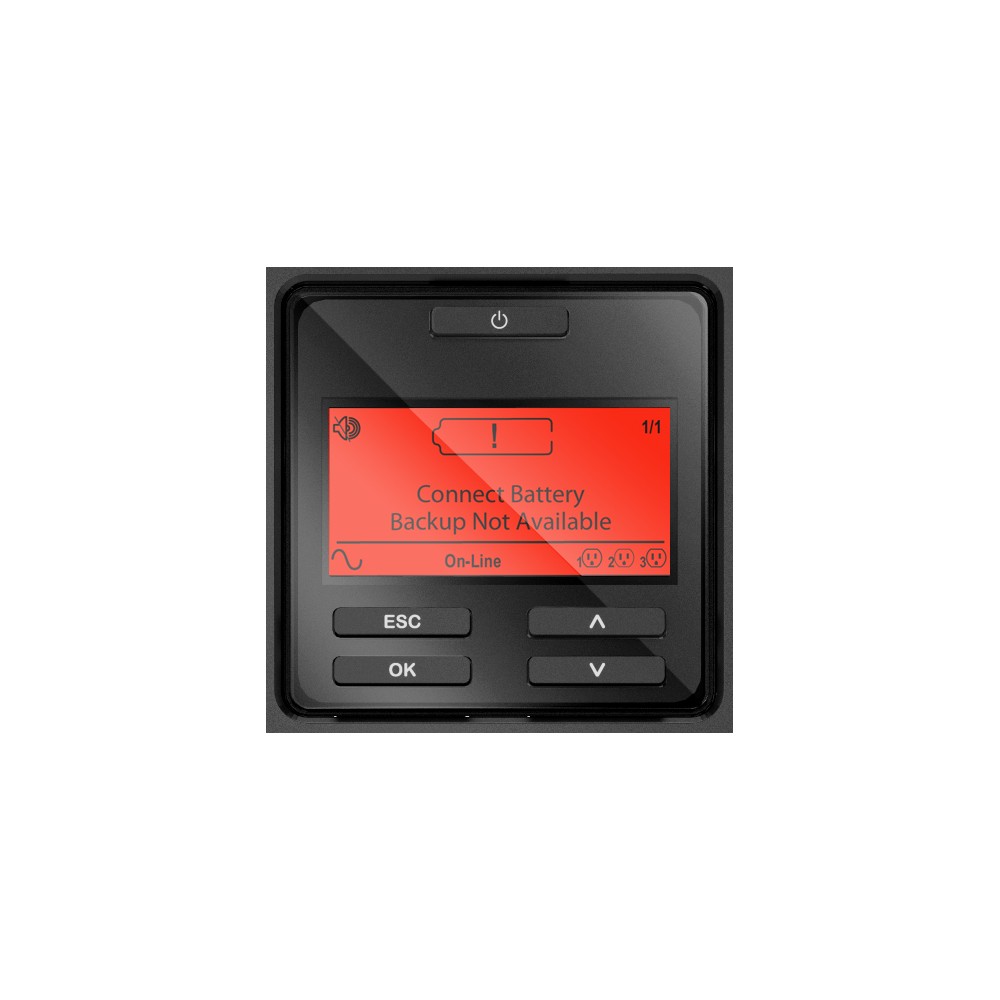

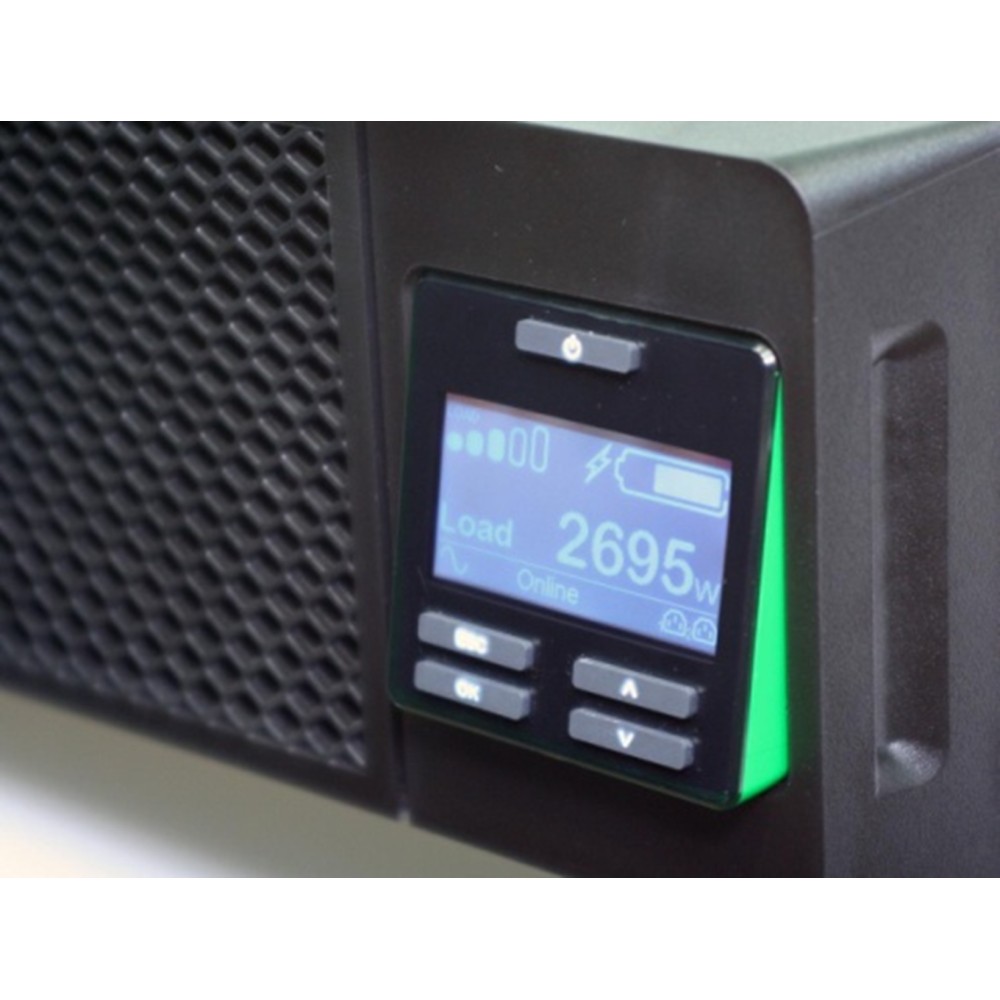

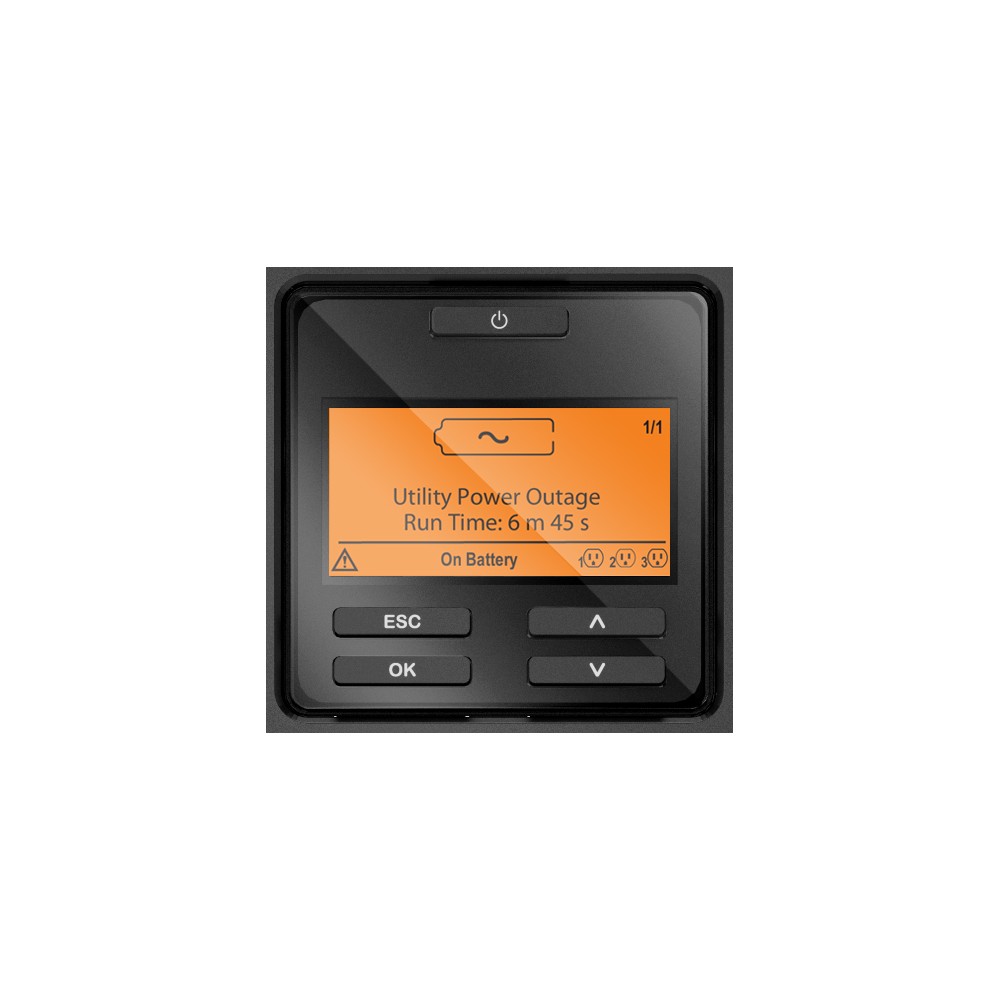

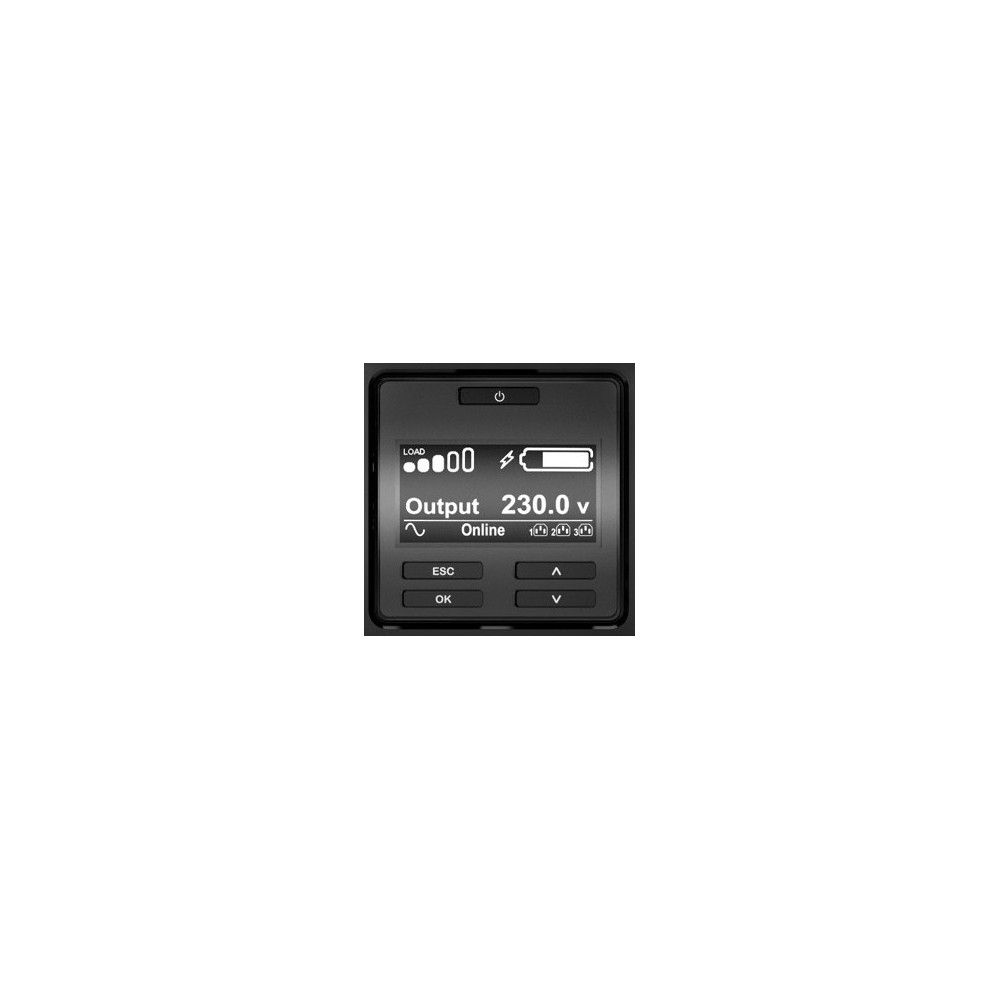

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4983.65 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Compliance certificates | RoHS |
| Management features | |
| Web-based management | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Management card included | No |
| Bracket | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Weight | 31.3 kg |
| Width | 432 mm |
| Package weight | 39.9 kg |
| Height | 85 mm |
| Depth | 635 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 39.9 kg |
| Management card included | No |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4983.65 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
