ASRock B760M-H2/M.2 | Micro ATX Intel B760 Motherboard

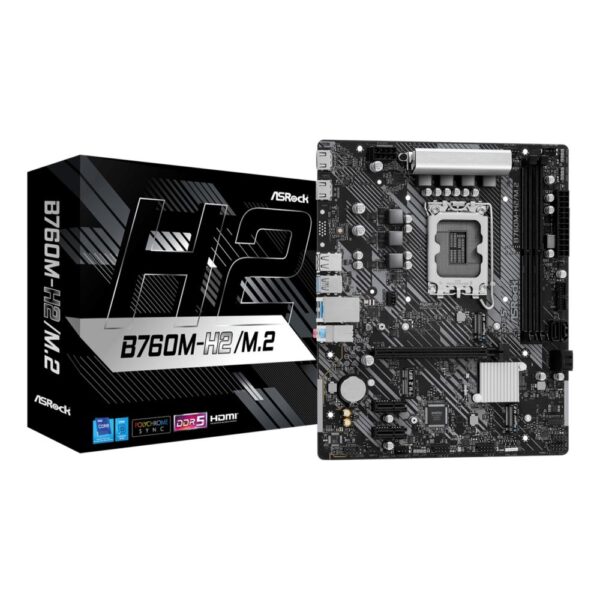

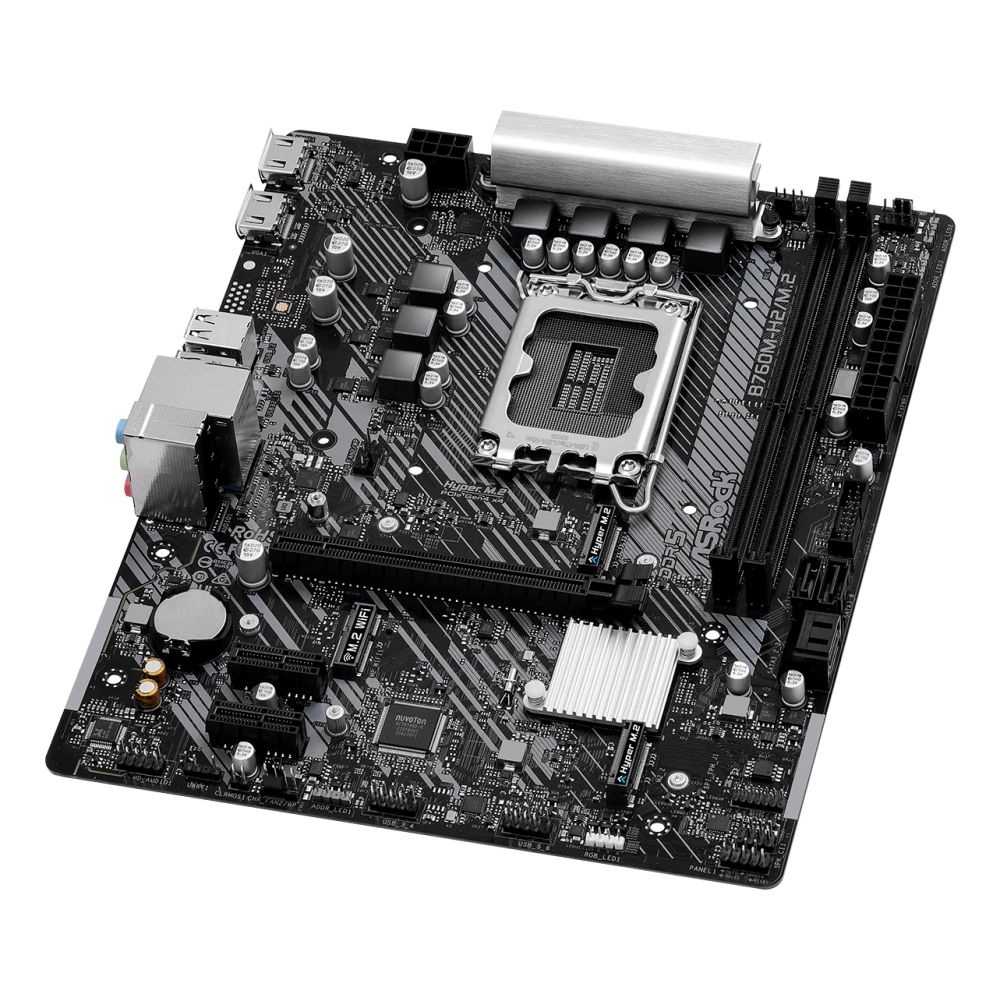

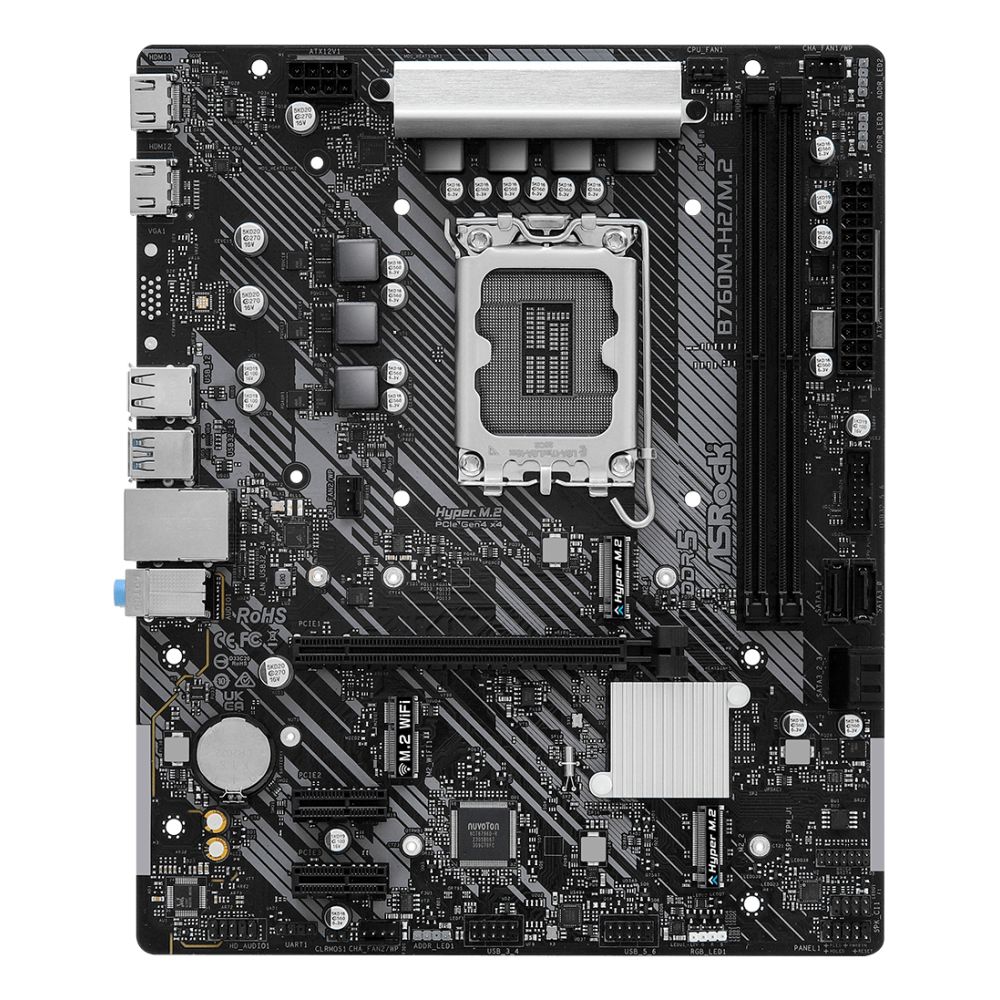

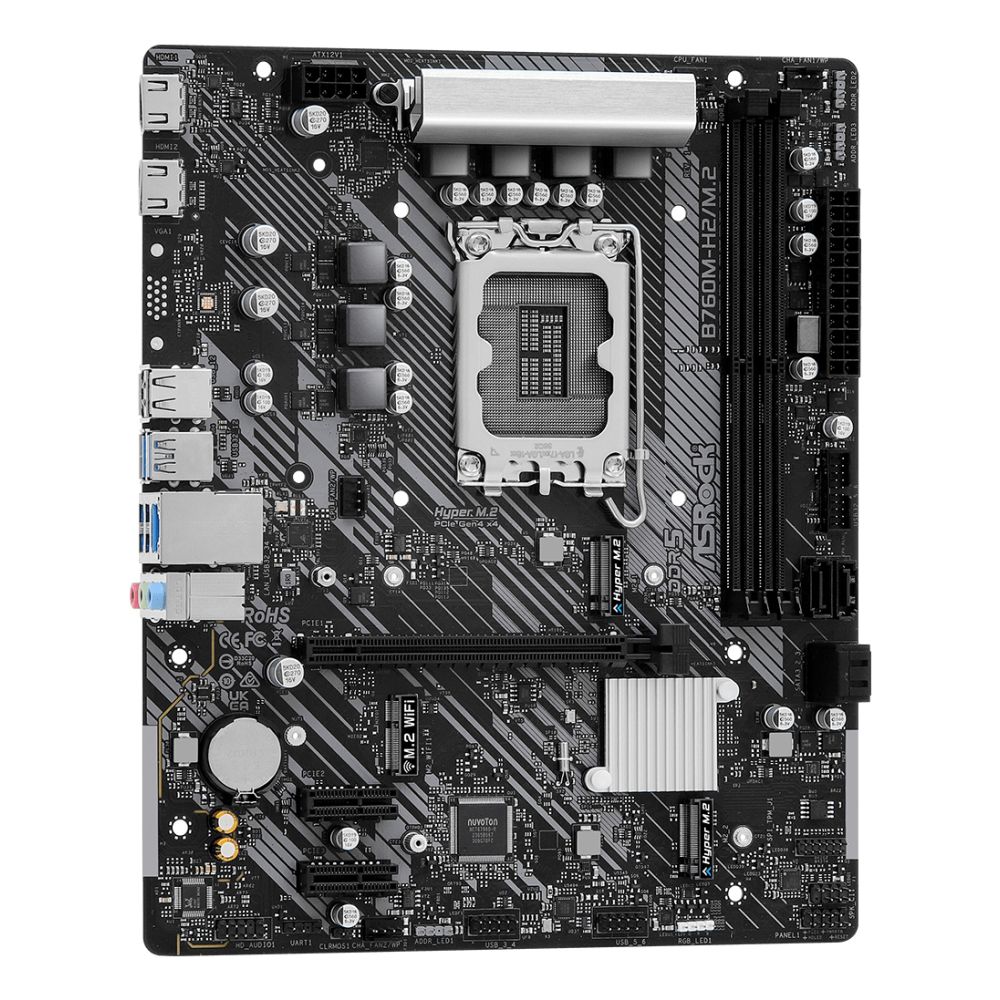

The ASRock B760M-H2/M.2 Intel B760 LGA 1700 micro ATX motherboard is designed for Intel Core processors on the LGA 1700 socket, offering DDR5 memory support, PCIe 4.0 M.2 slots, and a compact micro ATX form factor ideal for space-conscious builds.

Quick Specs

Dual DDR5 Channels for High-Speed Performance

This motherboard supports dual-channel DDR5 memory with speeds up to 7200 MHz, allowing you to install up to 128 GB across two DIMM slots. The increased bandwidth and lower latency of DDR5 make it ideal for demanding applications, multitasking, and future-proofing your system.

PCIe 4.0 M.2 for Lightning-Fast Storage

Equipped with two M.2 slots supporting PCIe 4.0 x4, this board enables NVMe SSDs to deliver read/write speeds up to twice as fast as PCIe 3.0. Whether you’re loading large games, editing 4K video, or running virtual machines, these slots ensure your storage keeps pace with your processor.

Enhanced Networking with 2.5 Gb/s LAN

The integrated 2.5 Gb/s Ethernet port provides up to 2.5 times the bandwidth of standard gigabit connections. This is particularly beneficial for online gaming, large file transfers, and high-quality media streaming where a stable, fast connection is essential.

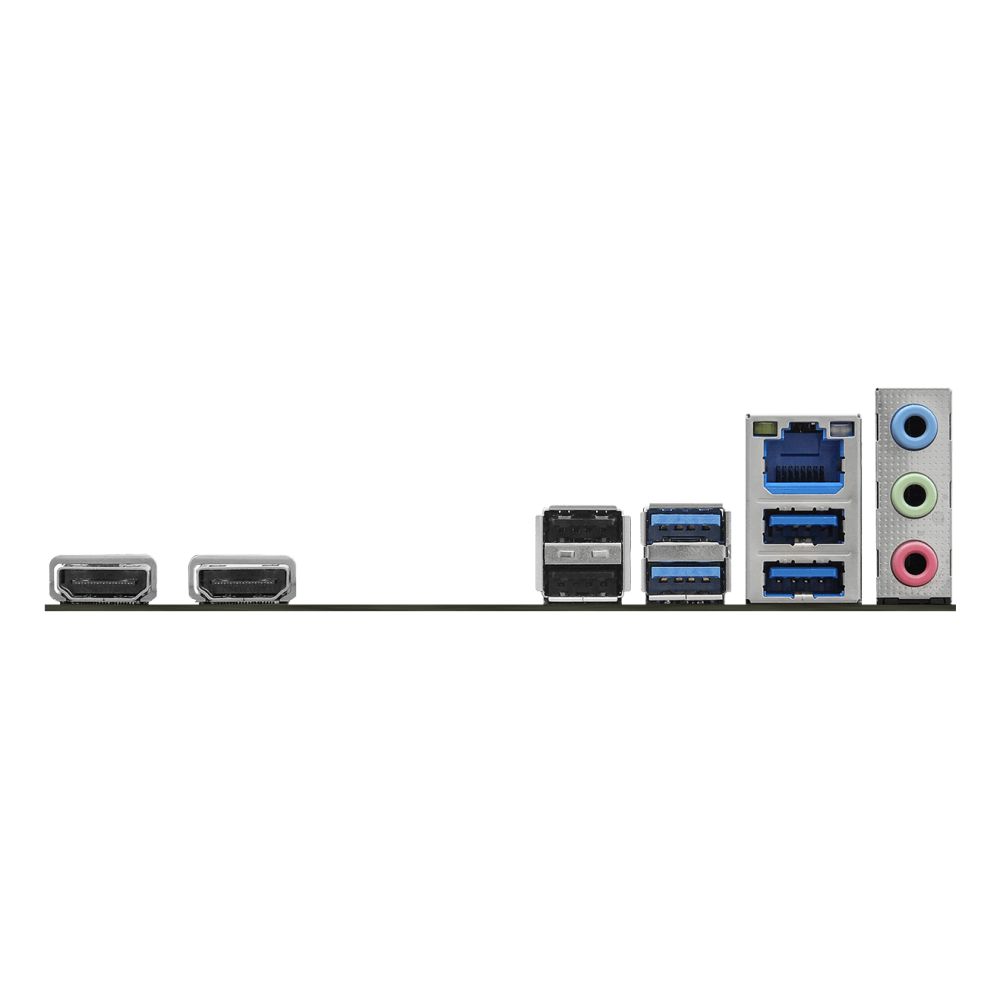

Flexible Multi-Display Support

With dual HDMI 2.1 ports supporting 4K at 60 Hz, you can connect multiple monitors for enhanced productivity or immersive gaming setups. The HDMI 2.1 specification also offers greater bandwidth for future 8K displays and high-refresh-rate content.

Polychrome RGB Customisation

The onboard RGB and addressable RGB headers allow you to connect and synchronise LED strips, fans, and other compatible devices. Using Polychrome RGB Sync-certified accessories, you can create personalised lighting effects to match your build’s aesthetic.

In the Box

• ASRock B760M-H2/M.2 motherboard
• SATA cables (quantity not specified)
• I/O shield
• User manual
• Warranty card

Key Points to Check

• Confirm your Intel processor is LGA 1700 compatible.
• Verify your power supply has the required 8-pin EPS and 24-pin ATX connectors.
• Ensure your case supports micro ATX motherboards (244 x 201 mm).
• Check that your DDR5 memory modules are on the motherboard’s qualified vendor list.

Frequently Asked Questions

Our verdict

The ASRock B760M-H2/M.2 is a well-balanced micro ATX motherboard for Intel-based systems, offering DDR5 memory, PCIe 4.0 storage, and robust networking. It’s particularly suited to compact builds where performance and expandability are priorities. Covered by the applicable manufacturer warranty.
