Save £13 New
ASRock Z890 Pro RS ATX Motherboard LGA 1851 Intel Z890 DDR5 Black
Original price was: £235.19.£222.11Current price is: £222.11.
In stock
In stock
Order now, get it by Fri 30 Oct
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Intel Core Ultra Series 2 processor support with LGA 1851 socket
- Dual channel DDR5 memory slots supporting speeds up to 8666 MHz OC
- PCIe Gen5 x16 slot plus four M.2 sockets including one Gen5 x4 port
- Two Thunderbolt 4 Type-C ports delivering 40 Gb/s data transfer speeds
- ATX form factor with 16+1+1+1+1 power phase and 2oz copper PCB
- 2.5 Gigabit LAN and 7.1 channel HD audio with Nahimic support
- BIOS Flashback button and multiple RGB LED headers for custom lighting setups
You may also like
New
Save £13 New
ASRock Z890M Riptide Wi-Fi Intel Z890 Motherboard LGA1851 Socket Micro ATX DDR5 2.5GbE LAN
In stock
Original price was: £263.99.£250.79Current price is: £250.79.
Save £3.77 New
Belkin SoundForm Isolate Wireless In-ear Headphones Active Noise Cancelling Bluetooth Built-in Microphone Grey
In stock
Original price was: £53.99.£50.22Current price is: £50.22.
New
New
New
Save £3.82 New
Apple Sport Band for Apple Watch 38mm 40mm 41mm Sand Rubber M/L Wrist Size
In stock
Original price was: £62.39.£58.57Current price is: £58.57.
New
Save £6.85 New
Samsung Essential G3 Gaming Monitor 24″ Full HD 144Hz IPS Black
In stock
Original price was: £127.19.£120.34Current price is: £120.34.
New
New
New
Save £3.11 New
Belkin SoundForm Isolate Wireless Bluetooth In-ear Headphones with Active Noise Cancelling IPX5 and Built-in Microphone Black
In stock
Original price was: £53.99.£50.88Current price is: £50.88.
Description
ASRock Z890 Pro RS ATX Motherboard LGA 1851 Intel Z890 DDR5 Black Overview
We stock the ASRock Z890 Pro RS ATX Motherboard LGA 1851 Intel Z890 DDR5 Black for builders seeking cutting-edge Intel Core Ultra support. This board delivers robust power delivery and high-speed connectivity. It suits enthusiasts wanting maximum PCIe 5.0 bandwidth. You get reliable stability for demanding workloads.
Core technical numbers
| Metric | Spec |
|---|---|
| Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Max Memory | 256 GB DDR5 |
| M.2 Slots | 4 |
| LAN | 2.5 Gigabit |
| Form Factor | ATX |
Optimised DDR5 Memory Support
We support up to 256GB of system memory. Native speeds start at 5600 MHz. Overclocking can reach beyond 8600 MHz. XMP 3.0 profiles simplify tuning. Your system handles large datasets efficiently.
Blazing Fast Storage Options
Four M.2 slots provide ample space. One slot supports PCIe Gen5x4 speeds. The others handle Gen4x4 configurations easily. You can boot from NVMe SSDs directly. RAID arrays are supported for redundancy.
Versatile Input and Output
Two Thunderbolt 4 ports offer 40 Gb/s. HDMI and DisplayPort support 8K resolutions. USB Type-C charging is available at the rear. 2.5G LAN ensures quick network transfers.
Reliable Power Delivery Design
The VRM uses a 16+1+1+1+1 phase layout. Enlarged heatsinks keep temperatures low. Smart fan control adjusts speeds automatically. This design supports Intel Core Ultra processors well.
What comes in the box
You receive two SATA data cables. M.2 screws and a standoff are included. These items help secure your storage drives.
Before you buy
- Confirm your CPU uses the LGA 1851 socket.
- Verify your case supports ATX form factors.
- Check that your RAM is DDR5 type.
Frequently Asked Questions
Q: Does this board support Wi-Fi?
A: No, it requires a separate module for wireless connectivity.
Q: How many M.2 slots are available?
A: There are four M.2 sockets for storage devices.
Q: Is the I/O shield pre-installed?
A: Yes, the integrated shield comes built into the board.
Q: What is the maximum memory capacity?
A: The system supports up to 256GB of DDR5 RAM.
Our final recommendation
This motherboard suits advanced users needing high bandwidth. It offers extensive connectivity for modern peripherals. We recommend the ASRock Z890 Pro RS ATX Motherboard LGA 1851 Intel Z890 DDR5 Black for these specific technical demands.
Additional information
| Brand | ASRock |
|---|---|
| EAN | 4710483947452 |
| MPN | 90-MXBP10-A0UAYZ |
| Category | Details |
| Memory | Dual Channel DDR5 Memory Technology, – 4 x DDR5 DIMM Slots, – Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*, – 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively., – 1DPC 2R Up to 6800+ MHz (OC), – 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively., – 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively., – Max. capacity of system memory: 256GB, – Supports Intel® Extreme Memory Profile (XMP) 3.0x, * Please refer to Memory Support List on ASRock’s website for more information. (www.asrock.com) |
| Expansion Slot | CPU:, – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset:, – 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*, – 1 x PCIe 4.0 x1 Slot (PCIE2)*, – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT), * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots., * Supports NVMe SSD as boot disks. |
| Graphics | Intel® UHD Graphics Built-in Visuals (GPU required for VGA outputs), – Intel® X e LPG Graphics Architecture, – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, max. resolution up to 4K 120Hz, – 1 x DisplayPort 1.4 with DSC, supports HDCP 2.3, max. resolution up to 8K 60Hz, 5K 120Hz, – 2 x Intel® Thunderboltâ„¢ 4, 5K 120Hz*, * Supports two 4K displays or one 8K display., * Use CPU models with embedded graphics for Thunderbolt displays. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), – Nahimic Audio |
| USB | CPU:, – 2 x Thunderboltâ„¢ 4 Type-C (Rear), Chipset:, – 1 x USB 3.2 Gen2x2 Type-C (Front), – 1 x USB 3.2 Gen2 Type-A (Rear), – 6 x USB 3.2 Gen1 (2 Rear, 4 Front), – 8 x USB 2.0 (4 Rear, * All USB ports support ESD Protection |

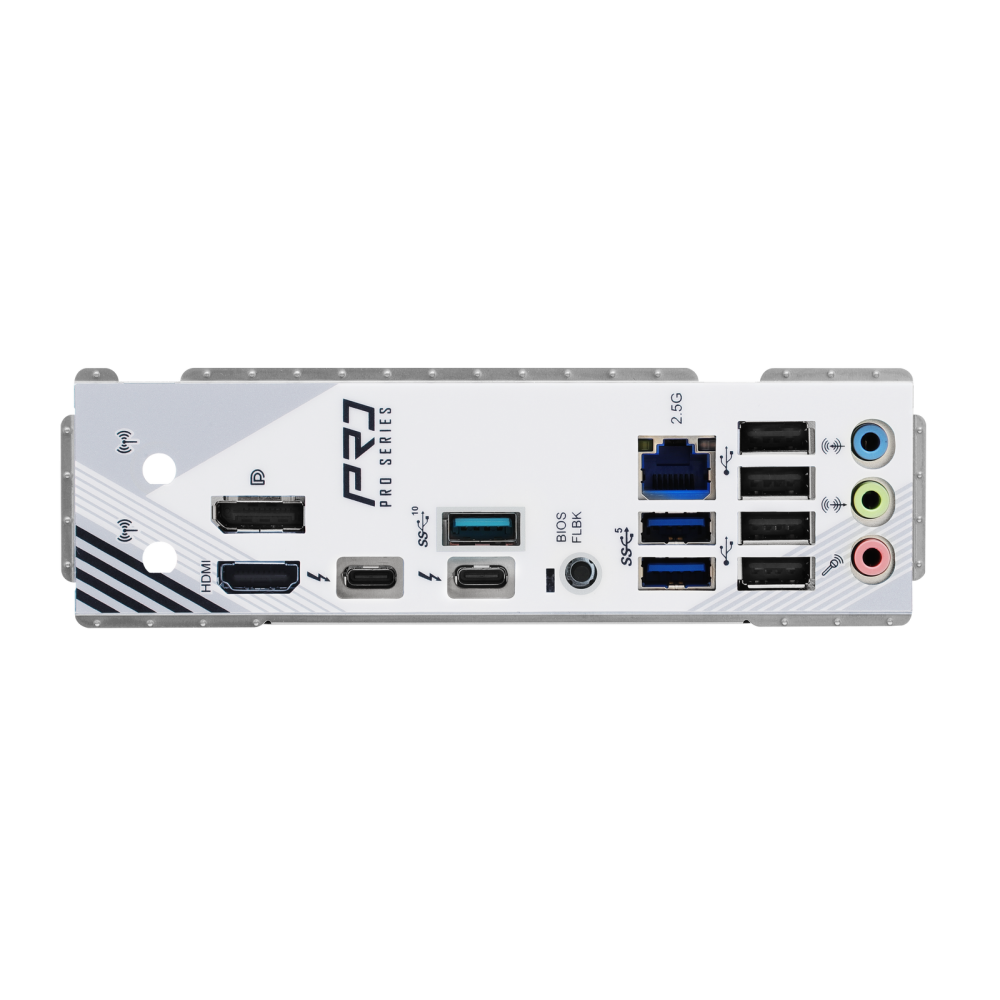

| Rear Panel I/O | 2 x Antenna Mounting Points, – 1 x HDMI Port, – 1 x DisplayPort 1.4, – 2 x Thunderboltâ„¢ 4 Type-C Ports (40 Gb/s for USB4 protocol, 40 Gb/s for Thunderbolt protocol)*, – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), – 2 x USB 3.2 Gen1 Ports, – 4 x USB 2.0 Ports, – 1 x RJ-45 LAN Port, – 1 x BIOS Flashback Button, – HD Audio Jacks: Line in, Front Speaker, Microphone, * Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Storage | CPU:, – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*, – 1 x Hyper M.2 Socket (M2_2, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset:, – 1 x Hyper M.2 Socket (M2_3, – 1 x Hyper M.2 Socket (M2_4, supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*, – 4 x SATA3 6.0 Gb/s Connectors, * Supports Intel® Volume Management Device (VMD), * Supports NVMe SSD as boot disks |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, – Supports RAID 0, and RAID 10 for M.2 NVMe storage devices |
| Connector | 1 x SPI TPM Header, – 1 x Power LED and Speaker Header, – 1 x RGB LED Header*, – 3 x Addressable LED Headers**, – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***, – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***, – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***, – 1 x 24 pin ATX Power Connector, – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), – 1 x Front Panel Audio Connector, – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), * Supports in total up to 12V/3A, 36W LED Strip, ** Support in total up to 5V/3A, 15W LED Strip, *** CPU_FAN1 supports the fan power up to 1A (12W)., *** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W)., CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
| Software and UEFI | ASRock Motherboard Utility (A-Tuning), – ASRock Dragon 2.5G LAN Software, – ASRock Polychrome SYNC, * These utilities can be downloaded from ASRock Live Update & APP Shop., – ASRock EZ Mode, – ASRock Full HD UEFI, – ASRock My Favourites in UEFI, – ASRock Auto Driver Installer, – ASRock Instant Flash |
| Certifications | Microsoft® Windows® OS 11 64-bit, – FCC, CE, – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Accessories | 2 x SATA Data Cables, – 2 x Screws for M.2 Sockets, – 1 x Standoff for M.2 Socket |
| Physical | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, – 2oz Copper PCB |
| Platform | Supports Intel® Coreâ„¢ Ultra Processors (Series 2) (LGA1851RL-ILM), – Supports Intel® Hybrid Technology, – Supports Intel® Turbo Boost Max 3.0 Technology, – Supports Intel® Thermal Velocity Boost (TVB), – Supports Intel® Adaptive Boost Technology (ABT), – Integrated NPU for dedicated AI acceleration |
| Superb Productivity | PCIe Gen5 (Graphics, M.2), – Dual Channel DDR5, – Thunderboltâ„¢ 4 Type-C Ports (40 Gb/s) |
| Rock-Solid Durability | 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor, – Memory OC Shield, – Flexible Integrated I/O Shield |
| Ultrafast Connectivity | 2.5G LAN |
| EZ Update | BIOS Flashback Button, – ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| Primary Colour | Black |
| Length / Depth | 305 mm |
| Width | 244 mm |
| Motherboard Form Factor | ATX |
| CPU Manufacturer | Intel |
| CPU socket | 1851 |
| Motherboard Chipset | Intel Z890 |
| Built-In I/O Shield | Yes |
| Max. Memory | 256 GB |
| Memory type | DDR5 |
| Memory form factor | DIMM |
| Max. Memory Speed OC | 8066 MT/s |
| Memory slots | 4x |
| Performance Profile | Intel XMP 3.0 |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | No |
| Backplate | No |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| CPU Power Supply | 2x 8-Pin |
| USB 3.0 / 3.1 / 3.2 internal Type C Header | 1 |
| USB 3.0 internal Header | 2 |
| USB 2.0 internal Header | 2 |
| Front Panel Audio Header | Yes |
| USB4 Gen 3x2 external Type C | 2 |
| USB 3.1 external Type C | 1 |
| USB 3.0 external Type A | 2 |
| USB 2.0 external Type A | 4 |
| M.2 PCIe 4.0 x4 | 3 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G internal | 4 |
| Back Connect | No |
| PCIe x16 slots total | 1 |
| PCIe x4 slots total | 1 |
| PCIe x1 slots total | 1 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCIe 4.0 x4 mechanical slot | 1 |
| PCIe 4.0 x1 mechanical slot | 1 |
| 4 Pin Fan Connectors | 8 |
| Soundchip | Realtek ALC897 |
| Lighting / RGB | Yes |
