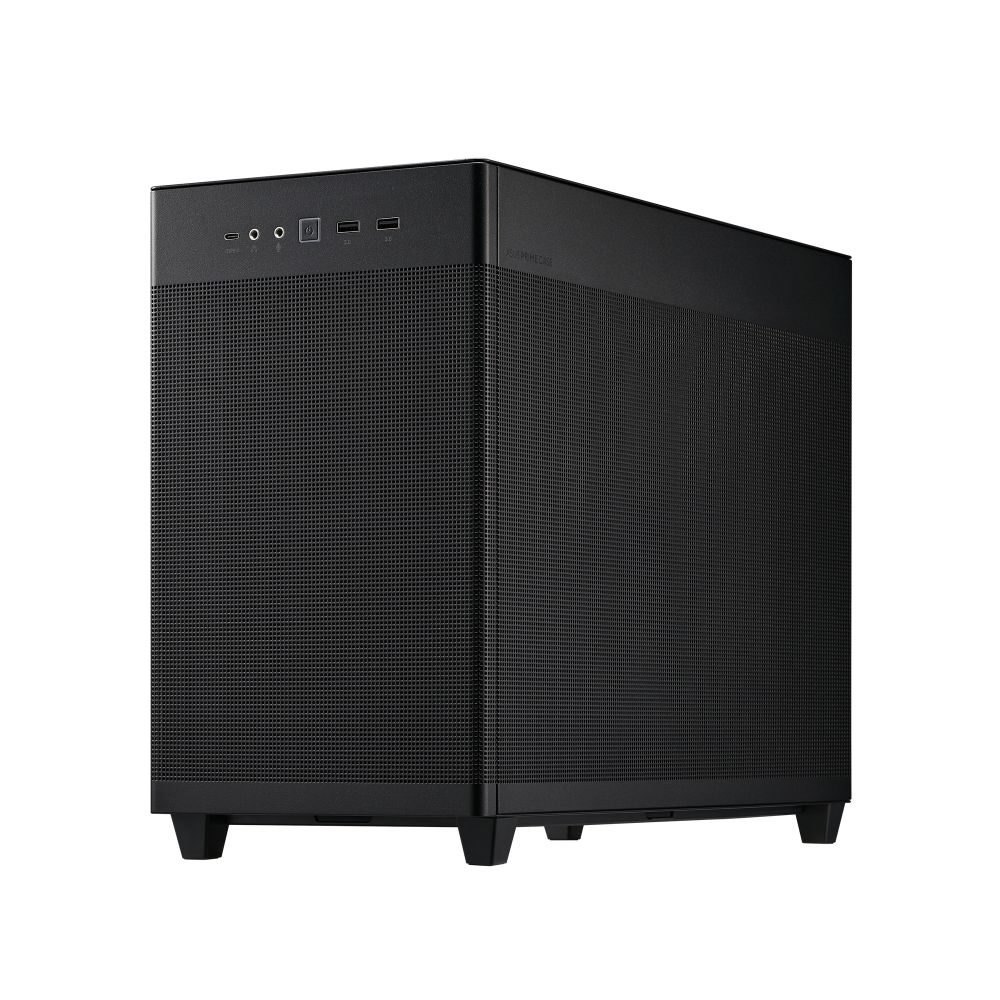

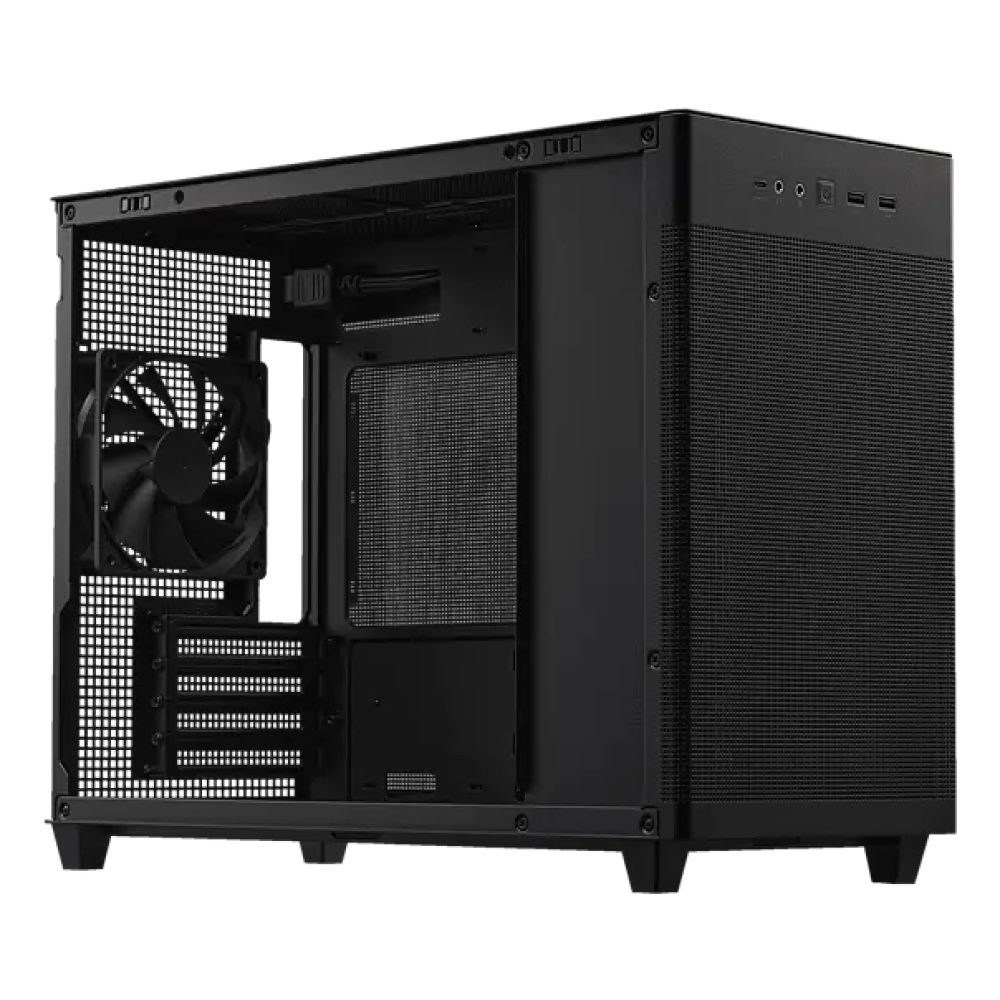

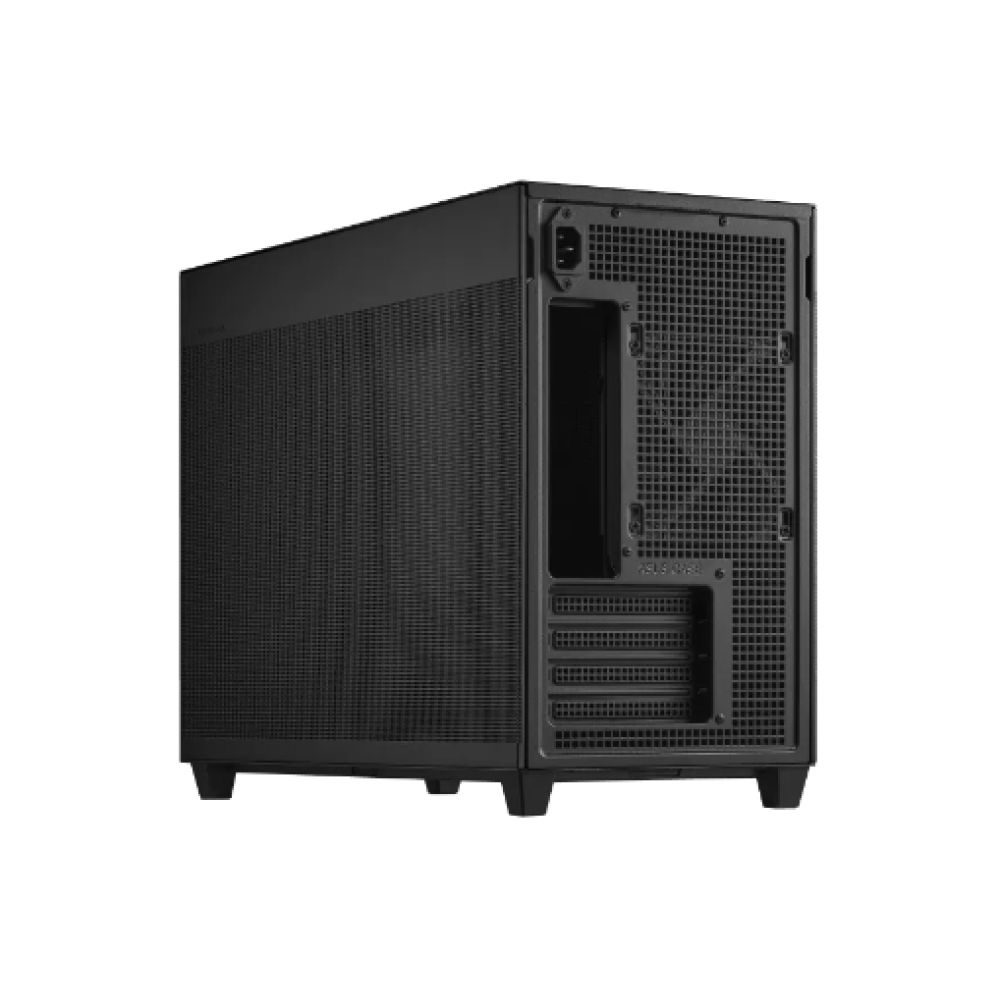

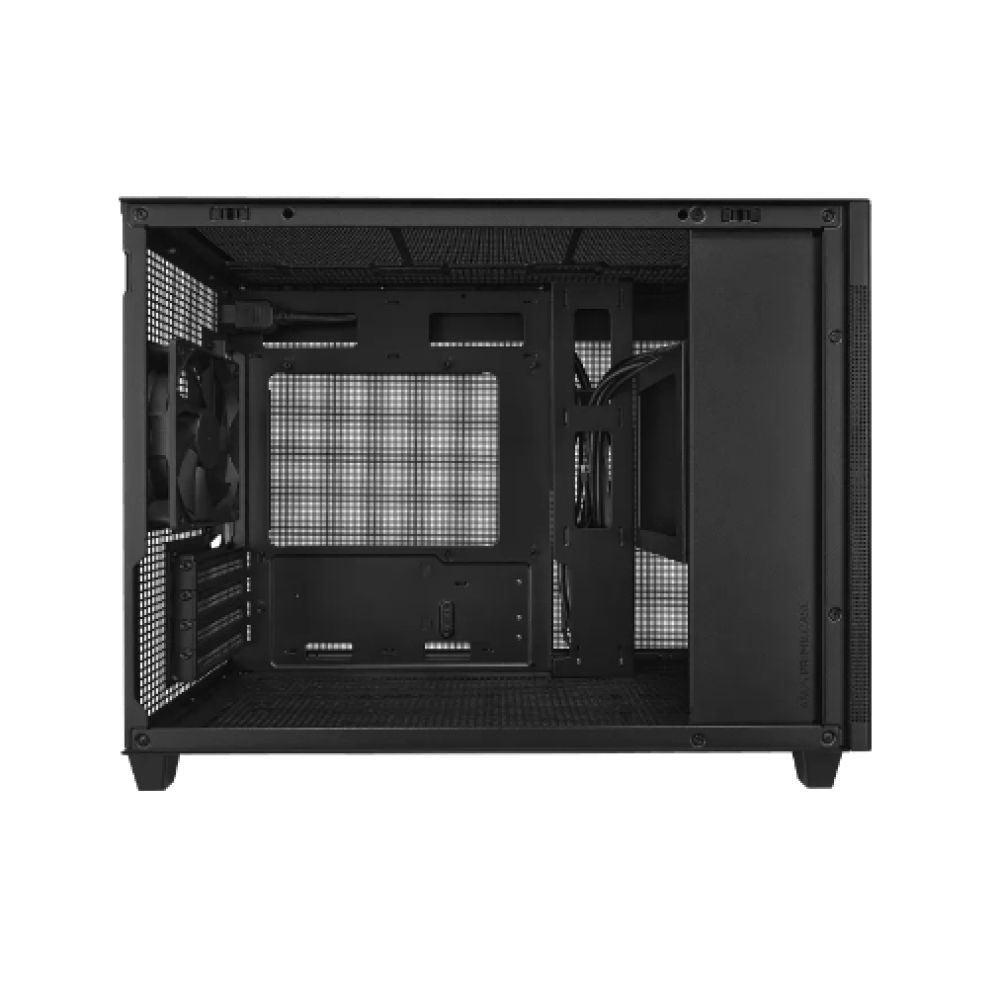

ASUS PRIME AP201 MicroATX Mini Tower Case Black

ASUS PRIME AP201 | MicroATX Mini Tower Expert Analysis

The ASUS PRIME AP201 MicroATX Mini Tower Black is a 33-litre chassis designed for builders seeking high-airflow performance in a compact footprint. This case targets users building powerful microATX systems who require support for large radiators and long graphics cards. It offers a minimalist aesthetic with tool-free access and robust cooling potential.

Compact Design with High-Performance Capacity

Despite its 33-litre volume, the AP201 supports standard ATX power supplies up to 180 mm long. It accommodates graphics cards up to 338 mm in length, fitting high-end GPUs without issue. The chassis also supports CPU coolers up to 170 mm tall. This spatial efficiency allows for a powerful build in a smaller desk footprint.

Optimised Airflow with Quasi-Filter Mesh

The mesh panels feature over 57,000 precision-machined 1.5mm holes. This design increases airflow while reducing dust ingress. It also provides a clear view of the internal components. The structure helps maintain lower temperatures during intensive tasks.

Extensive Cooling Support

The case supports 280 mm and 360 mm radiators in the top position. It also accommodates a 120 mm radiator at the rear. You can install up to six fans total for aggressive cooling setups. This flexibility suits both air-cooled and liquid-cooled builds.

Tool-Free Access and Maintenance

Both side panels use a secure clip mechanism rather than screws. This allows for quick access to the interior without tools. The bottom fan mounts include a removable dust filter. Cleaning is straightforward, helping maintain optimal airflow over time.

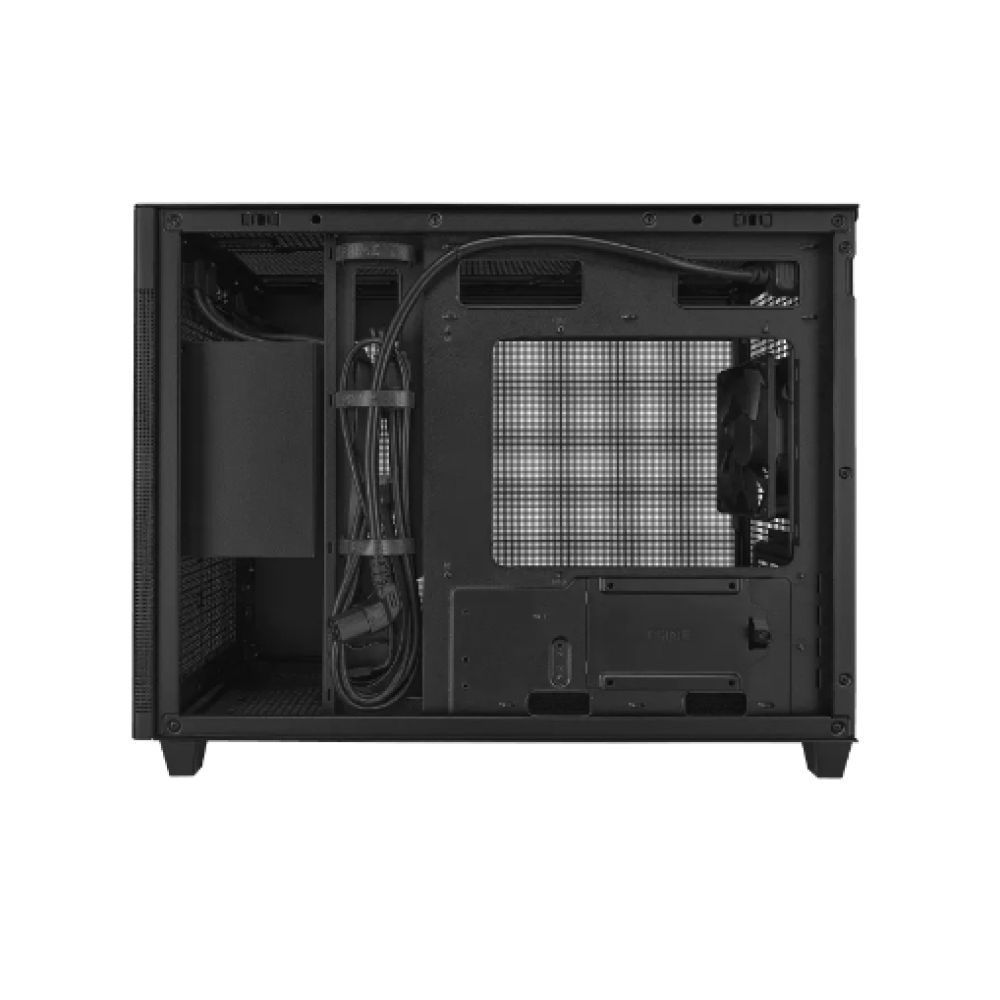

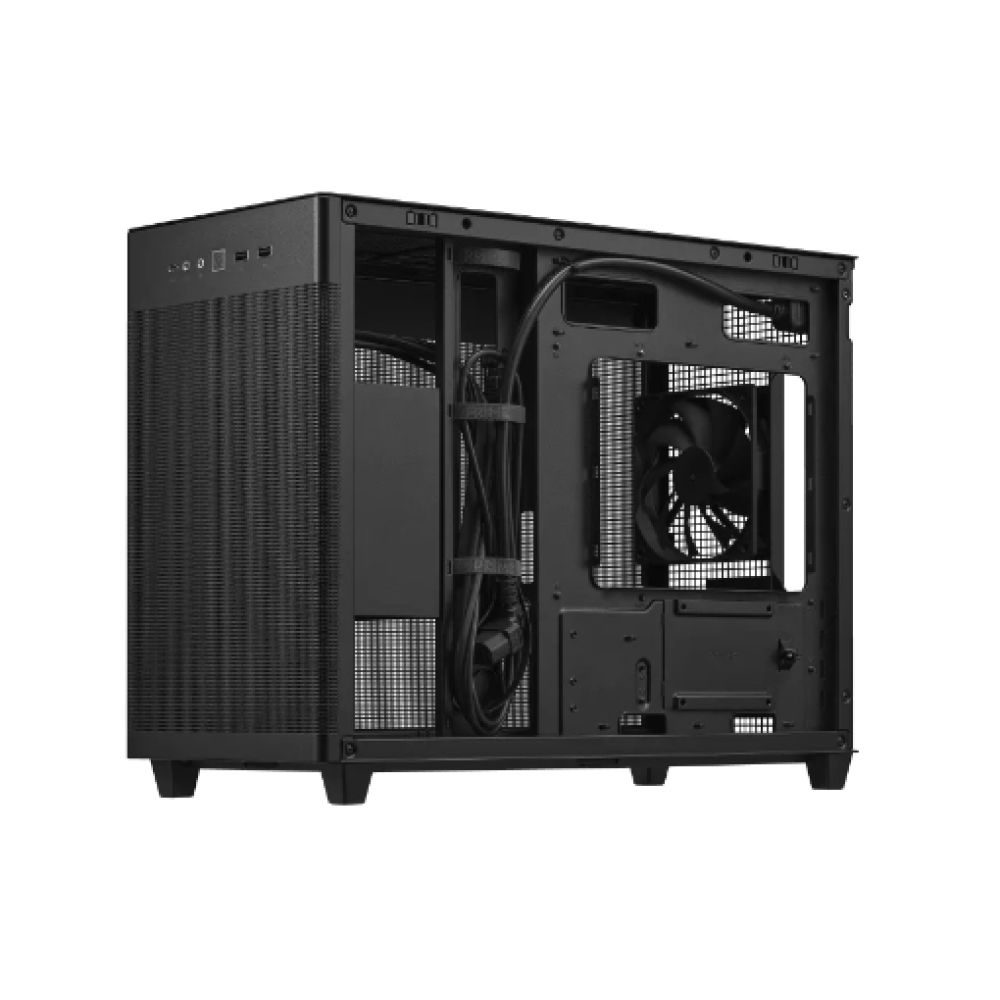

Connectivity and Cable Management

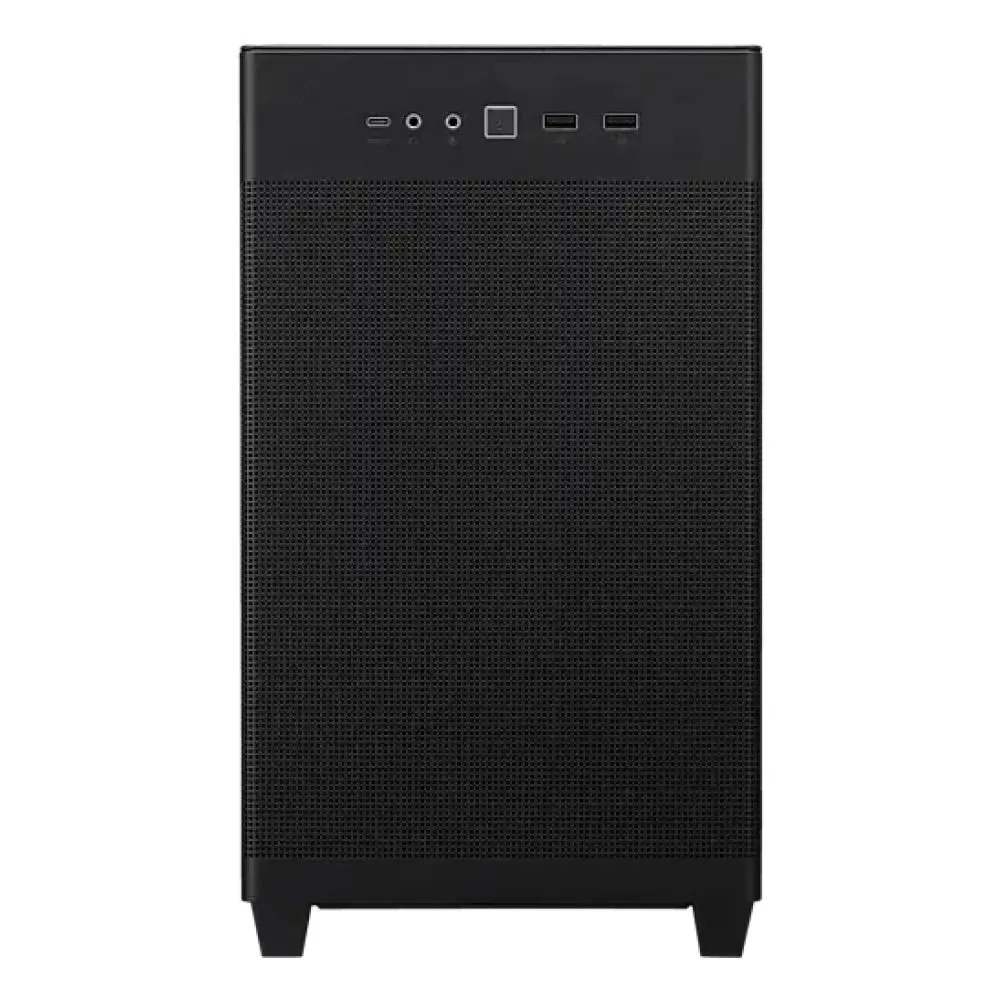

The front panel includes one USB 3.2 Gen 2 Type-C port and two Type-A ports. Transfer speeds reach up to 10 Gbps with compatible motherboards. An extended motherboard tray provides a 32 mm cable management gap. This helps create a clean internal layout.

Slim Specifications

Box contents

• ASUS PRIME AP201 MicroATX Mini Tower Black chassis
• Rear 120 mm fan (pre-installed)
• Accessory kit (screws and mounting hardware)
• User documentation

Check before you buy

• Confirm your motherboard fits the micro ATX or Mini-ITX form factors.
• Verify your graphics card length is under 338 mm.
• Check your PSU length does not exceed 180 mm.
• Confirm your CPU cooler height is under 170 mm.

Frequently Asked Questions

Q: Does the ASUS PRIME AP201 include a side window?

A: No, this model features solid side panels without a window for a minimalist look.

Q: What radiator sizes are supported?

A: It supports up to 360 mm radiators in the top and 120 mm at the rear.

Q: Are dust filters included?

A: Yes, the case includes a removable dust filter for the bottom fan mounts.

Q: Does it support standard ATX power supplies?

A: Yes, it supports ATX PSUs up to 180 mm in length.

Q: How many drives can I install?

A: It supports three 3.5-inch drives and one 2.5-inch drive.

Q: Is the USB Type-C port high-speed?

A: Yes, the front panel Type-C port is rated for USB 3.2 Gen 2 speeds.

The Consultant’s verdict & warranty

This case is ideal for builders wanting a compact MicroATX system with high-end cooling support. It suits users who value clean aesthetics and tool-free access. Covered by the standard Manufacturer Warranty.
