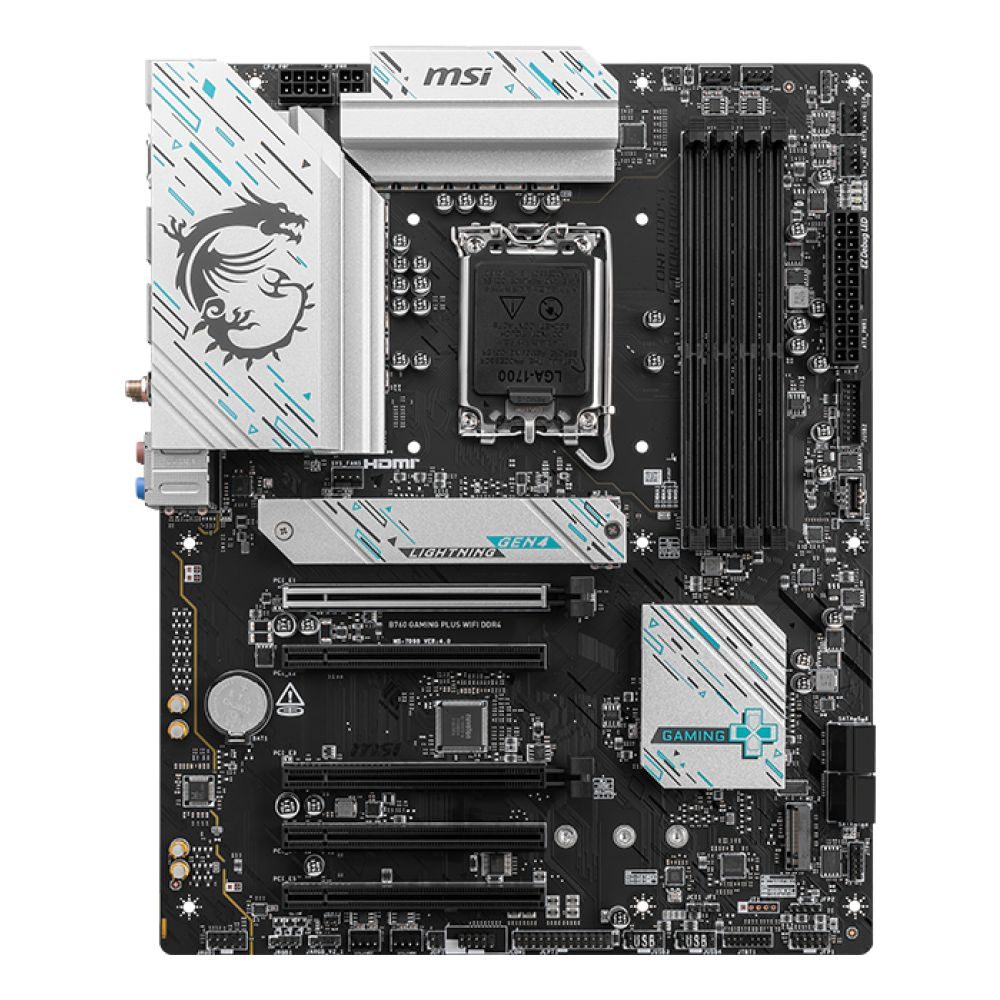

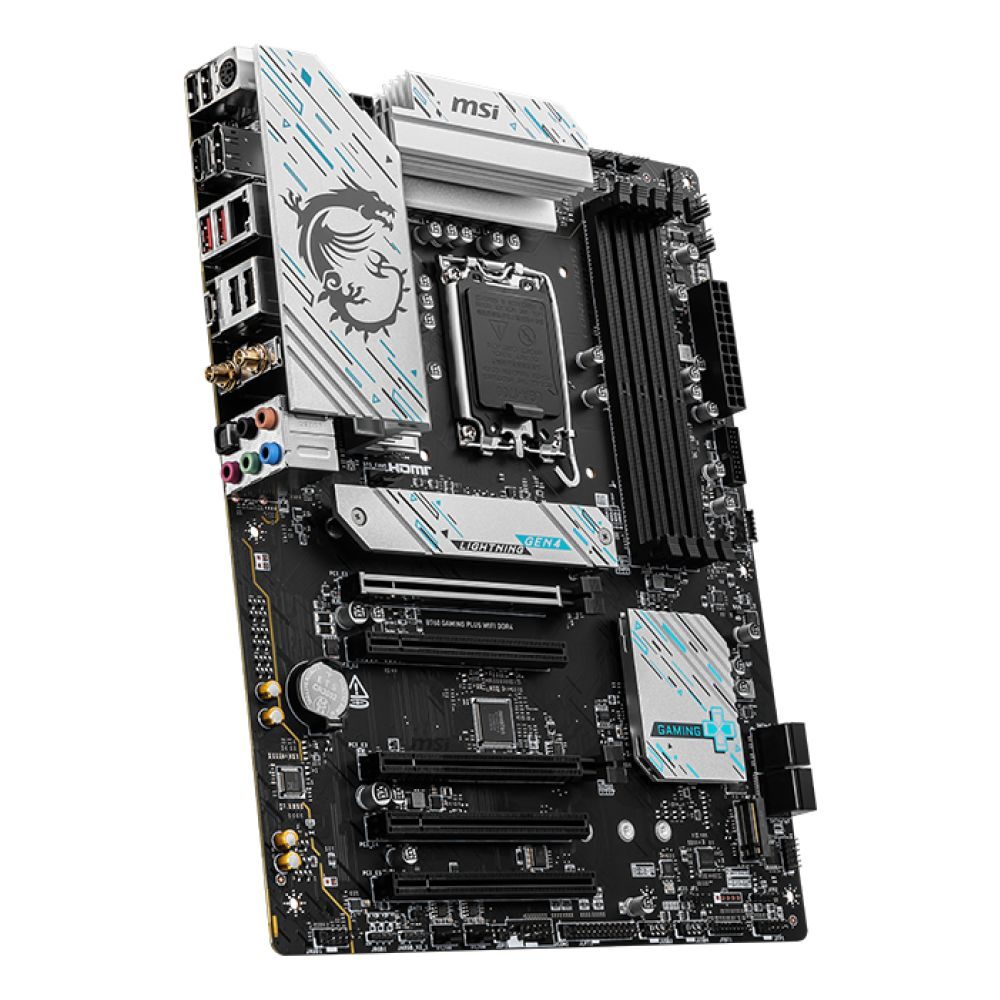

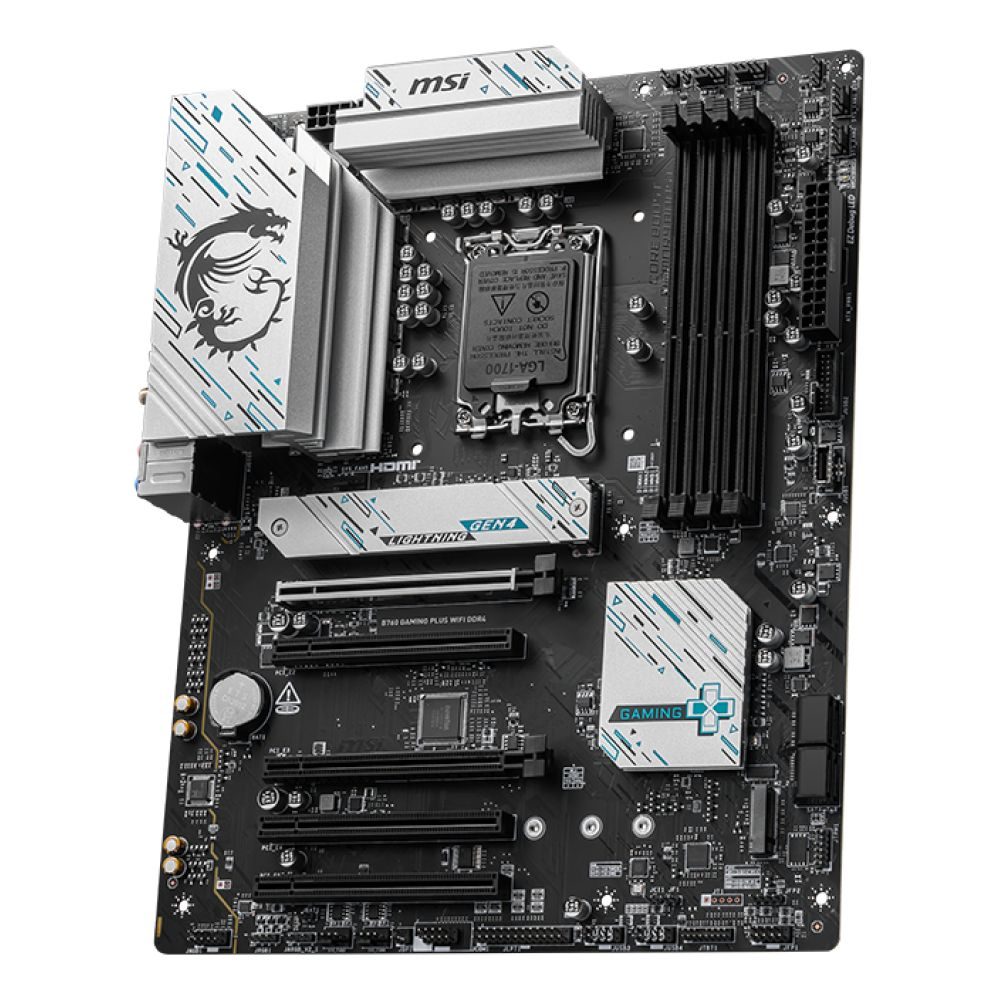

MSI B760 GAMING PLUS WIFI DDR4 ATX Motherboard LGA 1700
£128.67 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B760 chipset supporting LGA 1700 processors
- Four DDR4 DIMM slots up to 128 GB with dual-channel memory
- Two M.2 slots plus four SATA III connectors for storage
- PCIe 4.0 x16 graphics slot and additional PCIe x1 slots
- Wi-Fi 6 and 2.5G Ethernet networking with Bluetooth 5.3
- ATX form factor with HDMI 2.1 and 7.1-channel audio
Payment Methods:
You may also like
GIGABYTE B760 GAMING X Motherboard – Intel 14th Gen, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
MSI B760 GAMING PLUS WIFI DDR4 | ATX Gaming Motherboard
The MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX is built for UK gamers using Intel Core 14th, 13th, or 12th Gen processors. It offers DDR4 support, PCIe 4.0, and integrated Wi-Fi 6 for a balanced, high-performance foundation. This board suits builders who need reliable connectivity and thermal management without overspending.
MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
Slim Specifications
| Metric | Spec. |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Memory | 4x DDR4 DIMM, up to 128 GB |
| PCIe Slots | 2x Gen 4 x16, 3x Gen 3 x1 |
| M.2 Slots | 2x |
| Wi-Fi & LAN | Wi-Fi 6, 2.5G Ethernet |
Efficient Thermal Management
The extended heatsink design increases the surface area for heat dissipation. This ensures that even high-end processors can maintain full speed under load. The heavy-plated VRM heatsink covers the upper MOS components to further reduce temperatures.
Stable Storage Performance
Two M.2 slots support fast NVMe SSDs, and the M.2 Shield Frozr prevents thermal throttling. This keeps your storage running at peak speed during intensive gaming sessions. The board also supports RAID 0, 1, 5, and 10 for data redundancy or performance.
Robust Power Delivery
High-quality 7W/mK thermal pads are used for the MOSFETs and chokes. This design helps ensure all CPU cores run in high performance without overheating. The layout supports water cooling with a dedicated pump header.
Modern Connectivity Options

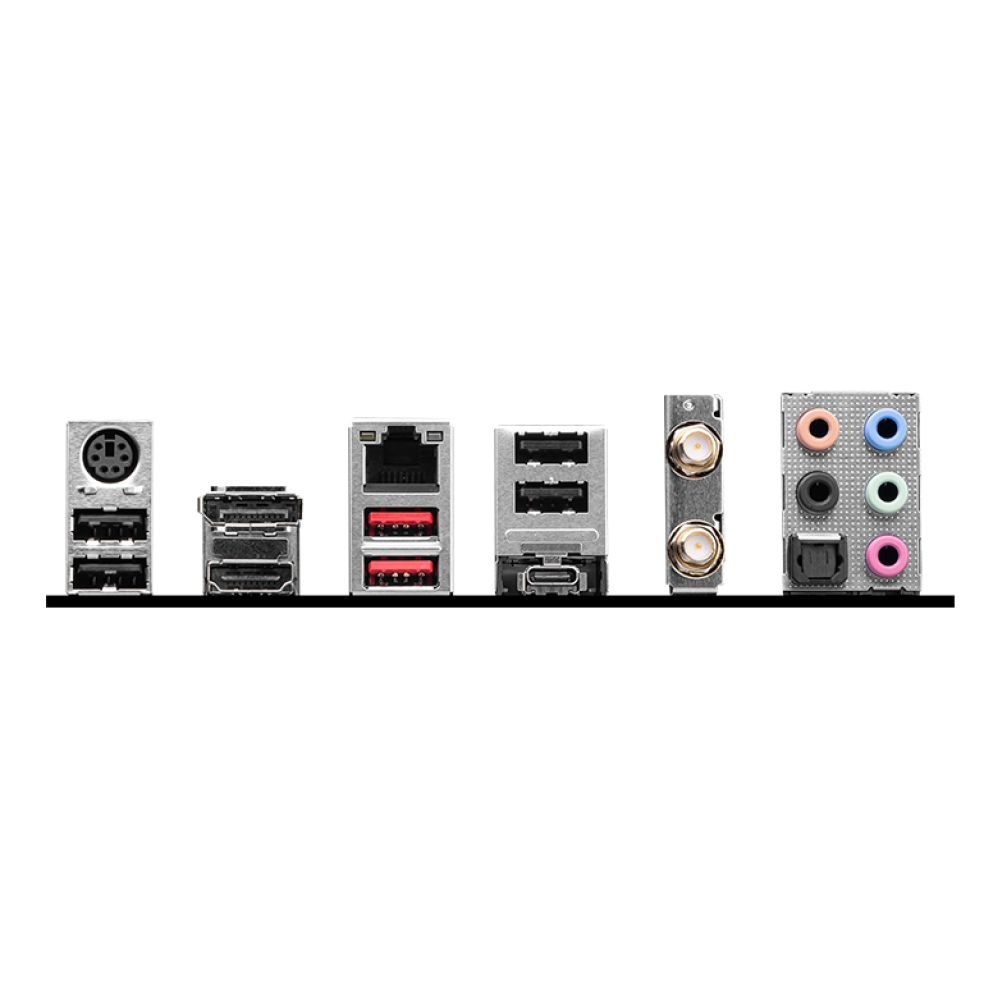

The board features Wi-Fi 6 and 2.5G LAN for low-latency networking. It includes USB 3.2 Gen 2 Type-C and Type-A ports for fast peripherals. HDMI 2.1 and DisplayPort 1.4 support modern displays.
DIY-Friendly Features
Strategic pin-header locations allow easy integration with MSI coolers and cases. The dedicated water pump header supports up to 3A for full pump speed control. A clearly marked keep-out-zone aids safe installation.

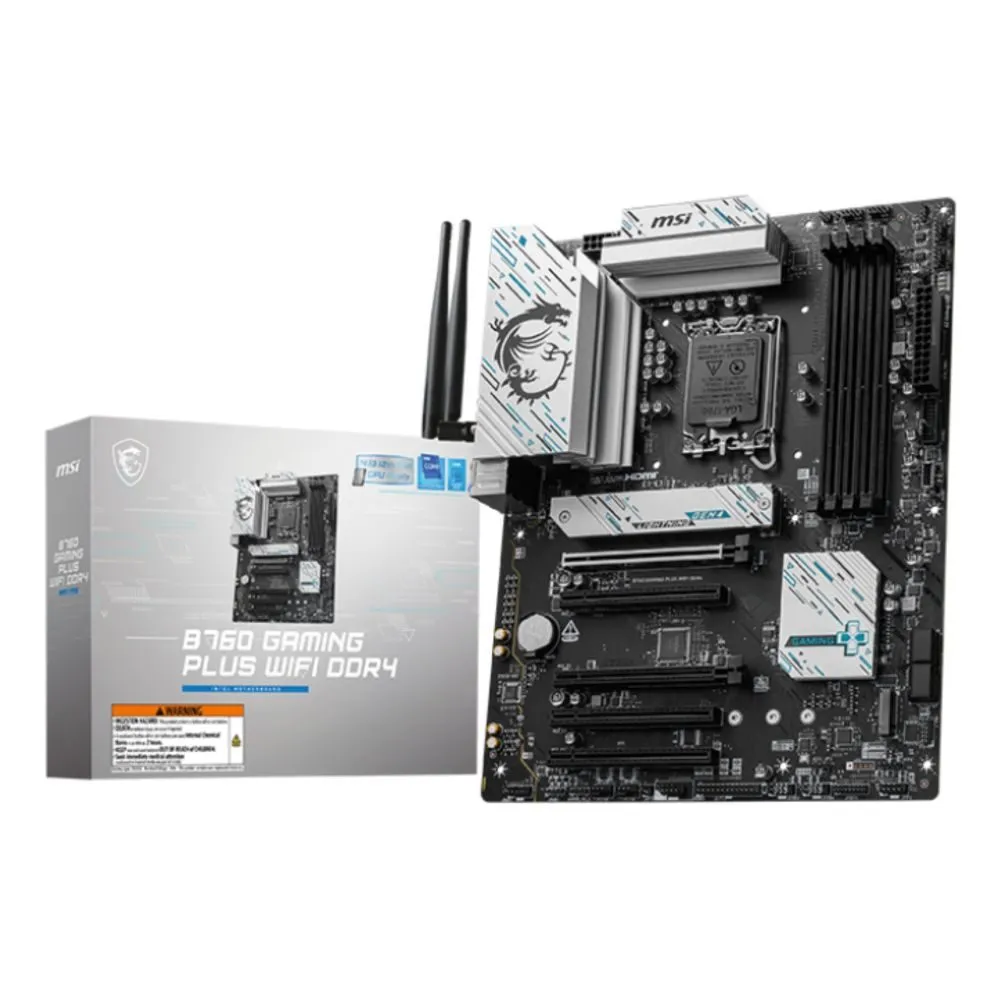

Box contents
- MSI B760 GAMING PLUS WIFI DDR4 motherboard
- SATA cables
- Wi-Fi antenna
- M.2 screw packages
- Quick start guide
- Driver DVD
- I/O shield
Check before you buy
- Confirm your case supports ATX form factor (243.8 mm x 304.8 mm).
- Verify your CPU is Intel LGA 1700 (Core 14th/13th/12th Gen, Pentium, or Celeron).
- Check that your DDR4 memory is on the QVL for optimal compatibility.
- Confirm Wi-Fi band requirements, as this board supports Wi-Fi 6 (802.11ax).
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: No, this model supports DDR4-SDRAM only.
Q: How many storage drives can I connect?
A: You can connect up to 6 storage drives via 2 M.2 slots and 4 SATA ports.
Q: Is Bluetooth available on this board?
A: Yes, it includes Bluetooth version 5.3.
Q: What is the maximum memory speed supported?
A: It supports DDR4 speeds up to 5333 MHz via overclocking.
Q: Does it have a TPM connector?
A: Yes, a TPM connector is included for enhanced security.
The Consultant’s verdict & warranty
This MSI board is ideal for UK gamers and builders seeking a solid Intel B760 platform with DDR4 compatibility and modern connectivity. It balances performance, cooling, and Wi-Fi convenience for mid-range to high-end builds. Covered by the standard Manufacturer Warranty.
