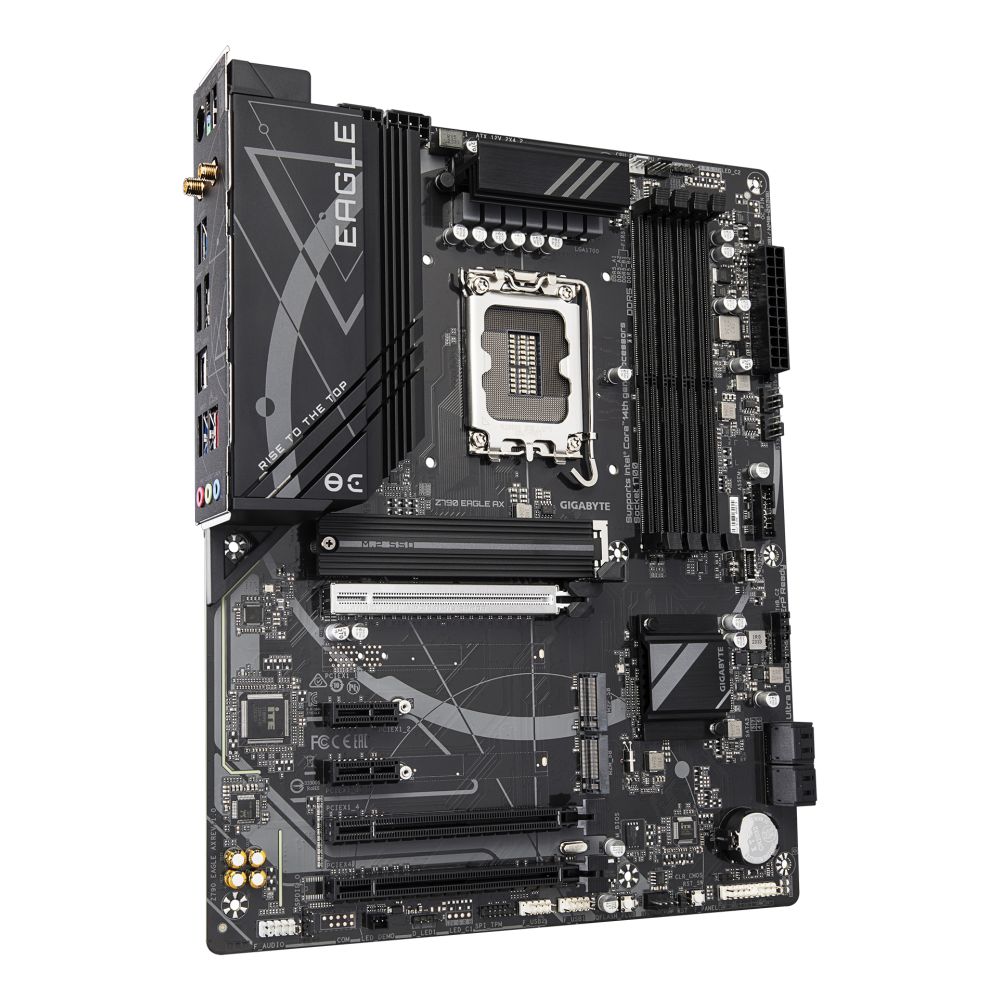

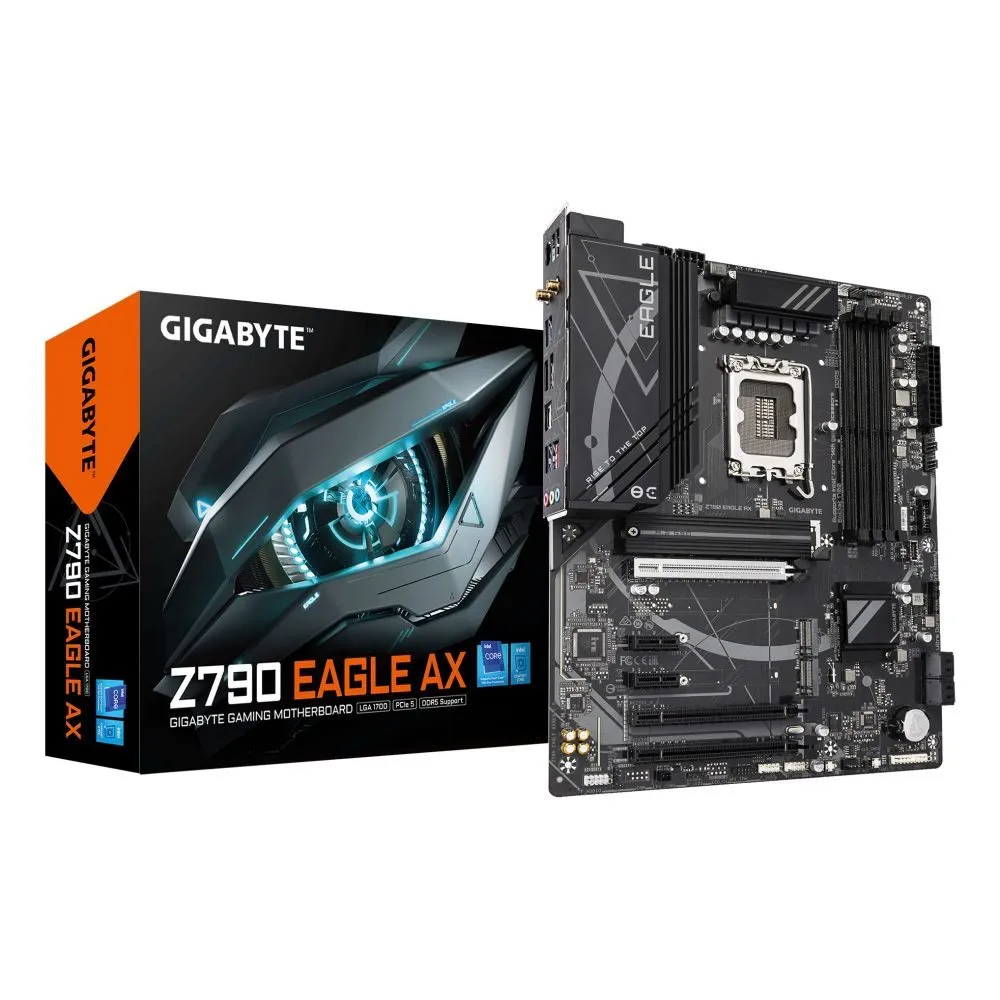

GIGABYTE Z790 EAGLE AX Motherboard
£177.34 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Supports Intel Core 14th Gen CPUs on LGA 1700 socket
- Up to 7600MHz DDR5 memory support (OC) with 4 DIMM slots
- 3x PCIe 4.0 M.2 slots and 4x SATA III connectors for storage
- Wi-Fi 6E, 2.5GbE LAN, and Intel AX211 wireless controller
- ATX form factor with 12+1+1 digital VRM phases for power delivery
Payment Methods:
You may also like
GIGABYTE H610M S2H V2 Motherboard – Intel Core 14th CPUs, DDR5, PCIe 3.0 M.2
In stock
GIGABYTE B760 GAMING X Motherboard – Intel 14th Gen, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
GIGABYTE Z790 EAGLE AX | Intel Z790 ATX Motherboard for 14th Gen CPUs
The GIGABYTE Z790 EAGLE AX Motherboard delivers robust performance for Intel Core 14th Gen processors, featuring a 12+1+1 phase digital VRM design, support for DDR5 memory up to 7600MHz (OC), and comprehensive connectivity including Wi-Fi 6E and 2.5GbE LAN. This ATX motherboard is engineered for enthusiasts and professionals seeking reliable performance with modern expansion capabilities.
GIGABYTE Z790 EAGLE AX Motherboard – Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
The Z790 EAGLE AX combines Intel’s latest platform with GIGABYTE’s proven engineering, offering excellent support for high-end processors and memory configurations. With three PCIe 4.0 M.2 slots, comprehensive USB connectivity, and advanced networking features, this motherboard provides a solid foundation for gaming, content creation, and professional applications.
Specifications
| Metric | Spec |
|---|---|
| Processor Support | Intel Core 14th Gen (LGA 1700) |
| Memory Support | DDR5, up to 7600MHz (OC), 192GB max |
| Storage | 3x M.2 PCIe 4.0, 4x SATA III |
| Networking | Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN |
| Expansion | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
Advanced Power Delivery for Stable Performance
The 12+1+1 phase digital VRM configuration ensures consistent power delivery to your Intel Core 14th Gen processor, even under heavy workloads. This robust power design maintains stable voltages during demanding tasks like gaming, 3D rendering, or video editing, preventing performance throttling and system instability. The digital implementation allows for precise control and monitoring of power delivery, contributing to both performance and longevity.
DDR5 Memory Support Up to 7600MHz
With support for DDR5 memory speeds up to 7600MHz (overclocked), the Z790 EAGLE AX provides exceptional bandwidth for memory-intensive applications. The four DIMM slots support up to 192GB of DDR5-SDRAM, allowing for extensive multitasking and large dataset handling. Dual-channel architecture optimizes memory performance, while ECC compatibility ensures data integrity for professional workloads.
Comprehensive Storage and Expansion Options
Three PCIe 4.0 M.2 slots offer ultra-fast NVMe SSD storage solutions, with RAID support enabling performance or redundancy configurations. The four SATA III ports accommodate additional drives, supporting both HDD and SSD storage types. Multiple PCIe slots (including one PCIe 5.0 x16) provide flexibility for graphics cards, capture cards, or other expansion devices, making this motherboard suitable for complex build configurations.
Modern Connectivity and Networking

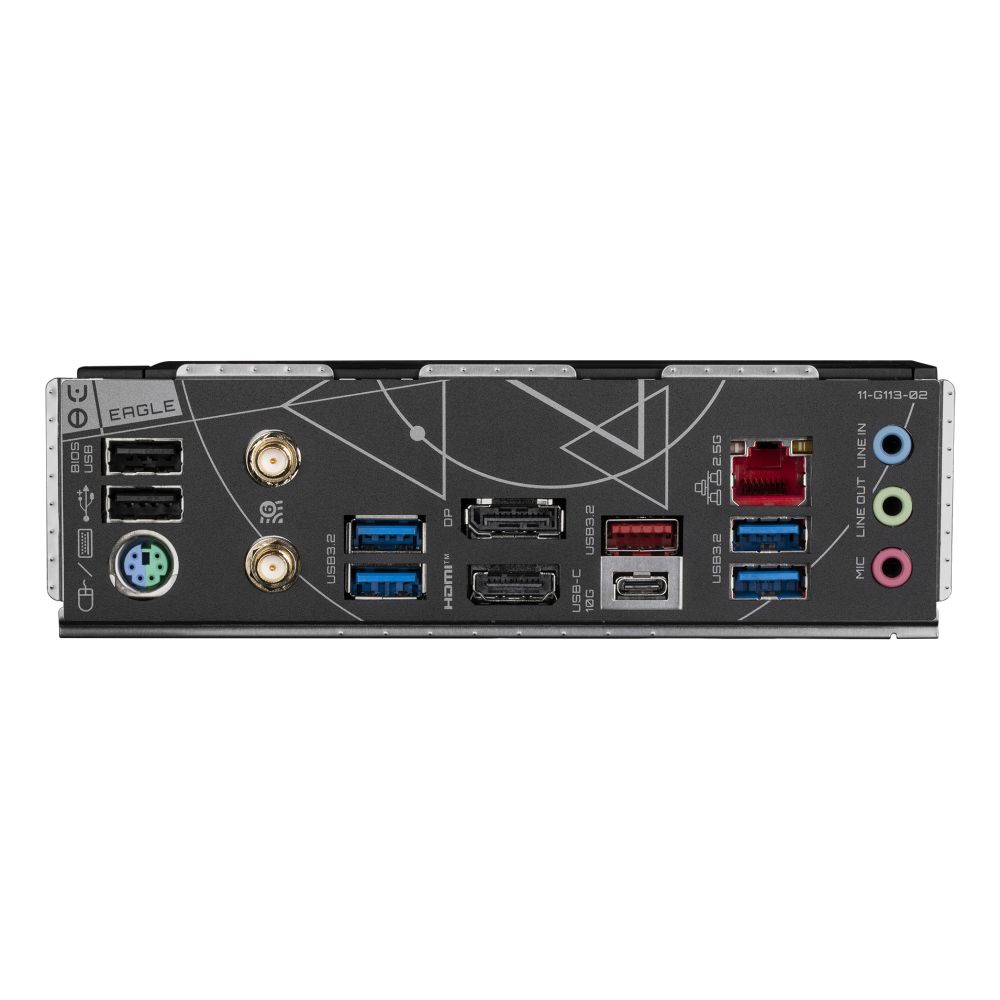

Integrated Wi-Fi 6E and Bluetooth 5.3 provide wireless connectivity with support for the latest 6GHz band, offering reduced interference and improved speeds. The 2.5GbE LAN port delivers fast wired networking capabilities, while multiple USB ports (including USB 3.2 Gen 2×2 Type-C) ensure compatibility with modern peripherals. HDMI 2.1 and DisplayPort outputs support high-resolution displays for multi-monitor setups.
What is in the box
- GIGABYTE Z790 EAGLE AX Motherboard
- I/O Shield
- SATA Cables (quantity not specified)
- M.2 Screws
- User Manual
- Driver/Utility Disk
- Warranty Document
Check before you buy
- Confirm your Intel Core 14th Gen processor is compatible with LGA 1700 socket
- Verify your DDR5 memory modules are supported at desired speeds
- Check that your case supports ATX motherboard dimensions (305 x 244mm)
- Ensure your power supply has adequate PCIe and ATX power connectors
Questions and answers
Does this motherboard support Windows 11?
What type of memory does this motherboard support?
How many M.2 slots are available?
Does it have built-in Wi-Fi?
What is the warranty period?
Summary & warranty
The GIGABYTE Z790 EAGLE AX represents a solid choice for users building systems around Intel’s 14th Gen processors who need reliable performance without premium pricing. Its combination of robust power delivery, DDR5 support, and comprehensive connectivity makes it suitable for gaming, content creation, and professional applications. The three M.2 slots and RAID support provide excellent storage flexibility, while Wi-Fi 6E and 2.5GbE networking ensure modern connectivity options. Covered by the applicable manufacturer warranty.
| Weight | 1.75 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 192 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 7600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Brown |
| Number of M.2 M slots | 3 |
| PCI Express x1 Gen 3.x slots | 2 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Batteries included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.81 kg |
