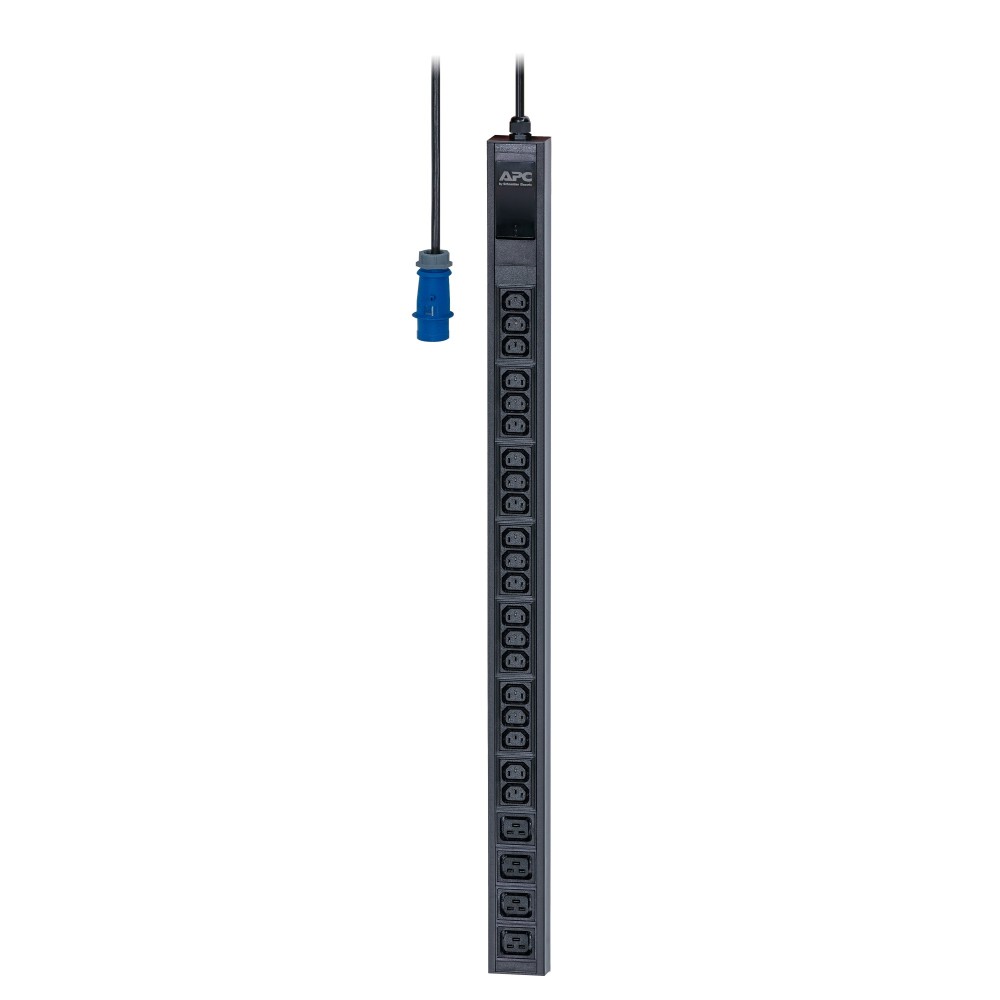

APC Easy Rack EPDU1116B Basic PDU Vertical 0U 230V 16A 3.7kW 20 C13 4 C19 IEC60309 Black
Original price was: £309.59.£294.01Current price is: £294.01.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Vertical rack mountable 0U PDU with aluminium housing
- 24 AC outlets including 20 C13 and 4 C19 couplers
- 3680 W maximum power capacity at 230 V nominal output
- IEC 60309 2P+E inlet type with 3 m cable length
- Ultra lightweight 2.2 kg design with toolless mounting kit included
- Operating temperature range of 0 to 45 °C for data centre use
- 1 year standard warranty with installation guide and manual provided
You may also like
APC AP6015A Basic Rack Power Distribution Unit 8 Outlets 2300W 3.65m Cable Black
In stock
APC AP6020A Power Distribution Unit 13 C13 Outlets C20 Input 0U 1U Rack Mount Black 3680W 20A
In stock
APC Easy Rack EPDU1116B – Vertical Power Distribution Unit
We recommend the APC Easy Rack EPDU1116B Basic PDU Vertical 0U 230V 16A 3.7kW 20 C13 4 C19 IEC60309 Black for dense server environments. This unit offers reliable power without consuming rack space. Its vertical design fits behind cabinets easily.
Core performance numbers
| Metric | Spec. |
|---|---|
| Max Power | 3.7kW |
| Total Outlets | 24 |
| Input Voltage | 230V |
| Height | 902mm |
| Weight | 2.2kg |
Zero rack unit footprint
It mounts vertically to save valuable space. This preserves room for IT equipment. You keep your rack organised.
Versatile outlet configuration
It provides 20 C13 and 4 C19 sockets. Different devices connect without adapters. This flexibility supports mixed loads.
Robust aluminium construction
The housing stays light yet durable. Weight reduces to just 2.2kg. Handling during installation becomes simpler.
Full details for the APC Easy Rack EPDU1116B Basic PDU Vertical 0U 230V 16A 3.7kW 20 C13 4 C19 IEC60309 Black
This heading confirms the model identity clearly. We match inventory to your order exactly. Every spec aligns with your needs.
What comes in the package
You receive an installation guide with the unit. A toolless mounting kit helps assembly. Brackets ensure secure fit in enclosures.
Before you finalise the order
Confirm your rack has vertical rails. Verify voltage compatibility with your facility. Check total current draw requirements.
Frequently Asked Questions
Q: Does this unit use 0U space?
A: Yes, it uses zero rack units by mounting vertically.
Q: What is the total current rating?
A: It supports a maximum current of 16 amps.
Q: Can I mix cable types?
A: Yes, it offers both C13 and C19 outlets.
Q: Is the cable detachable?
A: The 3m power cable is permanently attached.
Our final recommendation
This unit serves compact data rooms well. It delivers solid power management. Buy if you need space saving.
| Design | |
|---|---|
| On/off switch | No |
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Rack capacity | 0U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Features | |
| Cable length | 3 m |
| Ergonomics | |
| Cable length | 3 m |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 902 mm |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Package weight | 2.98 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Package weight | 2.98 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 55.85 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 55.85 |
| Identifiers | |
| Additional EANs | 7612205348219 |
