GIGABYTE A520I AC Motherboard – AMD Ryzen 5000, DDR4, PCIe 3.0 M.2
Original price was: £115.19.£107.21Current price is: £107.21.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- AMD A520 chipset for Ryzen 5000 series AM4 CPUs
- mini ITX form factor with 2 DDR4 DIMM slots, up to 5300MHz (OC)
- 1x PCIe 3.0 M.2 slot + 4x SATA III connectors, RAID 0/1/10 support

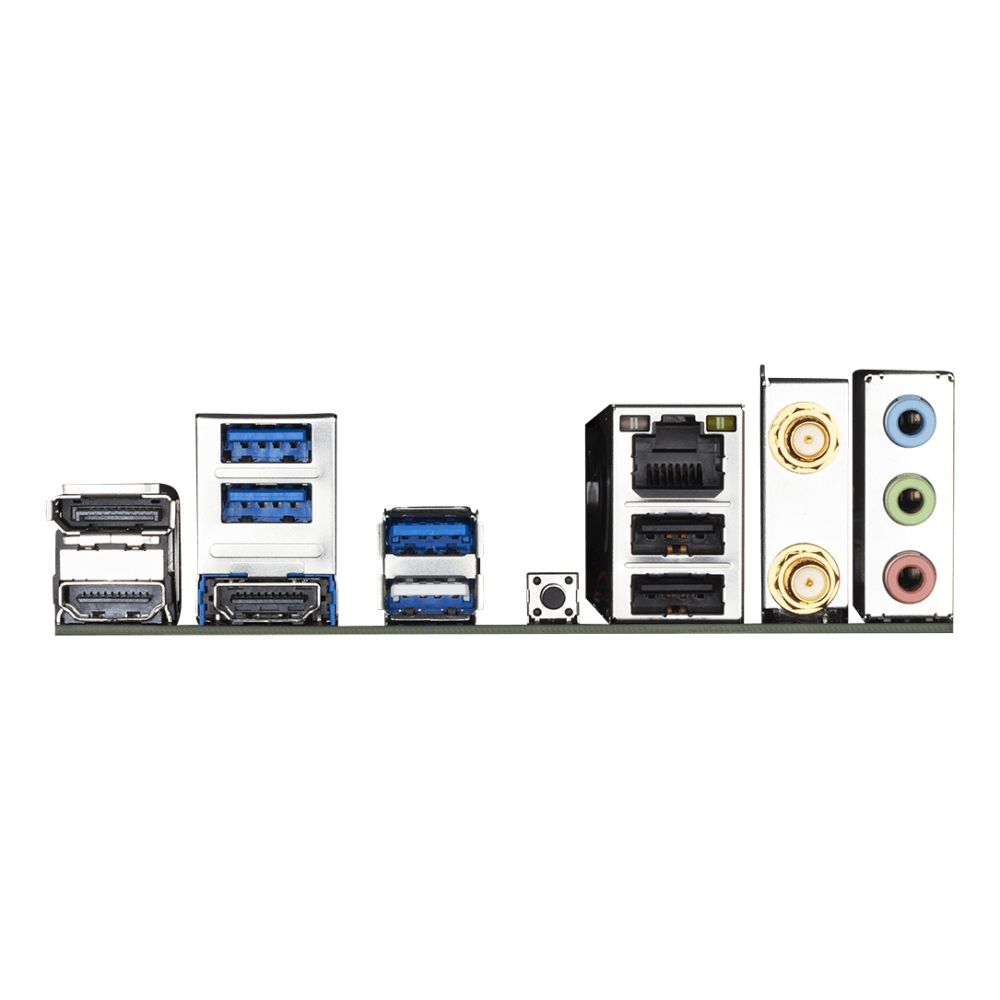

- Wi-Fi 5, Gigabit Ethernet, Bluetooth 4.2, HDMI 2.1, DP 1.4
- Realtek ALC887 7.1 audio, 4x USB 3.2 Gen 1, 2x USB 2.0
You may also like
GIGABYTE B550M K Motherboard – AMD Ryzen 5000, DDR4-4733, PCIe 4.0/3.0 M.2, 1GbE, USB 3.2 Gen 1
In stock
Asrock B550 Phantom Gaming 4 ATX Motherboard
In stock
GIGABYTE A520M H AM4 mATX Motherboard – DDR4
In stock
ASUS PRIME A520M-A II/CSM micro ATX motherboard
In stock
Gigabyte A520M DS3H WIFI6E AM4 mATX Motherboard, 4xDDR4, Wi-Fi 6E
In stock
Asrock B550M Pro4 micro ATX motherboard
In stock
ASRock A520M-HVS Micro-ATX AMD AM4 Motherboard
In stock
MSI B550-A PRO AMD B550 ATX Motherboard
In stock
GIGABYTE B550M GAMING X WIFI6 Motherboard
In stock

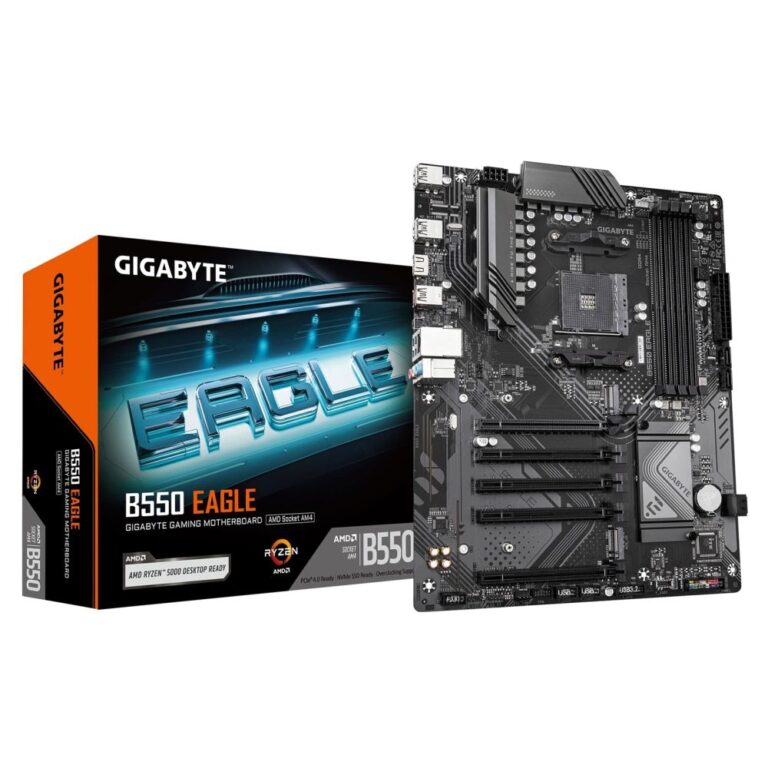

GIGABYTE B550 EAGLE WIFI6 Motherboard – AMD Ryzen 5000, 10+3+1 VRM, 3200MHz DDR4, PCIe 4.0/3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2
In stock
ASUS TUF GAMING A520M-PLUS II micro ATX motherboard
In stock
ASUS PRIME B550-PLUS AMD B550 ATX Motherboard Socket AM4
In stock

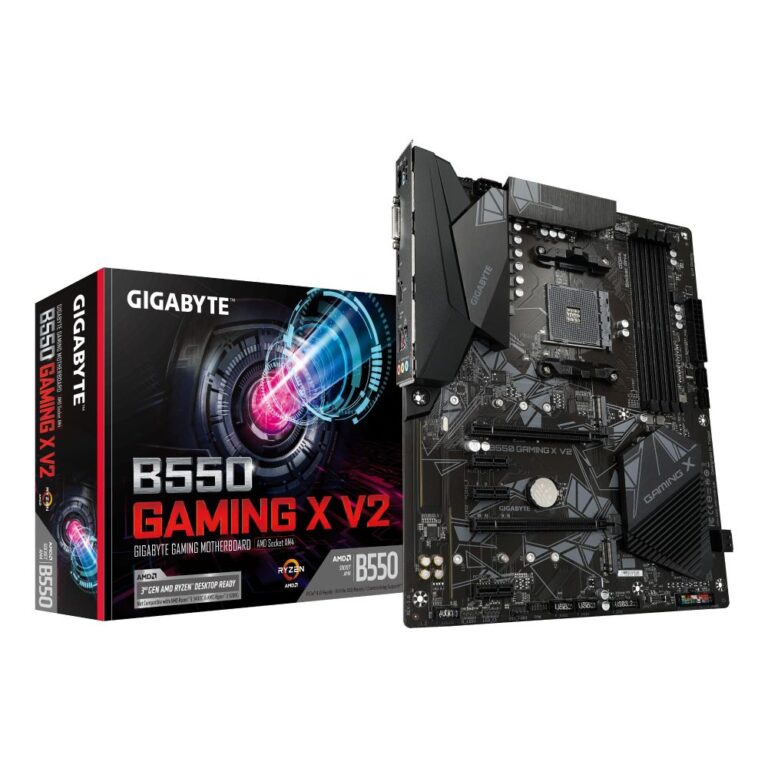

GIGABYTE B550 Gaming X V2 Motherboard
In stock
MSI A520M-A PRO AMD AM4 micro ATX motherboard
In stock
Asrock A520M-ITX/ac AM4 micro ATX
In stock
Asrock B550M-ITX/ac Mini ITX Motherboard
In stock

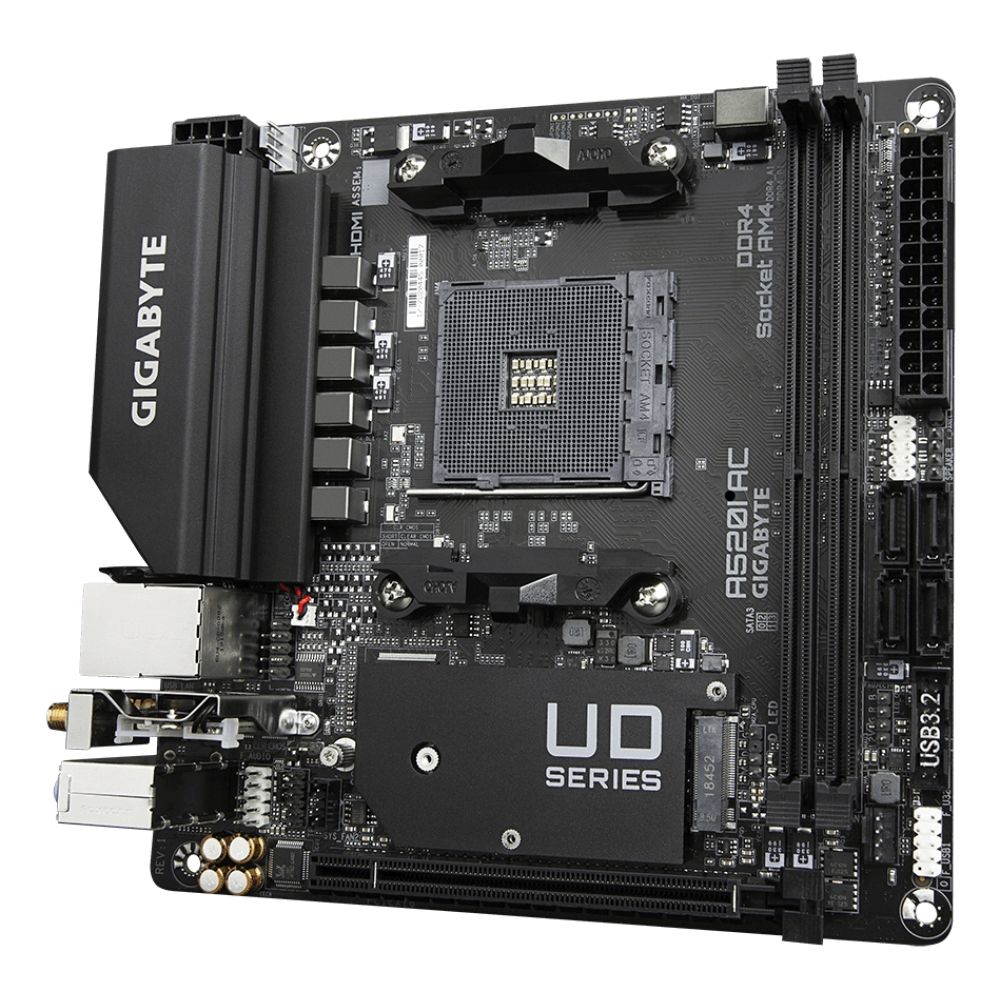

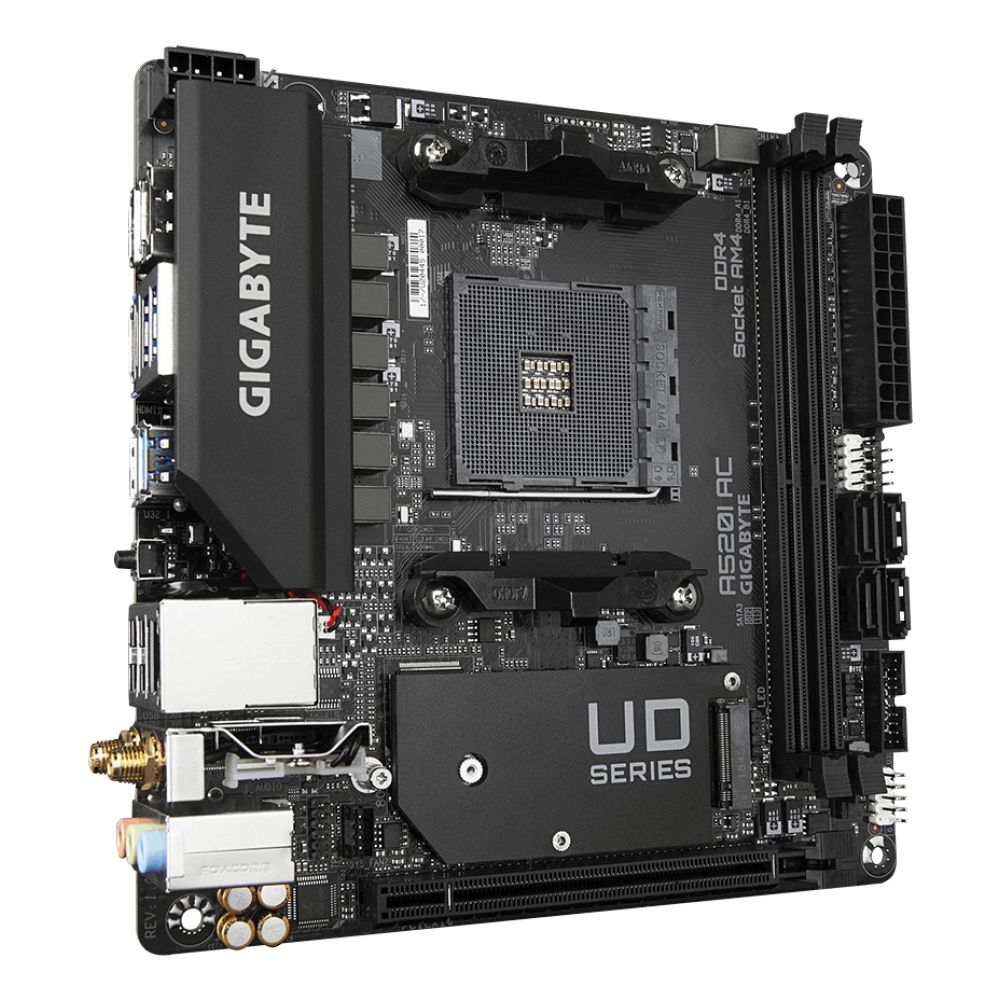

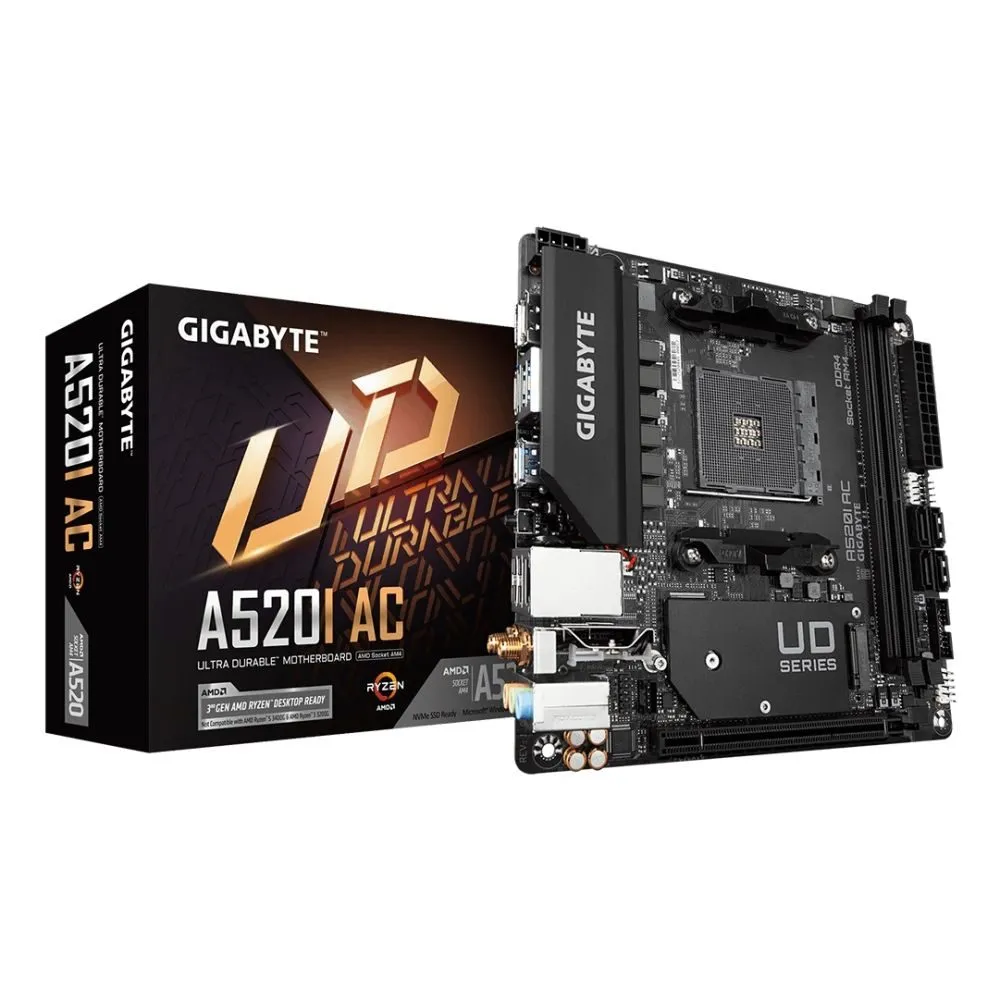

GIGABYTE A520I AC | Compact AMD Ryzen Motherboard
The GIGABYTE A520I AC Motherboard – Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1 delivers premium mini-ITX performance for compact AMD Ryzen builds. With built-in Wi-Fi, Gigabit Ethernet, and robust VRM cooling, it’s ideal for small-form-factor gaming and productivity systems.
| Metric | Spec |
|---|---|
| Form Factor | Mini-ITX |
| Memory Support | DDR4 up to 5300MHz (OC) |
| Storage | 1x M.2, 4x SATA III |
| Expansion | 1x PCIe 3.0 x16 |
| Networking | Wi-Fi 5, Bluetooth 4.2, GbE LAN |
Compact design, full-featured connectivity
Despite its mini-ITX footprint, this board packs extensive connectivity including dual HDMI 2.1 outputs, DisplayPort 1.4, and support for up to three simultaneous displays. The integrated Wi-Fi 5 (802.11ac) and Bluetooth 4.2 eliminate the need for additional adapters, keeping your build clean and cable-free.
Robust power delivery for Ryzen performance
The 6-phase digital VRM design ensures stable power delivery to AMD Ryzen 5000 Series processors, even during demanding workloads. Combined with comprehensive PC health monitoring for fan speeds, temperature, and voltage, you can maintain optimal system performance and longevity.
High-speed storage and memory capabilities
Support for up to 64GB DDR4 memory across two DIMM slots, with speeds reaching 5300MHz when overclocked, provides ample headroom for intensive applications. The single M.2 slot supports the latest NVMe SSDs for lightning-fast storage performance, complemented by four SATA III ports for additional drives.
Built-in audio and RGB customisation
The Realtek ALC887 audio chipset delivers 7.1-channel HD sound for immersive gaming and media experiences. RGB LED headers allow you to synchronise case lighting with compatible components, adding a personal touch to your build’s aesthetics.
In the box
- GIGABYTE A520I AC Motherboard
- I/O Shield
- User Manual
- Driver DVD
- SATA Cables
- M.2 Heatsink
- Wi-Fi Antennas
Before you order
- Confirm your CPU is compatible with Socket AM4 and the A520 chipset
- Verify your case supports mini-ITX motherboards (170mm x 170mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your RAM is DDR4 and compatible with the board’s memory speeds
Buyer FAQs
Does this motherboard support Ryzen 5000 Series CPUs out of the box?
Can I use ECC memory with this motherboard?
How many M.2 drives can I install?
What RAID configurations are supported?
Does it have built-in Wi-Fi and Bluetooth?
Summary & warranty
The GIGABYTE A520I AC offers exceptional value for compact AMD Ryzen systems, combining robust power delivery, comprehensive connectivity, and wireless capabilities in a mini-ITX form factor. Perfect for space-conscious gamers and professionals seeking reliable performance without sacrificing features. Covered by the applicable manufacturer warranty.
| Weight | 0.8 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Front panel connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Audio connector | Yes |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 64 GB |
| Compatible processor series | AMD Ryzen 3000 Series |
| Processor socket | Socket AM4 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 5300 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 3 |
| HDMI ports quantity | 2 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 4.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC887 |
| Product colour | Black |
| Number of M.2 M slots | 1 |
| PCI Express x16 slots | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 170 mm |
| Depth | 170 mm |
| Batteries included | Yes |
| Height | 35 mm |
| Package width | 222 mm |
| Package depth | 189 mm |
| Package height | 78 mm |
| Package weight | 800 g |
