GIGABYTE B550M DS3H AC R2 Motherboard
£89.66 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B550 chipset for Ryzen 3000/4000/5000 series processors
- 4 DIMM slots supporting up to 128GB DDR4-4733 (OC) memory
- 2 M.2 slots (1x PCIe 4.0, 1x PCIe 3.0) plus 4 SATA III connectors
- Micro ATX form factor with passive cooling design
- Wi-Fi 5, Bluetooth 5.0, and 1GbE LAN connectivity
Payment Methods:
You may also like

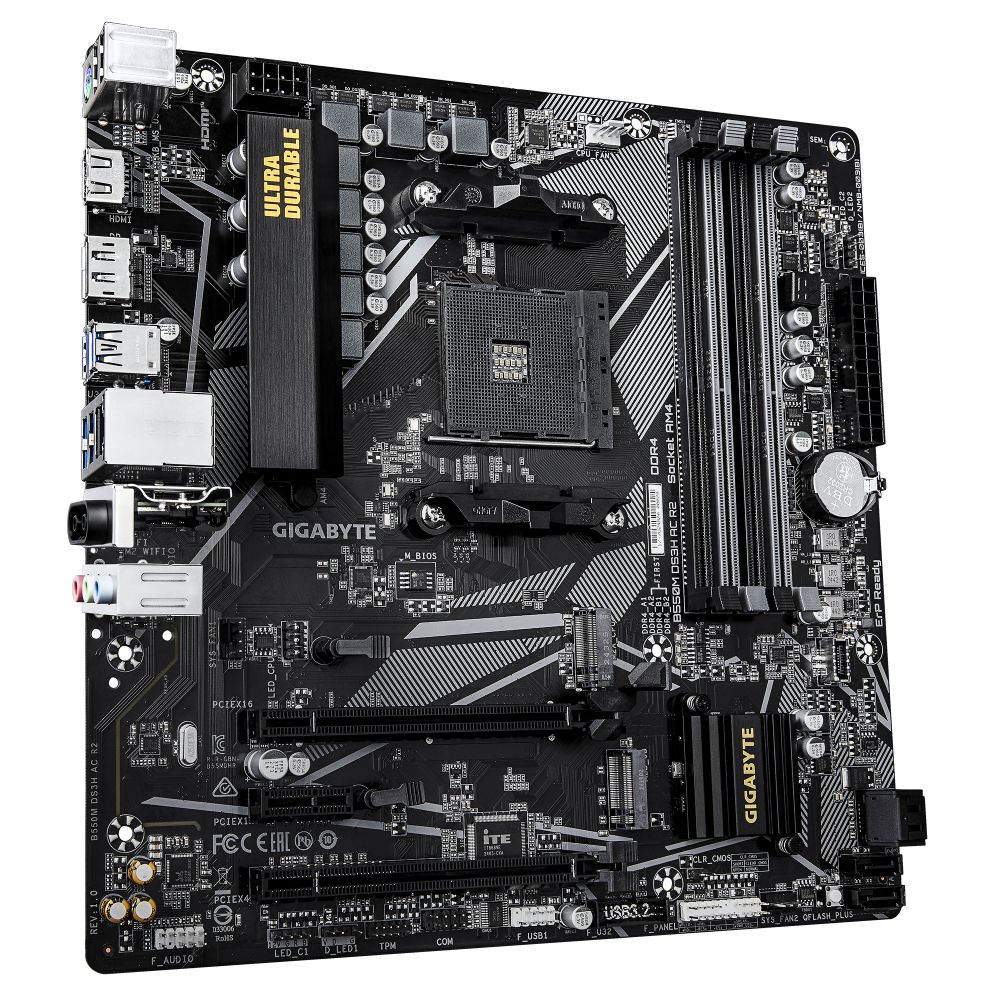

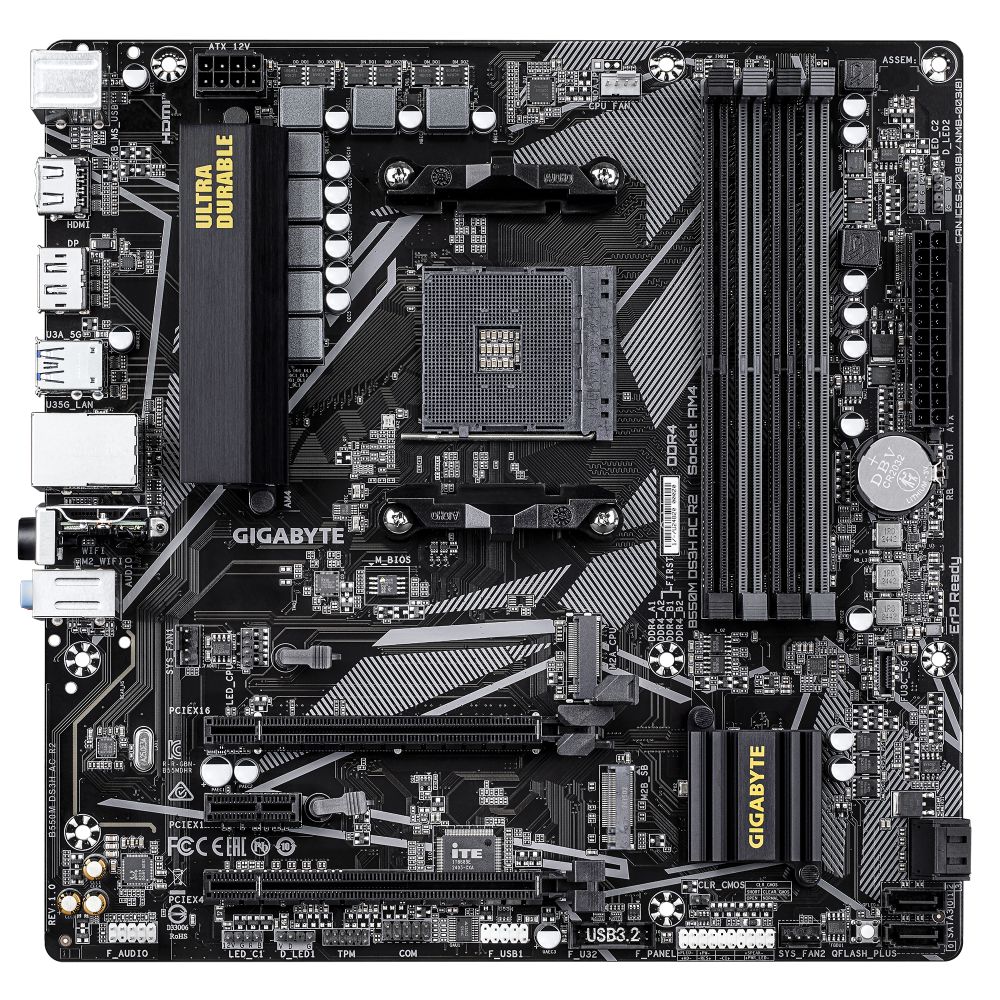

GIGABYTE B550M DS3H AC R2 | Compact AMD Powerhouse
The GIGABYTE B550M DS3H AC R2 Motherboard delivers a robust foundation for AMD Ryzen 5000 CPUs, featuring a 5+3 phase VRM design and support for up to 4733MHz DDR4 memory. This micro ATX board combines PCIe 4.0 and 3.0 M.2 slots with Wi-Fi 5, Gigabit LAN, and USB 3.2 Gen 1 connectivity, making it ideal for compact gaming rigs and productivity builds where performance and reliability matter.
| Metric | Spec. |
|---|---|
| CPU Support | AMD Ryzen 3000/4000/5000 Series |
| Memory Capacity | Up to 128GB DDR4 |
| PCIe M.2 Slots | 1x PCIe 4.0 + 1x PCIe 3.0 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Warranty | 3 years |
Built for Ryzen 5000 Performance
The 5+3 phase VRM design provides stable power delivery to AMD Ryzen 5000 CPUs, enabling consistent performance during demanding workloads. With support for up to 4733MHz DDR4 memory (overclocked), you can maximise bandwidth for gaming, content creation, or multitasking. The B550 chipset supports PCIe 4.0 for the primary M.2 slot, ensuring your NVMe SSD operates at peak speeds for faster boot times and application loading.
Versatile Storage and Expansion
This motherboard offers six total storage options with two M.2 slots and four SATA III ports. The PCIe 4.0 M.2 slot supports the latest high-speed SSDs, while the secondary M.2 slot uses PCIe 3.0 for additional storage flexibility. RAID 0, 1, and 10 configurations are supported, allowing you to optimise for speed, redundancy, or a balance of both. Whether you’re building a gaming system or a workstation, the storage options accommodate both HDD and SSD configurations.
Comprehensive Connectivity Suite
Stay connected with dual-band Wi-Fi 5 and Bluetooth 5.0, providing wireless flexibility for peripherals and internet access. The Gigabit Ethernet port ensures reliable wired connectivity for gaming and streaming. Front panel USB 3.2 Gen 1 ports offer fast data transfer speeds, while the included antenna supports the wireless capabilities. The Realtek ALC1220-VB audio chip delivers 7.1 channel surround sound for immersive gaming and entertainment experiences.
Compact Micro ATX Design
The micro ATX form factor (244mm x 244mm) fits in smaller cases without sacrificing essential features. This makes it perfect for space-conscious builds where you need performance but want to maintain a smaller footprint. The passive cooling design reduces noise while maintaining optimal temperatures, and the dark brown PCB provides a professional appearance that complements most build themes.

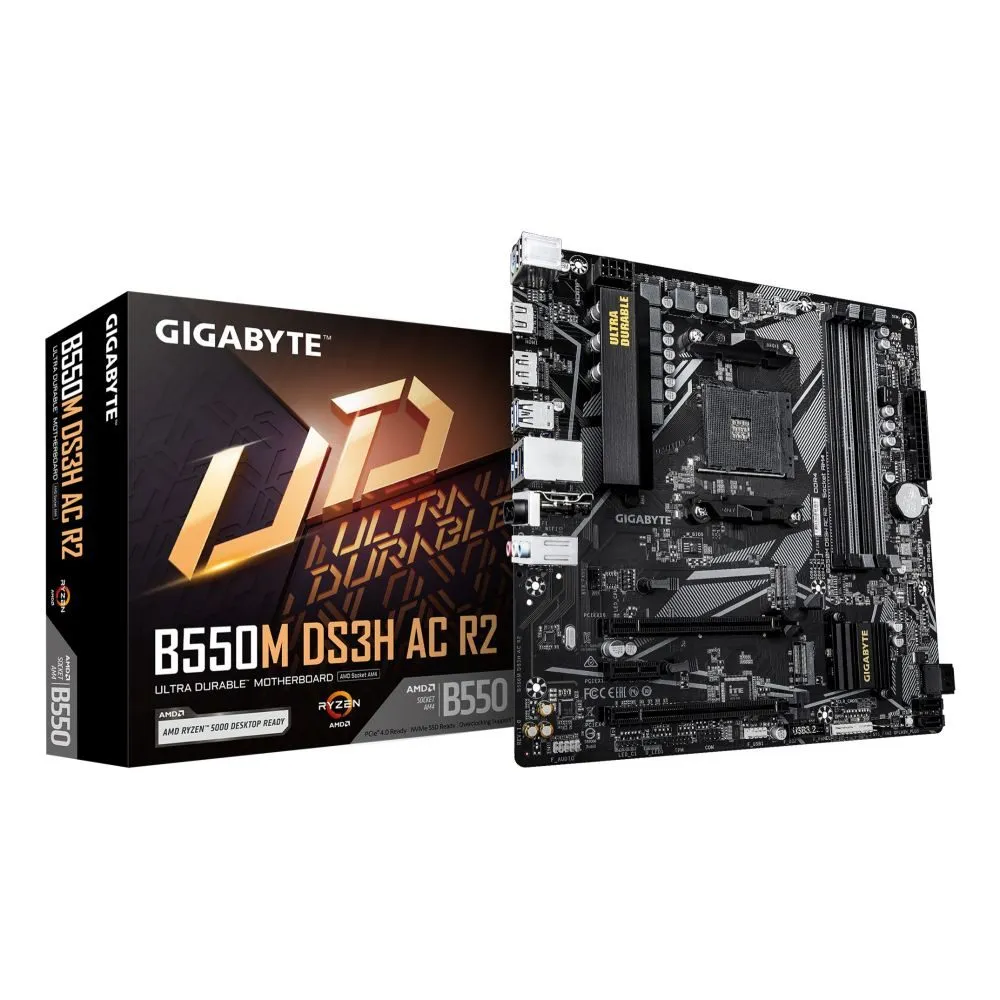

Box contents
- GIGABYTE B550M DS3H AC R2 Motherboard
- I/O shield
- Motherboard manual
- SATA cables (quantity not specified)
- M.2 screws
- Wi-Fi antennas
- CMOS battery
- Driver/software disc (if included)
Key points to check
- Confirm your CPU is from the AMD Ryzen 3000, 4000, or 5000 series
- Verify your case supports micro ATX motherboards (244mm x 244mm)
- Check that your power supply has a 24-pin ATX and 8-pin EPS connector
- Confirm your intended M.2 SSDs are compatible with PCIe 4.0 or 3.0 standards
Common questions
Does this motherboard support Windows 11?
What is the maximum memory speed supported?
Can I use this with an AMD Ryzen 7 5800X processor?
Does it have built-in Wi-Fi and Bluetooth?
How many M.2 slots are available?
Our verdict
The GIGABYTE B550M DS3H AC R2 offers excellent value for users building compact AMD systems who need reliable performance without breaking the bank. Its support for Ryzen 5000 CPUs, dual M.2 slots with PCIe 4.0 capability, and comprehensive connectivity make it suitable for both gaming and productivity applications. The 3-year manufacturer warranty provides peace of mind for your investment. This motherboard represents a balanced choice for those prioritising performance, features, and affordability in a micro ATX package.
| Weight | 0.85 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Front panel connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Number of RGB LED pin headers | 5 |
| Serial port headers | 1 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Processor socket | Socket AM4 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 4733 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

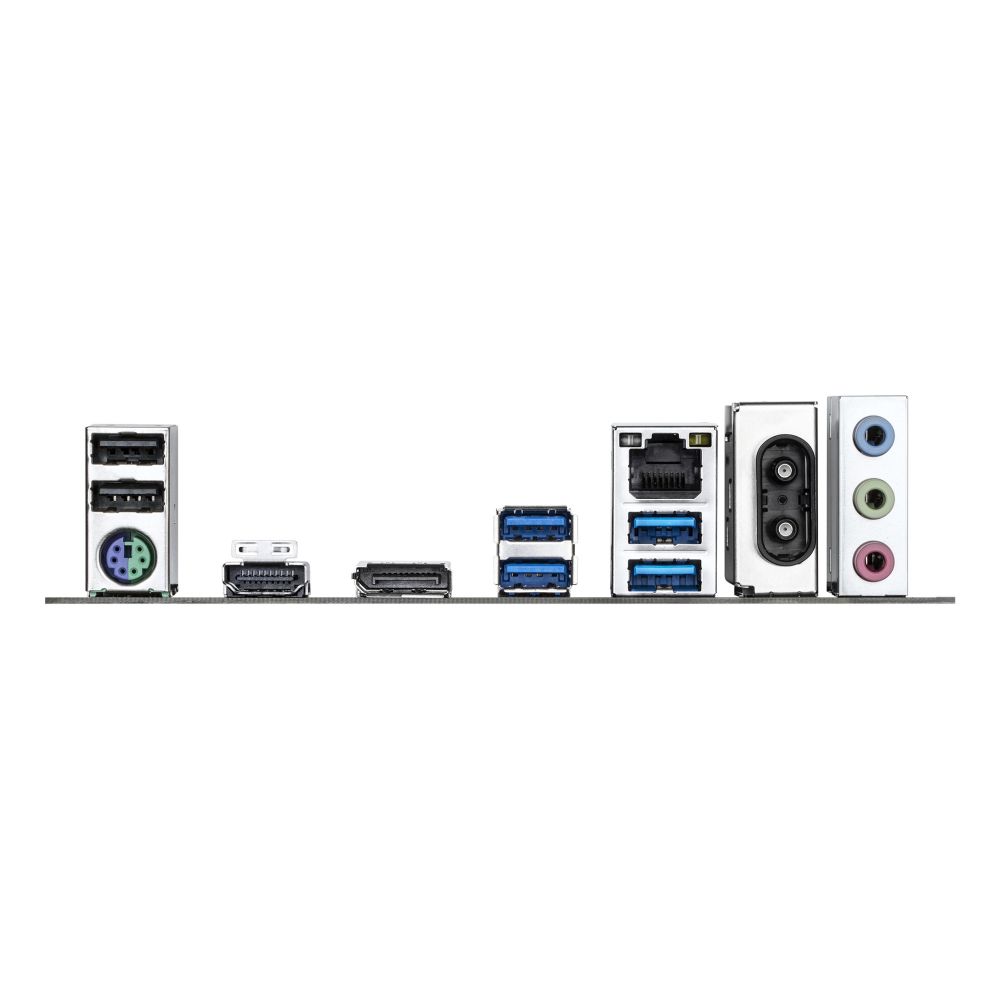

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| LAN controller | Realtek RTL8111H |
| Bluetooth version | 5.0 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | Dark brown |
| Number of M.2 M slots | 2 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Width | 244 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.07 kg |
| Weight | 980 g |
