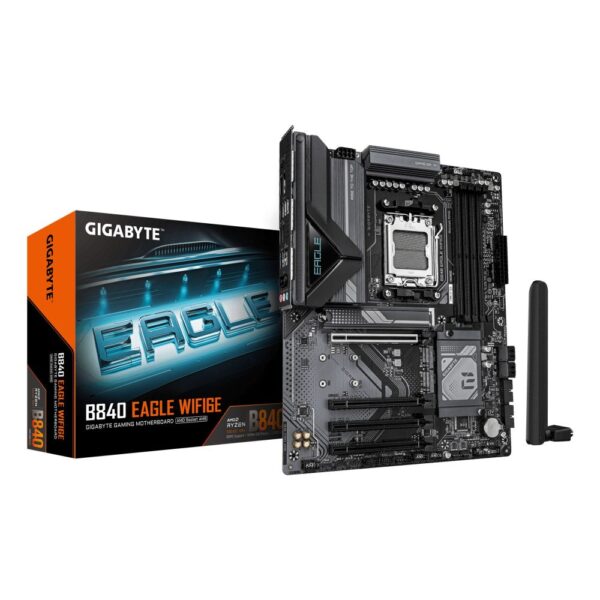

GIGABYTE B840 EAGLE WIFI6E Motherboard – AMD Ryzen 9000, 8+2+2 VRM, DDR5, PCIe 4.0 M.2, Wi-Fi 6E
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B840 chipset for AMD Ryzen 9000 CPUs
- 8+2+2 VRM design with 8200MHz DDR5 support
- 3x M.2 slots (2x PCIe 4.0, 1x PCIe 3.0) for storage
- Wi-Fi 6E and 2.5GbE LAN for high-speed connectivity
- ATX form factor with 4 DIMM slots for up to 256GB memory
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE B840 EAGLE WIFI6E | AMD Ryzen 9000 Ready Performance
The GIGABYTE B840 EAGLE WIFI6E Motherboard delivers robust performance for AMD Ryzen 9000 CPUs with advanced features including 8+2+2 phase VRM, DDR5 memory support up to 8200MHz, and comprehensive connectivity options. This ATX motherboard combines the AMD B840 chipset with Wi-Fi 6E and 2.5GbE LAN for modern computing needs.
Slim Specs Table
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Memory Support | DDR5 up to 8200MHz |
| PCIe Slots | 2x PCIe 4.0 + 1x PCIe 3.0 M.2 |
| Wi-Fi Standard | Wi-Fi 6E |
| LAN | 2.5GbE Realtek RTL8125 |
Power Delivery for Demanding CPUs
The 8+2+2 phase VRM design provides stable power delivery for AMD Ryzen 9000 processors, even under heavy workloads. This robust power architecture ensures consistent performance during gaming, content creation, or intensive multitasking. The enhanced thermal design with passive cooling maintains optimal temperatures without additional fans.
Advanced Storage and Connectivity
With three M.2 slots supporting both PCIe 4.0 and 3.0, this motherboard offers extensive storage flexibility. The combination of PCIe 4.0 M.2 slots delivers blazing-fast NVMe SSD speeds, while the PCIe 3.0 slot provides additional storage options. RAID support across 0, 1, 5, and 10 configurations enables customised storage solutions for performance or redundancy.
Future-Ready Networking and Expansion
Wi-Fi 6E connectivity provides access to the 6GHz band for reduced interference and higher speeds. The 2.5GbE LAN controller ensures fast, stable wired connections. USB 3.2 Gen 2 ports offer high-speed peripheral connectivity, while the HDMI 2.1 port supports 4K resolution at high refresh rates for modern displays.
Box contents
- GIGABYTE B840 EAGLE WIFI6E Motherboard
- I/O shield
- SATA cables
- M.2 screws
- User manual
- Warranty card
- Wi-Fi antennas
- RGB extension cable
Check before you buy
- Confirm your AMD Ryzen 9000 CPU is compatible with the AM5 socket
- Verify your case supports ATX form factor (305mm x 244mm)
- Check if your PSU has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your DDR5 memory modules are on the QVL list for optimal stability
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, the B840 EAGLE WIFI6E only supports DDR5-SDRAM memory modules.
Q: Can I use this with an AMD Ryzen 7000 series CPU?
A: Yes, this motherboard supports both Ryzen 7000 and Ryzen 9000 series processors on the AM5 socket.
Q: How many PCIe 4.0 M.2 slots are available?
A: This motherboard features two PCIe 4.0 M.2 slots for high-speed NVMe storage.
Q: What audio codec does this motherboard use?
A: It uses the Realtek ALC897 audio codec with 7.1 channel support.
Q: Is there RGB lighting on this motherboard?
A: Yes, it includes RGB LED headers for custom lighting setups.
The Consultant’s verdict & warranty
The GIGABYTE B840 EAGLE WIFI6E offers excellent value for users building AMD Ryzen 9000 systems who need robust power delivery, modern connectivity, and comprehensive expansion options. Its Wi-Fi 6E and 2.5GbE networking make it suitable for both gaming and professional applications. Covered by the standard Manufacturer Warranty.
| Weight | 0.4 kg |
|---|---|
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 3 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| HDCP version | 2.3 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B840 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Number of M.2 M slots | 3 |
| PCI Express x16 Gen 3.x slots | 3 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 25110 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 305 mm |
| Depth | 244 mm |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.87 kg |
| Weight | 1.64 kg |
