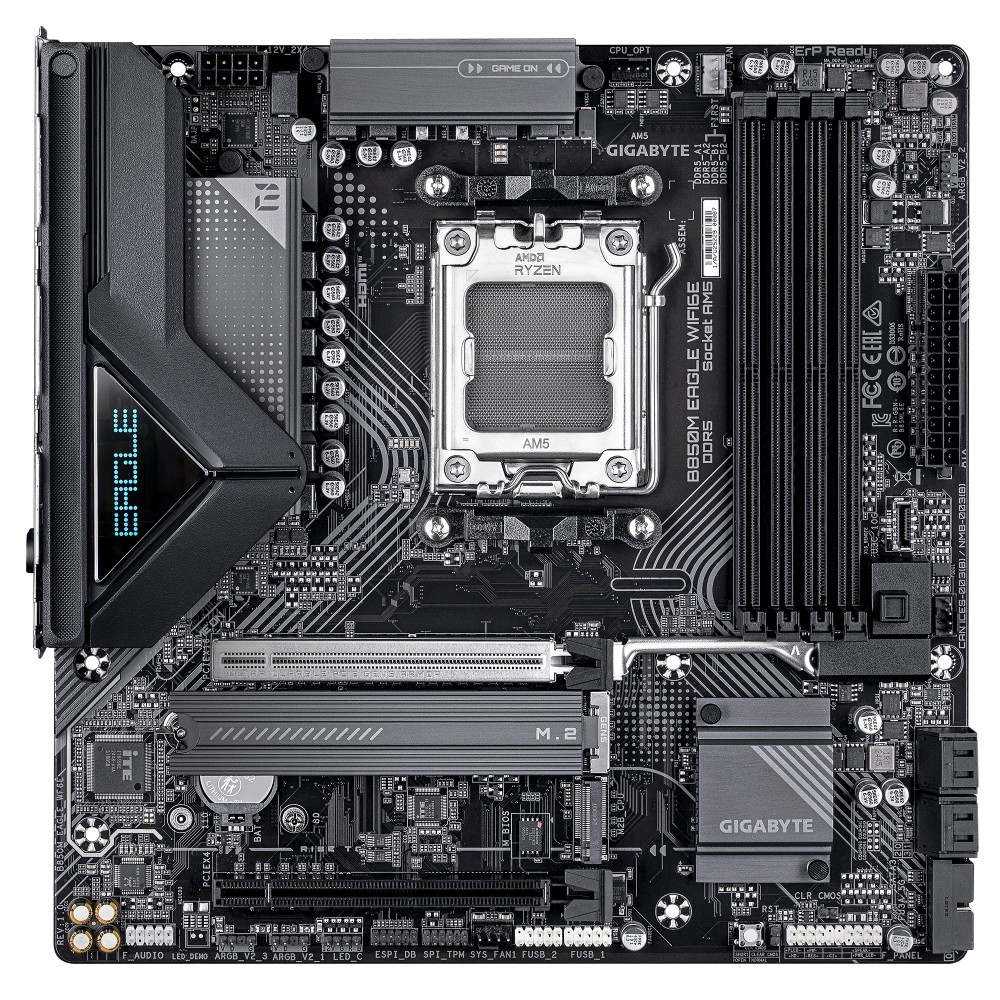

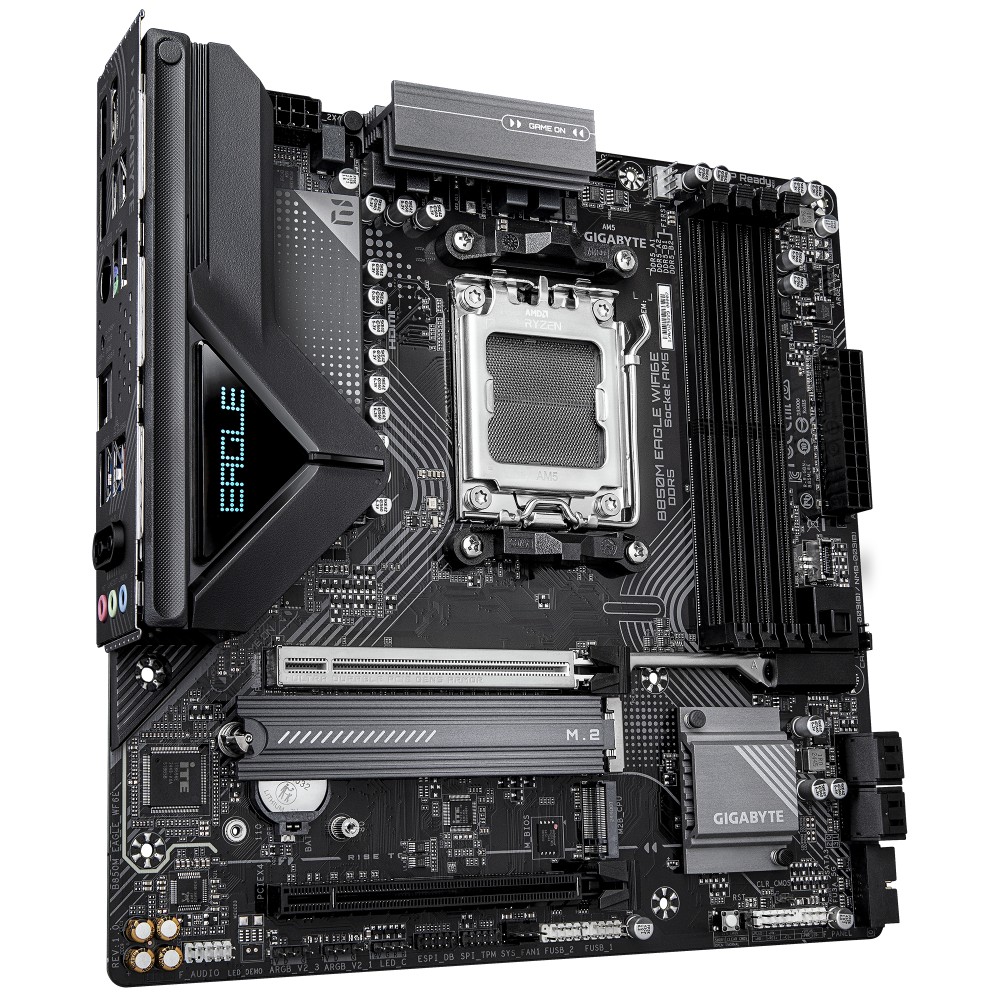

GIGABYTE B850M EAGLE WIFI6E Motherboard – AMD AM5, mATX, DDR5

GIGABYTE B850M EAGLE WIFI6E | AMD Ryzen 9000 Ready mATX

The GIGABYTE B850M EAGLE WIFI6E Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5 GbE LAN, USB… is a micro-ATX foundation for modern AMD builds. It targets UK builders who need strong power delivery and fast connectivity in a compact form factor. Because it supports Socket AM5, it fits Ryzen 7000, 8000, and 9000 series processors. In practice, the board balances performance and practicality for gaming and productivity.

GIGABYTE B850M EAGLE WIFI6E Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5 GbE LAN, USB…

Slim Specs Overview

Stable Power for Ryzen 9000

The 8+2+2 phase digital VRM aims to keep voltages steady under load. So it supports high‑end Ryzen 9000 series CPUs without drama. Because the cooling is passive, you rely on board heatsinks for thermal management. However, case airflow is still important for overall system stability.

Flexible Storage with PCIe 5.0

You get one PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot. Also, four SATA III ports let you add bulk HDDs or SSDs. Because RAID 0, 1, 5, and 10 is supported, you can configure redundancy or speed. So your storage path can scale from a single fast NVMe to a mixed array.

Wi‑Fi 6E and 2.5 GbE Connectivity

The board includes Wi‑Fi 6E and 2.5 GbE LAN for low‑latency networking. Also, Bluetooth 5.3 supports modern peripherals. Because two Wi‑Fi antenna jacks are present, you can attach the bundled antennas for better signal. However, UK buyers should confirm Wi‑Fi band support matches local regulations.

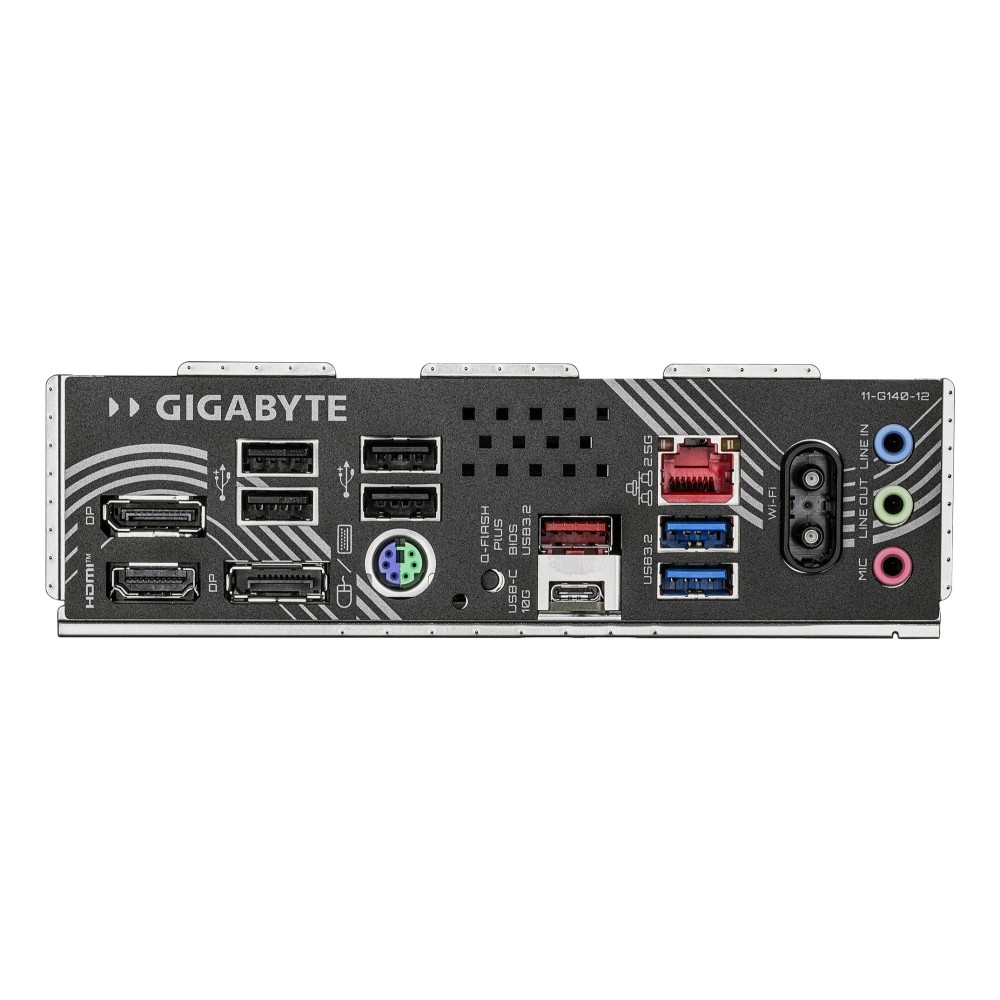

Comprehensive Rear I/O and Headers

You get USB 3.2 Gen 1 and Gen 2 ports, plus four USB 2.0 ports. Also, HDMI 2.1 and two DisplayPort 1.4 outputs support 4K displays. Because front panel audio and USB headers are present, case integration is straightforward. However, always verify your case front panel pin layout before assembly.

Smart Control and Monitoring

PC health monitoring tracks fan speed, temperature, and voltage. Also, two CPU fan connectors and two water pump connectors support custom cooling. Because four RGB LED headers are included, you can synchronise lighting with supported software. So your build can stay cool and cohesive.

Micro‑ATX Form Factor Benefits

The 244 mm × 244 mm footprint fits compact cases while retaining key features. Also, the board uses standard ATX power, so most UK PSUs are compatible. Because it is passive, there are no fan bearings to fail. However, confirm your case can accommodate the board and cooler clearance.

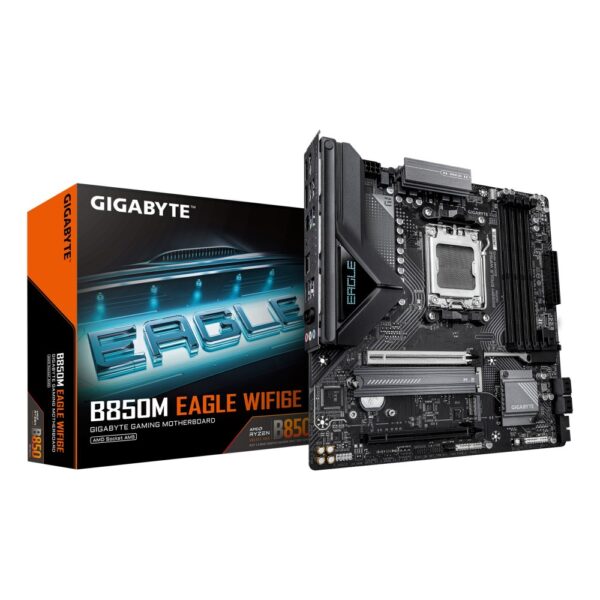

Box contents

• GIGABYTE B850M EAGLE WIFI6E motherboard
• Wi‑Fi antenna
• Screws
• CR2032 battery
• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Check before you buy

• Confirm your case supports micro‑ATX and has adequate clearance.
• Verify your PSU uses a 24‑pin ATX and 8‑pin EPS connector.
• Check Wi‑Fi 6E band support for your UK region and router.
• Ensure Windows 10 x64 or Windows 11 x64 is your intended OS.

Frequently Asked Questions

Q: Does this board support Ryzen 9000 series CPUs?

A: Yes, it supports Socket AM5 Ryzen 7000, 8000, and 9000 series processors.

Q: Can I use ECC memory?

A: No, the board supports non‑ECC DDR5 memory only.

Q: How many M.2 drives can I install?

A: You can install two M.2 drives—one PCIe 5.0 and one PCIe 4.0.

Q: Is there integrated graphics support?

A: Yes, HDMI 2.1 and DisplayPort 1.4 outputs are available for APUs.

Q: What RAID levels are supported?

A: RAID 0, 1, 5, and 10 are supported for SATA and M.2 configurations.

The Consultant’s verdict & warranty

Choose the GIGABYTE B850M EAGLE WIFI6E if you are building a compact AMD system with modern connectivity and strong power delivery. It suits gamers, creators, and professionals who need PCIe 5.0 and Wi‑Fi 6E in a micro‑ATX board. Covered by the standard Manufacturer Warranty.
