GIGABYTE B650M D3HP AX Motherboard – AMD Ryzen 9000, DDR5, PCIe 4.0 M.2, WiFi 6E, 2.5GbE LAN

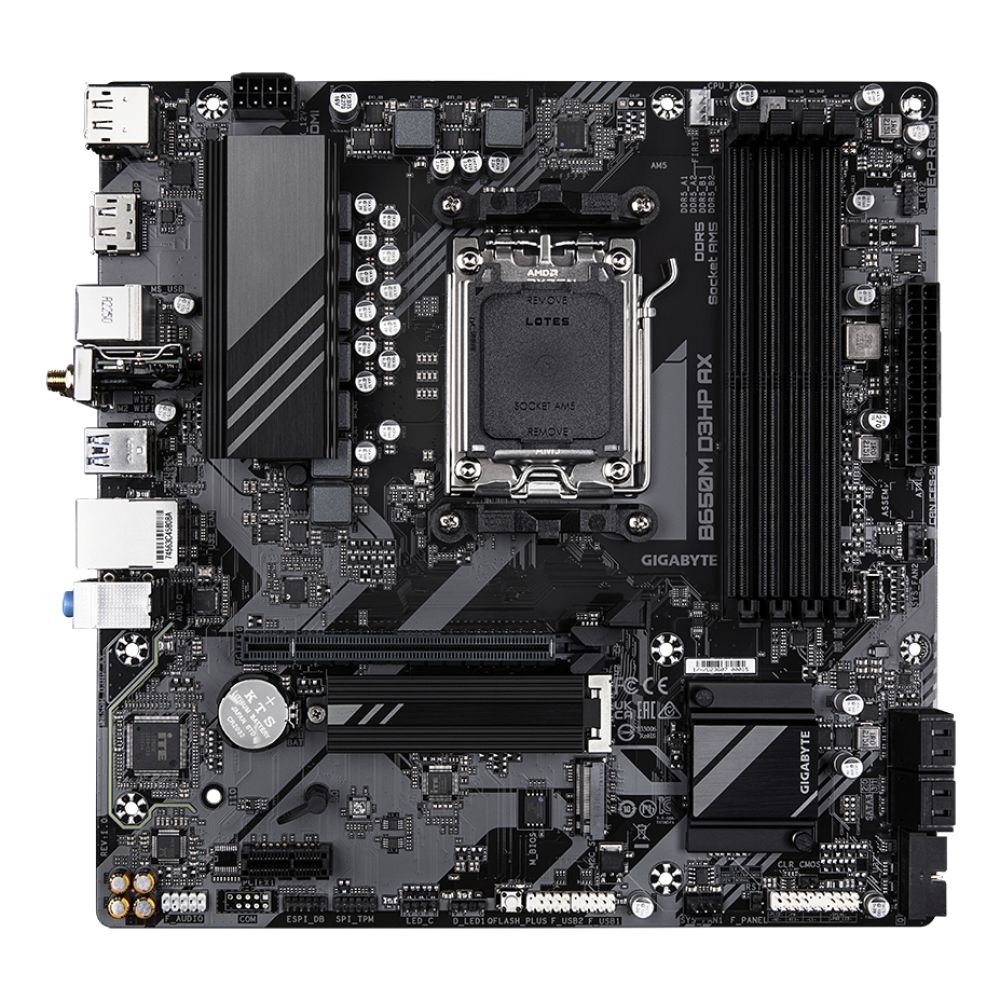

GIGABYTE B650M D3HP AX | AMD Ryzen 9000 Series Ready Micro ATX Motherboard

The GIGABYTE B650M D3HP AX Motherboard is designed for users building compact yet powerful systems with AMD Ryzen 9000 Series CPUs. Featuring a 5+2+2 phase VRM design, support for DDR5 memory up to 8000MHz (OC), and comprehensive connectivity including WiFi 6E and 2.5GbE LAN, this micro ATX board delivers exceptional performance in a space-efficient form factor.

Key Specifications

Built for Ryzen 9000 Series Performance

This motherboard’s 5+2+2 phase VRM configuration provides stable power delivery for demanding AMD Ryzen 9000 Series processors. The robust power design ensures consistent performance during intensive workloads, gaming sessions, or content creation tasks. Combined with DDR5 memory support reaching 8000MHz when overclocked, you’ll experience responsive system performance that keeps pace with modern applications.

Advanced Connectivity for Modern Workloads

The B650M D3HP AX comes equipped with WiFi 6E technology, offering faster wireless speeds and reduced latency compared to previous Wi-Fi standards. The 2.5GbE LAN controller ensures reliable wired network connections for gaming, streaming, or large file transfers. With dual PCIe 4.0 M.2 slots, you can install multiple high-speed NVMe SSDs for rapid storage access, while the four SATA III ports accommodate additional drives for expanded storage capacity.

Compact Design Without Compromise

Measuring just 244mm x 244mm, this micro ATX motherboard fits in smaller cases while maintaining full-featured functionality. The passive cooling design operates silently while effectively managing thermal performance. HDMI 2.1 and DisplayPort 1.4 outputs support multiple display configurations, making this board suitable for both productivity and entertainment setups. The Realtek ALC897 audio codec delivers 7.1 channel surround sound for immersive audio experiences.

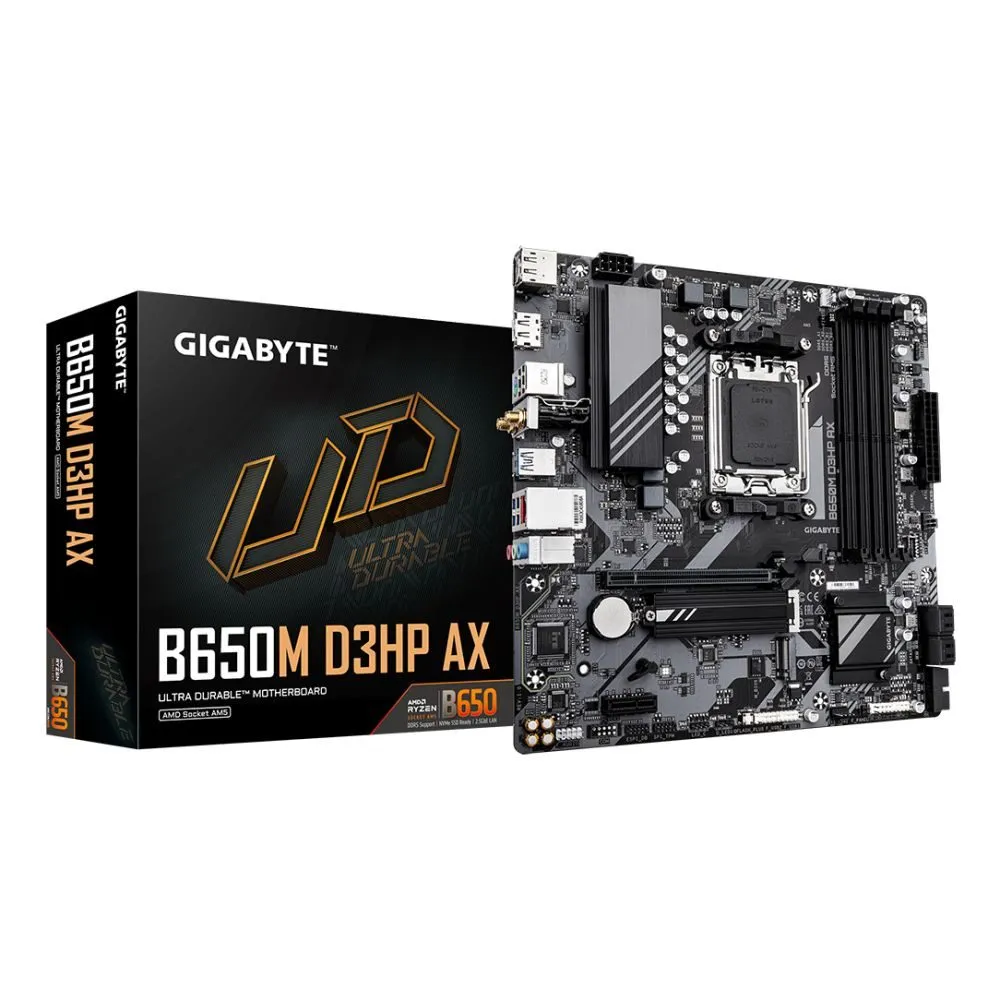

What Is in the Box

• GIGABYTE B650M D3HP AX Motherboard
• I/O shield
• SATA cables (quantity not specified)
• User manual
• Warranty document
• Screws included
• Antenna included
• CR2032 battery included

Before you order

• Confirm your AMD Ryzen processor is Socket AM5 compatible
• Verify your case supports micro ATX form factor (244mm x 244mm)
• Check that your power supply has the required ATX 24-pin and EPS 8-pin connectors
• Confirm your DDR5 memory is compatible with this motherboard’s supported speeds

Buyer FAQs

Q: Does this motherboard support DDR4 memory?

A: No, this motherboard only supports DDR5-SDRAM memory modules.

Q: What is the maximum RAM capacity?

A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots.

Q: Can I use this with an Intel processor?

A: No, this motherboard is designed specifically for AMD Ryzen processors with Socket AM5.

Q: Does it come with built-in WiFi?

A: Yes, it features WiFi 6E with the Realtek RTL8852CE controller for wireless connectivity.

Q: How many M.2 drives can I install?

A: You can install two M.2 NVMe SSDs using the PCIe 4.0 slots provided.

Expert verdict & warranty

The GIGABYTE B650M D3HP AX represents excellent value for users building compact systems with AMD Ryzen 9000 Series CPUs. Its combination of DDR5 memory support, WiFi 6E connectivity, and micro ATX form factor makes it ideal for space-conscious builders who don’t want to compromise on performance. The robust VRM design ensures stable operation under load, while the comprehensive I/O options cover most modern connectivity needs. Covered by the applicable manufacturer warranty.
