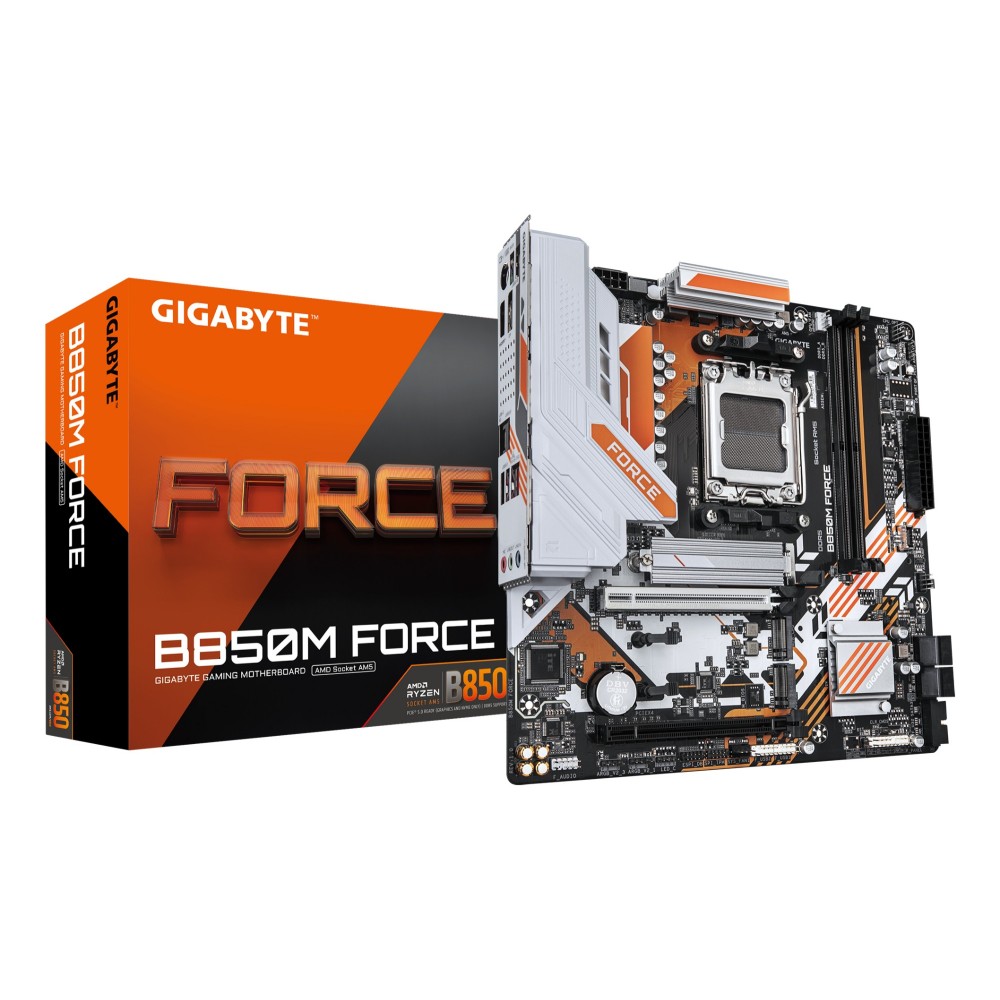

GIGABYTE B850M FORCE Motherboard – AM5, B850, mATX, DDR5
£121.49 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset with Socket AM5, supporting Ryzen 7000, 8000, and 9000 Series CPUs
- Supports up to 128GB of DDR5-SDRAM across 2 DIMM slots, with speeds up to 9600 MHz (OC)
- 3 M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) and 4 SATA III connectors for versatile storage
- Micro ATX form factor with passive cooling and 7.1 channel Realtek ALC897 audio
- Connectivity includes 2.5 Gigabit Ethernet, HDMI 2.1, DisplayPort 1.4, and multiple USB ports
- Features PC health monitoring for fan, temperature, voltage, and water cooling
- Includes a 3-year warranty and bundled Norton Internet Security (OEM) software
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock

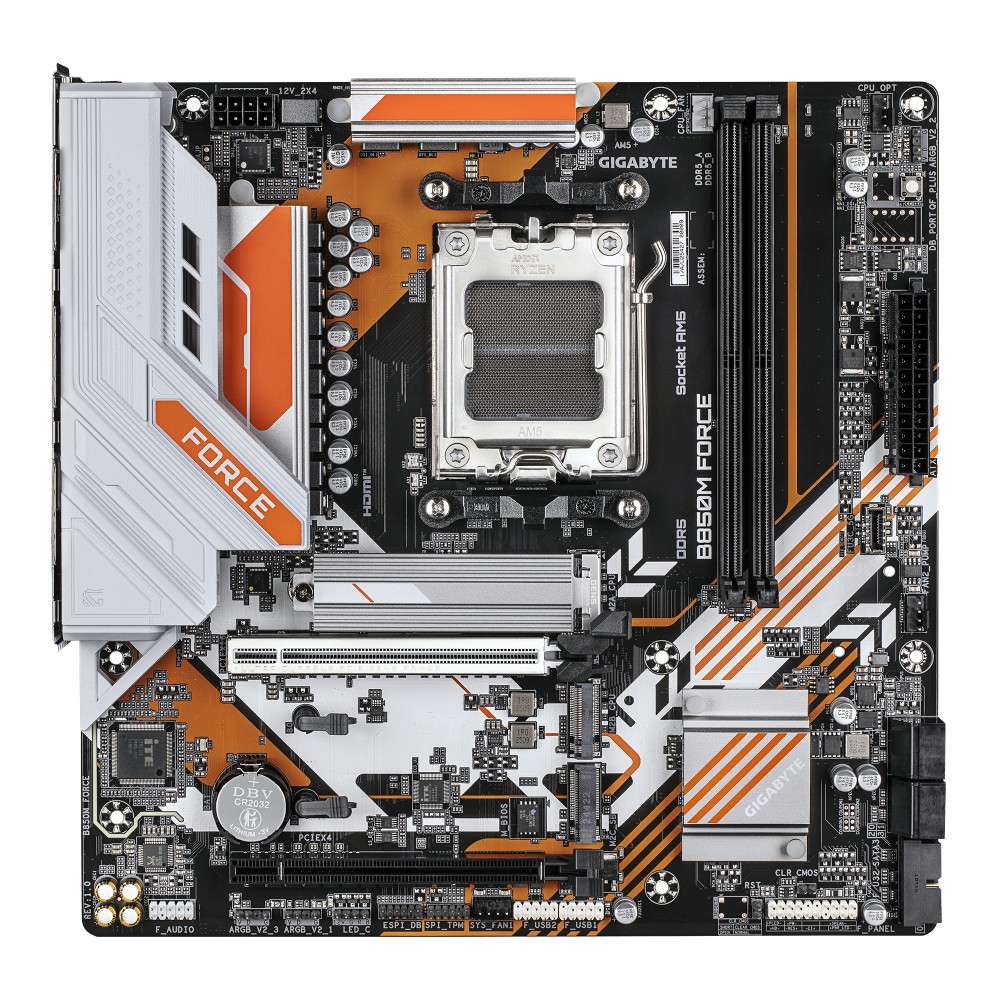

GIGABYTE B850M FORCE – Next-Gen AM5 Power
We are pleased to present the GIGABYTE B850M FORCE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. This micro ATX board offers robust power delivery and high-speed connectivity. It is ideal for PC builders and enthusiasts seeking to harness the full potential of AMD’s latest Ryzen processors. You gain a solid foundation for a powerful and responsive system.
Core Hardware Specifications
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | Micro ATX |
| Processor Socket | Socket AM5 |
| Memory Type | DDR5-SDRAM |
| Max Memory Speed (OC) | 9600 MHz |
| Ethernet | 2.5 Gigabit |
| M.2 Slots | 3 |
Power Delivery for Demanding Tasks
This motherboard features an 8+2+2 phases digital VRM design. This robust power delivery system ensures stable and efficient power. It is crucial for AMD Ryzen 9000 Series CPUs, especially under heavy loads. You can rely on consistent performance during intensive gaming or content creation.
Blazing-Fast Storage Options
The GIGABYTE B850M FORCE supports next-generation storage. It includes one PCIe 5.0 M.2 slot for ultra-fast SSDs. Additionally, two PCIe 4.0 M.2 slots provide further high-speed storage expansion. This setup allows for rapid boot times and quick application loading.
High-Speed Networking
Integrated 2.5 Gigabit Ethernet LAN provides a significant boost in network speed. This is perfect for online gaming and large file transfers. Enjoy a smooth and lag-free internet experience. We ensure your connection keeps pace with your system’s performance.
Future-Proof Connectivity
Experience modern connectivity with USB 3.2 Gen 2 ports. These offer faster data transfer rates for external devices. The board also includes multiple USB 3.2 Gen 1 and USB 2.0 ports. We provide versatile options for all your peripherals.
What’s in the box
- Motherboard
- Screws
- Batteries
Before you order
- Confirm your chosen CPU uses the AM5 socket.
- Confirm your case supports the micro ATX form factor.
- Confirm your power supply has an 8-pin EPS connector.
Frequently Asked Questions
Q: Which AMD Ryzen processors are supported?
A: It supports AMD Ryzen 7000, 8000, and 9000 Series CPUs.
Q: What is the maximum RAM speed supported?
A: It supports DDR5 memory speeds up to 9600MHz when overclocked.
Q: How many M.2 slots are available?
A: There are three M.2 slots, including one PCIe 5.0 and two PCIe 4.0.
Q: Does this motherboard have integrated Wi-Fi?
A: No, this model features 2.5 Gigabit Ethernet LAN but does not include Wi-Fi.
Q: What operating systems are compatible?
A: It supports Windows 10 x64 and Windows 11 x64.
Our Recommendation
The GIGABYTE B850M FORCE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2 is an excellent choice for a compact yet powerful build. It delivers essential features for high-performance computing. This board suits gamers and creators who need speed and stability. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400,8600,8800,9200,9600 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9600 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

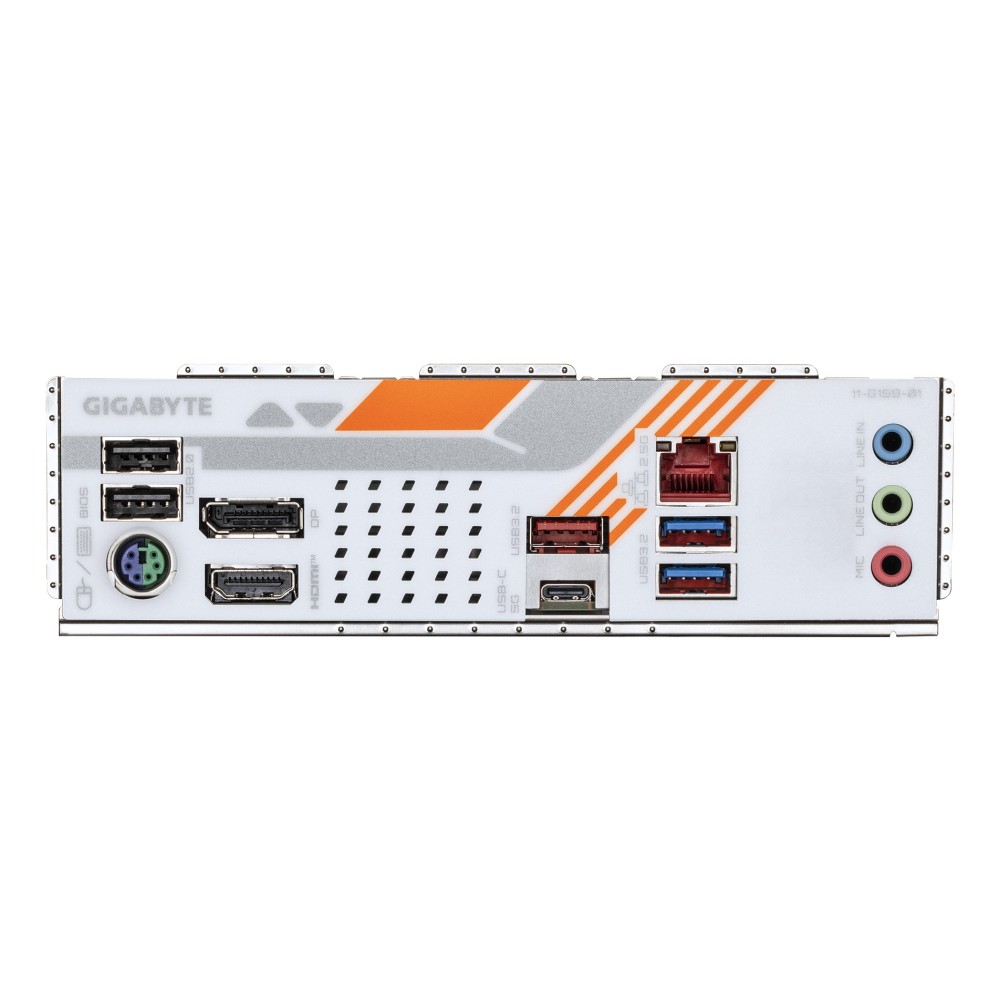

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.4 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.4 kg |
| Weight | 1.18 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.4 kg |
| Weight | 1.18 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-B850MFOR |
