GIGABYTE UD1600PM PG5 AI TOP Power Supply Unit 1600W 80 PLUS Platinum ATX Fully Modular Black
£332.27
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 1600W total power with 80 PLUS Platinum certification delivering 92% efficiency
- ATX 3.1 form factor supporting PCIe Gen 5.0 graphics cards via 16-pin cables
- Fully-Modular cabling system for streamlined cable management and cleaner builds

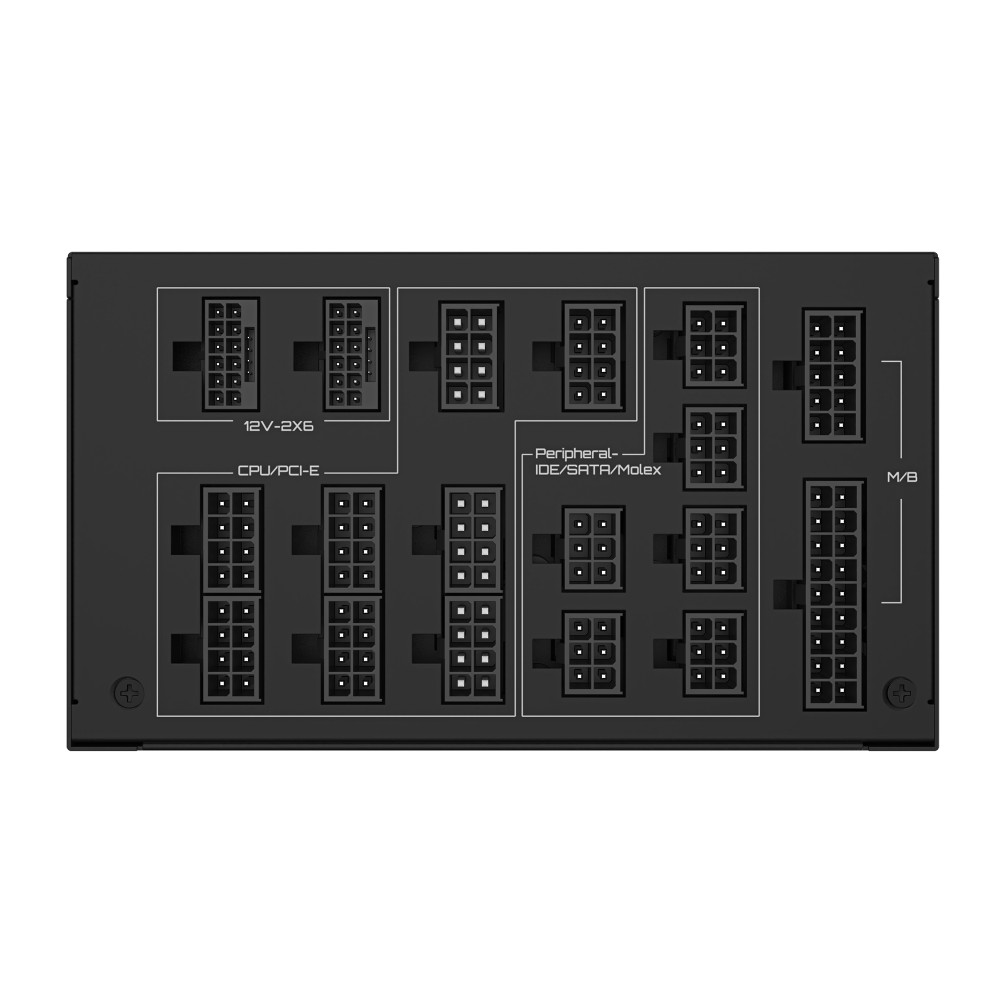

- Extensive connector array including eight 6+2 pin PCI Express and sixteen SATA power connectors

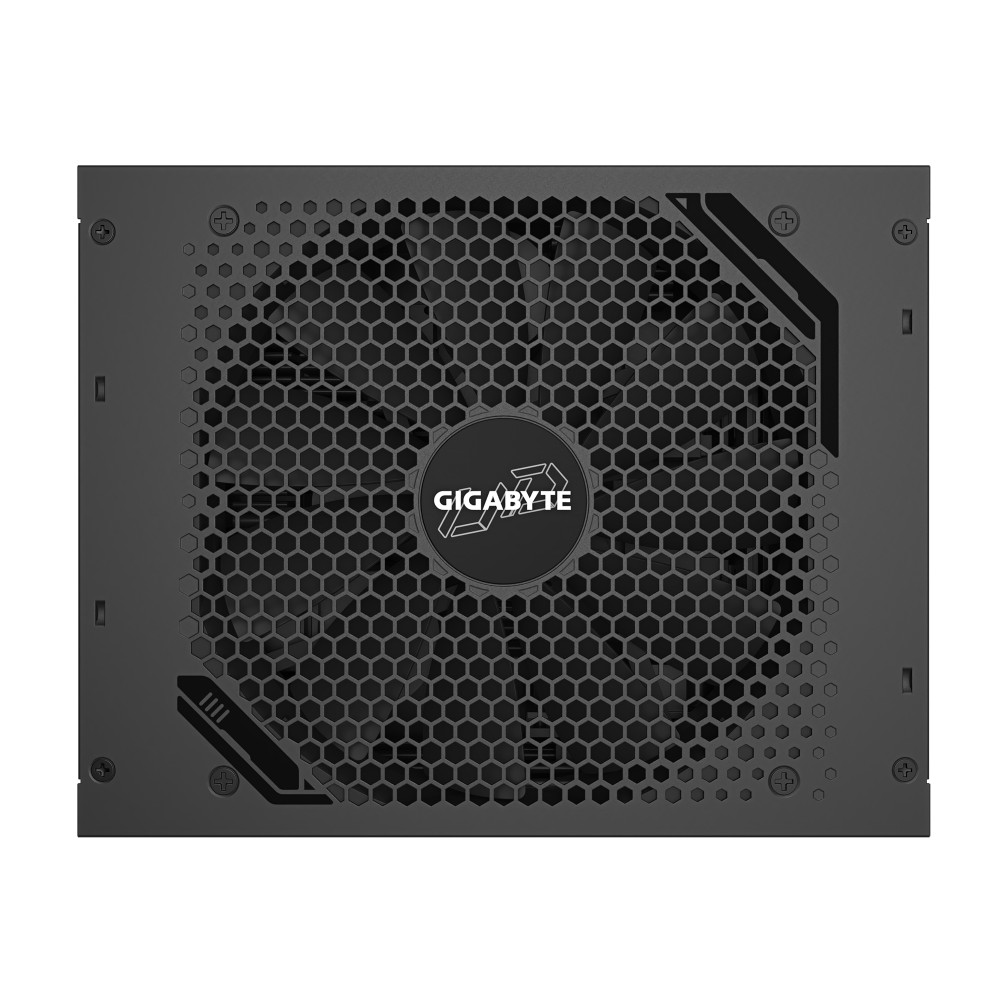

- Active cooling with a 12 cm top-mounted fan featuring DBB bearing technology
- Comprehensive safety features covering over current, over voltage, and short circuit protection
- 10-year warranty period backed by 100000-hour mean time between failures and black product colour
Available alternatives
MSI MPG Ai1300TS Power Supply Unit 1300 W ATX 3.1 80 Plus Titanium Fully Modular Black
In stock
Asrock TC-1300T 1300W ATX Power Supply
In stock
Corsair HX1500i 1500W 80 PLUS Platinum Modular ATX PSU
In stock
You may also like
be quiet! Pure Power 13 M 1200W PSU, 80 PLUS Gold, Quiet 120mm Fan, ATX 3.1, 10 Year Warranty
In stock
GIGABYTE UD1000GM PG5 V2 ICE PSU – PCIe Gen 5.1, 80+ Gold, Modular
In stock
GIGABYTE AORUS P850W 80 PLUS Platinum PSU
In stock
Antec HCG1000 PRO 1000W Power Supply
In stock
GIGABYTE P750BS 750W Power Supply
In stock
GIGABYTE P650G 650W PCIe 5.1 PSU
In stock
GAMEMAX RPG 800W PSU, Ultra Silent Fan
In stock
GIGABYTE UD1600PM PG5 AI TOP – High Wattage Power for Modern Systems
We recommend the GIGABYTE UD1600PM PG5 AI TOP Power Supply Unit 1600W 80 PLUS Platinum ATX Fully Modular Black for high-performance builds. It delivers stable power for multiple GPUs. This unit supports ATX 3.1 standards. You get efficient energy conversion.
GIGABYTE UD1600PM PG5 AI TOP Power Supply Unit 1600W 80 PLUS Platinum ATX Fully Modular Black Overview
This power supply supports PCIe Gen 5.0 graphics cards. It provides robust power for demanding workloads. You can connect high-end GPUs easily. Our team confirms compatibility with modern boards.
Quiet and efficient operation
It uses a 12 cm fan for cooling. Active cooling keeps temperatures low during use. Efficiency reaches 92 per cent under load. This reduces electricity costs over time.
Clean cable management options
The unit features fully modular cabling. You can connect only the cables you need. This improves airflow inside your PC case. Black finishes match most component colours.

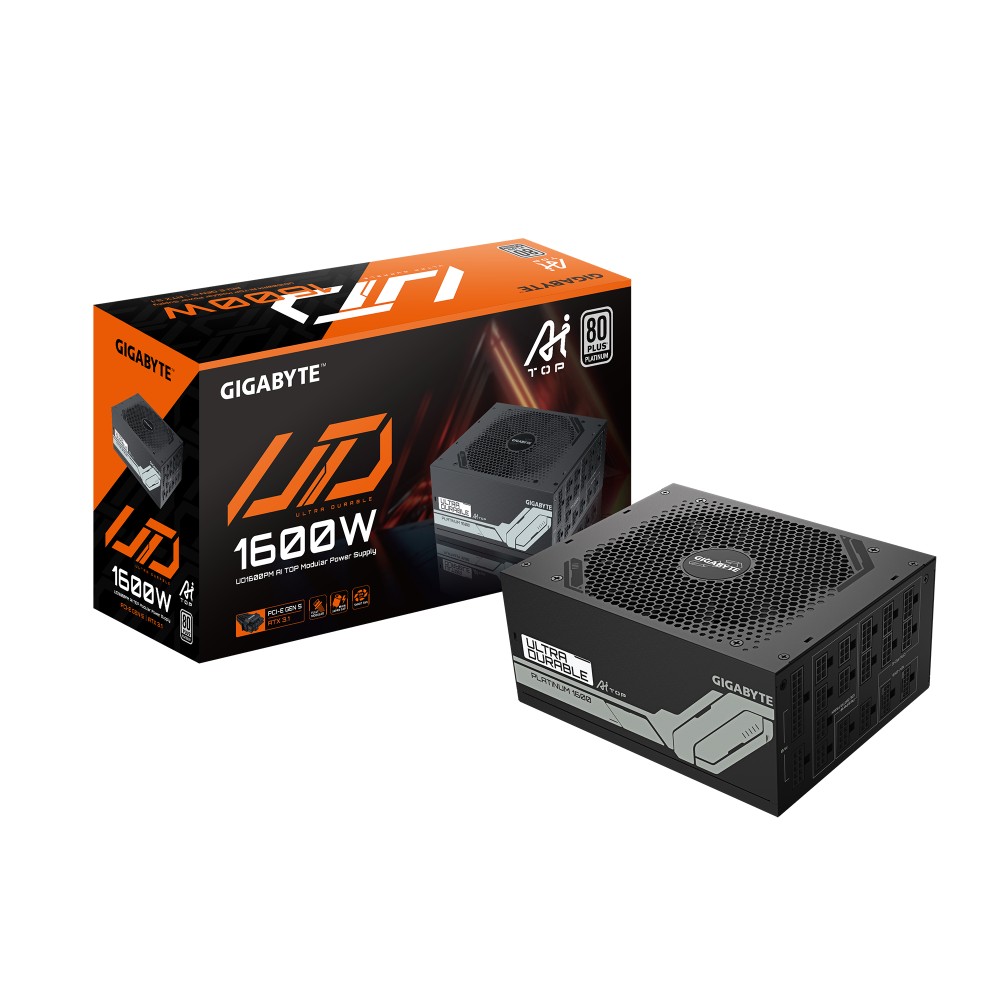

What comes inside the box
We include essential cables for installation. The unit comes with PCIe power connectors. You receive the main ATX connector too.
Before you order
- Confirm your case fits an ATX form factor.
- Check your GPU requires this wattage level.
- Verify your system needs ATX 3.1 support.
Frequently Asked Questions
Q: Is this unit compatible with older motherboards?
A: Yes, it works with standard ATX systems.
Q: How many graphics cards can it power?
A: It supports up to four PCIe Gen 5.0 cards.
Q: Is the cabling fully modular?
A: Yes, all cables are detachable for flexibility.
Q: Does it have over voltage protection?
A: Yes, it includes multiple safety protection features.
Our final recommendation
Choose the GIGABYTE UD1600PM PG5 AI TOP Power Supply Unit 1600W 80 PLUS Platinum ATX Fully Modular Black for maximum headroom. It suits professional workstations and gaming rigs. You benefit from a 10 year warranty.
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | DBB |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 1600 W |
| Power Good signal delay range | 100 - 150 ms |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 7.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 92% |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150,650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 16 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 5.3 kg |
| Packaging data | |
| Package depth | 219 mm |
| Package width | 410 mm |
| Package height | 145 mm |
| Package type | Box |
| Package weight | 5.58 kg |
| Technical details | |
| Warranty period | 10 year(s) |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Logistics data | |
| Warranty period | 10 year(s) |
| Identifiers | |
| Additional EANs | 4719331555054 |
