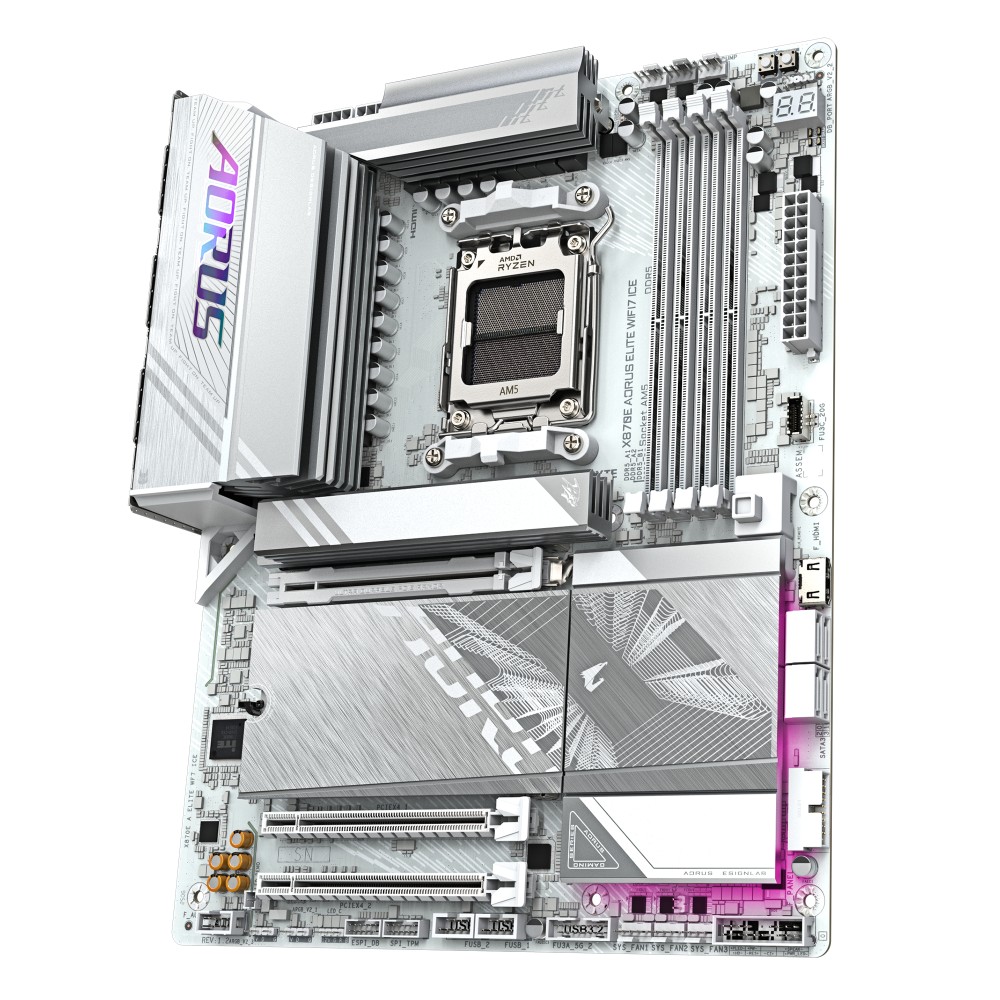

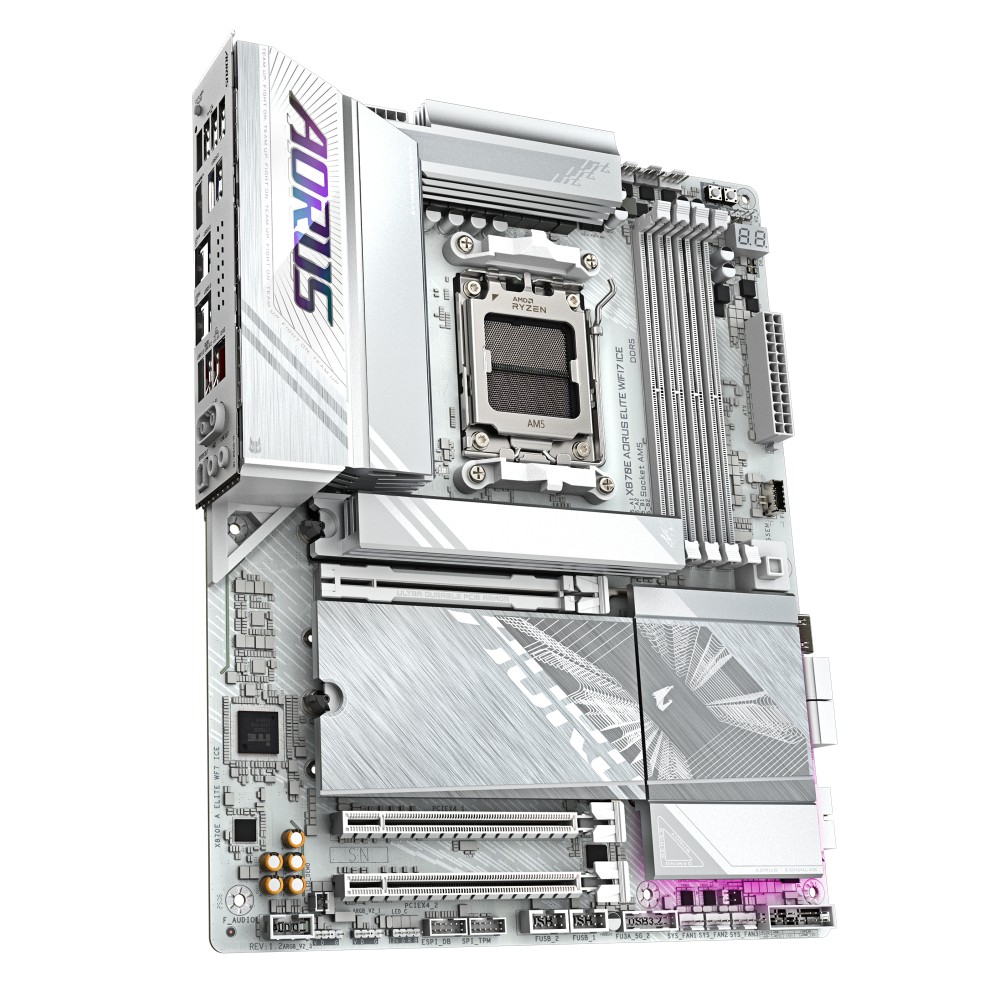

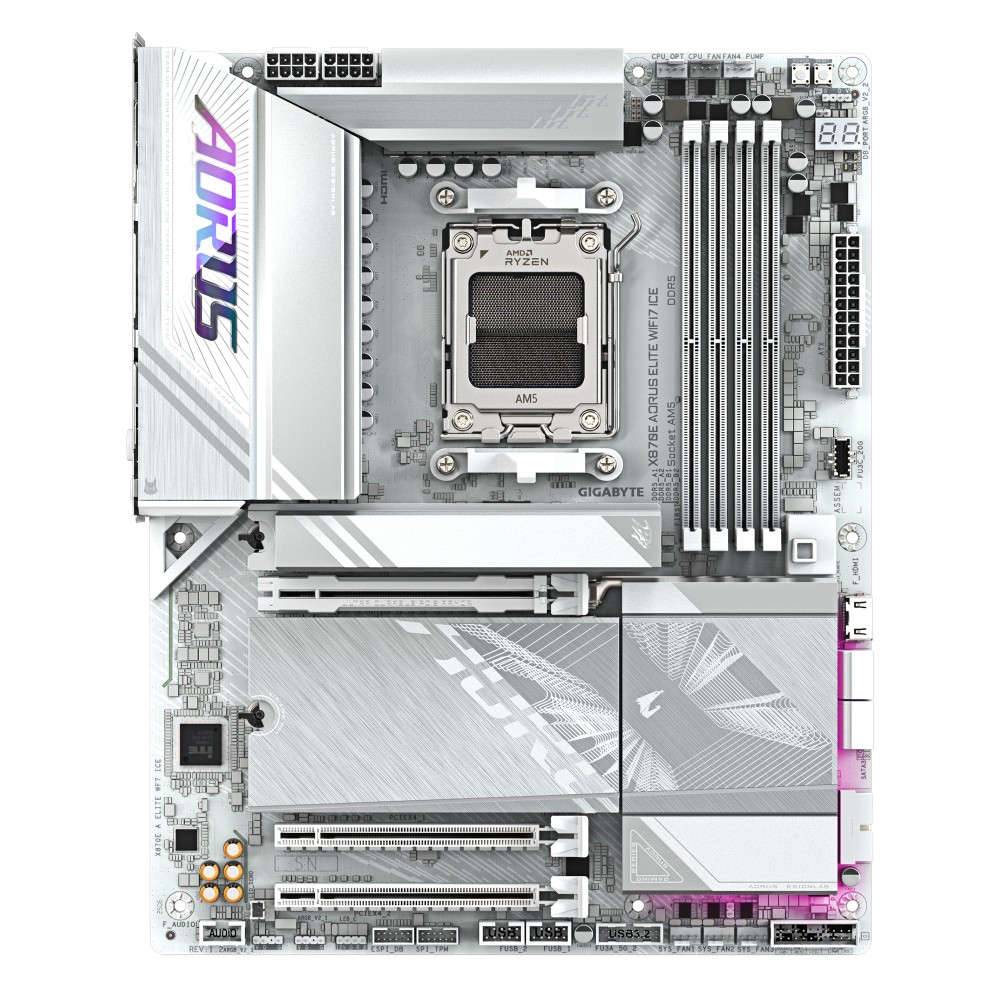

GIGABYTE X870E AORUS ELITE WIFI7 ICE Motherboard – AMD AM5, DDR5, PCIe 5.0, Wi-Fi 7
£257.39 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870E chipset supporting Ryzen 7000/8000/9000 series CPUs on Socket AM5
- 4x DDR5 DIMM slots up to 256 GB with 8200 MHz OC via dual-channel architecture
- 4x M.2 slots including 3x PCIe 5.0 and 1x PCIe 4.0 plus 4x SATA III connectors
- 16+2+2 phase digital VRM with passive cooling and 3-year warranty
- Wi-Fi 7, Bluetooth 5.4 and 2.5GbE LAN with USB4 Gen 2×2 and HDMI 2.1 ports
- ATX form factor with 7.1-channel audio, 4x RGB headers and comprehensive fan/pump control
Payment Methods:
You may also like
TARGET RGB Gaming PC – Intel i5-14400F, 64GB RAM, 1TB NVMe SSD, RTX 4060, WiFi 6, Windows 11
In stock
GIGABYTE X870E AORUS ELITE WIFI7 ICE | AMD AM5 ATX Motherboard
The GIGABYTE X870E AORUS ELITE WIFI7 ICE Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN,… targets enthusiasts building a high-end AM5 system. This ATX board uses the AMD X870E chipset. It suits gamers and creators needing fast storage and connectivity.
GIGABYTE X870E AORUS ELITE WIFI7 ICE Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN,…
Slim Specs Table
| Metric | Spec. |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 |
| Memory | 4x DDR5, up to 8200 MHz (OC) |
| PCIe Slots | 3x PCIe 5.0, 1x PCIe 4.0 |
| M.2 Slots | 4x (3x PCIe 5.0, 1x PCIe 4.0) |
| Networking | Wi-Fi 7, 2.5GbE LAN |
Stable Power for Ryzen 9000
This board features a 16+2+2 phase digital VRM. It delivers clean power to AMD Ryzen 9000 series CPUs. This design supports stable overclocking and heavy multi-threaded workloads. However, always verify your CPU cooler fits the AM5 socket.
Future-Ready Storage Speed
You get four M.2 slots. Three support PCIe 5.0 speeds for next-gen NVMe drives. The fourth runs at PCIe 4.0. This provides ample fast storage for games and projects. Also, four SATA ports allow for HDDs or older SSDs.
Cutting-Edge Connectivity
The board includes Wi-Fi 7 for very high wireless speeds. It also has a 2.5GbE LAN port for a stable wired connection. USB4 Gen 2×2 ports are present. We do not know the exact number of rear USB ports; please check the product page for the full I/O layout.
Advanced Fan and RGB Control
There are four chassis fan connectors and two CPU fan headers. Two water pump connectors are also included for custom loops. Four RGB LED pin headers allow for extensive lighting customisation. PC health monitoring tracks fan speed, temperature, and voltage.
Box Contents
- GIGABYTE X870E AORUS ELITE WIFI7 ICE Motherboard
- Antenna included
- Screws included
- Batteries included (CR2032)
- Bundled software: Norton® Internet Security (OEM version), LAN bandwidth management software
Check before you buy
- Confirm your case supports ATX form factor and the board’s dimensions (305 x 244 mm).
- Verify your CPU cooler is compatible with the AM5 socket.
- Check your memory kit is on the QVL for DDR5 speeds up to 8200 MHz (OC).
- Confirm Wi-Fi 7 band support matches your router and regional regulations.
Frequently Asked Questions
Q: Does this motherboard support AMD Ryzen 7000, 8000, and 9000 series CPUs?
A: Yes, it supports AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket.
Q: How many M.2 SSDs can I install?
A: You can install up to four M.2 SSDs. Three are PCIe 5.0 and one is PCIe 4.0.
Q: Is Wi-Fi 7 included on this board?
A: Yes, it features Wi-Fi 7 (802.11be) with a Realtek RTL8922AE controller.
Q: What is the maximum memory speed supported?
A: The board supports DDR5 memory overclocking up to 8200 MHz.
Q: Does it have a USB4 port?
A: Yes, it includes two USB4 Gen 2×2 ports.
The Consultant’s verdict & warranty
This motherboard is ideal for UK builders creating a high-performance AM5 system with the latest Ryzen CPUs. It offers strong power delivery, fast storage options, and modern connectivity like Wi-Fi 7. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

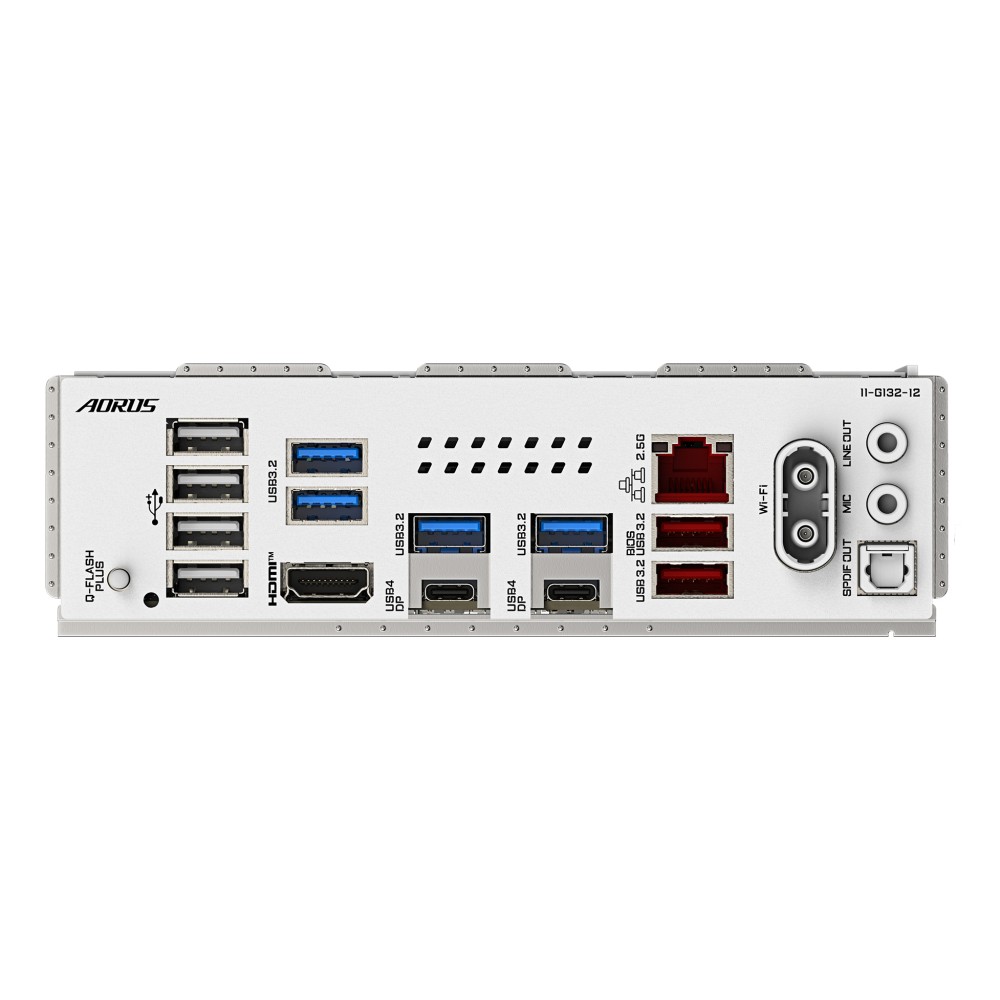

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital audio optical out | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8922AE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.64 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.64 kg |
| Weight | 2.64 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.64 kg |
| Weight | 2.64 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-X870EAEW7I, 127181, X870E A ELITE WIFI7 ICE, 10472726, 553622, 2120907 |
