GIGABYTE Z890 D PLUS Motherboard – Intel Core Ultra, DDR5, 2.5GbE LAN
£185.91 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel Z890 chipset for LGA 1851 socket, supporting Intel Core Ultra (Series 2) CPUs
- Four DDR5 DIMM slots, max 256 GB, up to 9466 MHz (OC)
- PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot for high-speed storage
- Four M.2 slots (one PCIe 5.0, three PCIe 4.0) and four SATA III connectors with RAID support
- Integrated 2.5 Gigabit Ethernet LAN
- ATX form factor with 7.1 channel HD audio
- 3-year warranty
Payment Methods:
You may also like
GIGABYTE Z890 D PLUS – Next-Gen Core Ultra Ready
The GIGABYTE Z890 D PLUS Motherboard – Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 9466MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2 is built for enthusiasts and professionals. It provides a robust platform for the latest Intel Core Ultra (Series 2) processors. This board offers exceptional speed and connectivity. We designed it for high-performance computing setups.
Core Metrics
| Metric | Spec. |
|---|---|
| Processor Socket | LGA 1851 |
| Memory Type | DDR5-SDRAM |
| Max. Memory Speed | 9466 MHz (OC) |
| M.2 Slots | 4 (1x PCIe 5.0, 3x PCIe 4.0) |
| LAN | 2.5 Gigabit Ethernet |
| Form Factor | ATX |
Power Delivery and Stability
This motherboard features a 12+1+2 phases VRM design. It ensures stable power delivery to your CPU. This is crucial for sustained performance. Overclocking capabilities are also enhanced. We provide reliable operation even under heavy loads.
Advanced Storage Options
We have equipped this board with four M.2 slots. One supports PCIe 5.0 for ultra-fast storage. The remaining three offer PCIe 4.0 speeds. This diverse M.2 configuration allows for flexible storage solutions. You can build a very fast and responsive system.
Blazing Fast Memory Support
Experience incredible memory speeds with DDR5 support up to 9466MHz (OC). The four DIMM slots allow for up to 256 GB of RAM. This provides ample bandwidth for demanding applications. It also ensures smooth multitasking.
Expanding Your Connectivity
The integrated 2.5GbE LAN provides faster network speeds. This is ideal for online gaming and large file transfers. You also benefit from USB 3.2 Gen 2 connectivity. It offers rapid data transfer for external devices.

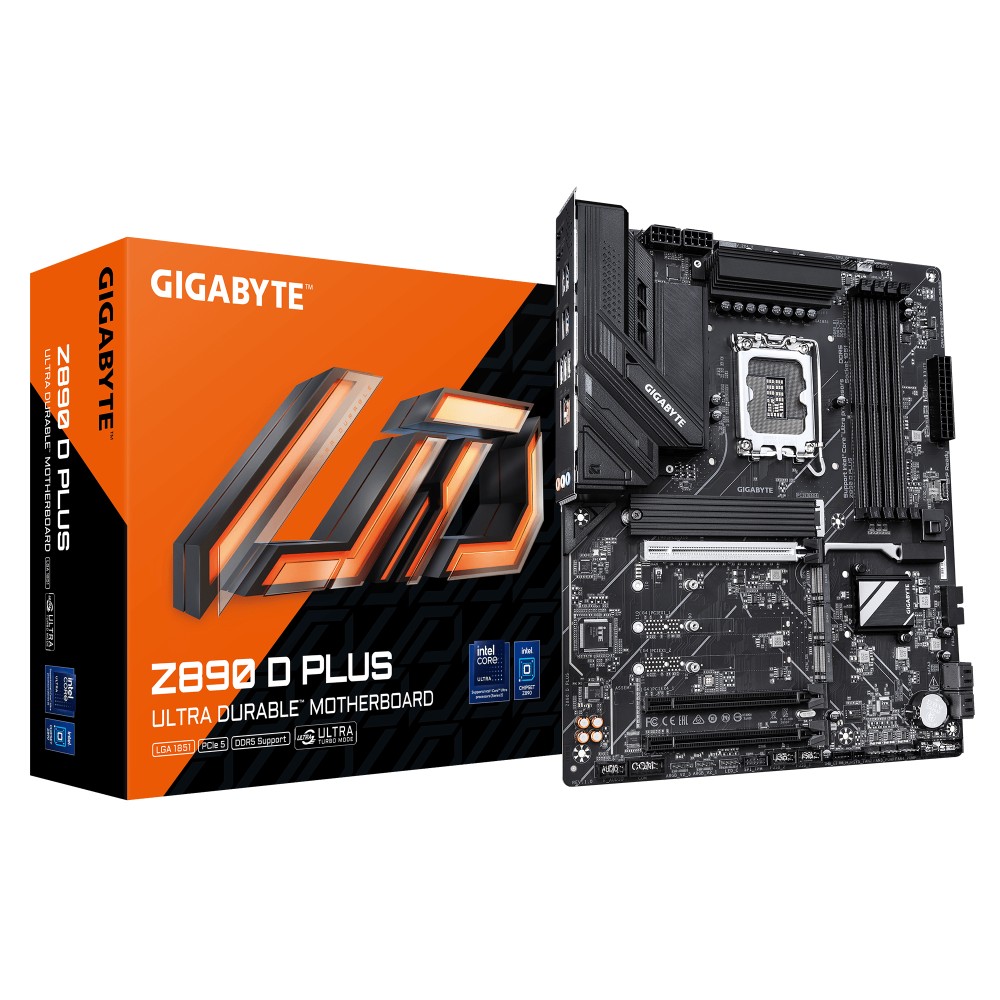

What’s in the Box
- GIGABYTE Z890 D PLUS Motherboard
- Screws
- Norton® Internet Security (OEM version)
Before You Order
- Confirm your chosen CPU uses the LGA 1851 socket.
- Check your PC case supports the ATX motherboard form factor.
- Ensure your power supply has the necessary 8-pin EPS connectors.
Frequently Asked Questions
Q: Which Intel CPUs are compatible with this board?
A: It supports Intel Core Ultra (Series 2) CPUs with an LGA 1851 socket.
Q: How many M.2 drives can I install?
A: You can install up to four M.2 drives, including one PCIe 5.0 slot.
Q: Does this motherboard support Wi-Fi?
A: This specific model does not include integrated Wi-Fi.
Q: What is the maximum DDR5 memory speed supported?
A: It supports DDR5 memory speeds up to 9466MHz when overclocked.
Q: Does it have Thunderbolt capabilities?
A: Yes, it includes two Thunderbolt headers for future expansion.
Our Verdict
The GIGABYTE Z890 D PLUS is an excellent choice for building a high-performance system. Its robust power delivery and extensive connectivity make it future-proof. This board is perfect for gamers and content creators. It also comes with a 3-year warranty for your peace of mind.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Thunderbolt headers | 2 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9466 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| HDCP version | 2.3 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.7 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.7 kg |
| Weight | 1.47 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.7 kg |
| Weight | 1.47 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-Z890DPLUS |
