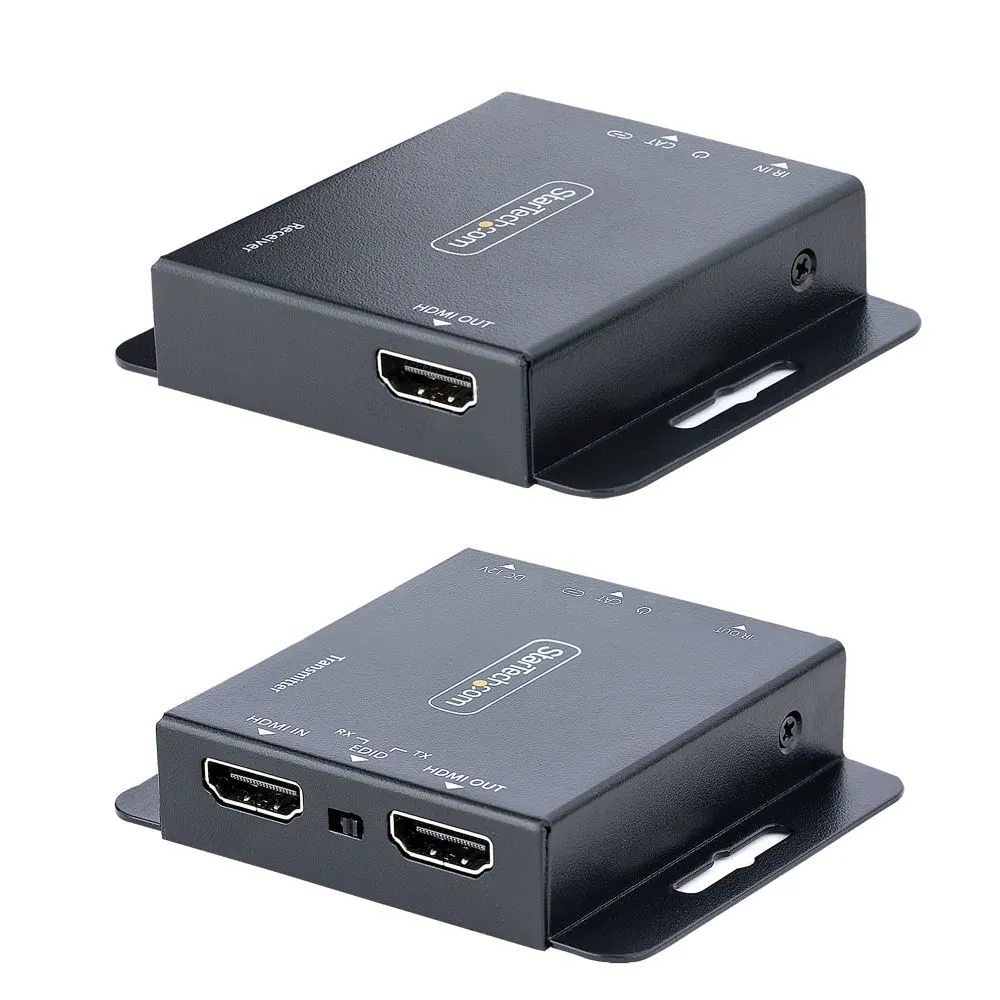

StarTech.com 4K HDMI Extender over CAT6/CAT5, 30Hz/1080p 60Hz, IR Remote
£120.24 inc VAT
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 4K HDMI transmitter and receiver kit over Cat5e/Cat6 cable
- Maximum resolution 3840 x 2160 pixels at 30Hz with 10.2 Gbit/s bandwidth
- Extends signal up to 70 metres with Power over Cable support
- HDCP 1.4 compliant with 7.1 channel audio output
- Metal housing in black with Link and Power LED indicators
- Daisy chain support with IR extension via included blaster and receiver
Payment Methods:
You may also like
PREVO DisplayPort to HDMI Adapter 0.2m Black
In stock
Cables Direct 77DVHD-3302 HDMI-DVI Adapter Cable
In stock
TARGET HDMI to DVI Cable, 3m, Black
In stock
StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable | 4K 30Hz AV Transmitter & Receiver Kit
The StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control is a wired AV solution for UK installations. It suits digital signage, boardrooms, and tradeshow setups. The kit transmits 4K 30Hz signals up to 40 metres or 1080p up to 70 metres using standard Cat5e or Cat6 cable. Because it supports Power over Cable, you only need one power source for both units.
Technical Specifications
| Metric | Spec. |
|---|---|
| Maximum resolution | 3840 x 2160 pixels (4K 30Hz) |
| Maximum transfer distance | 70 m (1080p), 40 m (4K) |
| Cable types supported | Cat5e, Cat6 |
| Audio output channels | 7.1 channels |
| Bandwidth | 10.2 Gbit/s |
| HDCP version | 1.4 |
Extend HDMI over Ethernet with Confidence

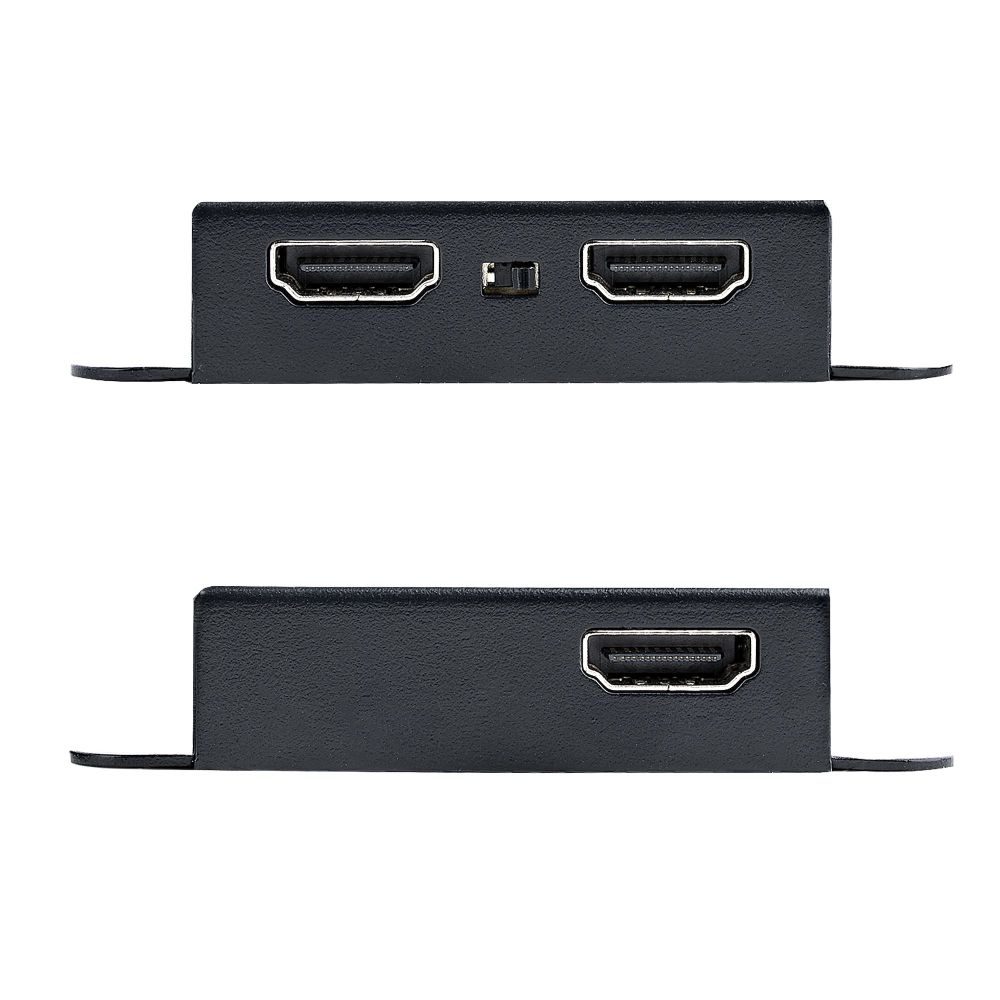

This extender kit uses a single CAT6/5e cable to move HDMI signals away from the source. You get a local HDMI output on the transmitter, so you can cascade to another extender or feed a local display. Because the metal housing includes built-on brackets, it supports tidy, professional installs. However, rack mounting is not stated in this listing; confirm mounting needs for your cabinet.
Simplify Power and Control

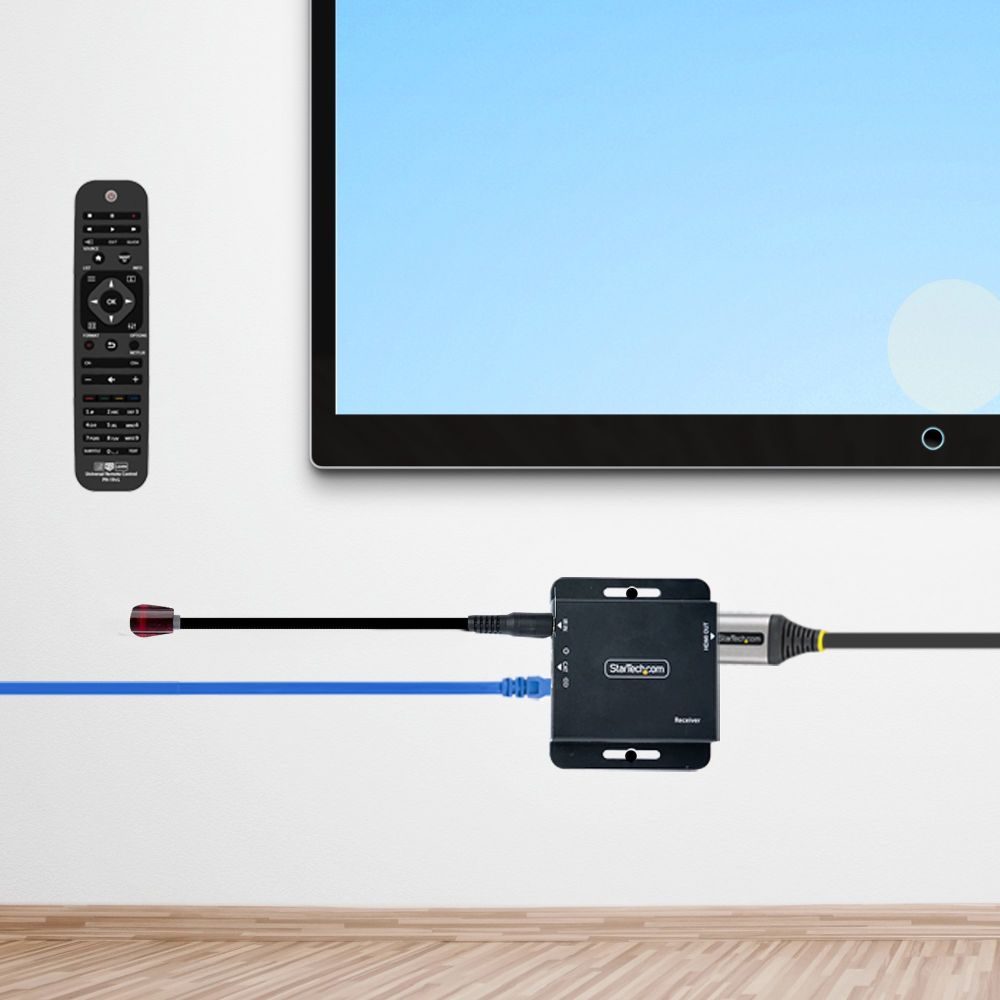

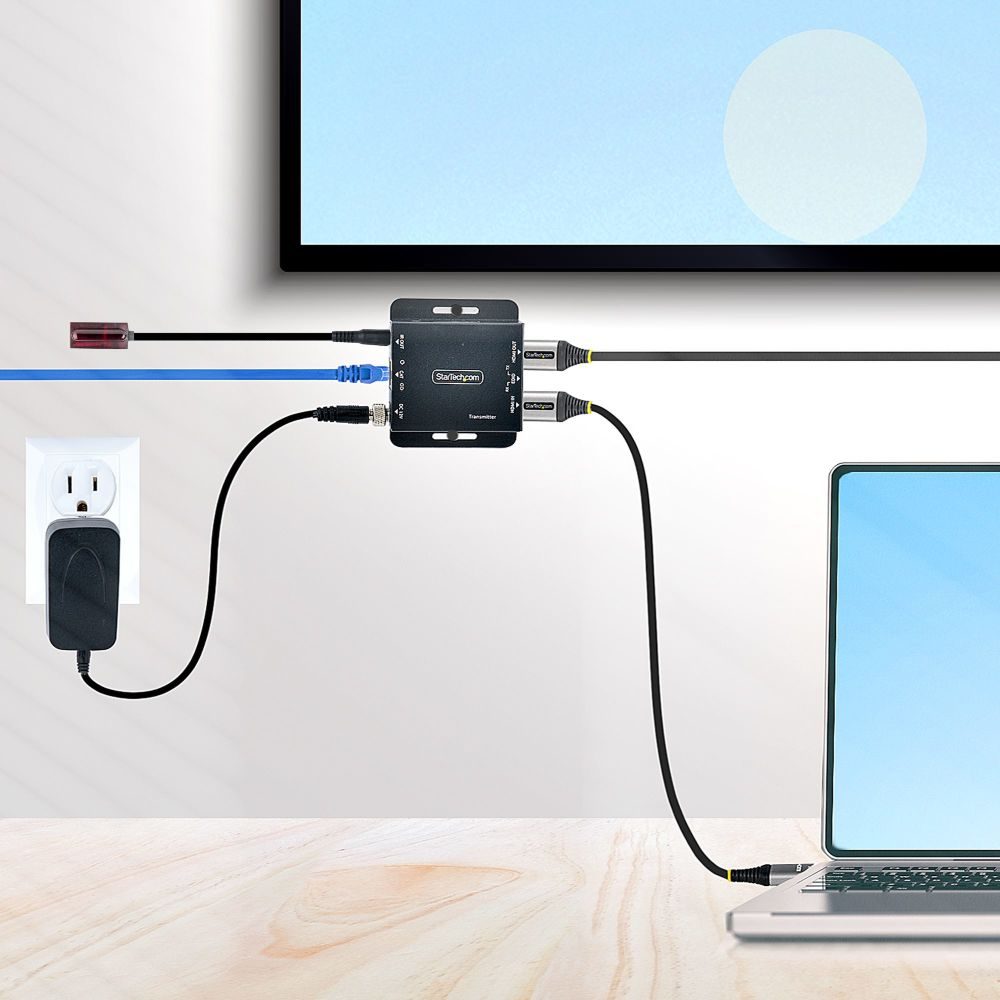

Power over Cable (PoC) means only the transmitter unit needs an AC adapter. The receiver draws power through the Ethernet link. IR extension is supported using the included IR blaster and receiver. So you can control a source device from the remote display location. LED indicators show Link and Power status for quick diagnostics.
4K 30Hz Picture with 7.1 Audio
The unit supports HDMI 1.4 and 4:4:4 chroma subsampling for a clear image. It handles 7.1 channel audio for home cinema or boardroom use. For example, you can run a 4K 30Hz signal to a TV or projector across a single cable. In practice, this suits fixed-rate video playback rather than high-refresh gaming.
Easy Installation and Build Quality
Plug-and-play operation requires no drivers. The compact metal chassis measures 69 mm × 57 mm × 17 mm and weighs 130 g. For UK installs, confirm the AC adapter plug type and that the power input suits your site. Also verify UKCA or CE marking requirements with your compliance team.

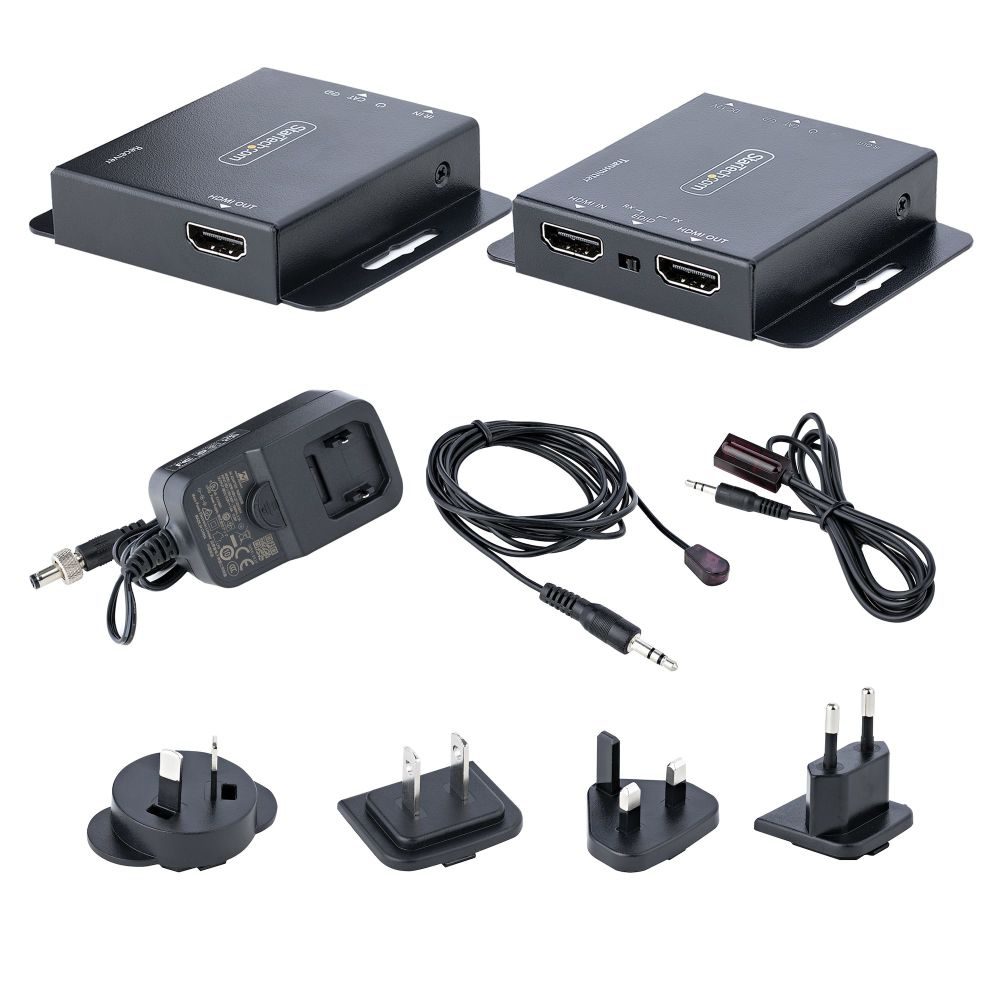

In the box
- Transmitter unit
- Receiver unit
- IR blaster
- IR receiver
- AC adapter (external)
- Built-on mounting brackets (on unit)
Before you order
- Confirm the AC adapter uses a UK Type M plug or arrange a compatible adapter.
- Verify your CAT5e/CAT6 cabling is wired to standard and supports the required distance.
- Check HDCP 1.4 compatibility with your source and display devices.
- Confirm that IR blaster and receiver placement will suit your room layout.
Buyer FAQs
Does this extender support 4K 60Hz?
Can I cascade multiple units?
Is PoC supported?
What cable types are supported?
What is the maximum distance?
Is rack mounting supported?
Summary & warranty
This kit is ideal for UK AV installers needing reliable 4K 30Hz extension over standard Ethernet cable. It suits digital signage, boardrooms, and tradeshows where long HDMI runs are required. Covered by the applicable manufacturer warranty.
| Material | Metal |
|---|---|
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| LED indicators | Link, Power |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDCP version | 1.4 |
| Harmonized System HS code | 85176200 |
| Compliance certificates | CE, RoHS |
| Remote IR output | 1 |
| Remote IR input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| DC-in jack | Yes |
| Input current | 0.3 A |
| Output current | 1 A |
| Power plug type | Type M |
| AC input voltage | 100 – 240 V |
| Power consumption typical | 0.1 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operating relative humidity H-H | 20 – 90% |
| Storage temperature T-T | -20 – 60 °C |
| Operating temperature T-T | 0 – 40 °C |
| Width | 69 mm |
| Package depth | 116 mm |
| Height | 17 mm |
| Depth | 57 mm |
| Package width | 200 mm |
| Package height | 77 mm |
| Weight | 130 g |
| Package weight | 500 g |
| IR receiver included | Yes |
| IR blaster included | Yes |
| AC adapter included | Yes |
| Master outer case width | 410 mm |
| Master outer case length | 420 mm |
| Master outer case height | 370 mm |
| Products per master outer case | 30 pc(s) |
| Distributor SKUs | V285863, CE25307, 94632, 7406124, EXTHDMI4K40C6P1, 10362223, 374908, NS94632 |
